Integrated Function Versatile CNC Plate Cutting And Drilling Machine

Summary on CNC Plate Cutting and Drilling Machine:

1) CNC Plate Cutting and Drilling Machine is the sophisticated version of CNC Strip Plate Cutting machine;

2) As you can find from the first and second photos, CNC Plate Cutting and Drilling Machine has both plate shape cutting and fixed point drilling function;

3) CNC Plate Cutting and Drilling Machine is featured product of Wuxi JACK. Up to the year of 2023, Wuxi JACK has exported numerous sets of this novel equipment to overseas market, especially Russia and East Europe.

1.     Outline on CNC Plate Cutting and Drilling Machine:

1)      As its name suggests, this CNC Plate Cutting and Drilling Machine is the combination of CNC Plasma Cutting machine and CNC Plate Drilling machine, integrating function of plate cutting and drilling in the working principle of thermal cutting and mechanical drilling;

2)      For plate shape cutting function, the product is synthesis of CNC Flame Cutting Machine and CNC Plasma Cutting machine;

3)      Functions: In all, this integrated function CNC Plate Cutting and Drilling machine has the capability of Oxyacetylene shape cutting, plasma shape cutting, and mechanical drilling holes on metal plates,

Delivered with the finished product of CNC Plasma Cutting Machine:

a)       Desired contour and size;

b)      Drilled holes of desired position and diameter;

c)       Positioning accuracy on plate cutting and drilling of ±0.5mm.

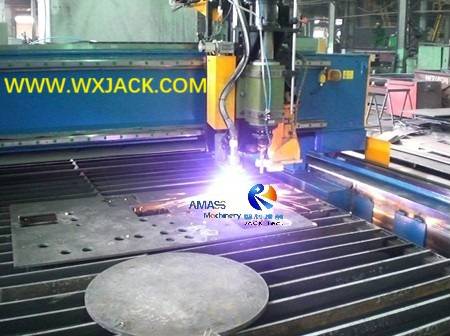

Finished workpiece cut and drilled steel plate from Wuxi JACK CNC Plate Cutting and Drilling Machine: (Fig.1)

2.     Structure and Main Units of the CNC Plate Cutting Machine with Drilling Function:

1)      Please check attached picture and sketch. This CNC Plate Cutting and Drilling Machine has the structure of gantry moving along its rails. The extended version is there is a set of drilling cooling system at non-working side of the gantry beam:

Circulating ventilation system in Wuxi JACK CNC Plate Cutting and Drilling Machine: (Fig.2)

2)      Role: To have better environment protection, ventilation system of fume extractor is put alongside working platform of the CNC Plate Cutting and Drilling Machine, to dissipate fumes generated in the process of thermal cutting and drilling;

3)      Water Cooling System in the CNC Plate Cutting and Drilling Machine:

a)       This system is used for cooling the drilling head during working of the CNC Plate Cutting and Drilling machine;

b)      Spraying type system is used for drilling cooling in the process of work. It includes tanks for coolant cutting fluid, hydraulic valve, pump, spraying system, etc.;

4)      Plasma power supply is put on the gantry of this CNC Plasma Cutting Machine and moves along with the gantry during work;

5)      Workpiece Clamp Unit in the CNC Plate Cutting and Drilling Machine:

a)       For stability of plate cutting and drilling process during working of the CNC Plate Cutting and Drilling Machine, workpiece (Metal plate) needs to be clamped tightly in the process of thermal cutting and drilling;

b)      This function is performed by hydraulic clamps which are distributed along the edges of CNC Plate Cutting and Drilling Machine working table, with mechanical clamps (manual) and hydraulic clamps on drilling heads;

c)       Hydraulic station (of hydraulic clamps) equipped with the CNC Plate Cutting and Drilling Machine has the power of 5.5 kW;

6)      Arrangement of Gas Hose, Cables and CNC system in the CNC Plate Cutting and Drilling Machine:

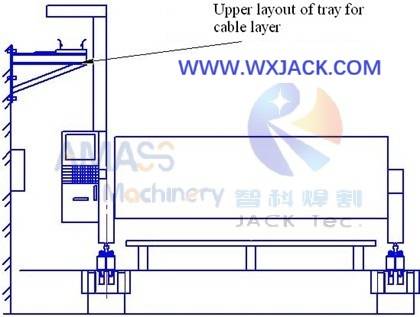

a)      Lateral view of this CNC Plate Cutting and Drilling machine please check below sketch: (Fig.3)

b)      A piece of overhead installed bracket is fixed into wall of CNC Plate Cutting and Drilling Machine workshop, with cables/ gas hoses of the machine slide along with gantry movement during work;

7)      CNC and Control system of the CNC Plate Cutting and Drilling Machine:

a) This is the brain of the CNC Plate Cutting and Drilling Machine;

b) It has several working languages, including Chinese, English, Russian, etc. to choose from;

8)      Supplementary Notes on CNC Plate Cutting Machine:

a)       For introduction on standard version of CNC Plasma Cutting Machine, please check product section of “Multi Cutting Capacity CG4000 Double Drive CNC Plasma Cutting machine”;

b)      For introduction on standard version of CNC Flame Cutting Machine, please check product section of “Basic Configuration CG4000 Single Drive Flame CNC Strip Plate Cutting machine”.

3.     Technical Parameters of the CNC Plate Cutting and Drilling Machine:

Below are technical parameters for this Multi-Function Versatile CNC Plate Cutting Machine with mechanical drilling function (CNC Plasma Cutting Machine):
