The Meaning of "Multi-Capacity" for CNC Plasma Plate Cutting Machine:
1) We give the name of this product section “Multi Cutting Capacity”, because in CNC Plasma Plate 2) Cutting Machine, it has numerous grades of max. cutting thickness;
This is different from CNC Flame Cutting Machine.
1. Why Customer Need CNC Plate Plasma Cutting Machine?
CNC Plasma Cutting Machine and CNC Flame Cutting Machine dedicate on different divergent of application:
1) Oxygen Cutting Materials: CNC Flame Cutting Machine is good at cutting carbon steel of medium and large thickness;
2) Plasma Cutting Materials: While CNC Plasma Cutting Machine specializes in thin and medium metal plate. Especially when cutting stainless and Al (Very seldom thicker than 40mm) for plate shape cutting, the CNC Plasma Plate Cutting machine prevails over CNC Flame Cutting Machine completely;
3) Technical Features of CNC Plasma Cutting Machine versus CNC Flame Cutting Machine:
a) Working Speed: For workpiece thickness range of less than 32mm, shape cutting in CNC Plasma Cutting Machine has working speed three to four times that of CNC Flame Cutting Machine (1600mm ~ 3000 mm/min. in CNC Plasma Cutting Machine compared with 500 ~ 800 mm/ min. in CNC Flame Cutting Machine);
b) Cutting Slag: Besides, CNC Plasma Cutting Machine delivers with much less cutting slag, this makes plasma CNC Strip Plate Cutting Machine a very high efficient equipment for customers.
2. Structure of the CG4000 CNC Plate Plasma Cutting Machine:
1) Formation: The 4,000mm cutting width plasma CNC Plate Cutting Machine is formed from machine frame of CG4000 gantry type CNC Strip Plate Cutting Machine (The biggest selling volume), and configured with one or two sets of plasma power supply in various models;
2) Max. Cutting Thickness: Its cutting capacity can be from max. 22mm to max. 45mm workpiece sheet metal thickness;
3) Where does Plasma Power Supply Located in CNC Plate Plasma Cutting Machine?
a) For high thickness plasma cutting power supply, such as American Hypertherm HPR130, due to its large size and heavy weight, it is generally put on the ground alongside frame of the CNC Plate Cutting Machine, as shown in the second photo:

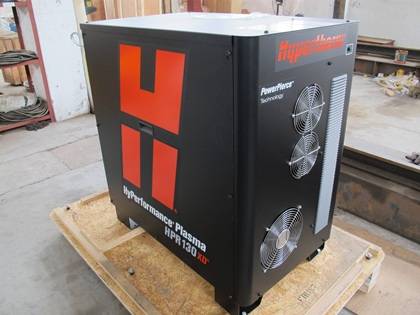

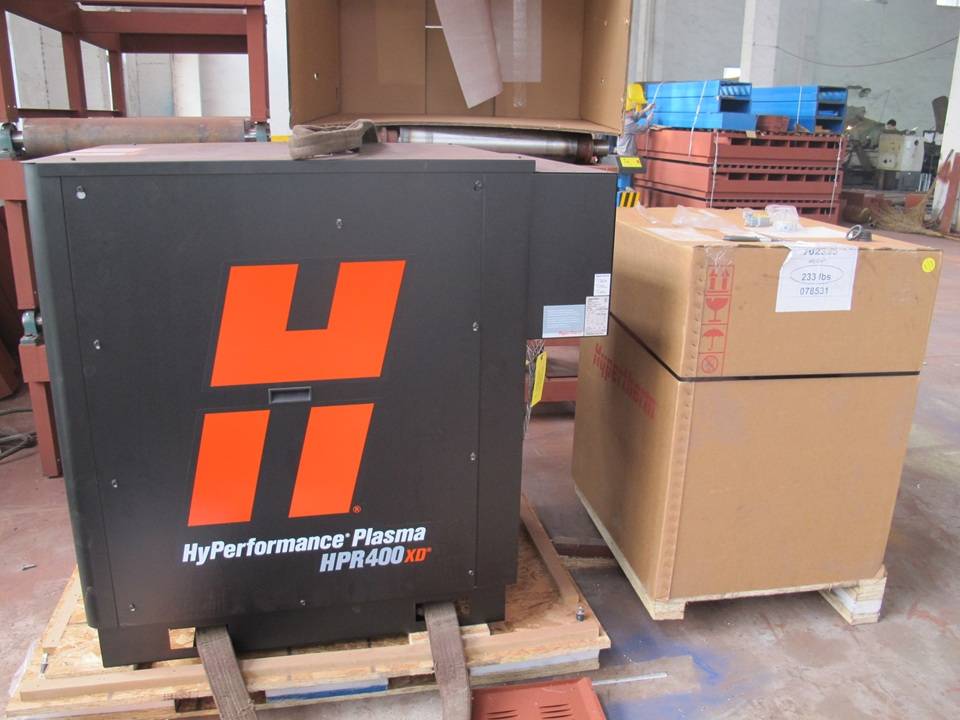

Laying large model plasma power supply on workshop floor of CNC Plasma Cutting Machine:
(Fig.1)
b) For smaller thickness of plasma cutting power supply, such as American Hypertherm POWERMAX 1650, it can be put on the side beam of the CNC Plasma Cutting Machine:

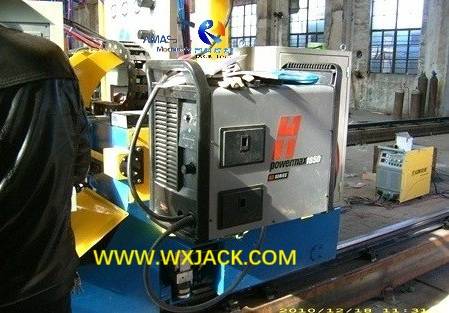

Installing small model plasma power supply onto gantry frame of CNC Plasma Cutting Machine: (Fig.2)
3) In minor application, the CNC Plasma Plate Cutting Machine is compact table type, for cutting relatively small size and thickness workpiece, especially non ferrous metal such as stainless steel and Al. For detail, please check product section of “Small Part Precise Cutting CG1500 Table Type CNC Plasma Cutting Machine”.

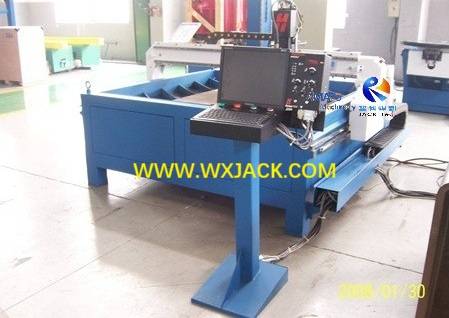

Tailor made fixed table structure high precision CNC Plasma Cutting Machine: (Fig.3)
3. Configuration of the CG4000 CNC Plate Plasma Cutting Machine:
1) Cutting Torch Configuration in CNC Plasma Cutting Machine:
a) Sometimes the CNC Plasma Cutting Machine only has CNC control single torch;

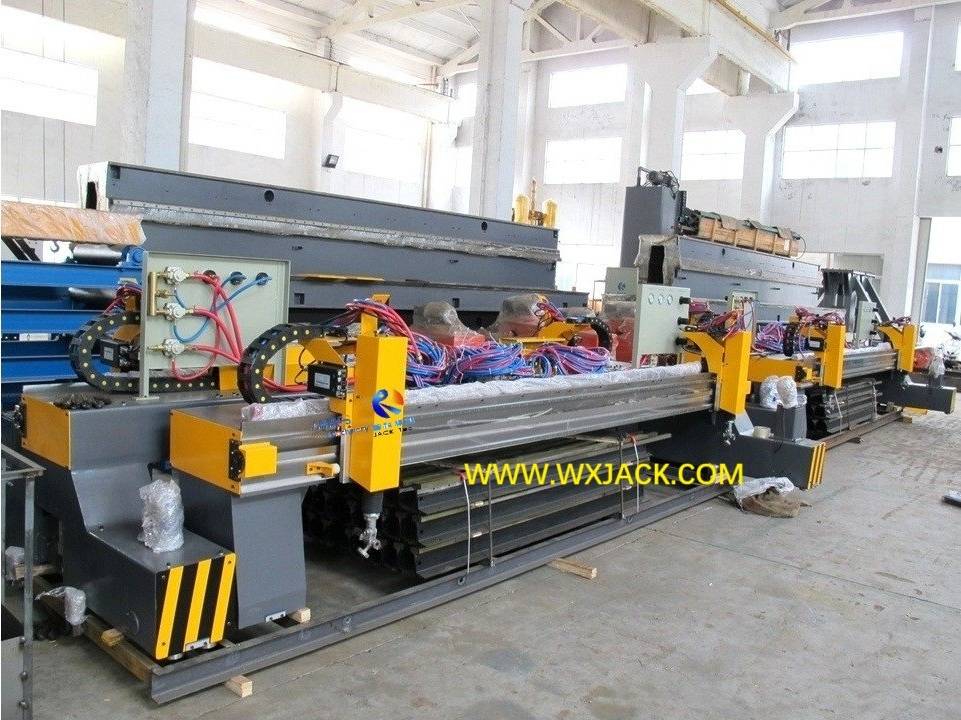

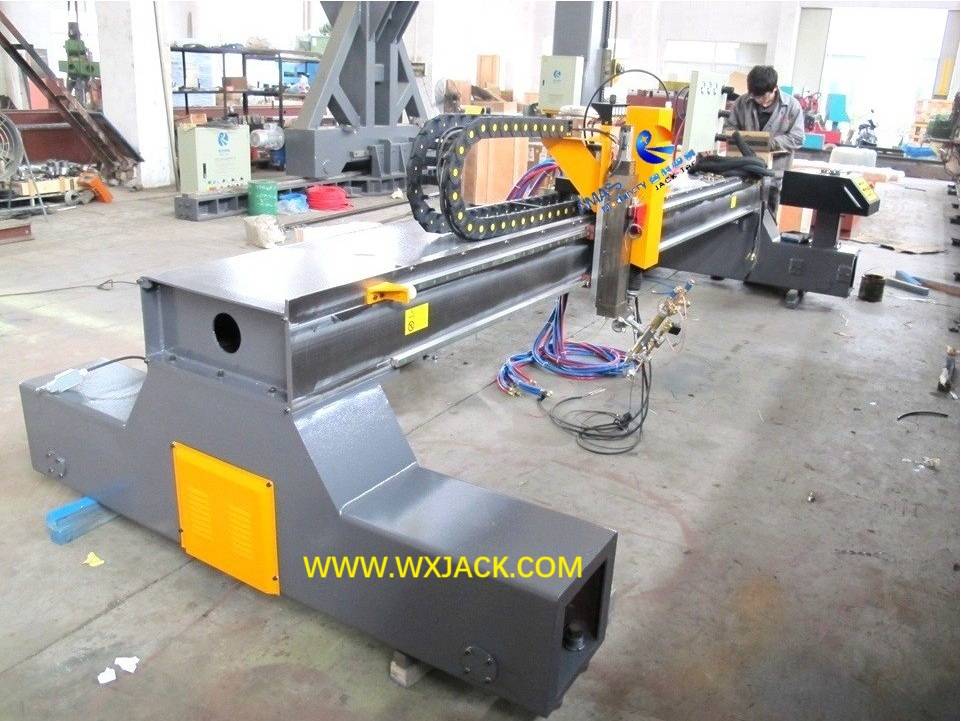

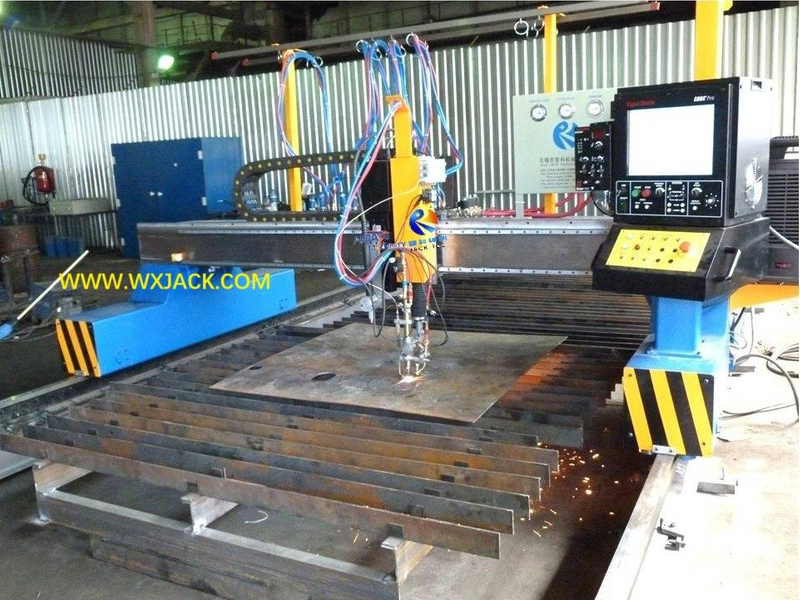

b) Sometimes it is equipped with flame strip torches, as the CNC Plate Cutting Machine shown in the first and fourth photo: In essence this is a set of CNC Plasma Flame Cutting Machine:

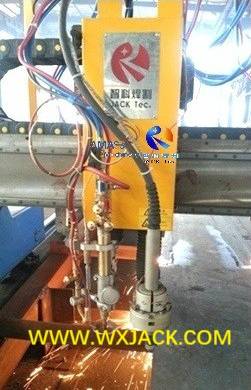

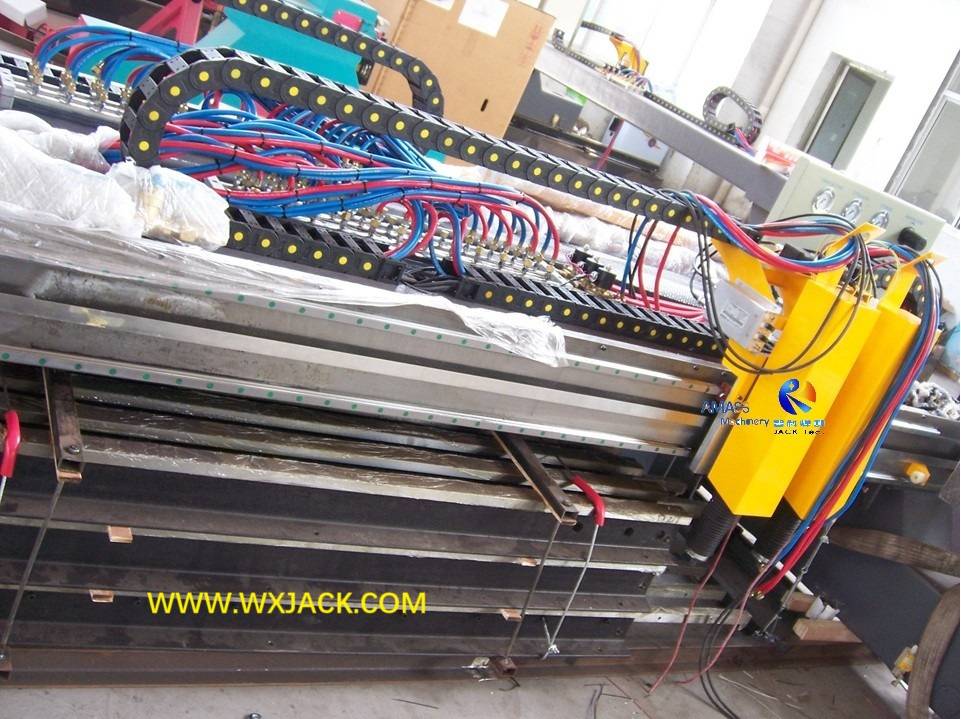

CNC cutting torch equipped in CNC Plasma Cutting Machine: (Fig.4)

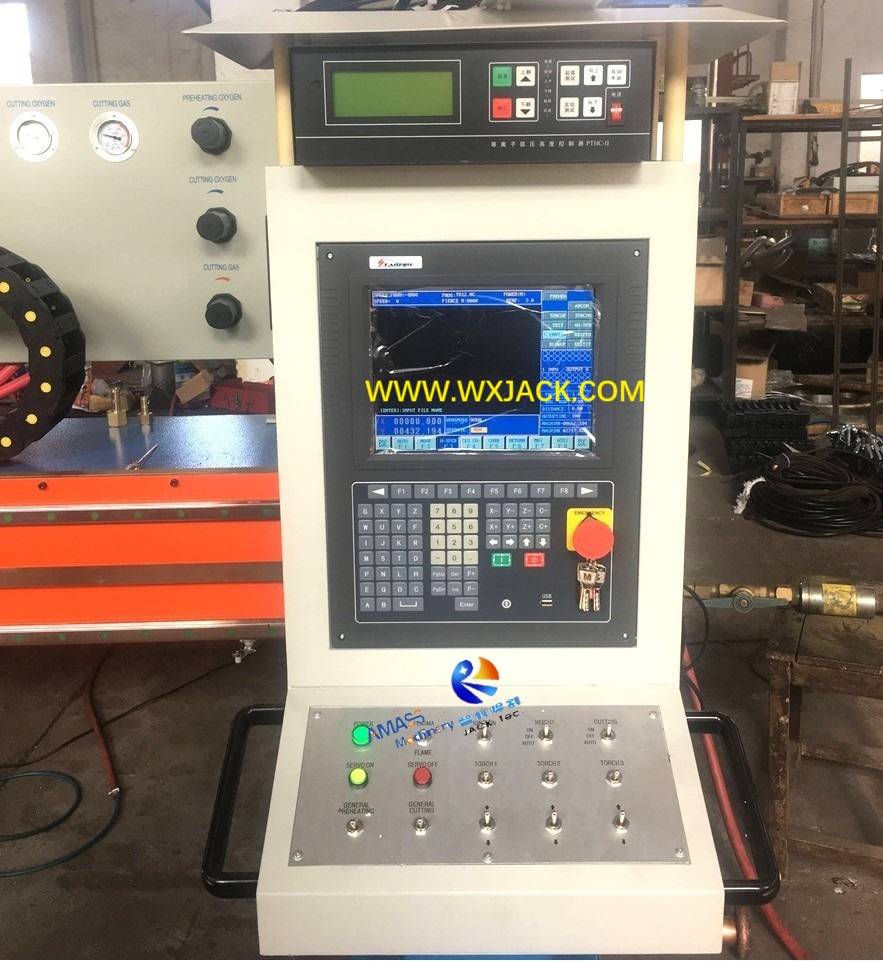

2) In practical use, CNC Plate Plasma Cutting Machine is usually supplied with arc voltage height controller for its cutting torch (Please check the third photo). For introduction on this important function element, please check product section of “Plasma and Flame Strip 4m CNC Plasma Plate Cutting Machine”.
Cutting torch height controller equipped in CNC Plasma Cutting Machine: (Fig.5)
3) Factors Affecting Price of Plasma CNC Strip Plate Cutting Machine:
a) Machine Quotation Factor: Price of CNC Plasma Plate Cutting Machine varies on the basis of cutting capacity of the thickness its plasma power supply can offer: The higher the thickness, the higher the machine price;
b) Quantity of Plasma Cutting Torches in CNC Plasma Cutting Machine:
i) The second factor is, in CNC Plate Plasma Cutting Machine, one set of CNC cutting torch is powered with one set of plasma power supply;
ii) So, most of the CNC Plasma Cutting Machine is equipped with one set of cutting torch;
iii) If it is necessary to have two or more sets of cutting torch, the price of the CNC Plate Cutting Machine nearly doubles: Basically speaking, quotation of plasma power supply account for the biggest share in the total cost of CNC Plasma Plate Cutting Machine;
4) Plasma Power Supply Brands for Choice: There are several brands of plasma power supply to choose from, for CNC Plasma Cutting Machine: From U.S.A. Hypertherm to Chinese HUAYUAN. In each of the brand, there are several models to select based on expected cutting capacity of the CNC Plasma Cutting Machine.
4. Technical Parameters of Plasma CNC Plate Cutting Machine:
Below are technical parameters for Multi Cutting Capacity double drive CG4000 CNC Plasma Plate Cutting Machine (CNC Plate Cutting Machine):
Multi Cutting Capacity CG4000 Single Drive Plasma CNC Strip Plate Cutting Machine (CNC Plasma Cutting Machine) |
Cutting Railway Span | 4000 mm |
Min. to Max. Workpiece Width | 80 ~ 3200 mm |
Cutting Railway Length | 15000 mm |
Max Work Piece Length | 13000 mm |
Drive for Gantry Movement | Double Servo Drive (For 5m and above rail span should be double drive) |
Quantity of CNC Plasma Cutting Torches | Suggestion is 1~ 2 sets |
Min. to Max. Quality Cutting Thickness | 0.3/1 mm ~ 22/25/35/45 mm (Depends on specific plasma power supply) |
Max. Cutting Off Thickness | 40/45/55/65 mm (Depends on specific plasma power supply) |
Min. to Max. Cutting Speed | 1000 ~ 3000 mm/ min. (Inversed with cutting thickness) |
