CG Series Popular Automatic Full Range CNC Plasma Cutting Machine

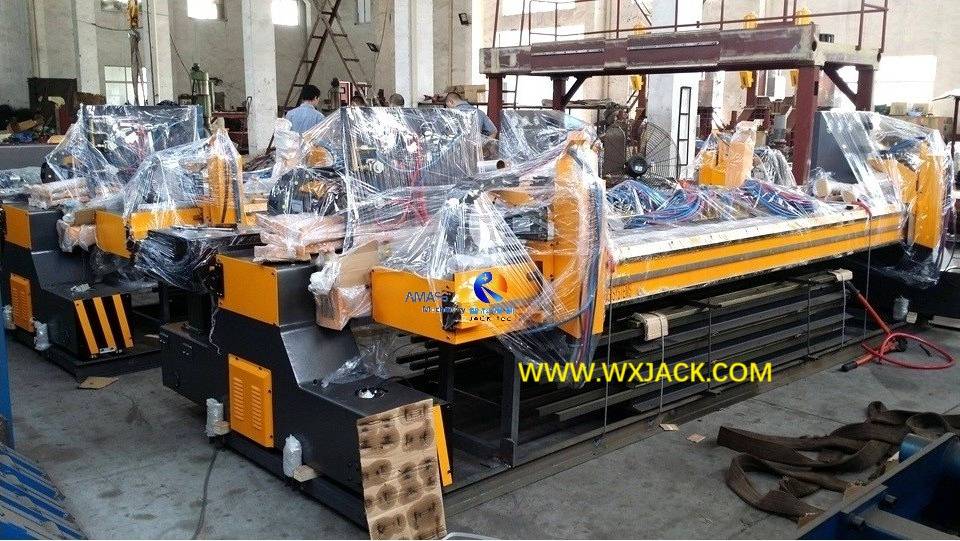

The first to three photos exhibit Wuxi JACK CNC-CG series CNC Plasma Plate Cutting Machine of different models/ size and configuration.

1.       The Critical Specifications in Choosing Plasma CNC Strip Plate Cutting Machine:

1)      Max. Effective Cutting Width: Whatever flame plate cutting or plasma plate cutting, for CNC-CG series CNC Plate Cutting Machine, the most important specification is maximum cutting width of metal plate, which determines the horizontal gantry width (“Rail Span” in the below parameter table) of the CNC Cutting Machine;

2) For example, CNC-CG4000 model CNC Cutting Machine refers to Max. 3200 mm effective cutting width;

3) Max. Effective Cutting Length: On the other hand, max. length of workpiece does not count so much in choosing CNC Plate Cutting Machine: Just make longer or shorter traveling rails of the machine:

Design layout of CNC-CG4000 CNC Strip Plate Cutting Machine: (Fig.1)

4)  Max. Cutting Thickness of For CNC Plasma Plate Cutting Machine:

a) The second essential specification is cutting capacity (Largest cutting thickness) of the CNC Plate Cutting Machine,

b) Which determines specific model of plasma power supply equipped with the CNC Cutting Machine, and hence total manufacturing cost and selling price of the CNC Plasma Plate Cutting Machine.

2.       Common Seen Configurations of CNC Plasma Plate Cutting Machine:

1)  Applicable Focus of CNC Plate Cutting Machine on Flame Cutting and Plasma Cutting:

a) Plasma plate cutting and flame plate cutting have different fitting area:

b) In practical use, there are assortment of combinations in application of the CNC-CG series CNC Plasma Plate Cutting Machine:

c) Either for sole purpose of CNC Plasma Plate Cutting Machine,

d) Or combined with flame plate cutting into the CNC Cutting Machine,

e) Making the equipment into a set of CNC Plasma Flame Cutting Machine, with the capability of both plate shape cutting and plate strip cutting:

Wuxi JACK Fixed Working Table Structure CNC Plasma Plate Cutting Machine: (Fig.2)

Wuxi JACK Motorized Gantry Moving Structure CNC Plasma Flame Cutting Machine: (Fig.3)

2)    Business Examples:  For detail on areas of expertise of flame plate cutting and plasma plate cutting respectively, please check product section of “Multi Size Gantry Moving Flame CNC Strip Plate Cutting Machine” and “Multi Structured High Precision CNC Plasma Plate Cutting Machine”;

3)  Business Application:    For introduction on sole purpose plasma CNC Cutting Machine, which is also a special type equipment, please check product section of “CGT1500 High Stability Table type CNC Plasma Plate Cutting Machine”.

3.       Technical Aspect of CNC Plasma Flame Cutting Machine:

1)      Nesting Software being Applied in CNC Plate Cutting Machine: (Fig.4)

a)       CNC Plasma Plate Cutting Machine is usually applied for completing high precision plate shape cutting. So, sometimes, complicated contour of finished product needs to be cut, which needs to be made with the help of nesting software;

b)     Nesting Software Configuration: At early stage, this nesting software is an optional unit for CNC Plate Cutting Machine. Or, quotation of the basic and standard models CNC Plasma Plate Cutting Machine does not include that of the nesting software. Nowadays, with the continuous upgrading function of the CNC controller, the CNC controling station itself of the CNC Plate Cutting Machine has nesting capability also;

c)   G Code Versus Nesting Software:   In CNC Plate Cutting Machine, The conventional CNC plate cutting is made with G code programming, which is very helpful for simple and regular shape cutting; While for sophisticated and or irregular cutting, nesting software can improve efficiency and accuracy of the CNC Plate Cutting Machine performance in large extent;

2)      Put into Use of CNC Plate Plasma Cutting Machine:

a)     Cutting Gas:  CNC Plasma Plate Cutting Machine uses compressed air as its cutting gas, without involvement of acetylene and or propane;

b)    Plasma Cutting Consumables and Daily Service:  On the other hand, series of consumables from nozzle to cap need to be maintained and replaced regularly based on plasma cutting frequency at customer site. For this reason, operators of the CNC Plate Plasma Cutting Machine need to grasp corresponding skill and be a qualified one:

Manual clip of CNC Plasma Plate Cutting Machine: (Fig.5)

c)    Friendly Operation of Wuxi JACK CNC Plasma Plate Cutting Machine:

i) Problem: Official running of CNC Plasma Flame Cutting Machine usually produce a lot of smoke and dust;

ii) Caution and Suggestion: For this reason, during working of the CNC Plasma Plate Cutting Machine, it had better to have operator be certain distance away from the CNC Plate Cutting Machine as far as possible;

iii) Gadget: Meanwhile, to make sure managing on running of the CNC Cutting Machine effectively, a proper remote controller is very conducive to protect health of operator, while maintaining high standard work performance of the CNC Plasma Plate Cutting Machine at the same time. Indicated as below:

Remote operating pendant equipped with Wuxi JACK CNC Plasma Plate Cutting Machine:

(Fig.6)

4.       Technical Parameters of CNC-CG Series CNC Plasma Plate Cutting Machine:

Below are general technical parameters of CNC-CG series Popular Use Automatic Full Range CNC Plasma Plate Cutting Machine (CNC Plate Cutting Machine):

(More parameters are listed in each of the specific model of the machine):
