Combined CG5000 Double Drive CNC Strip Plasma Flame Plate Cutting Machine

Feature of CNC-CG5000 CNC Strip Flame Plasma Cutting Machine:

The 5m cutting width double drive CNC Strip Flame Plasma Cutting Machine is the counterpart of 4m cutting width single drive CNC Flame Plasma Cutting Machine, in the product family of CNC Strip Plate Cutting Machine.

1. Function and Technical Specialties of CNC Strip Plasma Flame Cutting Machine:

1) Outline:      In a nut shell, this CNC Strip Plasma Flame Cutting Nachine adopts thermal plate cutting of both flame plate cutting and plasma plate cutting, to fulfil the job of plate shape cutting and plate strip cutting, on the raw material of single piece in the max. width of 4,200mm;

2) Mechanical Property:      All the structure members of CNC-CG5000 CNC Plasma Cutting Machine mechanical main body are heat treated with de-stressing and annealing, making its sufficient strength;

3) Gantry Drive:      Double drive mode for its motorized gantry moving makes stable and reliable cutting process of the CNC Strip Plasma Flame Cutting Machine;

4)      Precise linear guideway of the parallel cutting rails makes smooth movement of CNC Plate Cutting Machine gantry, and hence finished product of high precision:

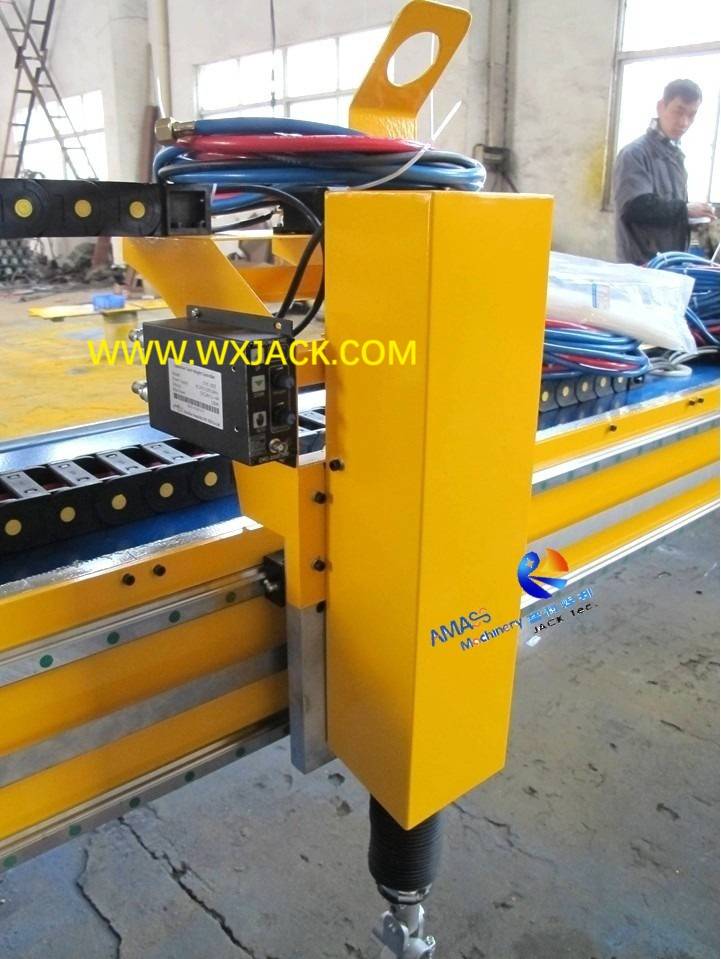

Servo motor drive mechanical gantry frame of CNC Strip Plasma Flame Cutting Machine: (Fig.1)

5)      Main components of this CNC Strip Plasma Flame Cutting Machine are all high quality outsourced parts outsourced from renowned suppliers, especially core components including CNC system/ A.C. digital servo system/ motor reducer/ heavy duty linear guideway, etc.;

6)      Plasma power supply of various specification is available for choice to be equipped in the CNC Strip Plate Cutting Machine based on required cutting capacity in terms of max. plate thickness;

7)      Cutting parameters including Cutting speed/ Thickness/ Piercing can be switched between automatic control by CNC board and manual control anytime, rendering convenient and flexible operation of the CNC Plasma Cutting Machine;

8)      Cutting program for workpieces of this CNC Strip Flame Plasma Cutting Machine is manipulated with embedded software of CNC, as well as the outsourced nesting software FASTCAM as optional;

9)      Torch height controllers of two kinds (Capacitance and Arc Voltage) are applicable for both flame cutting torch and plasma cutting torch in the CNC Plate Cutting Machine, making cutting plate of fluctuated surface reliable and good quality;

10) Related Product Models: For its importance on guaranteeing cutting quality of the CNC Strip Plate Cutting Machine, please check product section of “High Quality CG5000 Double Drive CNC Plasma Cutting Machine”; For working principle of capacitance and arc voltage cutting torch height controllers, please check product section of “Plasma and Flame Strip 4m CNC Plasma Cutting Machine”.

Capacitance style cutting torch height controller for CNC Strip Plate Cutting Machine: (Fig.2)

Arc voltage style cutting torch height controller for CNC Plasma Cutting Machine: (Fig.3)

2. Cutting Utilities of CNC Strip Flame Plasma Cutting Machine:

1) The working site for this flame and plasma CNC Strip Plate Cutting Machine should has provision on gas supply for flame plate cutting and plasma plate cutting of:

Workshop Utility Request of CNC Plate Cutting Machine gas supply:

a)       Preheating Oxygen pressure is 0.5 ~ 1 MPa;

b)      Cutting Oxygen pressure is 1.0 ~ 1.2 MPa;

c)       Acetylene or Propane pressure is 0.25 MPa;

d)      Compressed air available for plasma power supply;

2) Distribution of oxygen and cutting gas (Acetylene and or Propane) from workshop to cutting torches of this flame and plasma CNC Strip Plate Cutting Machine is by way of gas panel and gas supplying bus bar, with the capacity of five cylinders of Oxygen, five cylinders of Acetylene or Propane, relief valve, check valve, and pressure gauge. See below photo:

Oxygen and cutting gas control panel of CNC Strip Flame Plasma Cutting Machine: (Fig.4)

3. Technical Parameters of the 5m CNC Strip Plasma Flame Cutting Machine:

Below are technical parameters for CNC-CG5000 model 5,000mm cutting width double drive Flame and Plasma CNC Strip Plate Cutting Machine (CNC Plasma Cutting Machine):
