A. The Subject of this Page on Wuxi JACK CNC Plate Cutting Machine:

1. This page is for quickly overviewing on Wuxi JACK CNC Flame Plasma Cutting Machine, in the form of graphical description, covering topics of:

1) Product Range of Wuxi JACK CNC Flame Cutting Machine and CNC Plasma Cutting Machine;
2) Technical strong points of Wuxi JACK CNC Plate Cutting Machine, together with CNC Plate Cutting and Drilling Machine;
3) User friendly operation;
4) Superior quality of components and sub-assemblies;
5) Wide variety of personalized configuration of CNC Flame Plasma Cutting Machine;
6) Broad customer base of Wuxi JACK CNC Plate Cutting Machine;


2. Our aim is, with rapid reviewing on this web page, customers and anyone who has interest on product family of CG series CNC Flame Plasma Cutting Machine, can have a general understanding and impression on this superior product of Wuxi JACK;


3. Source: This web page is originated from report slides of “Overview on Wuxi JACK CNC Plate Cutting Machine”.






B. The Function and Usage of Flame and Plasma CNC Plate Cutting Machine, as well as CNC Plate Cutting and Drilling Machine:

1) CG series CNC Flame Cutting Machine and CNC Plasma Cutting Machine is the most important and widely applied 1st operation equipment, for high efficiency cutting off metal plates, especially carbon steel, into designated contour and size;

2) The finished workpiece from Wuxi JACK CNC Plate Cutting Machine: Strip plate, and shape plate parts: (Fig.1)

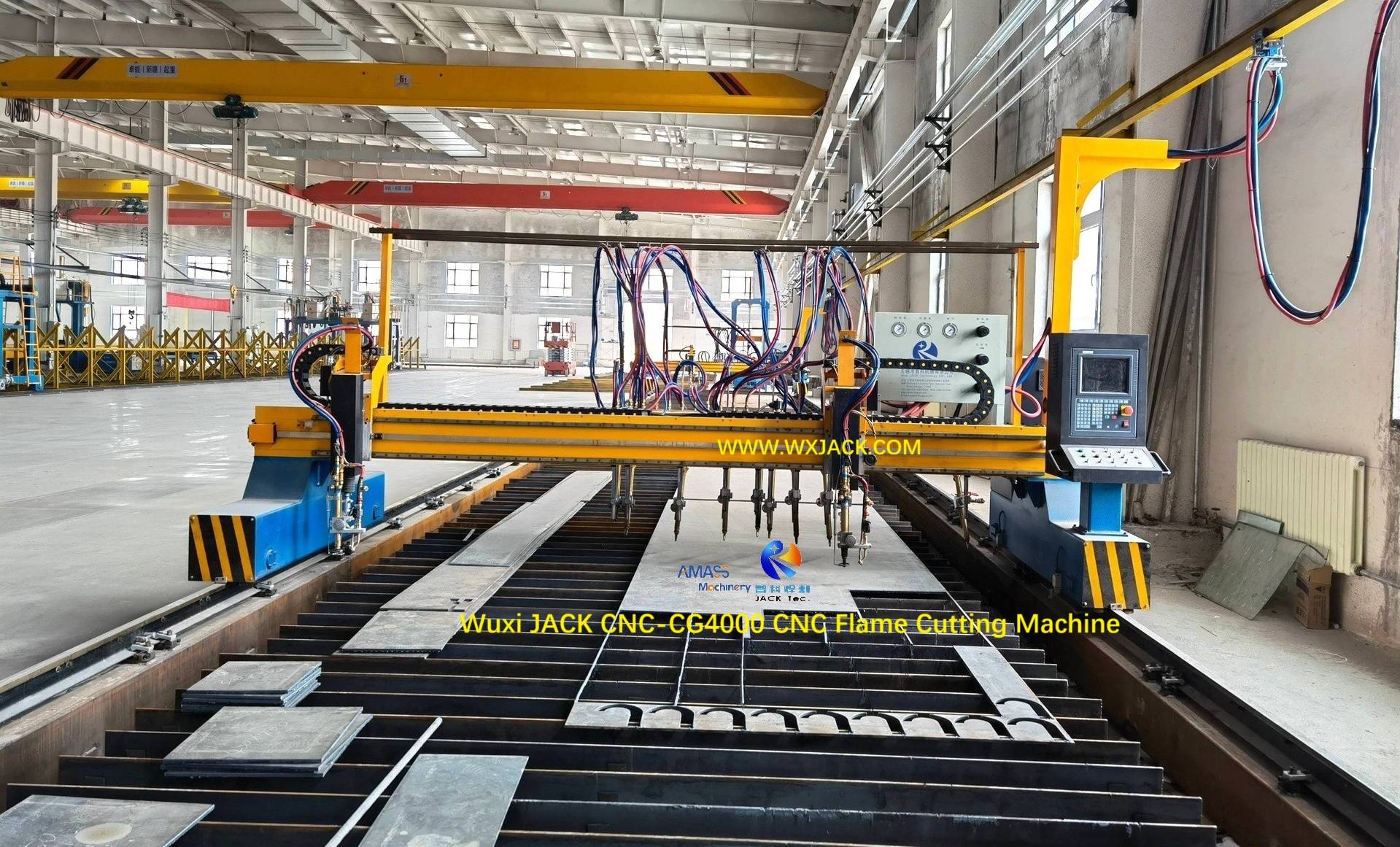

Fig1 CNC Flame Plasma Cutting Machine 52





C. For Deep Down Exploration on Business and Technical Details of Wuxi JACK CNC Flame Plasma Cutting Machine, together with CNC Plate Cutting and Drilling Machine, please visit thematic product pages of:



D. The General Introduction and Technical View on Wuxi JACK CNC Flame Plasma Cutting Machine, together with CNC Plate Cutting and Drilling Machine:

Slides 1: The Complete Line and Models of Wuxi JACK CNC Plate Cutting Machine Delivered to Customer:

This page of Slides is on product scope of Wuxi JACK CNC Flame Plasma Cutting Machine:



1. Cutting media: Full line of Oxygen flame cutting, compressed air plasma cutting, and mechanical drilling;
2. Cutting technology: Multiple choices of shape cutting, strip cutting, triple cutting, and drilling holes;
3. Cutting Size: Gantry span and table size ranging from 1500mm to 12000mm, for effective cutting width from 1500 to 11200mm;
4. Multiple Mechanical Frame: Gantry moving, stationary table style, and underwater style.


The 4 photos in this page of slides show different types of Wuxi JACK CNC Plate Cutting Machine.

幻灯片1- CNC Strip Plate Cutting Machine

Slides 2: The Solid and Strong Mechanical Frame of Wuxi JACK CNC Flame Cutting Machine and CNC Plasma Cutting Machine:

This page of Slides is on mechanical body of Wuxi JACK CNC Plate Cutting Machine:



This Slides demonstrates 2 types of main mechanical frame for CG series CNC Flame Plasma Cutting Machine:
1. The gantry frame moving style, which accounts for 95% of CNC Plate Cutting Machine construction;
2. The stationary table body type, which is applied as high precision fine CNC Plasma Cutting Machine.


幻灯片2- CNC Plate Cutting Machine

Slides 3:  The Powerful CNC Controller of Wuxi JACK CNC Plate Cutting Machine:

This page of Slides is on exceeding functions of CNC control system in Wuxi JACK CNC Flame Plasma Cutting Machine:




1. CG series CNC Plate Cutting Machine adopts with dedicated use CNC control system, which brings convenient and precise operation for operators;
2. Workpiece Library: All the common used shape of finished workpiece for cutting, can be selected from the standard workpiece library embedded, as shown in the left photo;
3. Easy Management: The dimension of workpiece is just need to be input into CNC controller. The cutting program of the workpiece can be generated automatically for running of the CNC Plate Cutting Machine.

幻灯片3- CNC Flame Plasma Plate Cutting Machine

Slides 4: The Drive and Transmission for Movement of Cutting Torch in Wuxi JACK CNC Flame Cutting Machine and CNC Plasma Cutting Machine:

This page of Slides is on drive and transmission of cutting torch in Wuxi JACK CNC Flame Plasma Cutting Machine:



1. Servo Double Drive for Y axis Movement of CNC Plate Cutting Machine:

1) The longitudinal movement of cutting torch in Y axis, which is realized with gantry moving along parallel cutting rails, is double drive;
2) Which means, both sides of the gantry are driven with 750W servo motor respectively;



2. Servo Drive for X axis Movement of CNC Plate Cutting Machine:

1) The cutting torch movement along the horizontal beam of mechanical gantry is also driven with 400W servo motor;
2) Guidance of movement in this way is with precise linear guiderail, and transmitted with rack.


幻灯片4- CNC Flame Plasma Cutting Machine

Slides 5: The Most Fitting Cutting Torch Height Controller of Wuxi JACK CNC Plate Cutting Machine:

This page of Slides is on proper cutting torch height controller in different types of Wuxi JACK CNC Flame Cutting Machine and CNC Plasma Cutting Machine:




1. The Usage of Cutting Torch Height Controller for CNC Plate Cutting Machine:

1) Surface of steel plates are usually not perfectly flat, which very often has fluctuations. So, the distance between cutting tip and steel plate always varies, which negatively influence cutting quality;

2) For this reason, CNC Plate Cutting Machine usually is equipped with cutting torch height controller, to maintain the stable clearance between cutting torch tip and steel plate, and so as to acquire good cutting quality;

2. The Most Appropriate Cutting Torch Controller for Different Types of Wuxi JACK CNC Flame Plasma Cutting Machine:

As shown in the 3 photos of this Slides:
1) The Left Photo: The capacitance type cutting torch height controller for CNC Flame Cutting Machine;
2) The Middle Photo: The arc voltage type cutting torch height controller for CNC Plasma Cutting Machine;
3) The Right Photo: The mechanical air cylinder floating style cutting torch height controller for Triple CNC Flame Cutting Machine.

幻灯片5- CNC Plate Cutting Machine

Slides 6: The User Friendly Operation of Wuxi JACK CNC Flame Cutting Machine and CNC Plasma Cutting Machine:

This page of Slides is on the Convenient Operation of Wuxi JACK CNC Plate Cutting Machine:



1. The Left Photo: Fully considers ergonomics and comfortable working arrangement for operators. For example, sitting chair as shown in the left photo;
2. The Middle Photo: Remote operating pendant, for operator being far away from cutting point as far as possible during working of the CNC Flame Plasma Cutting Machine, where generating cutting fume and noise;
3. The Right Photo: Integration of CNC controller and control panel of cutting torch controller.



幻灯片6- CNC Cutting Machine

Slides 7: The Versatile Function Elements Equipped in Wuxi JACK CNC Plate Cutting and Drilling Machine:

This page of Slides is on the diversified function units of Wuxi JACK CNC Plate Cutting Machine, to give it more powerful capability:


1. With 3 decades of development, as a very mature product, there are series of function elements available for choice, to give more personalized function and running of CNC Flame Plasma Cutting Machine;


2. For example, for below CNC Plate Cutting Machine:

1) The Left Photo: Programming and Nesting software;
2) The Middle Photo: Automatic ignitor for CNC Flame Cutting Machine, and cutting torch height controller;
3) The Right Photo: Mechanical head for CNC Plate Cutting and Drilling Machine.
幻灯片7- CNC Plate Cutting and Drilling Machine

Slides 8, 9 and 10: The More Diversified Configurations of Wuxi JACK CNC Plate Cutting Machine:

These 3 pages of Slides are on the wide choices of personalized function configuration of CNC Flame Plasma Cutting Machine:


1. We give 6 examples on wide varieties of Wuxi JACK CNC Plate Cutting Machine, together with CNC Plate Cutting and Drilling Machine on these 3 pages;

2. As can be seen from it, we offer the most tailor made proposal for customers, to have the most flexible and fitting function combination;


3. For example, configurations of CNC Plate Cutting Machine:

1) CNC Flame Cutting Machine: Strip cutting and shape cutting;
2) CNC Plasma Cutting Machine: With flame strip and shape cutting;
3) CNC Plate Cutting and Drilling Machine: Flame cutting, plasma cutting, and mechanical drilling;
4) Any tailor made sizes of CNC Flame Plasma Cutting Machine.
幻灯片8- CNC Strip Plate Cutting Machine
幻灯片9- CNC Triple Flame Plate Cutting Machine
幻灯片10- CNC Plasma Cutting Machine

Slides 11: The High Standard Components and Sub-Assemblies of Wuxi JACK CNC Flame Plasma Cutting Machine:

This page of Slides is on the superior quality of components of Wuxi JACK CNC Plate Cutting Machine:


The 8 photos of this page reflect the advanced components equipped in Wuxi JACK CNC Flame Plasma Cutting Machine, CNC Plasma Cutting Machine, CNC Plate Cutting and Drilling Machine:
1. CNC control system;
2. Various cutting torches for flame cutting and plasma cutting, mechanical drilling;
3. Capacitance, arc voltage, mechanical floating type Cutting torch height controller;
4. Servo motor and controller;
5. Flame cutting gas panel;
6. Plasma power supply.
...

幻灯片11- CNC Flame Plasma Cutting Machine

Slides 12, 13, 14, 15: The Broad Customer Base of Wuxi JACK CNC Plate Cutting Machine:

These 4 pages of Slides give several extensive business cases of Wuxi JACK CNC Plate Cutting Machine:


1. CNC Flame Plasma Cutting Machine;
2. CNC Flame Cutting Machine;
3. CNC Plasma Cutting Machine;
4. CNC Plate Cutting and Drilling Machine
Over the past decades.

幻灯片12- CNC Flame Cutting Machine
幻灯片13- CNC Triple Flame Plate Cutting Machine
幻灯片14- CNC Plate Cutting Machine
幻灯片15- CNC Strip Plate Cutting Machine
