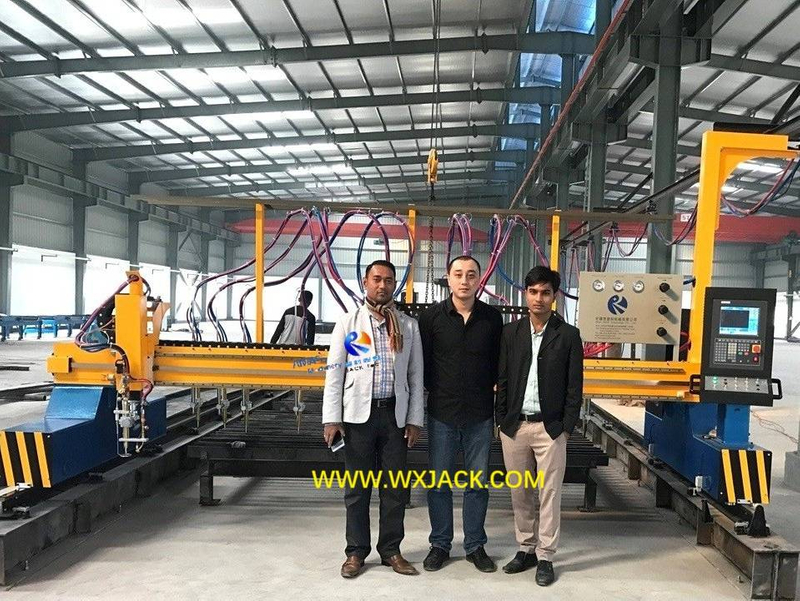

The attached six pieces of combined photos reflect the multifarious CNC Strip Plate Cutting Machine which Wuxi JACK have delivered for customers over the past decades. In this product section, we will have a short review on all kinds of CNC Plate Cutting machine as a whole.
1. Usage and Background of the CNC Strip Plate Cutting Machine:
1) Usage of the CNC Cutting Machine:
a) It can be divided into two broad categories of CNC Plasma Plate Cutting Machine and CNC Flame Plate Cutting Machine. Both two are the basic and indispensable first operation equipment in manufacturing industry, for performing diversified plate cutting (Sometimes drilling). The machine can be seen at nearly every corner across industries and countries;
b) The main tasks this series of product can complete include: Shape cutting (CNC Plate Cutting machine); Strip cutting (Plate Strip Cutting machine); Edge beveling(Plate Triple Cutting machine); Drilling hole (CNC Plate Cutting and Drilling machine) on metal plate of various types:

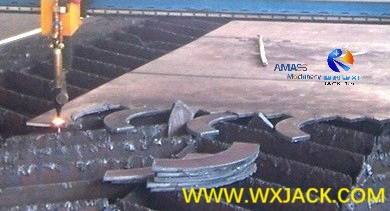

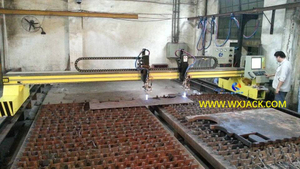

Finished workpieces from Wuxi JACK CNC Flame Plate Cutting Machine: (Fig.1 )

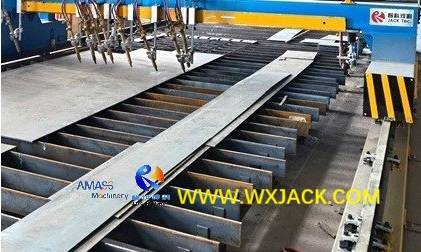

Finished workpieces from Wuxi JACK Plate Strip Cutting Machine: (Fig.2 )

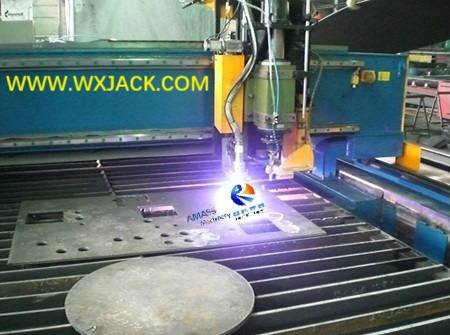

Finished workpieces from Wuxi JACK CNC Plate Cutting and Drilling Machine: (Fig.3 )

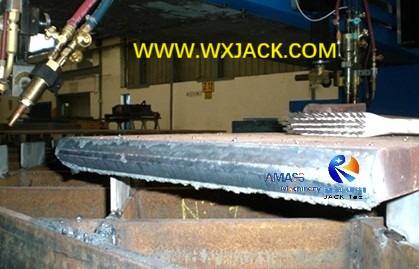

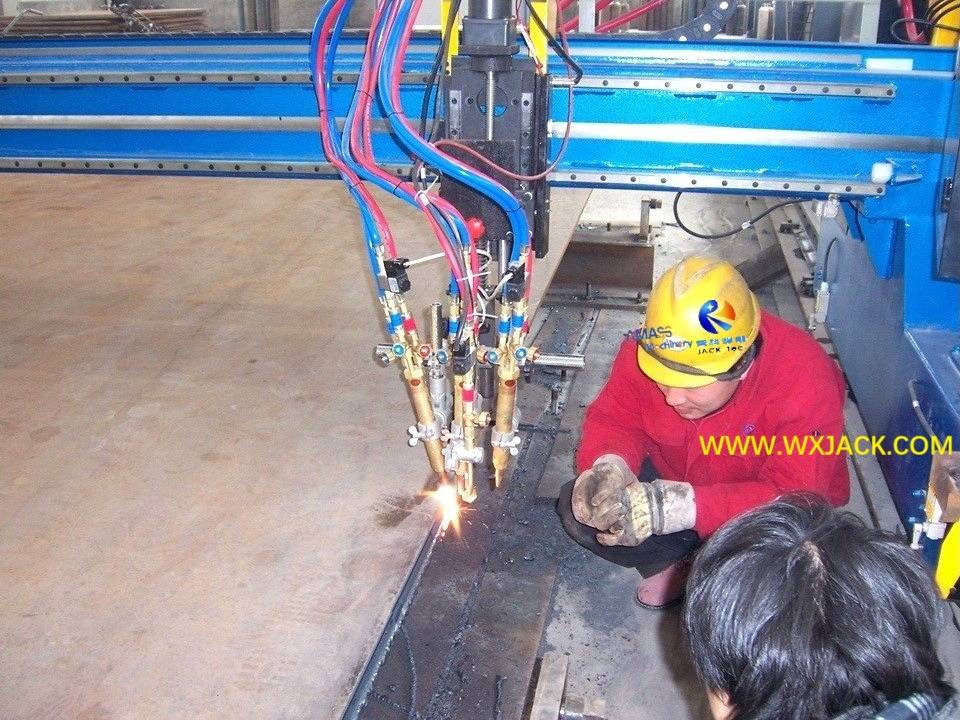

Finished workpieces from Wuxi JACK Plate Triple Cutting Machine: (Fig.4 )
c) The workpieces to be cut in the CNC Strip Plate Cutting machine range from the smallest specification of 1.5m width by 3m length, to the largest size of 15m width by 15m length (Or even longer). Among these the standard size of the CNC Plate Cutting machine is 4m width by 15m length;
2) Background of the CNC Strip Plate Cutting Machine:
a) Metal plate cutting is the first step in all process technology. Before the introduction of CNC Strip Plate Cutting machine, this step was made by hand, which was low efficiency, with inferior and unstable cutting quality;
b) With the automation of metal plate cutting in CNC Strip Plate Cutting machine, this step becomes far more productive, high standard and consistent quality.
2. Working Principle of CNC Strip Plate Cutting Machine:
1) Both CNC Plasma Plate Cutting machine and CNC Flame Plate Cutting machine work in the way of mechanical skeleton equipped with cutting system of either Oxyacetylene or plasma power supply, and controlled with CNC system;

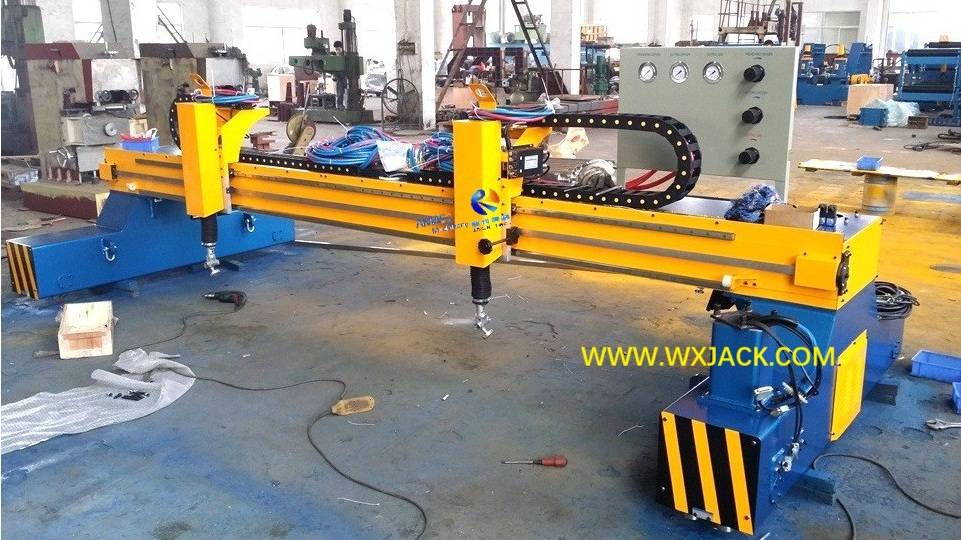

2) The mechanical skeleton is most majority in gantry moving type, which moves in the cutting speed during work, fulfilling plate cutting along lengthwise direction:

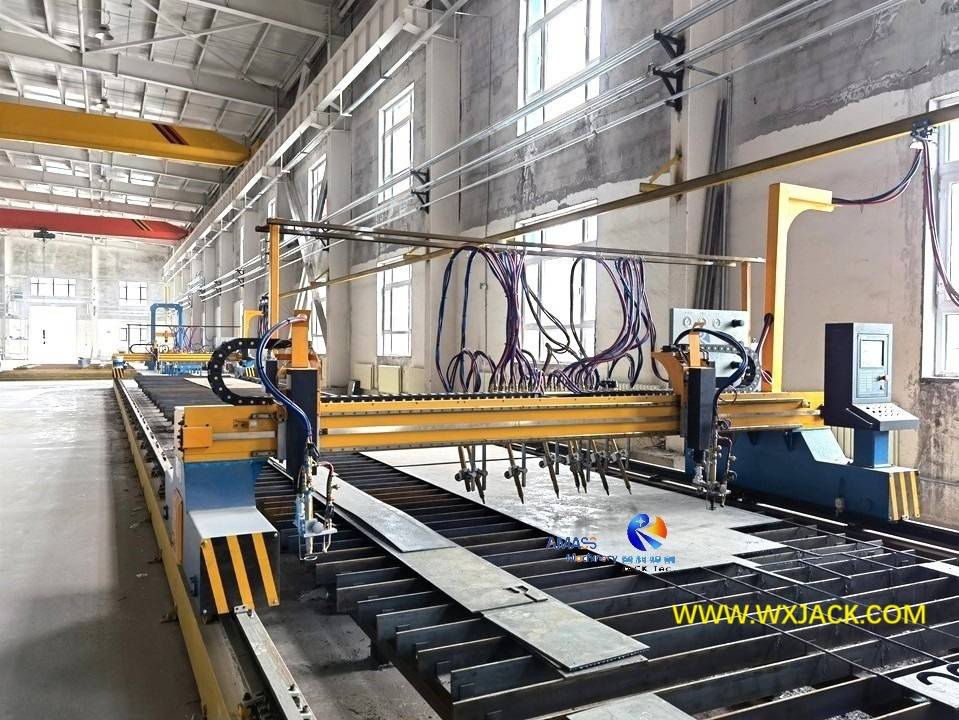

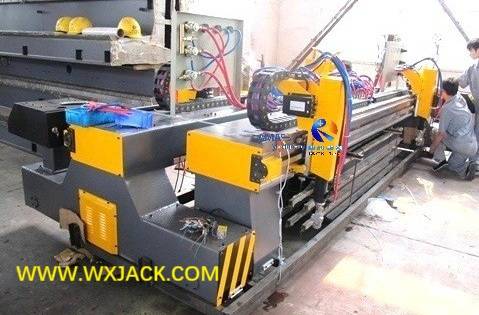

Mechanical main gantry frame of Wuxi JACK CNC Strip Plate Cutting Machine: (Fig.5)
3) Occasionally the CNC Plate Cutting machine work in the style of table type or underwater type, for meeting specific demand:

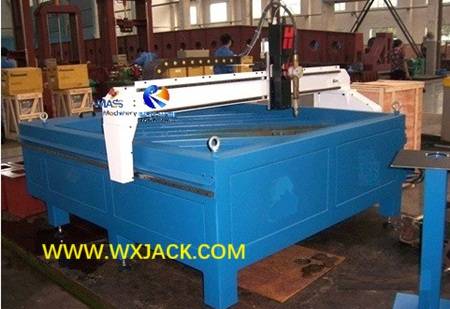

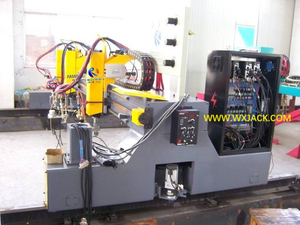

Wuxi JACK CNC-CG1500 High precision table frame CNC Plasma Plate Cutting Machine: (Fig.6)
4) The flame and plasma cutting torches are installed on gantry beam of the CNC Strip Plate Cutting machine, and move in cutting speed during working, fulfilling plate cutting along transverse direction:

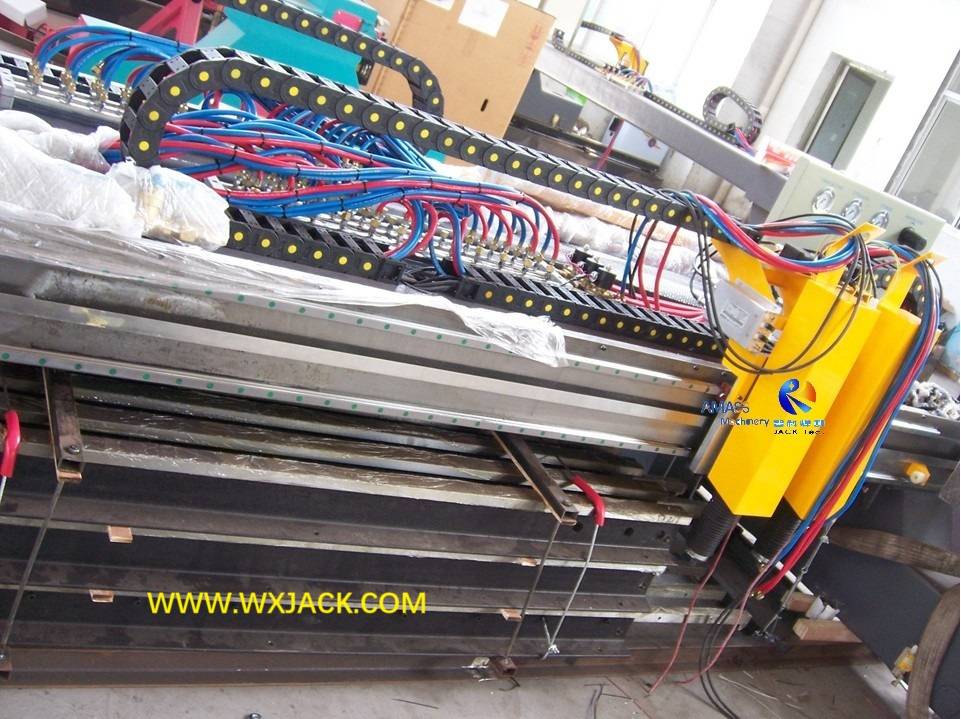

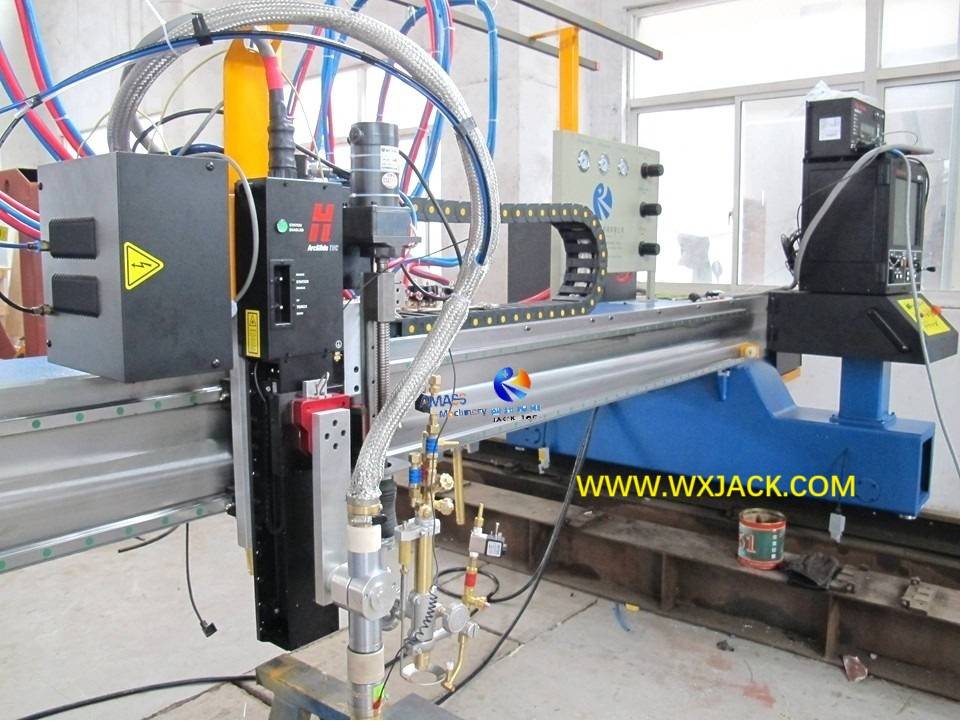

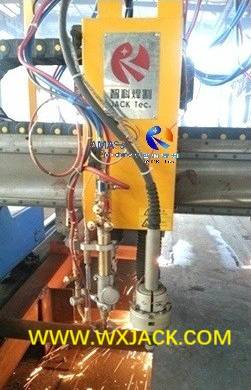

CNC cutting torch equipped in Wuxi JACK CNC Strip Plate Cutting Machine: (Fig.7)
5) The elevation of these cutting torches is driven with A.C. motors, depending on thickness of workpiece, and requirement of cutting process technology. This up and down movement of cutting torches can be realized in two ways: Either by human intervention of switch control, or by torch height controller. The capacitance height controller is used in CNC Flame Plate Cutting machine, and arc voltage height controller is used in CNC Plasma Plate Cutting machine. For introduction on these torch height controllers, please check product section of “Plasma and Flame Strip 4m CNC Plasma Plate Cutting Machine”;
6) The cutting system of flame and plasma are equipped onto gantry beam of the CNC Cutting machine:

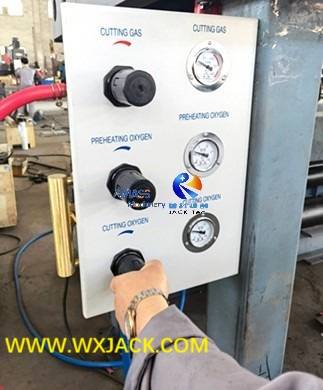

Oxygen fuel gas panel in Wuxi JACK CNC Flame Plate Cutting Machine: (Fig.8)

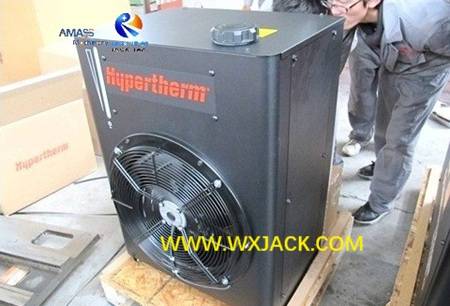

Plasma power supply equipped in Wuxi JACK CNC Plasma Plate Cutting Machine: (Fig.9)
7) Supplementary Notes on CNC Strip Plate Cutting Machine:
a) For introduction on standard flame CNC Plate Cutting machine, please check product section of “Basic Configuration CG4000 Single Drive Flame CNC Strip Plate Cutting machine”;
b) For introduction on standard plasma CNC Cutting machine, please check product section of “Multi Cutting Capacity CG4000 Double Drive CNC Plasma Plate Cutting machine”.
3. Technical Parameters of CNC Strip Plate Cutting Machine:
Below are outline on technical parameters of CNC-CG series flame and plasma CNC Cutting Machine:
CNC-CG series CNC Plate Cutting Machine (CNC Plasma Plate Cutting Machine, CNC Flame Plate Cutting Machine) |
Cutting Rail Span | (1500 ~ 15000) mm |
Valid Workpiece Width | (80 ~ 14200) mm |
Railway Length | 15000 mm (Can be special made) |
Max. Work Piece Length | 12000 mm (Can be special made) |
Drive mode for Gantry Movement | Single or Double Size with Servo motors |
Drive for Cutting Head | Servo Drive |
Cutting Style | Oxyacetylene, Plasma |
Min. to Max. Flame Cutting Thickness | 6 ~ 150 mm (Special made for 200mm) |
Min. to Max. Plasma Cutting Thickness | 1 ~ 22/ 25/ 30/35/ 45 mm (Depending on model of plasma power supply) |
Total Positioning Accuracy | ± 0.5 mm |
