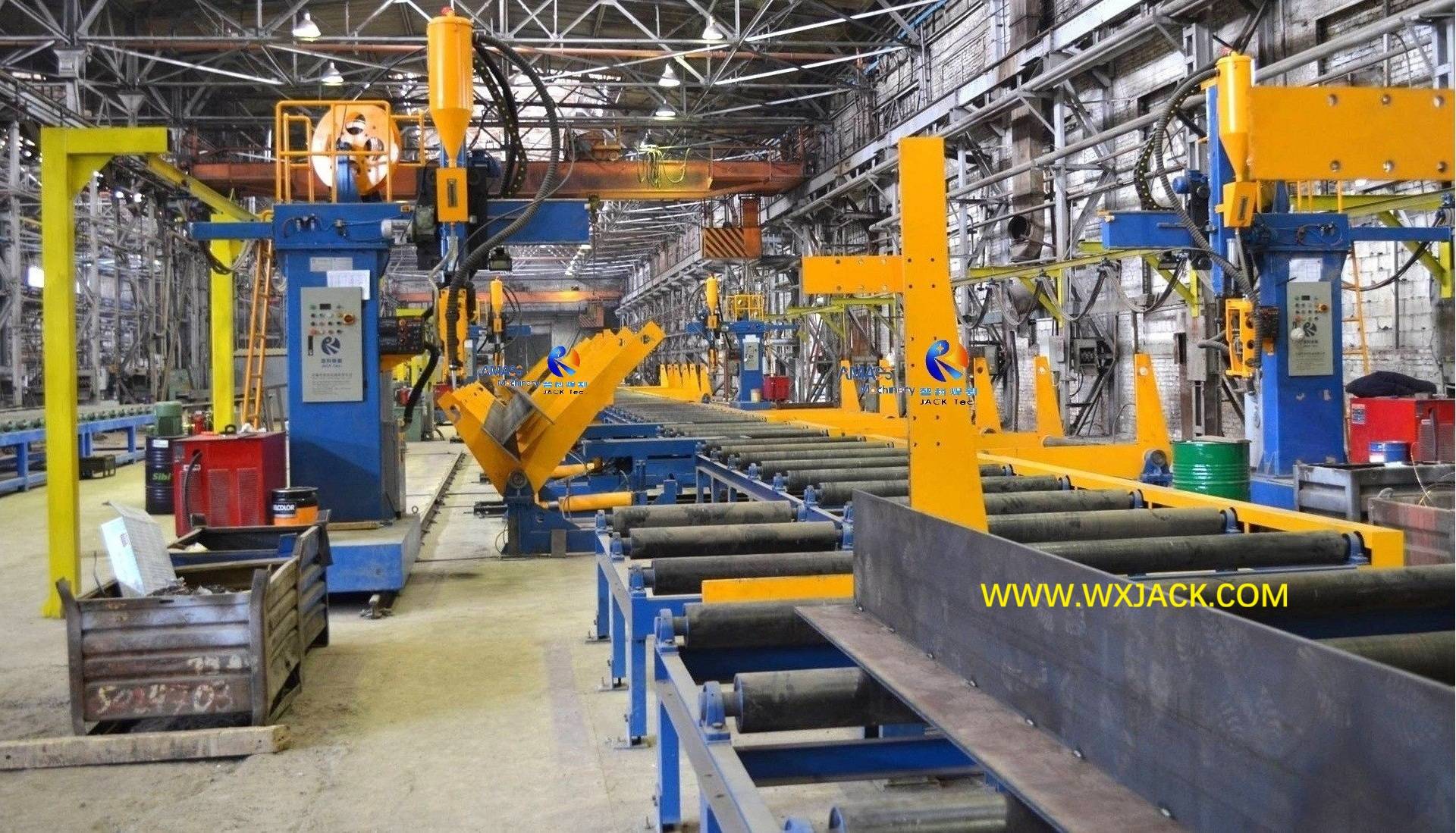

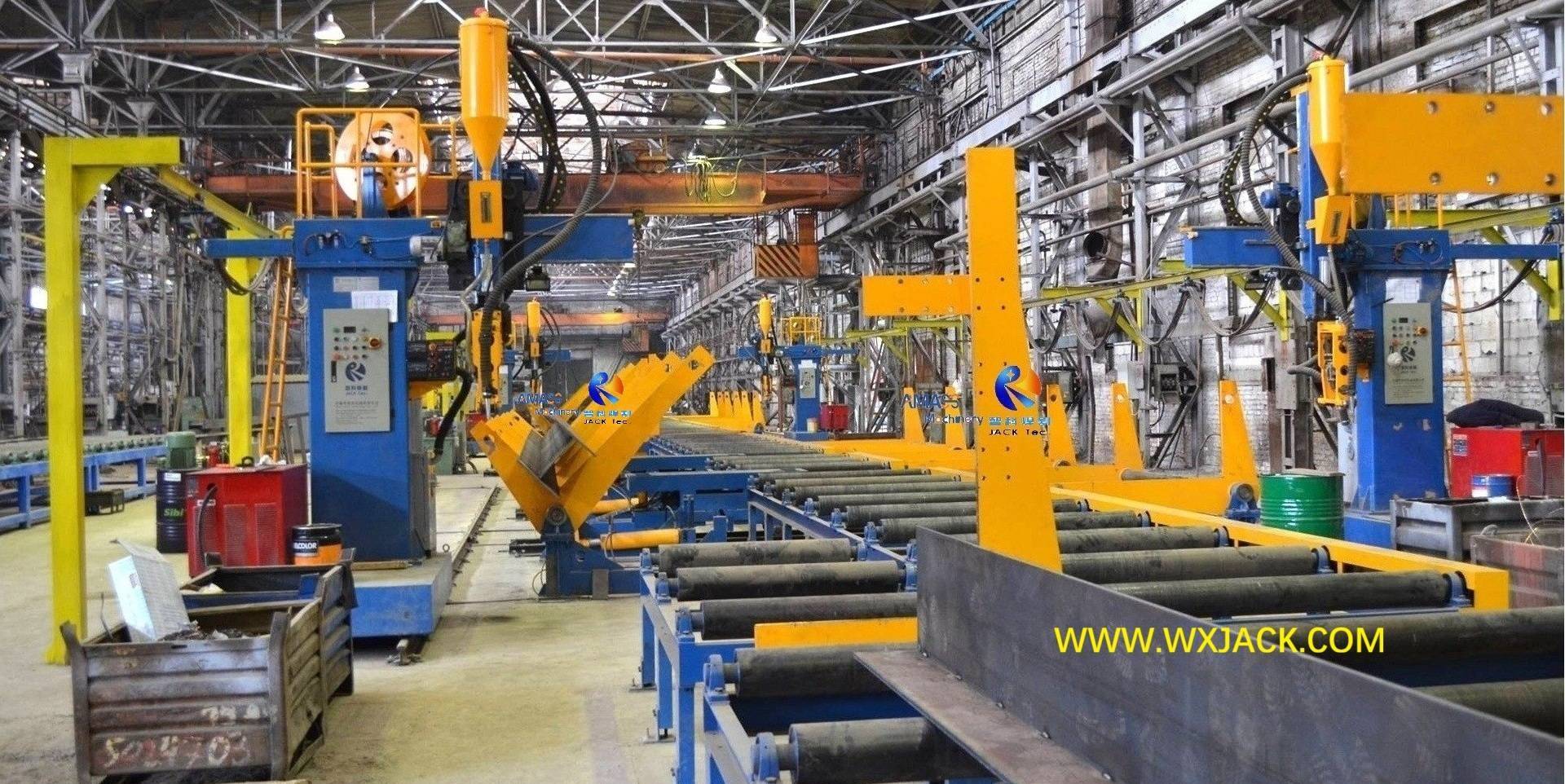

1- Automatic H Beam Welding Machine 1- DSC_0262

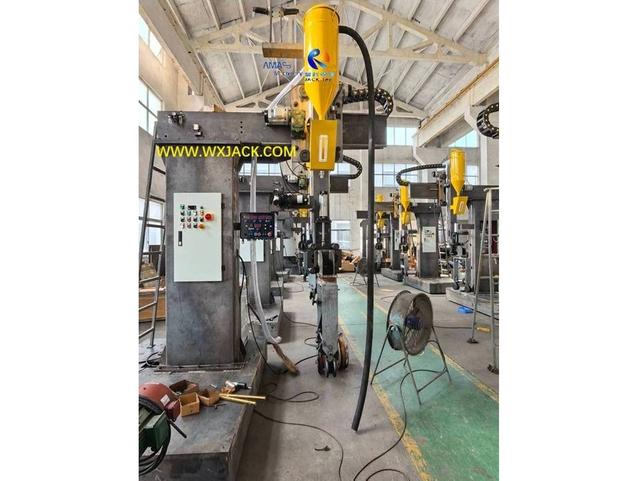

Wuxi JACK I H Beam Welding Machine,

Building Up the Most Solid Steel Structure for Customer!

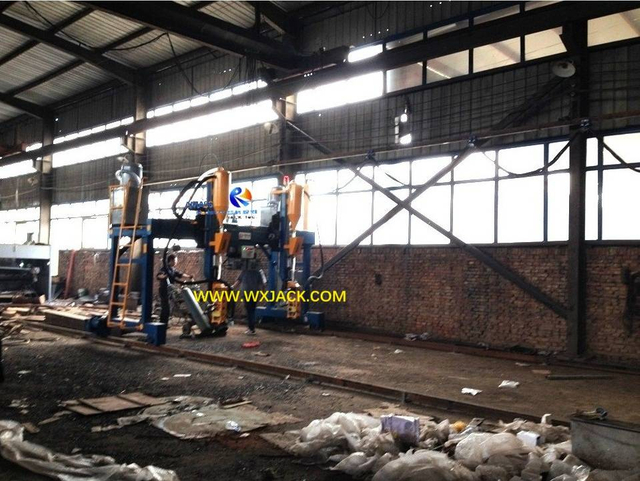

1 I H Beam Welding Machine 27- IMG_0196
2-I H Beam Gantry Welding Machine 26- IMG_20161207_093115

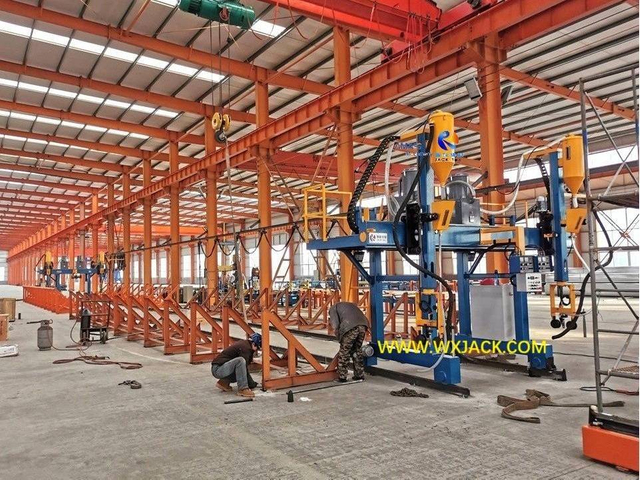

3- I H Beam Submerged Arc Welding Machine 29- IMG_20161207_093124
4- I H Beam Gantry Welding Machine 14- _20210628161513

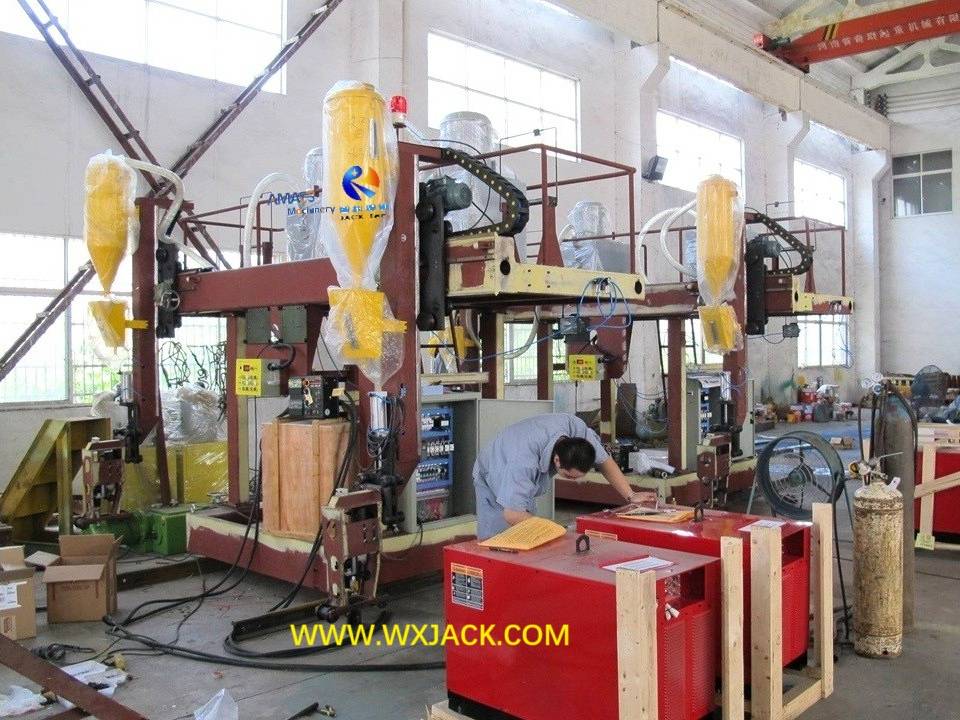

5- I H Beam Gantry Welding Machine 11- _20210628161500
6-I H Beam Submerged Arc Welding Machine 16- _20210628161521

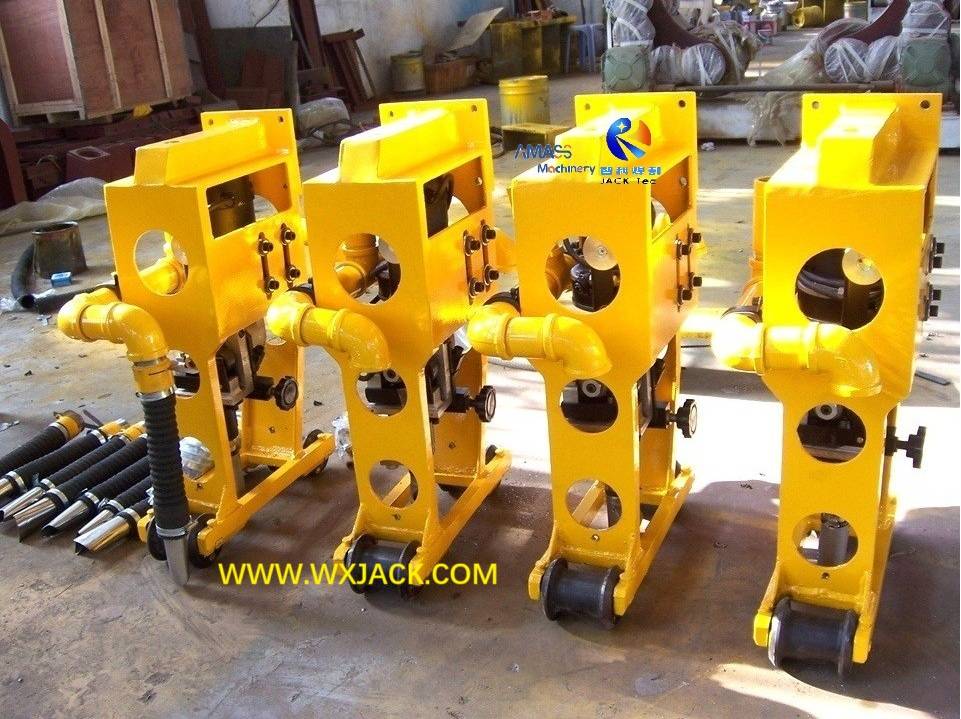

7 I H Beam Gantry Welding Machine 5-_20210629110228

1. Critical Position of I H Beam Welding Machine:

1) Function: I H Beam Welding Machine, full named as “I H Beam Submerged Arc Welding Machine”, is for performing submerged arc welding on assembled T/ I/ H Beams;

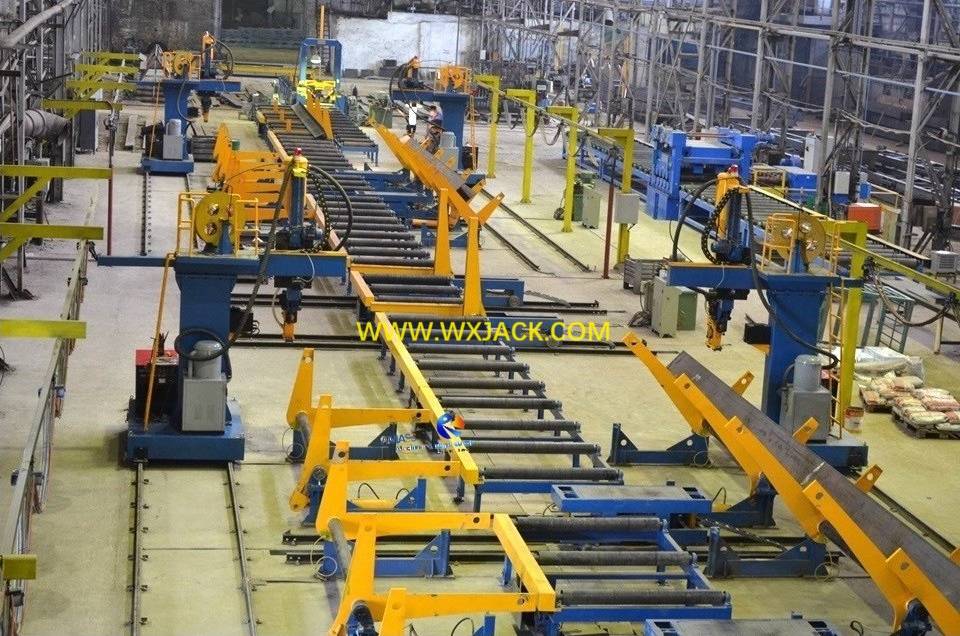

2) Process Route: In layout of I H Beam Production Line, I H Beam Welding Machine follows preceding station I H Beam Assembly Machine. Workpiece is sent via hydraulic 90° Overturning Equipment;
3) Vital Importance: I H Beam Submerged Arc Welding Machine is the essential equipment in I H Beam Production Line. As the central machine for producing welding T/ I/ H Beams, performance of I H Beam Gantry Welding Machine directly determines quality of finished welding T/ I/ H Beams;
4) Output: The welded T/ I/ H Beams produced from I H Beam Welding Machine is the preliminary finished working parts from I H Beam Production Line. Following that, the next step is to flatten I/ H Beams flange, in next working station I H Beam Straightening Machine;

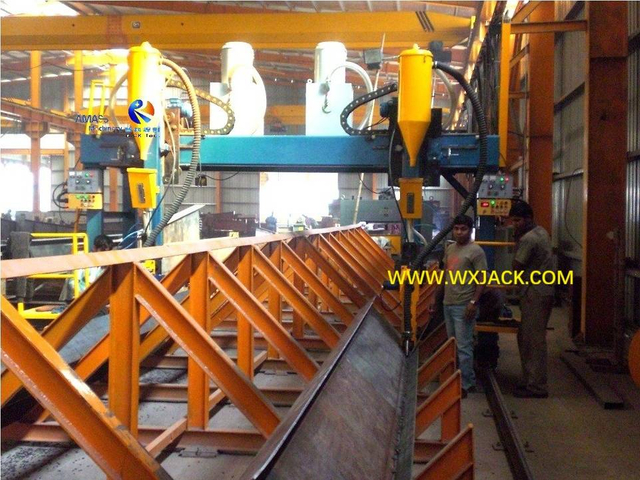

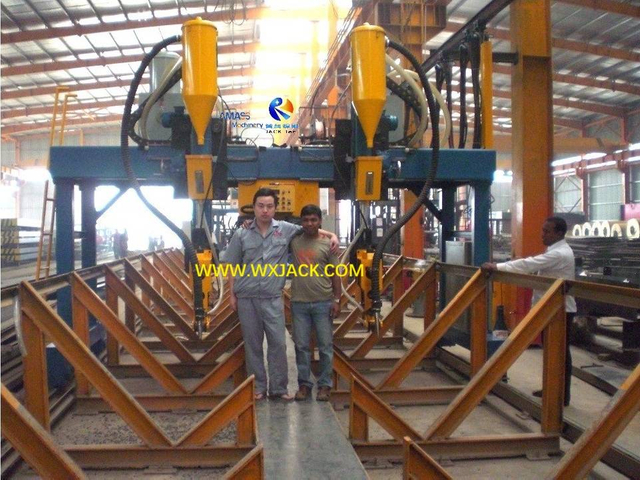

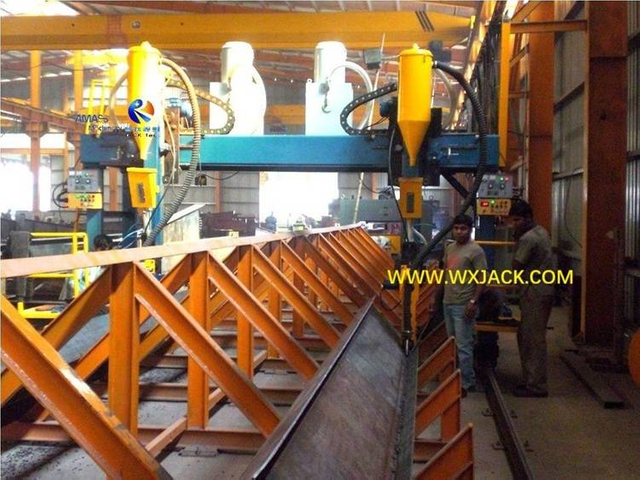

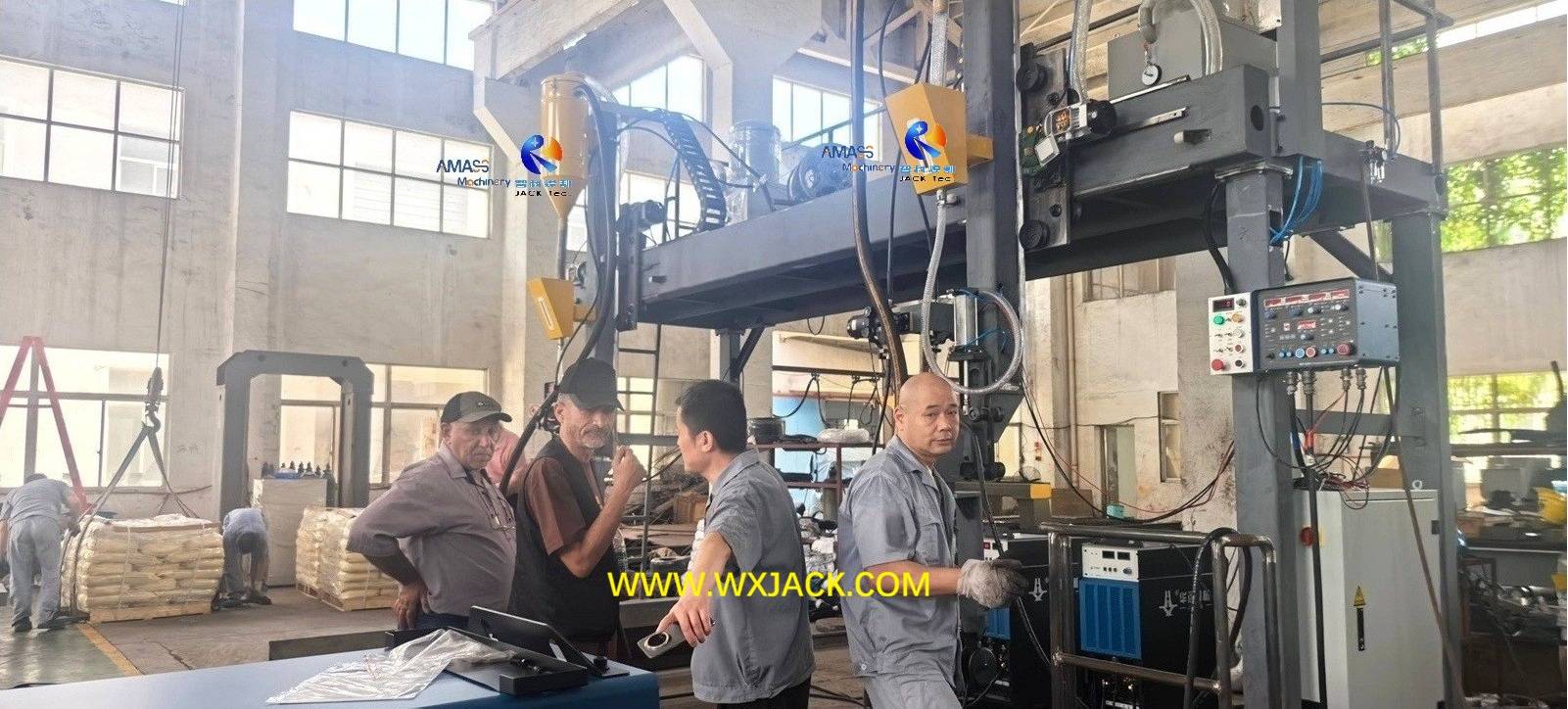

5) Wuxi JACK LHA5C I H Beam Gantry Welding Machine works at India customer facility: (Fig.1)

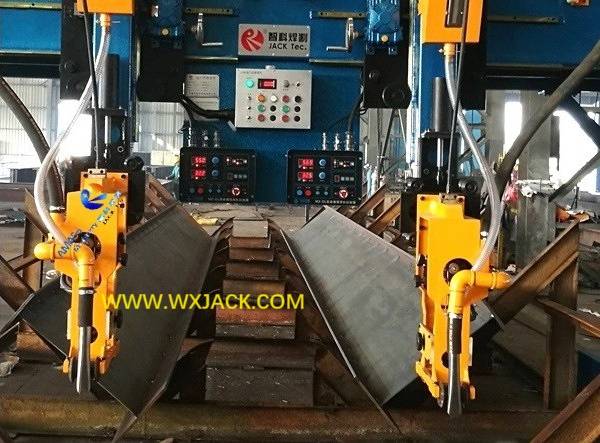

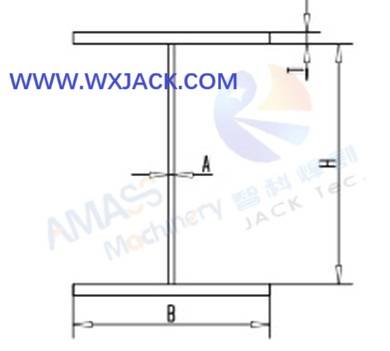

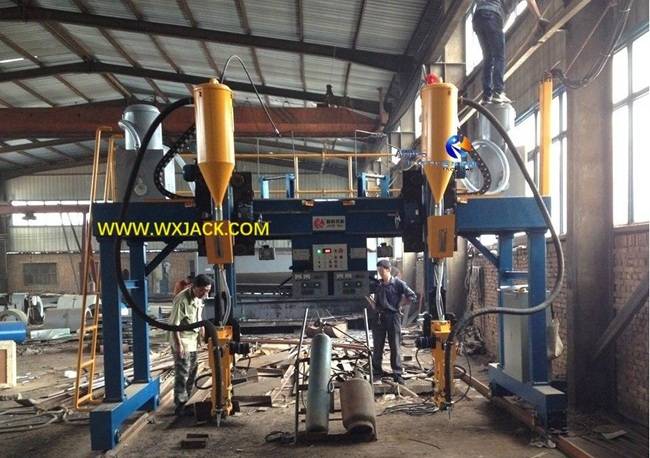

Fig1 I H Beam Gantry Welding Machine 8




2. Technical Features of I H Beam Submerged Arc Welding Machine:

1) Performance: As the No.1 professional equipment for SAW, I H Beam Welding Machine produces welding seam in small to large toe, in the position of 45° fillet welding;

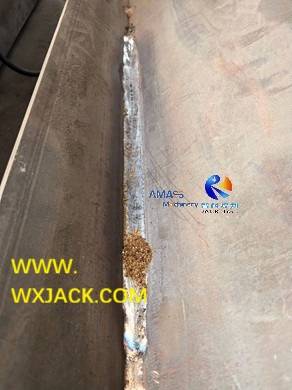

2) Welding seam produced from I H Beam Welding Machine has solid strength, wider cover face, and deep deposition, building up steel structure with strong strength;

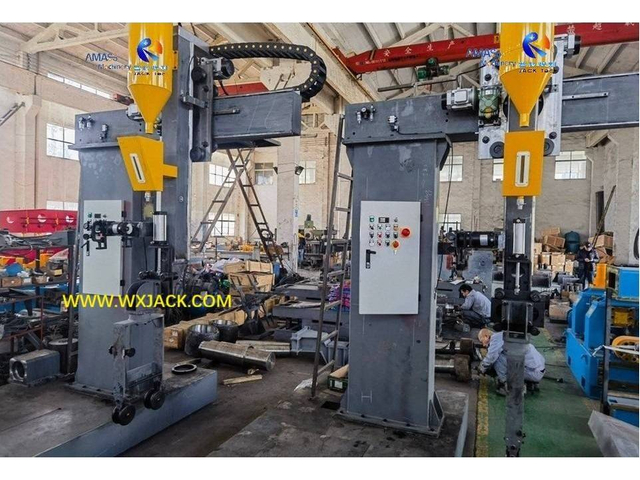

3) Design sketch and physical photo of Wuxi JACK LHC column trolley I H Beam Gantry Welding Machine: (Fig.1,2)

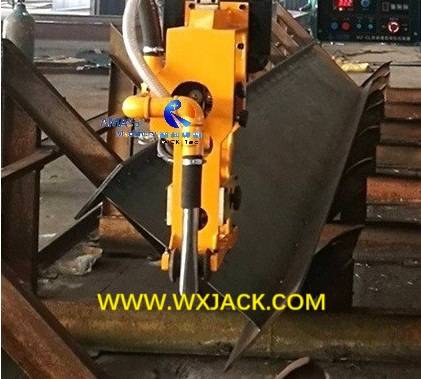

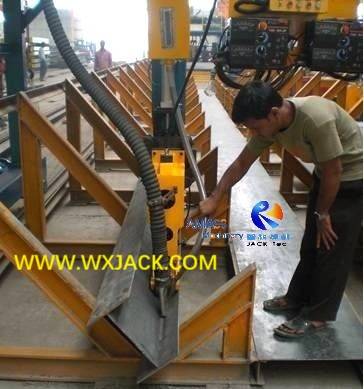

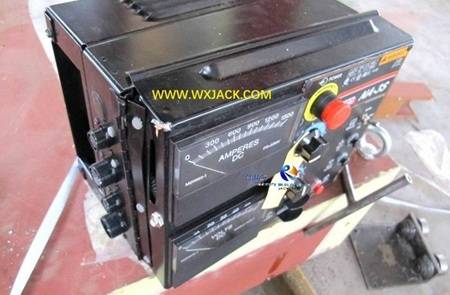

Fig2 I H Beam Welding Machine 2 Fig3 I H Beam Submerged Arc Welding Machine 2



3. Strong Points of Wuxi JACK I H Beam Gantry Welding Machine:

1) Rich Experience: I H Beam Welding Machine is the earliest product group of Wuxi JACK. Over the past 15 years, we have manufactured several hundred sets of I H Beam Submerged Arc Welding Machine in varied structures and specifications, for both automatic and semi-automatic I H Beam Production Line;
2) Technical Superiorities: Developing I H Beam Welding Machine involves perfect combination of mechanical structure design/ Ingenious electric control/ Deep down welding technique exploration. Wuxi JACK engineering team is fully advanced in this view;
3) Comprehensive summary on our technical advantages is illustrated in “Wuxi JACK I H Beam Gantry Welding Machine Slides”.


Wuxi JACK I H Beam Welding Machine, Your Always Correct Choice!

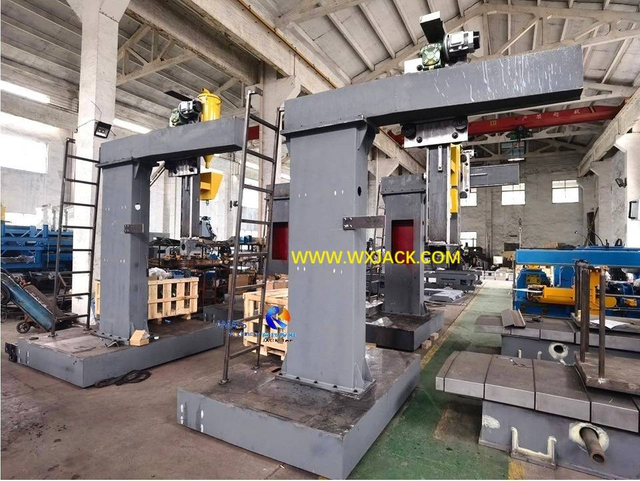

Different Structures and Sizes of Wuxi JACK I H Beam Submerged Arc Welding Machine

Powerful Capabilities of Wuxi JACK I H Beam Gantry Welding Machine

As professional producer on professional equipment I H Beam Production Line, Wuxi JACK elaborates on every detail of I H Beam Submerged Arc Welding Machine;

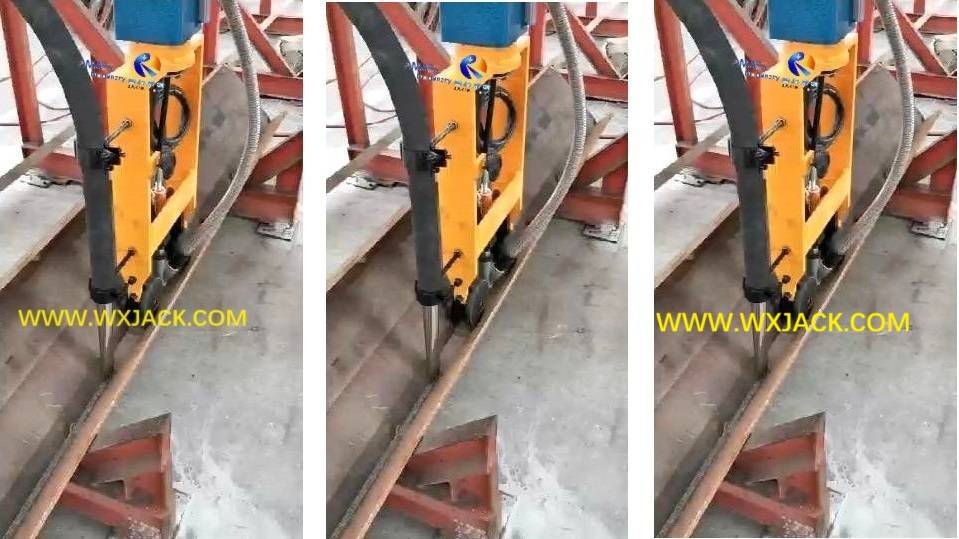

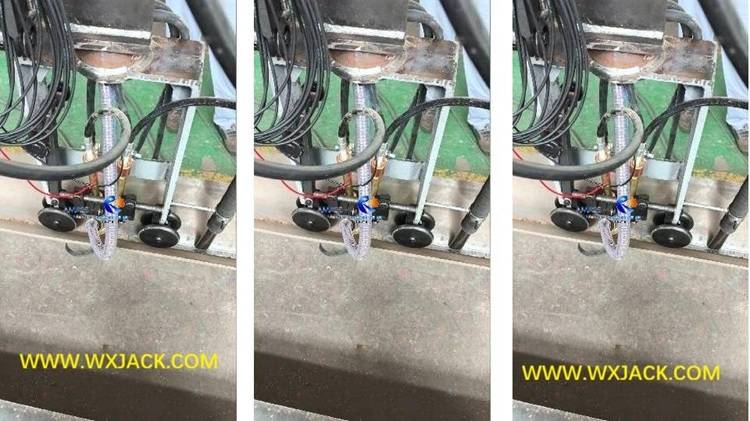

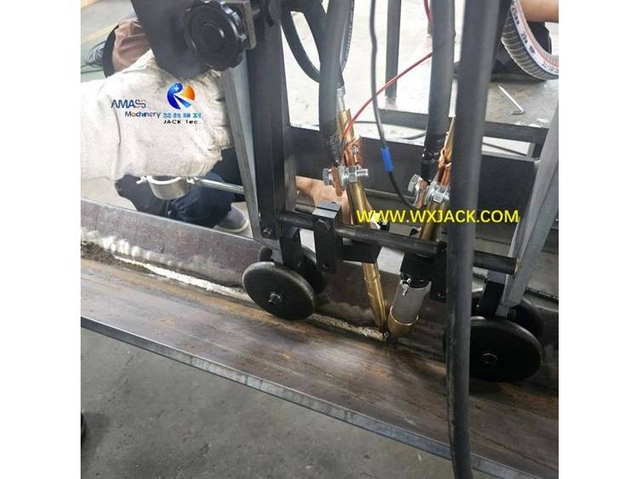

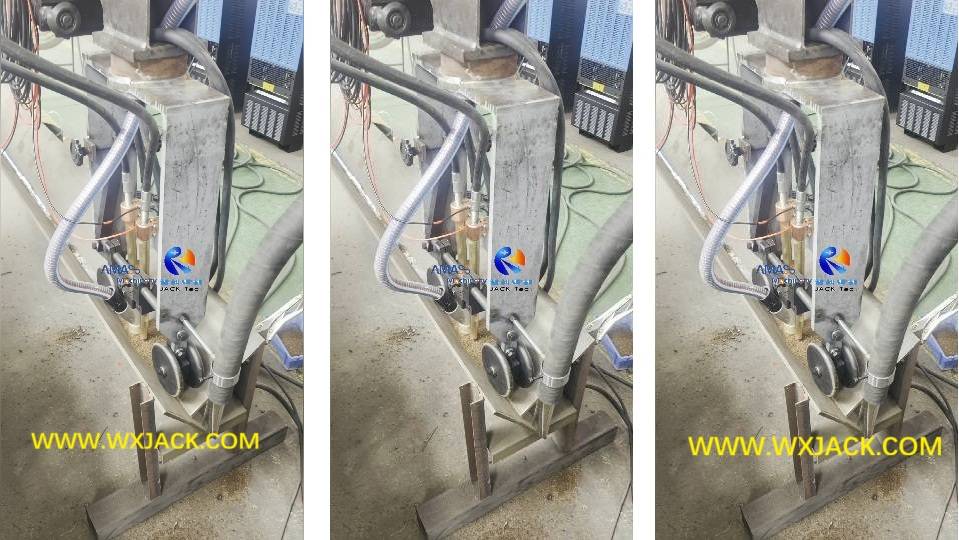

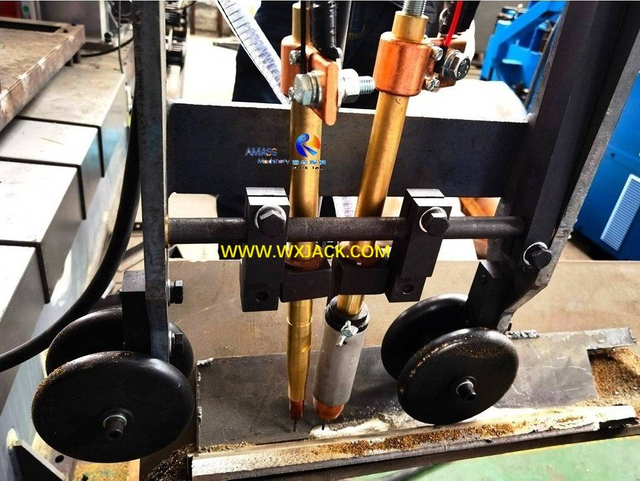

1) Open Structure I H Beam Welding Machine: Real time welding seam tracer;
2) I H Beam Gantry Welding Machine: High precision welding torch position management unit
1 - I H Beam Welding Machine 6

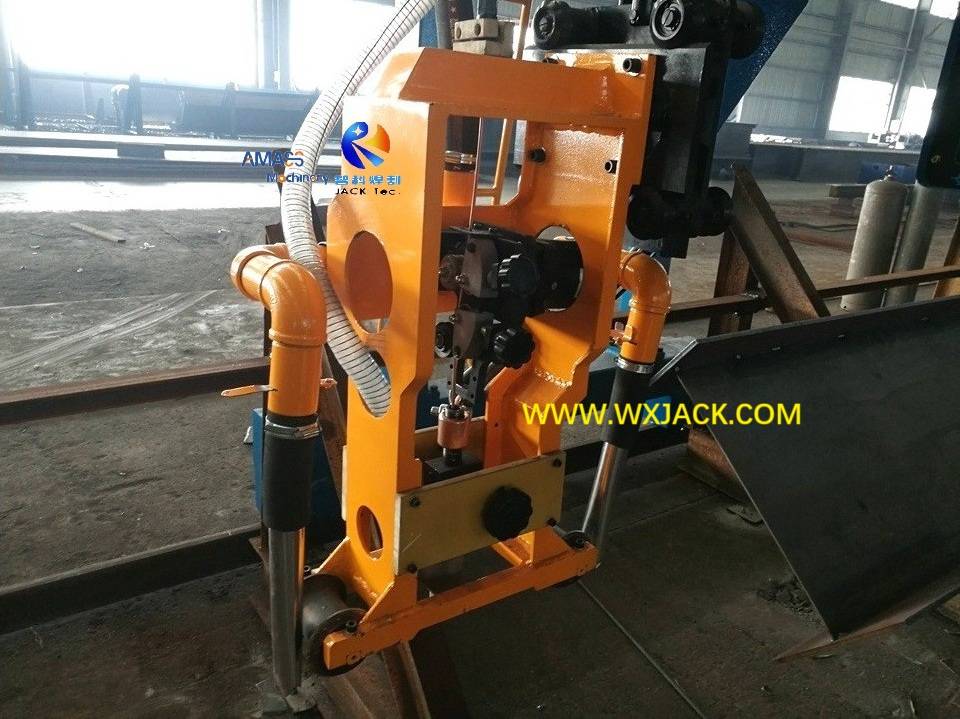

2 I H Beam Gantry Welding Machine 25- IMG_20161207_093110
3 I H Beam Submerged Arc Welding Machine 22
4 I H Beam Gantry Welding Machine 29- IMG_20161207_093124
5 I H Beam Gantry Welding Machine 1
6 I H Beam Submerged Arc Welding Machine 12
7 I H Beam Welding Machine 6
8 I H Beam Gantry Welding Machine 2

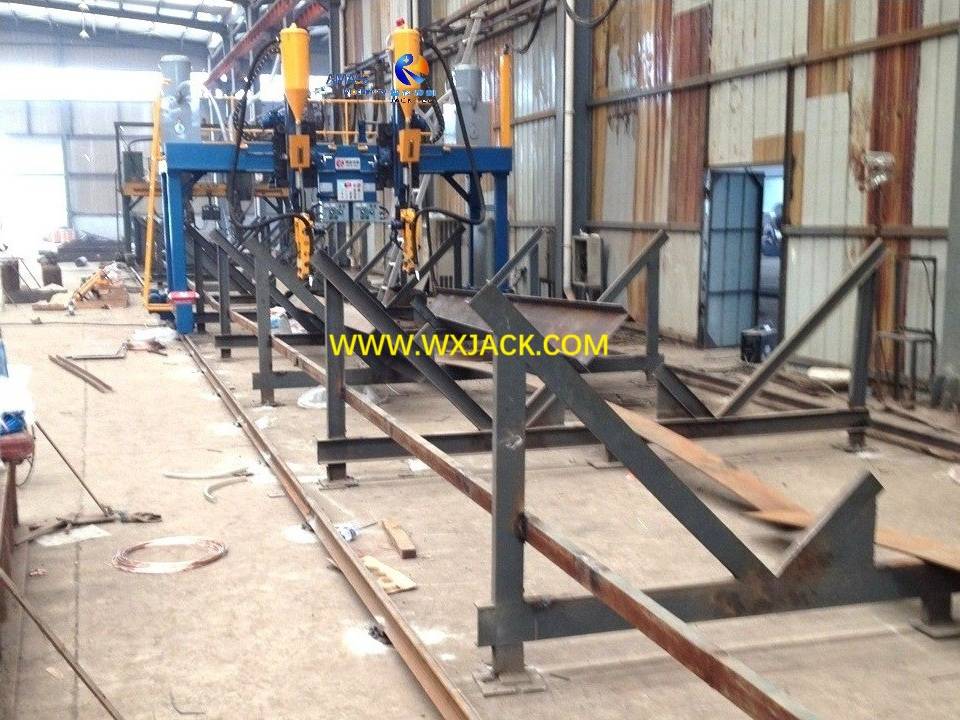

99 I H Beam Gantry Welding Machine 11- IMG_0220

Putting into Use Wuxi JACK I H Beam Submerged Arc Welding Machine

A. Preparation Work on I H Beam Welding Machine:

As indicated from the above photos, successful daily operation of I H Beam Gantry Welding Machine involves six critical points as precondition:

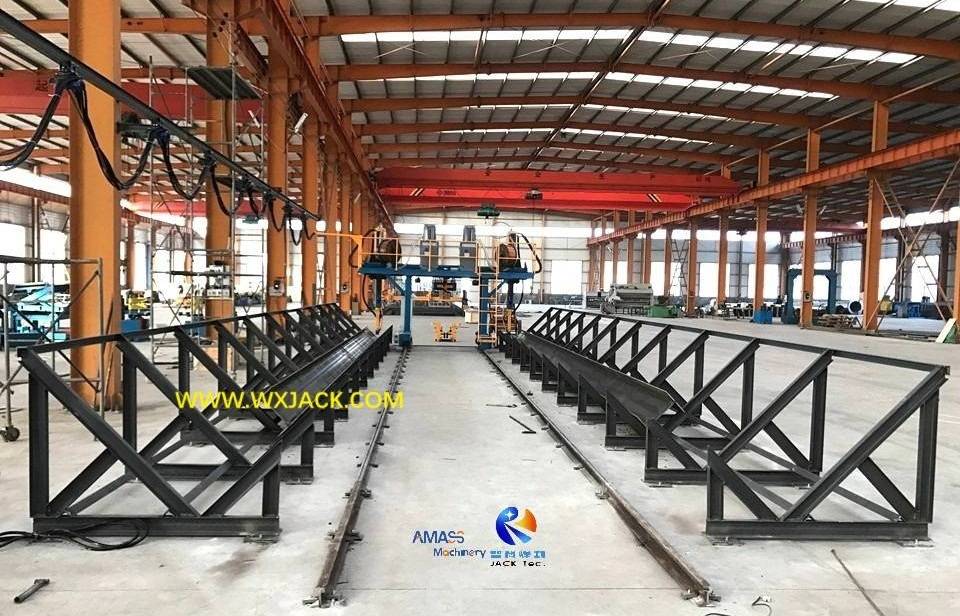

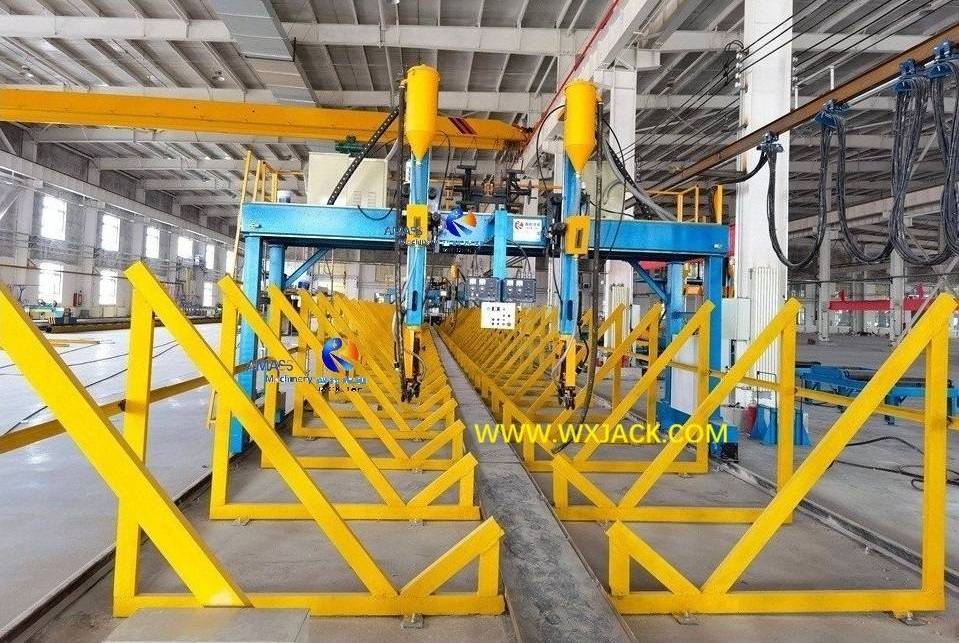

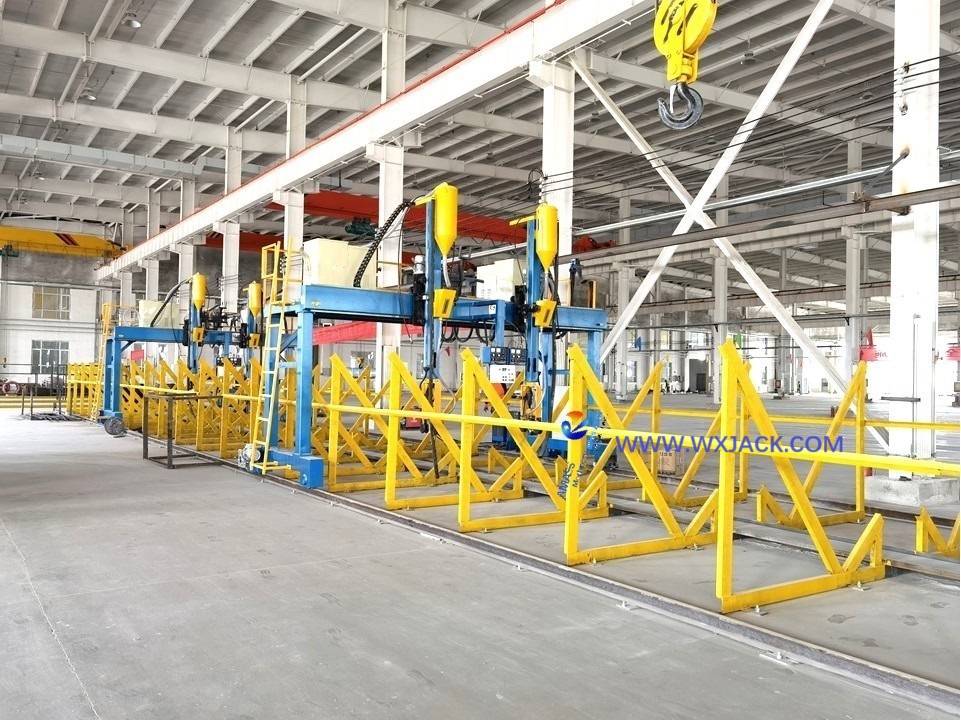

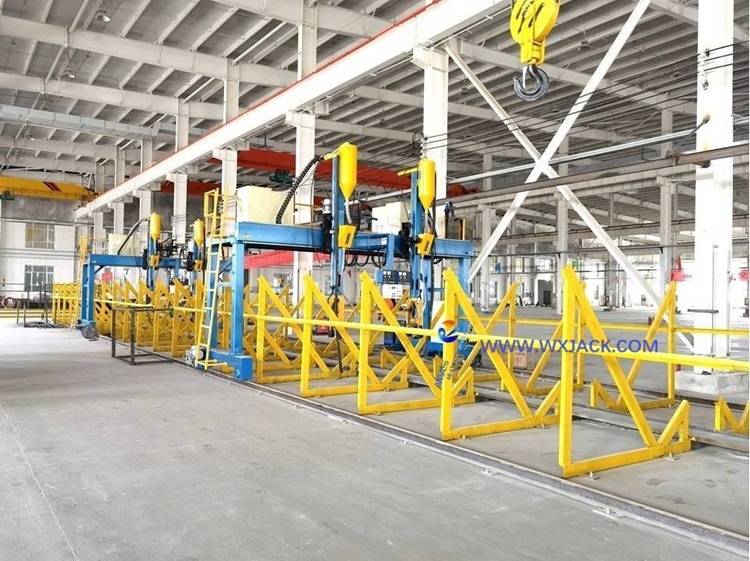

1. Supplementary Units Workpiece Holding Racks of I H Beam Gantry Welding Machine:

1) These racks should be fixed on line in accurate alignment during installation stage, and tested its linearity during commissioning;
2) For the two branches of LHA I H Beam Gantry Welding Machine: LHAZ center control and LHAC side control, orientating holding racks are different;
3) This should be made clear ahead of time installation;

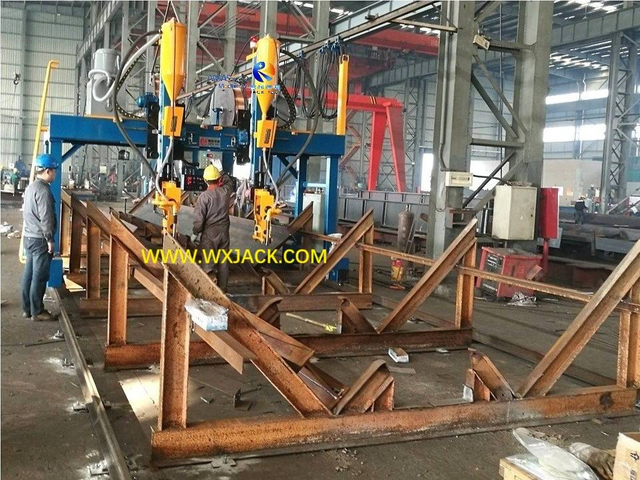

2. Deploying Guiding Rails of I H Beam Gantry Welding Machine with Precise Parallelism and Correct Span:

1) This is the precondition to guarantee stable precise longitudinal traveling of I H Beam Submerged Arc Welding Machine main frame;
2) There are corresponding technical tolerance stipulated in specifications of the I H Beam Welding Machine;

3. Reasonablely Arranging Welding Supplementary Function Units of I H Beam Submerged Arc Welding Machine:

1) I H Beam Welding Machine has fairly amount of welding supporting mechanisms,
2) Especially in LHA and LHT series: One set of the I H Beam Gantry Welding Machine has 2 sets of every specie function cells,
3) Including: Submerged arc welding power supply and its control console/ welding wire feeding unit/ welding flux feeding and recycling unit;

4. The Well Planned Workshop Utility for Running I H Beam Submerged Arc Welding Machine:

1) Including: Electricity power, machine and welding power supply cables, cable hanging racks, etc.;
2) Stable power grid without fluctuation directly affects performance of SAW power supply, and hence welding quality;

5. Security Measures and Cells in I H Beam Welding Machine:

1) Including: Climbing staircase/ guarding fence surrounding platform/ Alarm light of I H Beam Submerged Arc Welding Machine;
2) Mechanical main frame of some models I H Beam Gantry Welding Machine is as high as 4m. So, proper installed climbing ladder and surrounding fence is of vital importance;

6. Careful Logistics Plan on Operating H Beam Welding Machine:

1) Including: Raw materials coming in;
2) Finished workpiece sent out;
3) Internal hoist and flipping H Beam by means of traveling crane;
4) Locating I H Beam Submerged Arc Welding Machine control board and SAW power supply.

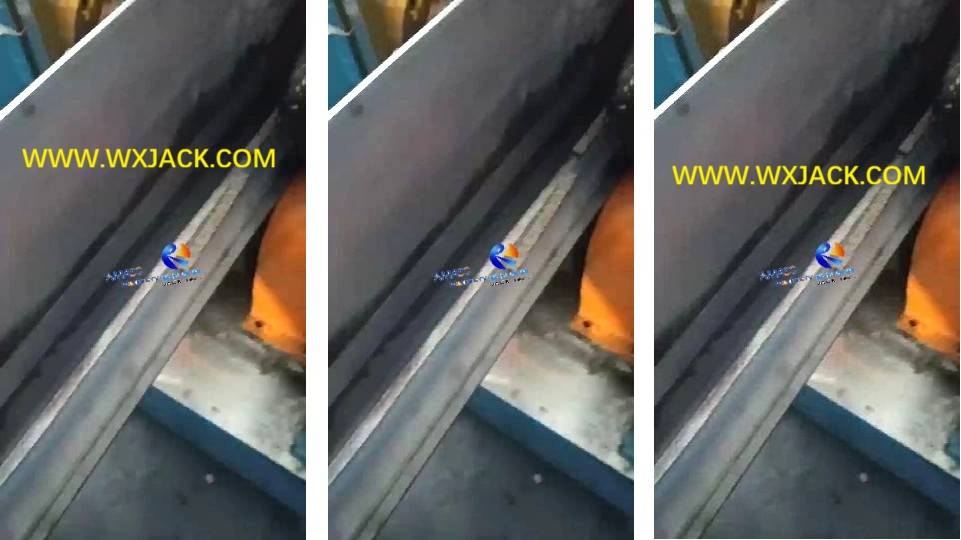

B. Working Video of Wuxi JACK I H Beam Submerged Arc Welding Machine:

Supporting Function Units in I H Beam Submerged Arc Welding Machine

Successful running of I H Beam Welding Machine needs integrated cooperation of machine itself, with all the important outsourced function units: SAW (Submerged Arc Welding) power supplies and control consoles, welding wire feeding system, welding flux conveying and recovering group.

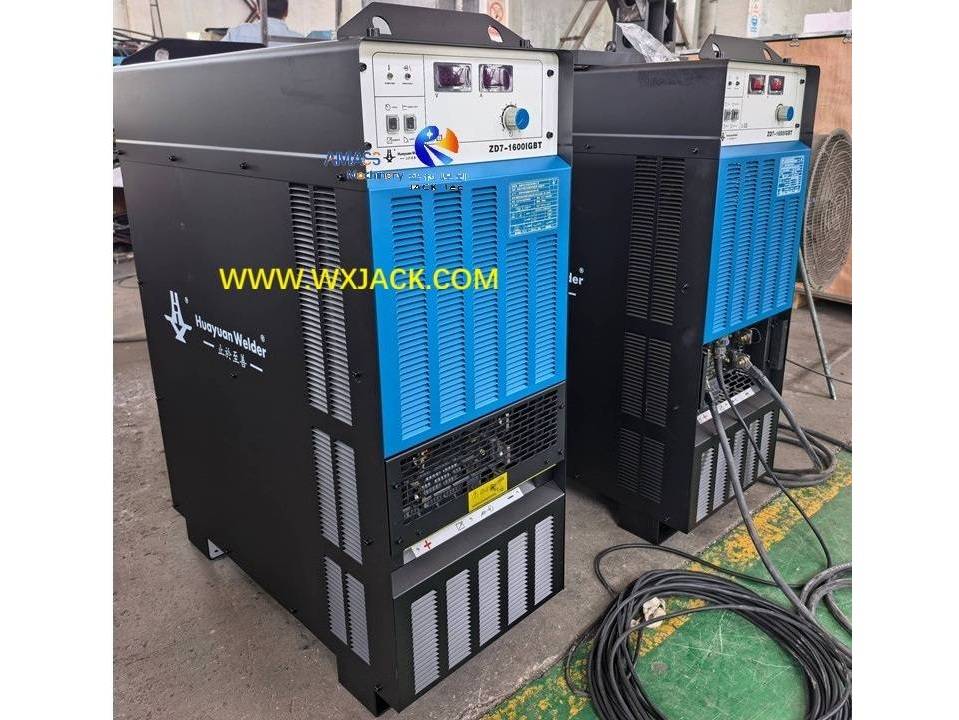

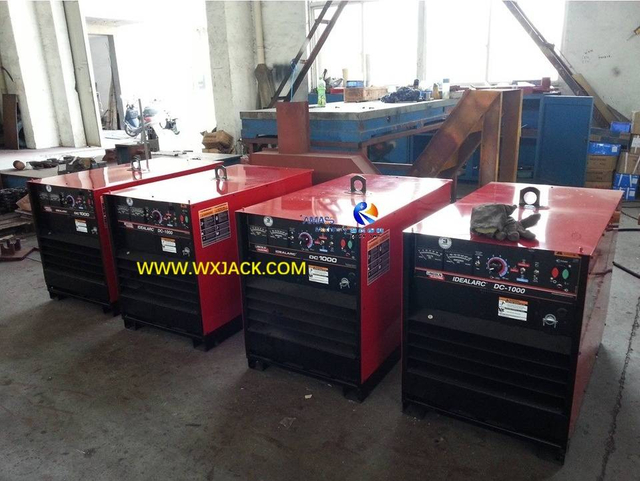

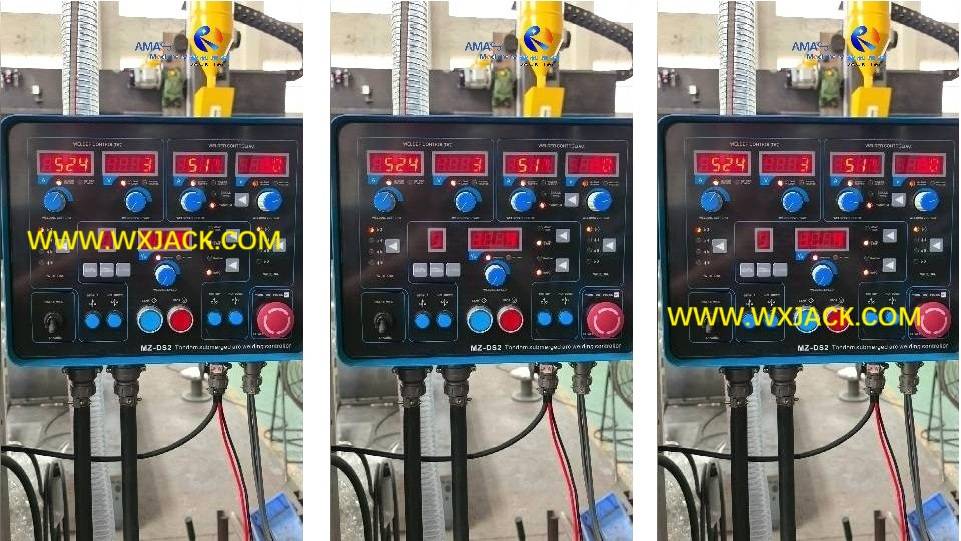

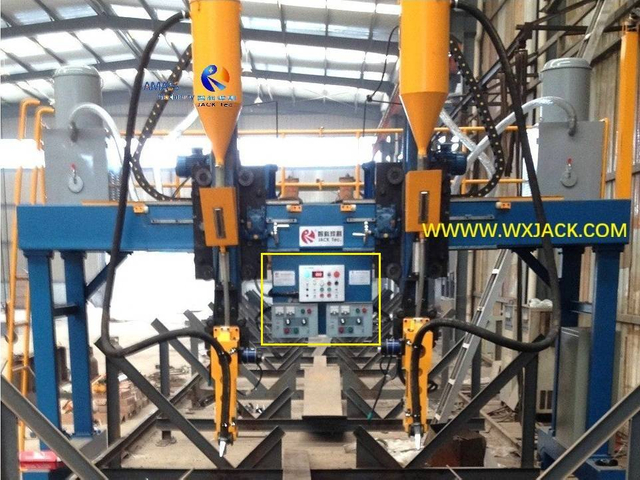

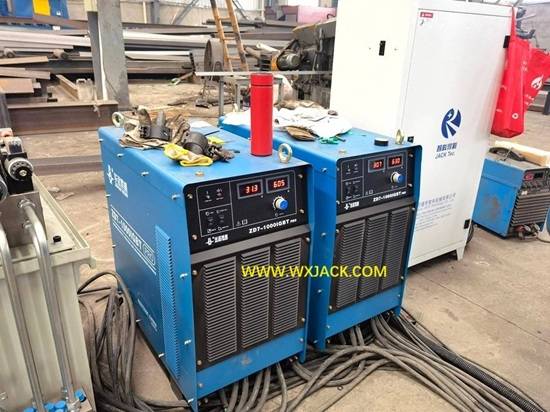

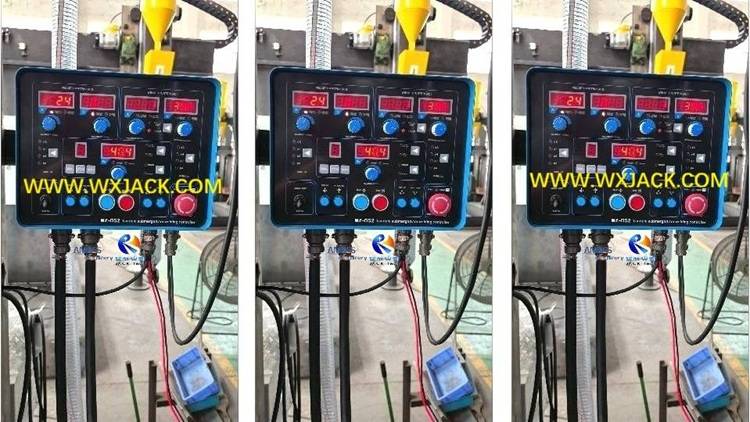

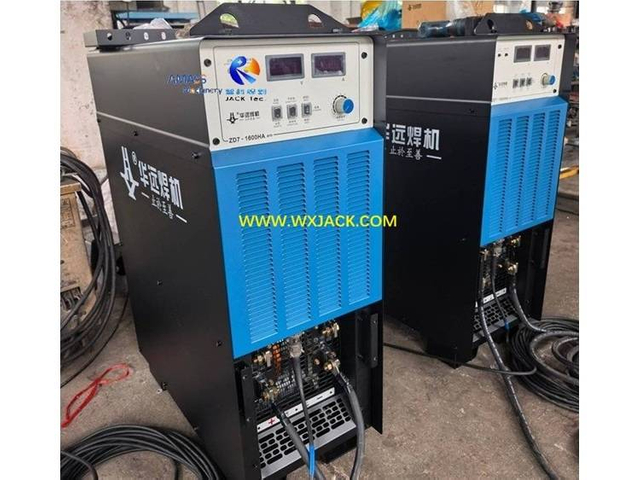

1. Submerged Arc Welding Power Supply and Control Console in I H Beam Gantry Welding Machine:

1) Quantity: In one set of LHA model I H Beam Gantry Welding Machine, or LHT T Frame I H Beam Submerged Arc Welding Machine, there are 2 sets of SAW power supply and control console;
2) Importance: This is the core function units in any I H Beam Welding Machine. It controls critical process parameters: Welding current/ Welding voltage/ Welding wire feeding speed, etc.;
3) Layout: It deploys two sets of SAW Power Supply on workshop ground, close to main frame and operating station of the I H Beam Submerged Arc Welding Machine. This is for purpose of convenient operation, and operator less movement;

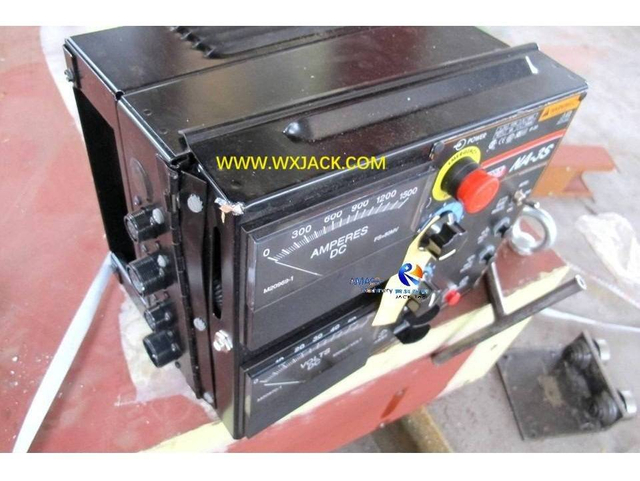

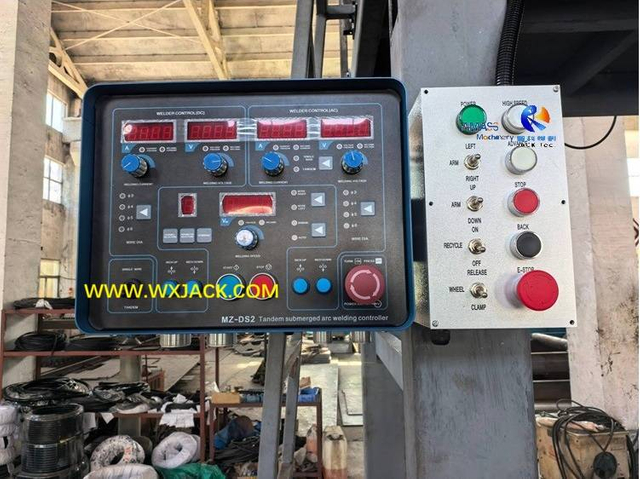

4) Control Consoles of SAW power supply are installed together with operating panel of the I H Beam Gantry Welding Machine;

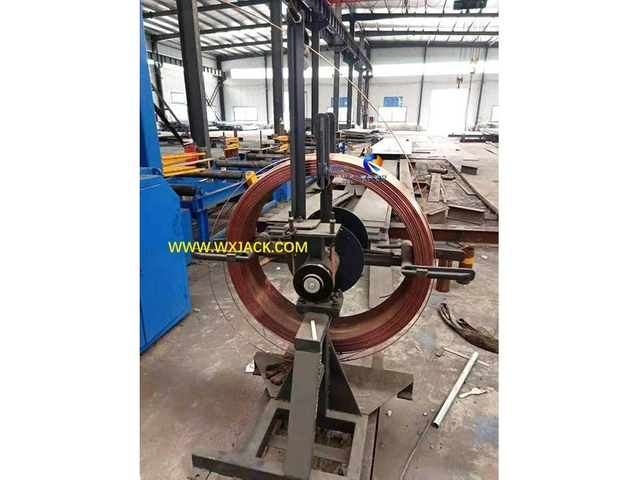

2. Welding Wire Feeding System in I H Beam Submerged Arc Welding Machine:

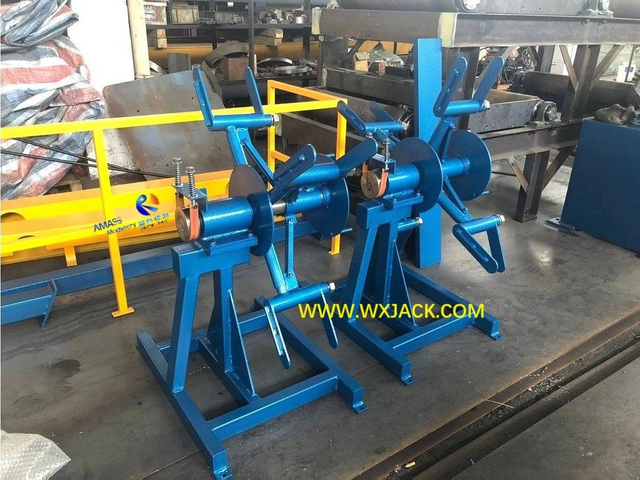

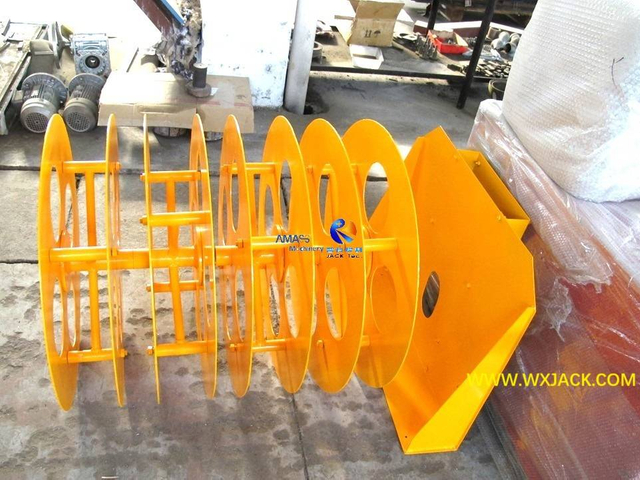

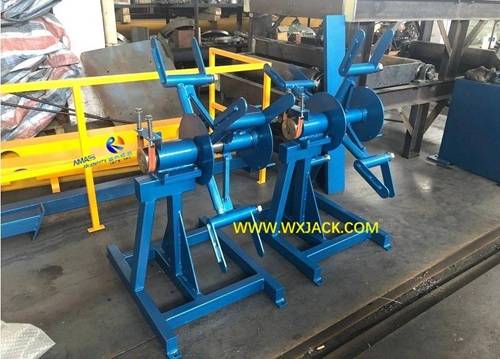

1) Composition: This group includes welding wire spool and wire feeder;
2) Quantity: One set of SAW power supply is equipped with one set of welding wire feeding unit. So, there are 2 sets of wire spool and feeding unit in one set of I H Beam Gantry Welding Machine;
3) Specification: In I H Beam Gantry Welding Machine, SAW welding wire is solid type, in the diameter range of 5.0mm ~ 6.0mm;
4) Welding wire sending speed is in direct proportional with welding current at that moment. This velocity is controlled and displayed automatically on control console of SAW power supply;

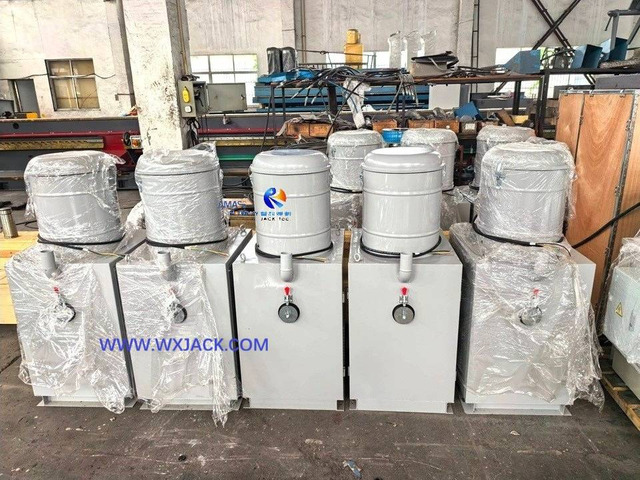

3. Welding Flux Conveying and Recovering Group in I H Beam Gantry Welding Machine:

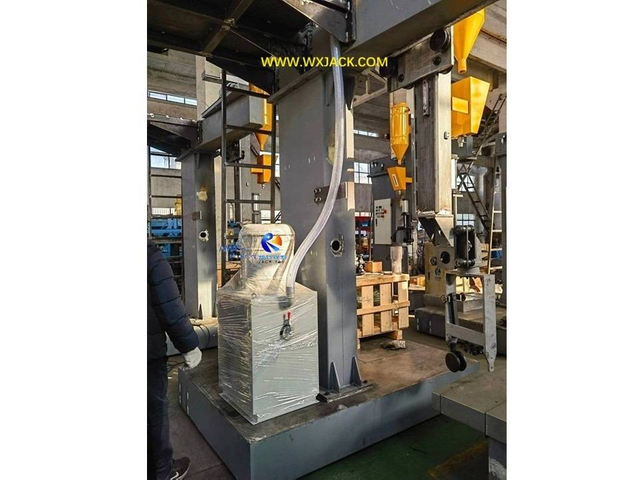

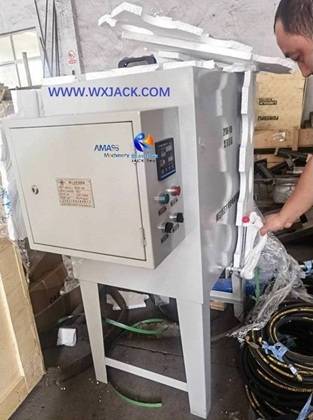

1) Composition: This system includes welding flux conveying tube, flux hopper, recycling unit; Conveying tube is installed together with welding torch as an integral unit;
2) Quantity: One set of SAW power supply corresponding with one group of welding flux recycling system. So, there are 2 units in one set of the I H Beam Welding Machine;
3) Installation: To save land occupation of the I H Beam Gantry Welding Machine, the flux recycling units are put on the overhead platform of main frame; The yellow color flux hoppers are assembled right above welding torches, at the front side of horizontal beam;

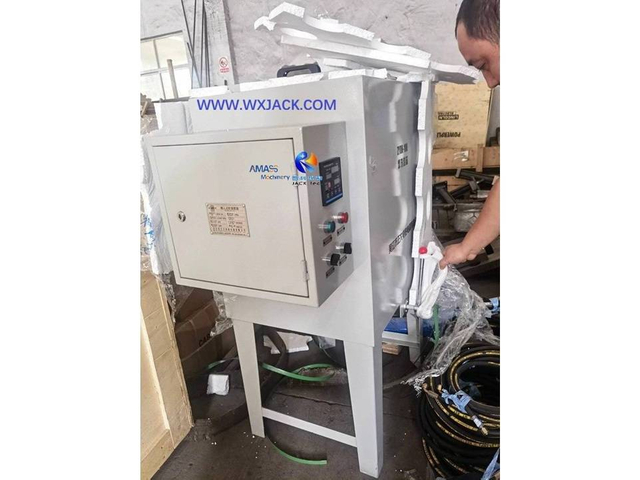

4) Working Nature: During work, welding flux conveying speed is constant; If the I H Beam Submerged Arc Welding Machine runs at a city with 70% humidity, heater should be adopted at working site.

Categories of Wuxi JACK I H Beam Gantry Welding Machine

1. Four Main Groups of I H Beam Submerged Arc Welding Machine:

Which differ on application focus and structure:

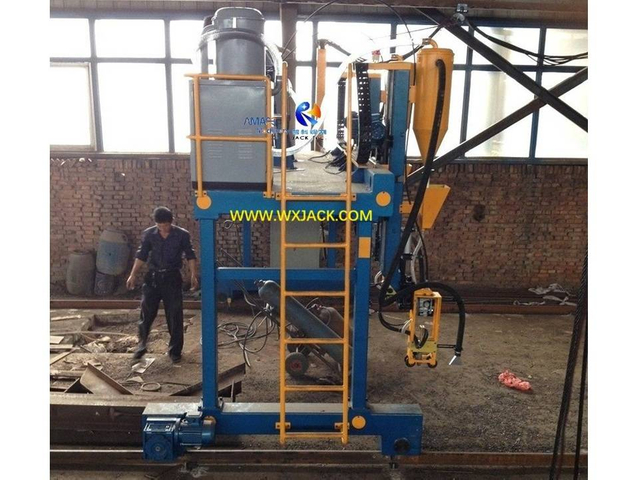

1) LHC Model Column Trolley SAW I H Beam Welding Machine;

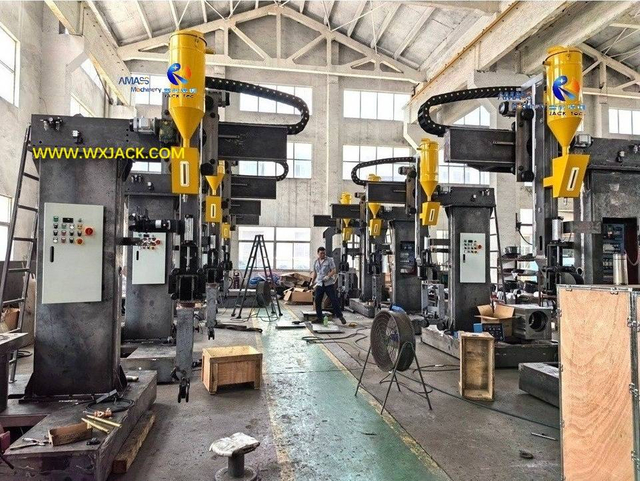

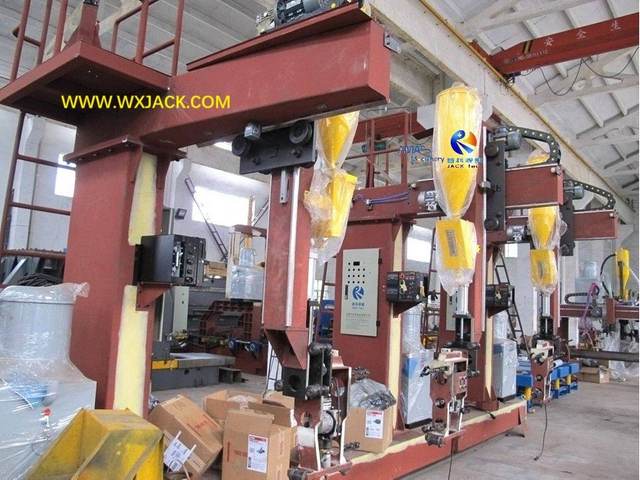

2) LHA Series I H Beam Gantry Welding Machine, including LHAZ central operating and LHAC lateral operating;

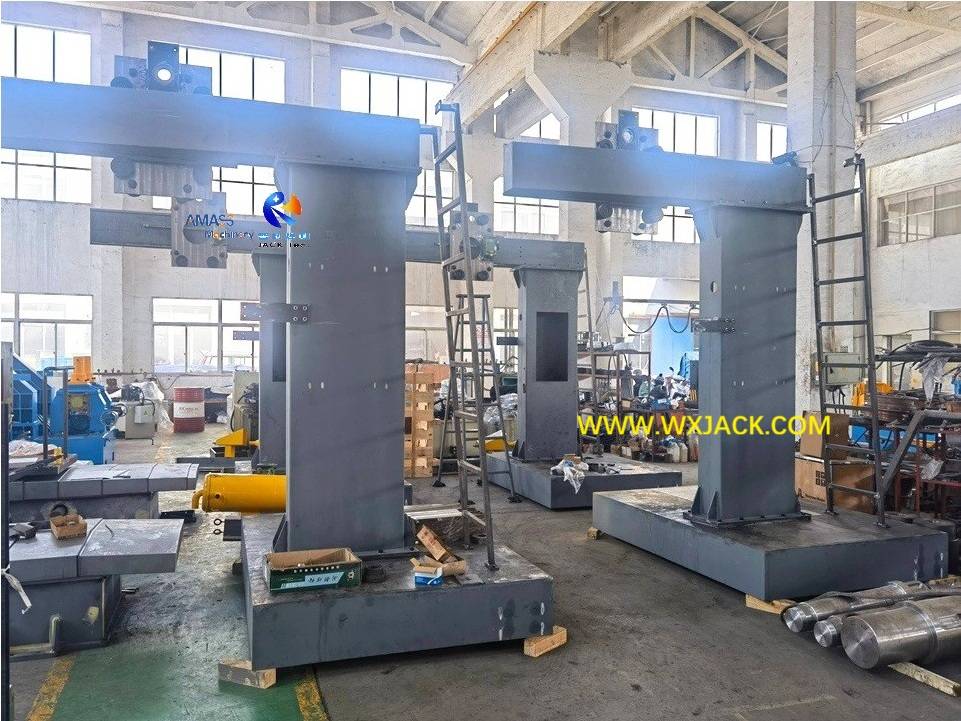

3) LHT Model T Structure I H Beam Gantry Welding Machine;
4) LHG/ LHD Special Design I H Beam Gantry Welding Machine


2. Technical Introduction on Wuxi JACK I H Beam Welding Machine:

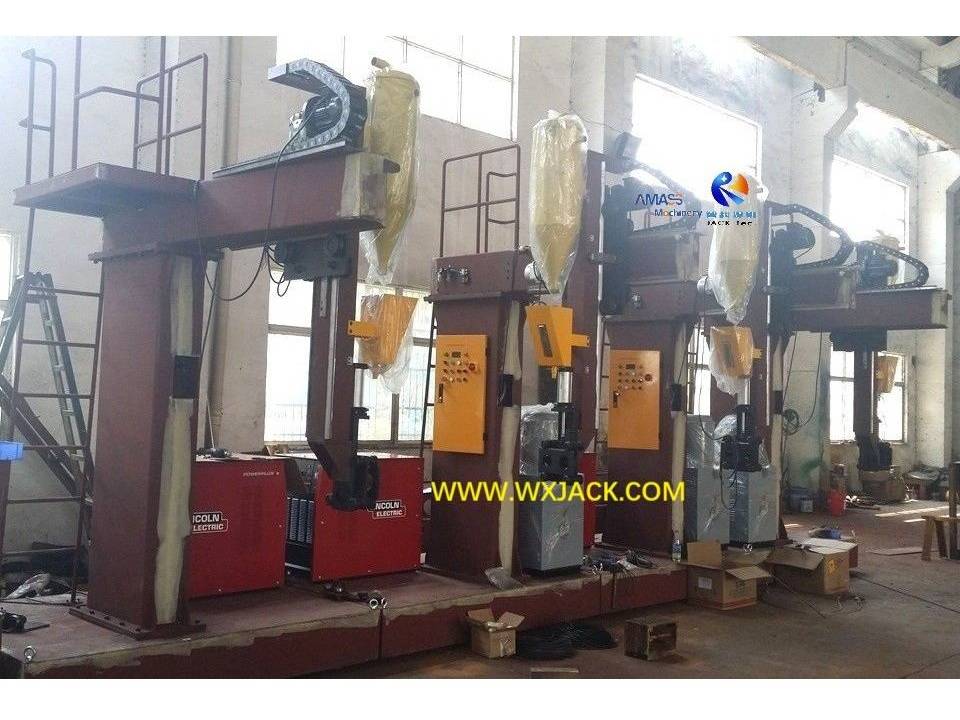

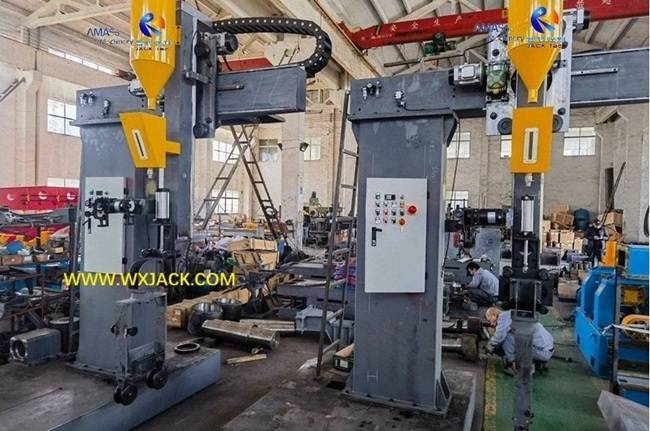

1) Open Structure I H Beam Submerged Arc Welding Machine: LHC Column trolley structure and LHT T frame I H Beam Gantry Welding Machine;

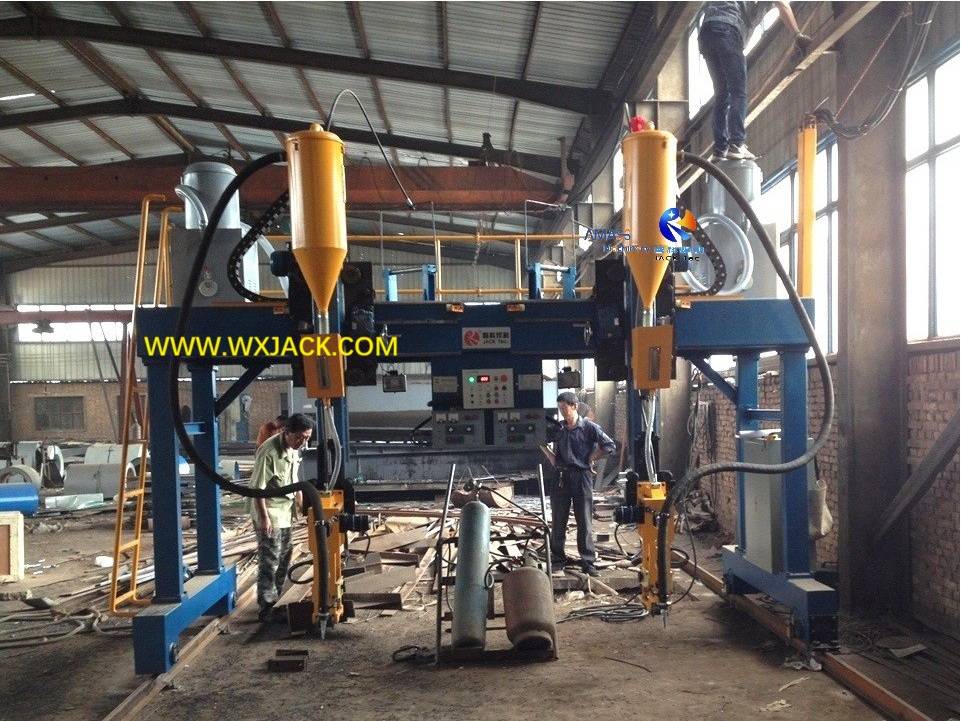

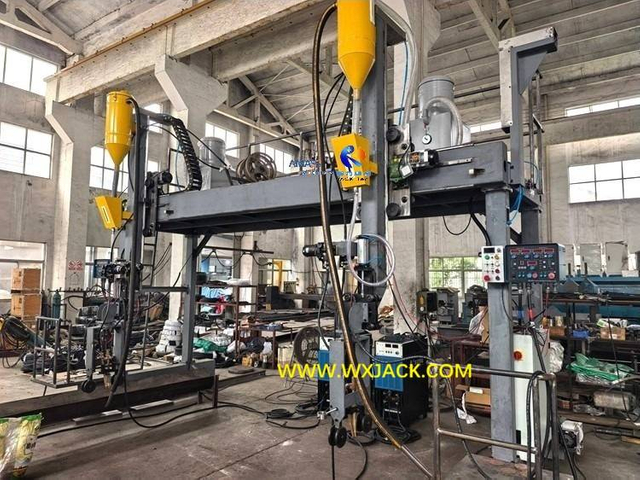

2) “SAW I H Beam Gantry Welding Machine”: LHA I H Beam Gantry Welding Machine; LHG/ LHD Gantry Welding Machine;


3. Technical Specifications of I H Beam Submerged Arc Welding Machine:

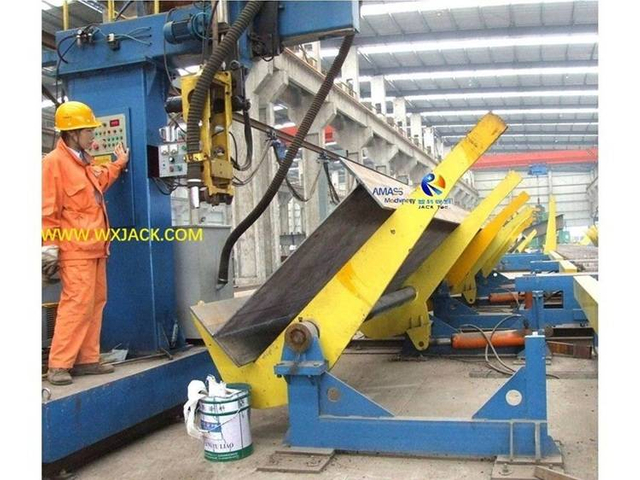

1) LHC Column Trolley I H Beam Submerged Arc Welding Machine:

1-I H Beam Welding Machine
 Model of
 I H Beam Submerged Arc Welding Machine		 LHC
 Operator Position during Operation Stands on
Moving Trolley
 Working Staff 1 Operator
 I H Beam Max. Web Height 2000 mm
 I H Beam Web Thickness 6 ~ 32 mm
 I H Beam Flange Width Range 200 ~ 800 mm
 I H Beam Flange Thickness Range 6 ~ 40 mm
 I H Beam Length 4,000 ~ 15,000 mm
 I H Beam Max. Weight 20 Ton
 Quantity of Welding Unit in
 1 set of I H Beam Gantry Welding Machine		 1 Unit
 I H Beam SAW Welding Speed 240 ~ 2400 mm/ min.
 I H Beam Handling 60° Overturning


2) LHA I H Beam Gantry Welding Machine:

 Model of I H Beam Gantry Welding Machine LHA4Z/ LHA5Z/ LHA55Z
LHA4C/ LHA5C
 Operator Position during Operation Stands on Workshop Floor:
LHAZ: In the middle;
LHAC: At the lateral
 Working Staff LHAZ: 1 Operator
LHAC: 2 Operators
 I H Beam Max. Web Height 1200/ 1800/ 2000 mm
1500/ 2000 mm
 I H Beam Web Thickness 6 ~ 32 mm
 I H Beam Flange Width Range 200 ~ 800 mm
 I H Beam Flange Thickness Range 6 ~ 40 mm
 I H Beam Length Range 4,000 ~ 15,000 mm
 I H Beam Max. Weight 20 Ton
  Quantity of Welding Unit in 1 set of
 I H Beam Gantry Welding Machine		 2 Units/ Set
 I H Beam SAW Welding Speed 240 ~ 2400 mm/ min.
 I H Beam Handling Style Traveling Crane
2 I H Beam Gantry Welding Machine 1

3) LHT T Frame Open Structure I H Beam Gantry Welding Machine:

3 I H Beam Gantry Welding Machine 1
  Model of I H Beam Gantry Welding Machine LHT
 Operator Position during Operation Middle beneath Horizontal Beam
 Working Staff 1 Operator
 H Beam Max. Web Height 2000 mm
 H Beam Web Thickness 6 ~ 32 mm
 H Beam Flange Width Range 200 ~ 800 mm
 H Beam Flange Thickness Range 6 ~ 40 mm
 H Beam Length 4,000 ~ 15,000 mm
 H Beam Max. Weight 20 Ton
 Quantity of Welding Unit in
 1 set of I H Beam Gantry Welding Machine		 2 Units/ Set
   I H Beam SAW Welding Speed 240 ~ 2400 mm/min.
 I H Beam Handling Form Traveling Crane

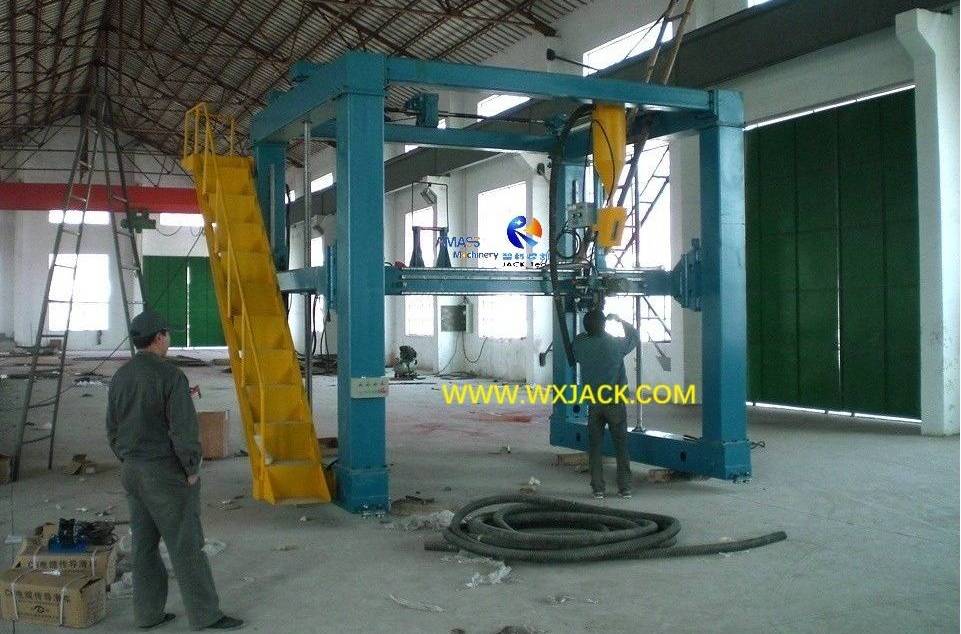

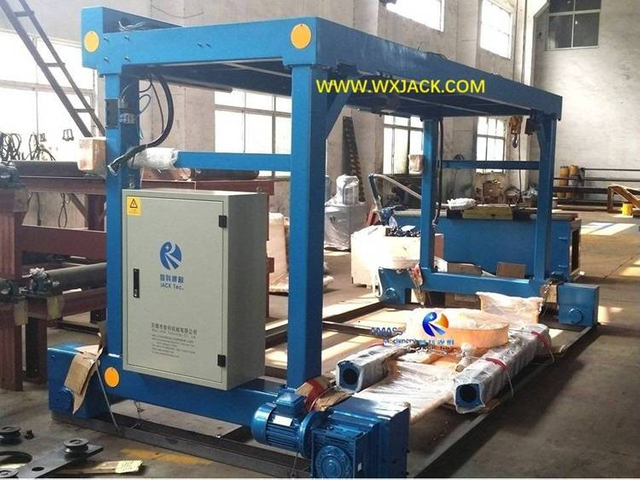

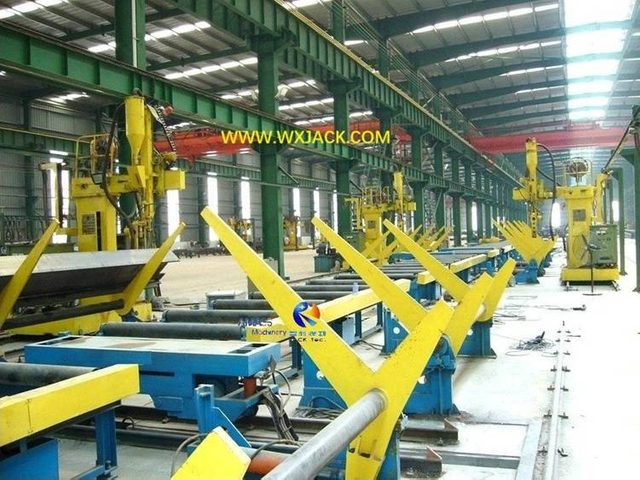

4) LHG/ LHD Gantry Welding Machine:

 Workpiece Length L 9000 ~ 16000 mm
 Large End Diameter D ≤2500 mm
 Small End Diameter d ≥300 mm
 Workpiece Taper a=8°(a=(D-d)/L)
 Workpiece Weight ≤6000 kg
 Gantry Travel Speed (Welding Speed) 200 ~ 2000 mm/min.
 Gantry Travel Drive Motor 2 x 1.1kW,
double drive
 Gantry Travel Rail 24kg/m,
precise honing
 Welding Torch Transverse Moving Motor 0.2 kW
 Platform Elevating Motor 2.2 kW
 Platform Elevating Speed 1500 mm/min.
4 I H Beam Gantry Welding Machine 17

Application Range and Related Equipment of I H Beam Submerged Arc Welding Machine:

1. Application Range of I H Beam Welding Machine:

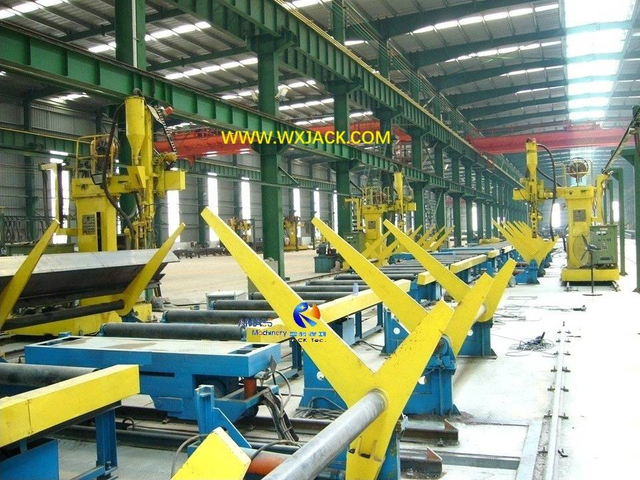

1) As central equipment for making welding T/ I/ H Beam, LHC/ LHT/ LHA SAW I H Beam Gantry Welding Machine are indispensable in automatic and semi-automatic I H Beam Production Line, and T Beam Production Line;

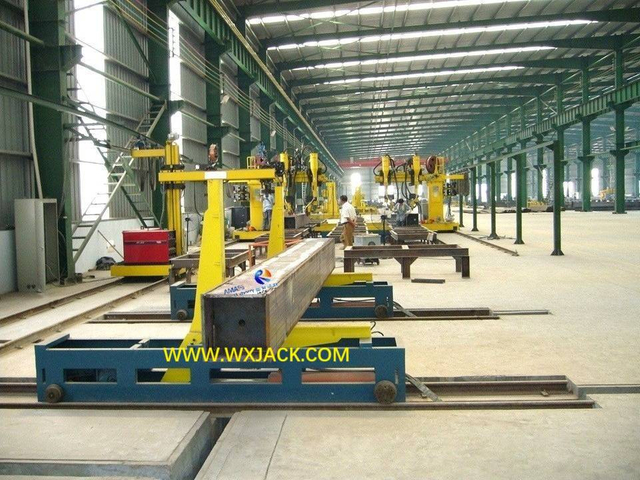

2) LHT model T frame I H Beam Welding Machine is also deployed in BOX Beam Production Line;

2. Other Machines in I H Beam Production Line besides I H Beam Welding Machine:

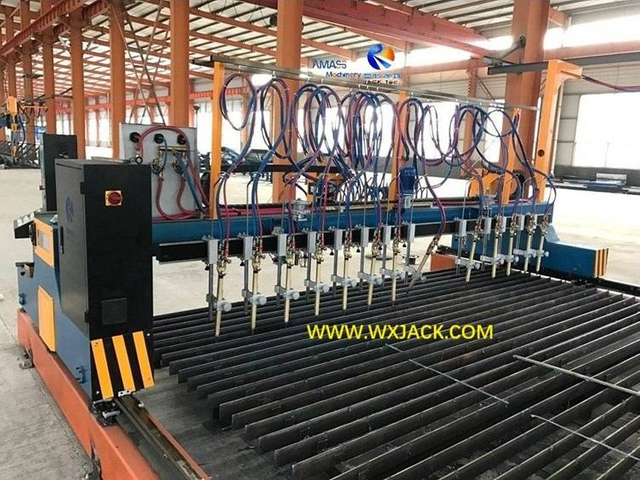

1) CNC Strip Plate Cutting Machine;

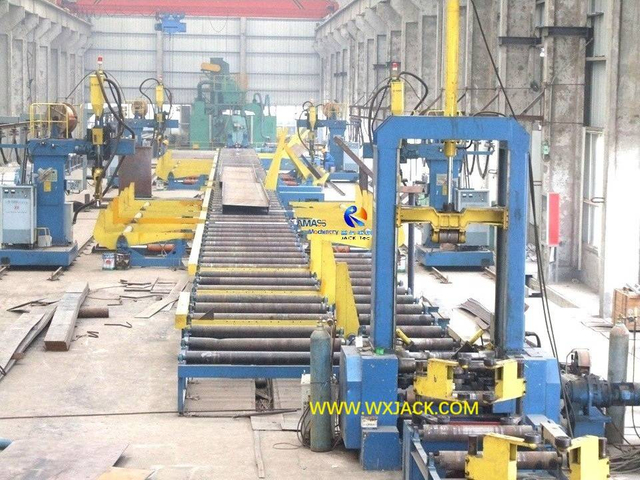

2) I H Beam Assembly Machine;

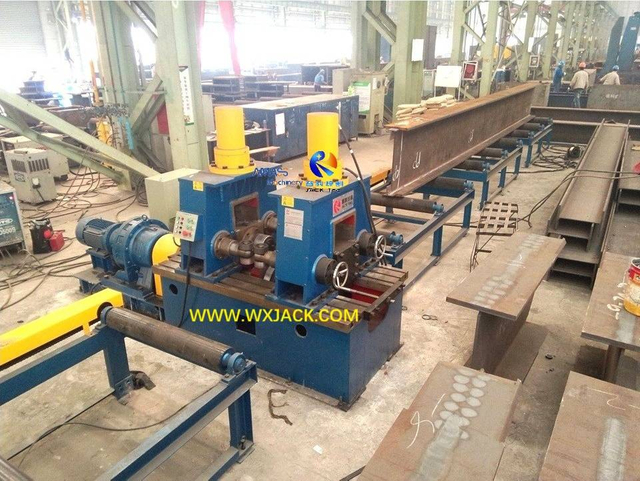

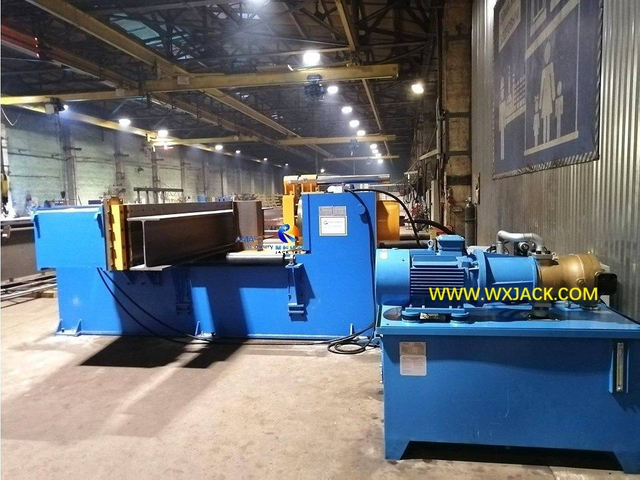

3) I H Beam Straightening Machine;

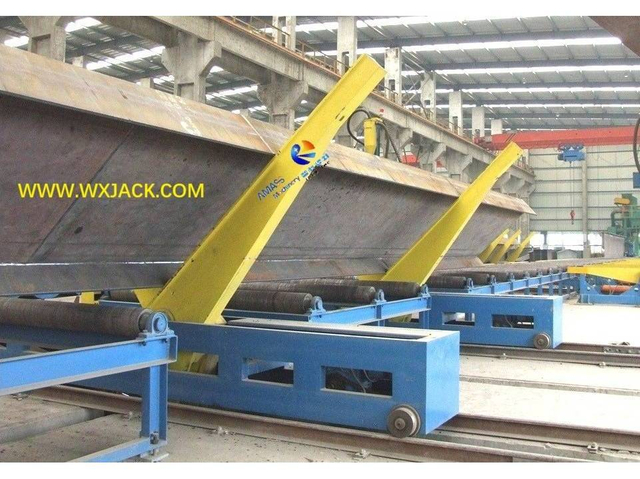

4) Hydraulic drive 60°/90°/180° Overturning Equipment Rack;
5) Hydraulic motor drive Steel Conveyor;

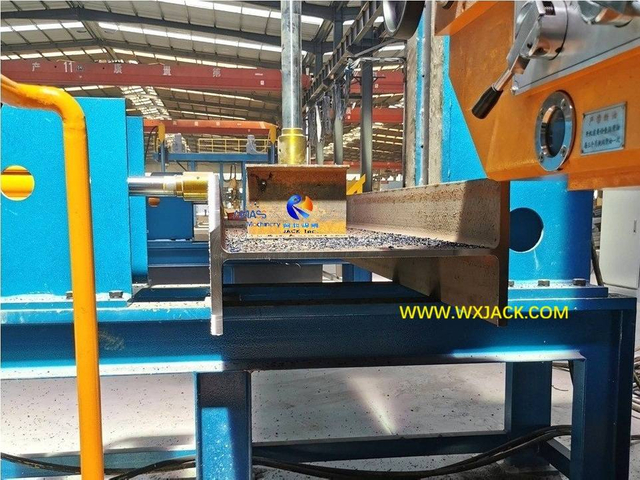

6) I H Beam End Face Milling Machine;

3. 1st Operation Machine for I H Beam Submerged Arc Welding Machine:

The important supplementary equipment for T/ I/ H /BOX Beam production:
1) Edge Milling Machine;
2) Edge Rounding Machine;
3) Plate Butt Joint Welding Machine

4. Related Equipment with SAW I H Beam Gantry Welding Machine:

1) The application of LHG/ LHD special design I H Beam Gantry Welding Machine needs support from Welding Fixture;

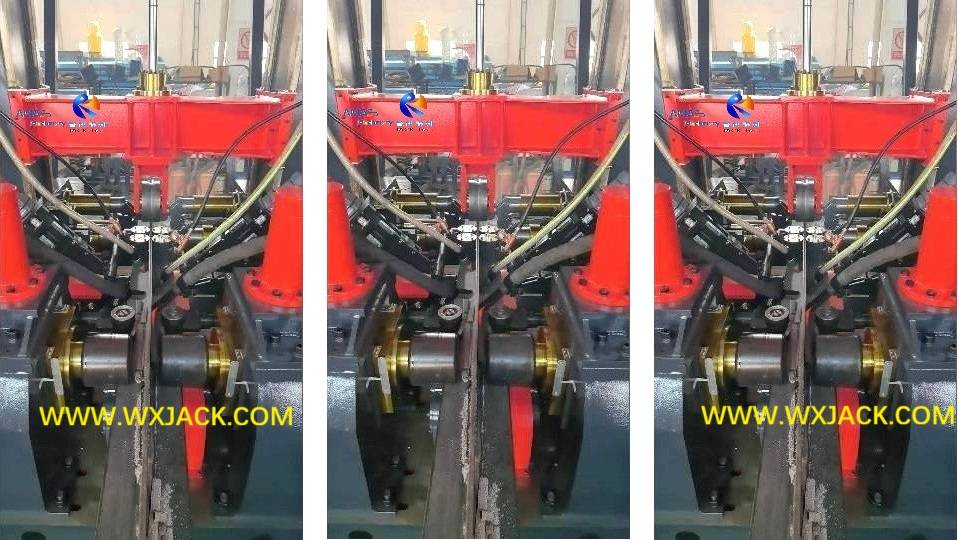

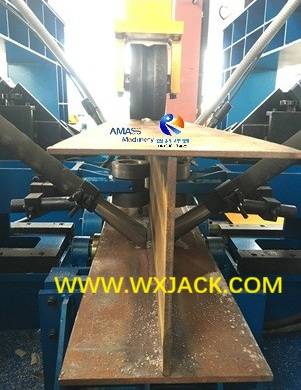

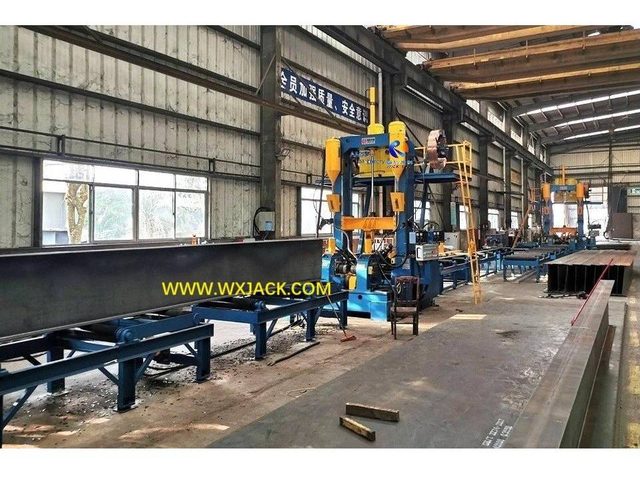

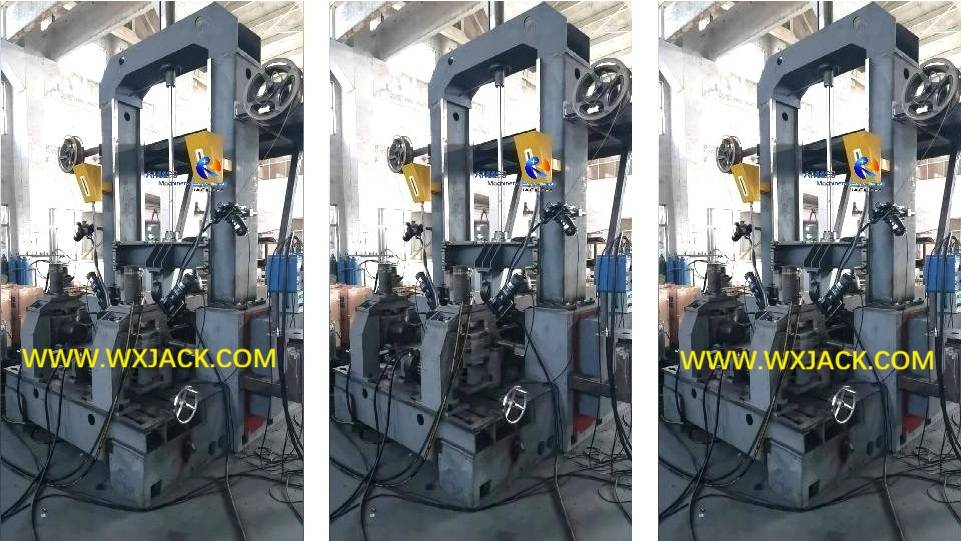

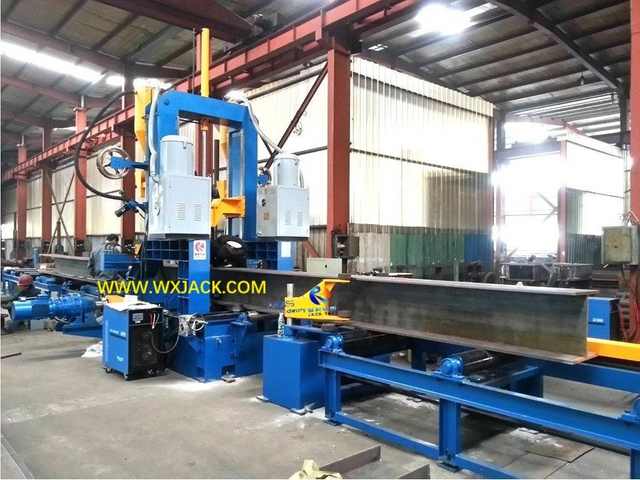

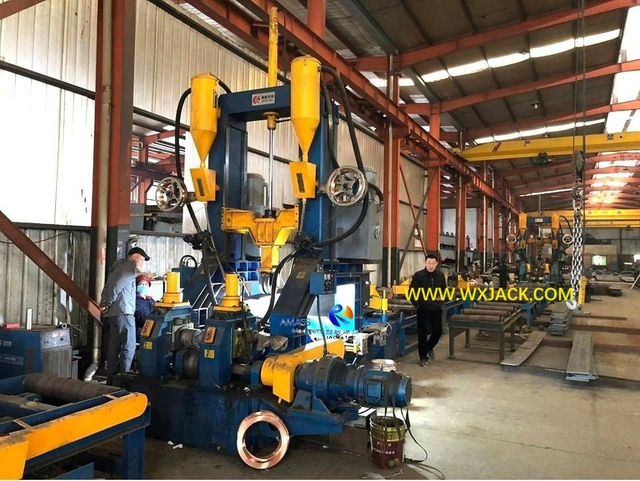

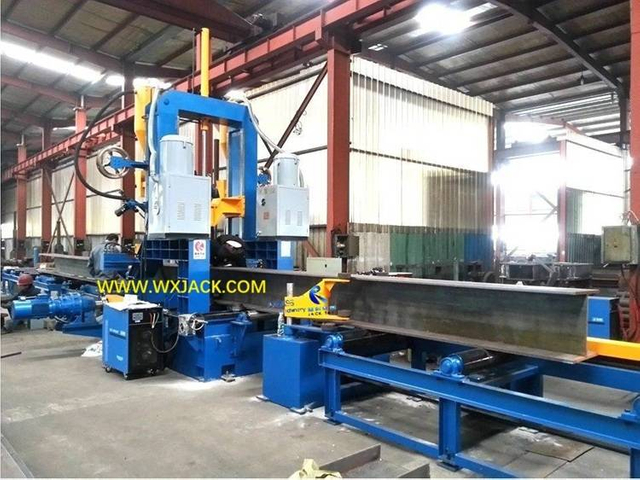

2) H Beam Assembly Welding Straightening Integral Machine (3 in 1 I H Beam Fabrication Machine) produces welding T/ I /H Beam similar to H Beam Welding Machine, but in the form of light to medium duty single pass welding seam.



FAQ On I H Beam Submerged Arc Welding Machine:

  • Q What is the Same Point and Difference between I H Beam Submerged Arc Welding Machine and I H Beam Fabrication Machine?

    A Same Points:
    1. 1) Both the machines adopt with large current SAW (Submerged arc welding) mode;
    2. 2) Configuration of the corresponding SAW welding groups are the same: Welding torch/ Position management/ SAW wire feeding unit/ SAW welding flux recovery and recycling unit;
    Difference:
    1. 1) In I H Beam Submerged Arc Welding Machine, SAW welding is in the position of 45° fillet; More than single pass of welding can be performed;

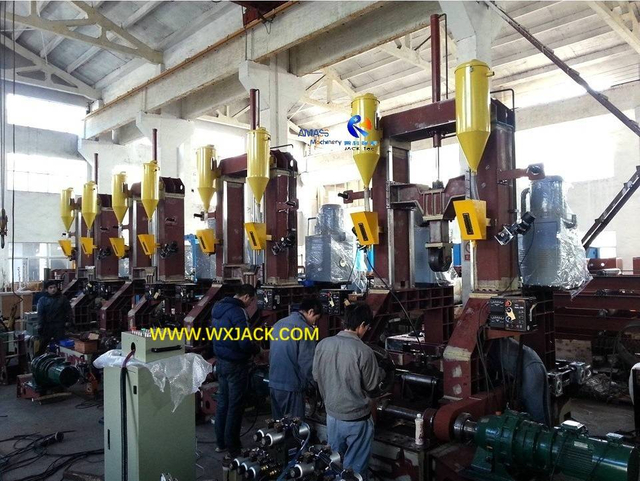

    2. 2) In 3 in 1 I H Beam Fabrication Machine, SAW welding is carried out one time, in the position of flat welding;
    3. The diameter of SAW welding wire is slightly different.

  • Q Why are There LHC/ LHA/ LHT 3 Series of I H Beam Gantry Welding Machine Available?

    A This is for convenience of customer choice, catering on specific application scenario:
    1. 1) LHC trolley moving I H Beam Welding Machine is deployed in automatic I H Beam Production Line;
    2. 2) LHT and LHA I H Beam Gantry Welding Machine are usually installed in semi-automatic I H Beam Production Line;
    3. 3) Further on, depending on max. H Beam web height and number of operators available, there are 5 models of LHA H Beam Gantry Welding Machine: LHA4Z/ LHA5Z/ LHA55Z/ LHA4C / LHA5C.

  • Q What are Advantages of SAW (Submerged Arc Welding) in I H Beam Welding Machine in terms of Welding Technology?

    A
    1. 1) I H Beam Submerged Arc Welding Machine is especially suitable for producing heavy duty I H Beam: Welding toe above 12mm size;
    2. 2) Welding seam formed has wider cover face, deeper penetration, and higher strength;
    3. 3) During work of the I H Beam Submerged Arc Welding Machine, welding speed/ current/ voltage can be modulated easily, and displayed intuitively in real time manner.

  • Q Which Machines should be Equipped together with I H Beam Gantry Welding Machine?

    A
    1. 1) Ahead of I H Beam Gantry Welding Machine: I H Beam Assembly and Tack Welding Machine;
    2. 2) Right following I H Beam Gantry Welding Machine: I H Beam Flange Straightening Machine.

Other Products We Own besides I H Beam Welding Machine

MP20 Automatic Plate Butt Joining Machine with Triple Cutting
MP20 Automatic Plate Butt Joining Machine with Triple Cutting
1. Application of MP20 Plate Butt Joint Welding Machine:
2. Structure and Working Principle of MP Series Plate Butt Welding Joint Machine:
3. Technical Parameters of MP20 Plate Butt Weld Joining Machine:

0
0
DX1520 H Beam End Face Milling Machine for Steel Structure
DX1520 H Beam End Face Milling Machine for Steel Structure
1. Application of DX1520 H Beam End Face Milling Machine:
2. Function Briefs of DX1520 H Beam End Face Milling Machine for Steel Structure Member:  Precise Linear Guiderails of both directions for Precision Guarantee / Working Speed Control / Working Tool of Powerful Milling Head/ Operation / Workpiece Clamp
3. Technical Parameters of DX1520 H Beam End Face Milling Machine:
0
0
Angle Steel Straightening Machine
General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
1. What can ASM63 Angle Steel Straightening Machine do for Customer?
2. Why You need Angle Straightening Machine?
3. The Good Points of ASM series Angle Steel Straightening Machine:
4. Technical View on ASM63 Angle Steel Straightening Machine:
5. Technical Parameters of ASM63 Angle Steel Straightening Machine:
0
0
7-Axis 3000/12 Flame And Plasma Large Scale CNC Pipe Cutting Machine
7-Axis 3000/12 Flame And Plasma Large Scale CNC Pipe Cutting Machine
A. Uniqueness of 7 Axis 3000/12 Heavy duty Oxy-fuel Plasma CNC Pipe Cutting Machine:
B. The Challenge on Developing Mature 7 Axis 3000/12 Heavy duty Oxy-fuel Plasma CNC Pipe Intersection Cutting Machine:
C. The 7 Axis of CNC in Heavy duty Oxy-fuel Plasma CNC Pipe Intersection Cutting Machine:
D. User Friendly Design in Wuxi JACK Heavy duty Oxy-fuel Plasma CNC Pipe Cutting Machine:
E. Technical Parameters of 7 Axis 3000/12 Heavy duty Oxy-fuel Plasma CNC Pipe Intersection Cutting Machine:
0
0
Welding Turntable Welding Positioner
HB-series Single Table Top Universal Welding Positioner with Chuck
1. The Definition and Characteristic of HB series Universal Welding Positioner:
2. Technical Features of the HB series Universal Rotary Welding Positioner:
3. Technical Parameters of the HB series Single Welding Turning Table Welding Positioner:
0
0

I H Beam Submerged Arc Welding Machine Blogs

  • Process Technology of BOX Beam Production Line

    Process Technology of BOX Beam Production Line
    1. Overview on BOX Beam Production Line: 2. Definition on BOX Beam Production Line: 3. Process Technology of BOX Beam Production Line and its Challenge: 4. Summary on BOX Beam Production Line: Read More
  • Technical Analysis on Steel Structure Overturning Equipment

    Technical Analysis on Steel Structure Overturning Equipment
    1. Brief on this Article on Steel Structure Overturning Equipment: 2. Demand on Steel Structure Flipping Equipment: 3. Classification on Steel Structure Overturning Equipment: 4. Characteristics and Design of Steel Structure Flipping Equipment: 5. Apply of Steel Structure Overturning Equipment: Read More
  • Wuxi JACK make delivery on a set of SXBJ125 Edge Milling Machine

    Wuxi JACK make delivery on a set of SXBJ125 Edge Milling Machine
    The Specialized Specification and Configuration of Double Heads long stroke SXBJ125 Heavy duty Edge Milling Machine Capability of Double Heads SXBJ125 Heavy duty Edge Milling Machine The Powerful Milling Head Equipped in SXBJ125 Heavy duty Edge Milling Machine The Feeding Unit of Milling Head Column in SXBJ125 Large Edge Milling Machine Read More
Home

Home Products About Us R&D Customization FAQ Blog Contact Us

WUXI AMASS MACHINERY CO., LTD
WUXI JACK TECHNOLOGY CO., LTD
0510-83297829
English Language: 15852755799;
Chinese Language: 13621515089
support@WXJACK.com
No. 2, Ouyang Road, Luoshe Town, Wuxi City, Jiangsu Province, China
CONTACT US
© Wuxi AMASS Machinery Co., Ltd  2021 All Rights Reserved.
备案证书号：苏ICP备13045244号-1
