1. Conventional Two Motion Axis Welding Positioner;
2. Three Motion Axis L type Lifting Weld Positioner;
3. Three to Four Motion Axis Head and Tail Weld Positioner;
4. Single Motion Axis Revolving and Turning Welding Worktable;
5. High Precision Servo Motor Drive Welding Positioner;
6. Special Made Welding Positioner;
7. Superiority of Wuxi JACK Welding Positioner

Technical Parameters of Wuxi JACK Conventional, Single Axis, L Structure, Head and Tail Turning Welding Worktable

Below is quick review on technical specifications of each general type our positioning welding equipment. More detailed technical introduction please check bottom section of this page:
1. HB Models Two Motion Axis Conventional Welding Positioner:

2. LBS Models Three Motion Axis Lift Function L type Lifting Weld Positioner:

3. Single Motion Axis Horizontal or Vertical 0° ~ 360° Revolve Turning Welding Worktable:

4. Double Columns Posts Head and Tail Weld Positioner:

5. High Precision Servo Motor Drive Welding Positioner:

Great Value of Wuxi JACK Welding Positioner for Customers

1 Welding Positioner Turning Table 6 100_9777

2 Welding Positioner Turntable 12 IMG_3433

3 L Structure Lift type Welding Positioner 7 IMG_1832

4 Large L Structure Lift type Welding Positioner 3 CIMG2019

5 Servo Motor Drive Turning Welding Table 4 IMG_20240915_104554

7 Double Columns Head and Tail Welding Positioner 2

8 Heavy duty Double Columns Head and Tail Welding Positioner 2

Welding Positioner Turntable 10 IMG_4878

Different Models of Wuxi JACK Welding Positioner

The lefthand scrolling photos: Variations of Wuxi JACK various forms and loading tonnage of Turning Welding Worktable:

Applicable Workpieces for Turning Welding Worktable:

1) Very often the fabrication operation on welding seams need adjustment on orientation of working parts, to get optimum welding performance, and eligible welder ergonomics;
2) Especially those welding seam distribution is in different planes of workpieces, on three dimensional Welding Turntable,
Operator can change position and orientation of working parts conveniently and precisely in conveniently controllable manner, to make sure that welding operation can be fulfilled at the most ideal position;

Irreplaceable Role of Welding Positioner:

1) Friendly Ergonomics: Under majority conditions, working parts are not easily to be manipulated and taken manually: Operators need to acquire comfortable welding operation with support of turntable Turning Welding Worktable. And, hence comes application of various designed Rotary Welding Positioner;
2) All Welding Positions Available: Welding Positioner helps operator and welding equipment implementing on operation always in the most desired position: The 45° fillet welding, flat welding… Benefitting from powerful functions of Turning Welding Worktable;
3) Catering on All Applicating Scenarios: Wuxi JACK has delivered all structures of Welding Positioner in all loading tonnages:
a) Conventional two motion degree of freedom;
b) Simplified single motion degree of freedom;
c) More complicated three motion axis L type Lifting Weld Positioner;
d) Sophisticated three to four motion axis double columns Head and Tail Weld Positioner.

Function of Rotary, Tilt, Lifting Turning Welding Worktable

1. Extensive Use: Welding Positioner is a kind of universal applied welding positioning equipment, which has one/ two/ three/ four motion axis, for orientating various structure workpieces to the most ideal position for welding operation;

2. Numerous Optional Degree of Freedom Welding Positioner:

By means of Turning Welding Worktable and hence workpieces working motions:
1) The first motion axis (Necessary): 0° ~ 360° infinite CW (clockwise) and CCW (counterclockwise) revolve;
2) The second motion axis (Optional): 0° ~ 120° clockwise or counterclockwise tilt;
Or, the second 0° ~ 360° infinite rotate;
3) The third motion axis (Optional): 1,000 mm ~ 5,000mm or more vertical stroke elevation;
4) The fourth motion axis (Optional): Movement of tailstock in certain stroke for Head and Tail Weld Positioner
Workpiece can be adjusted to the optimum position, for implementing on designated welding technology:

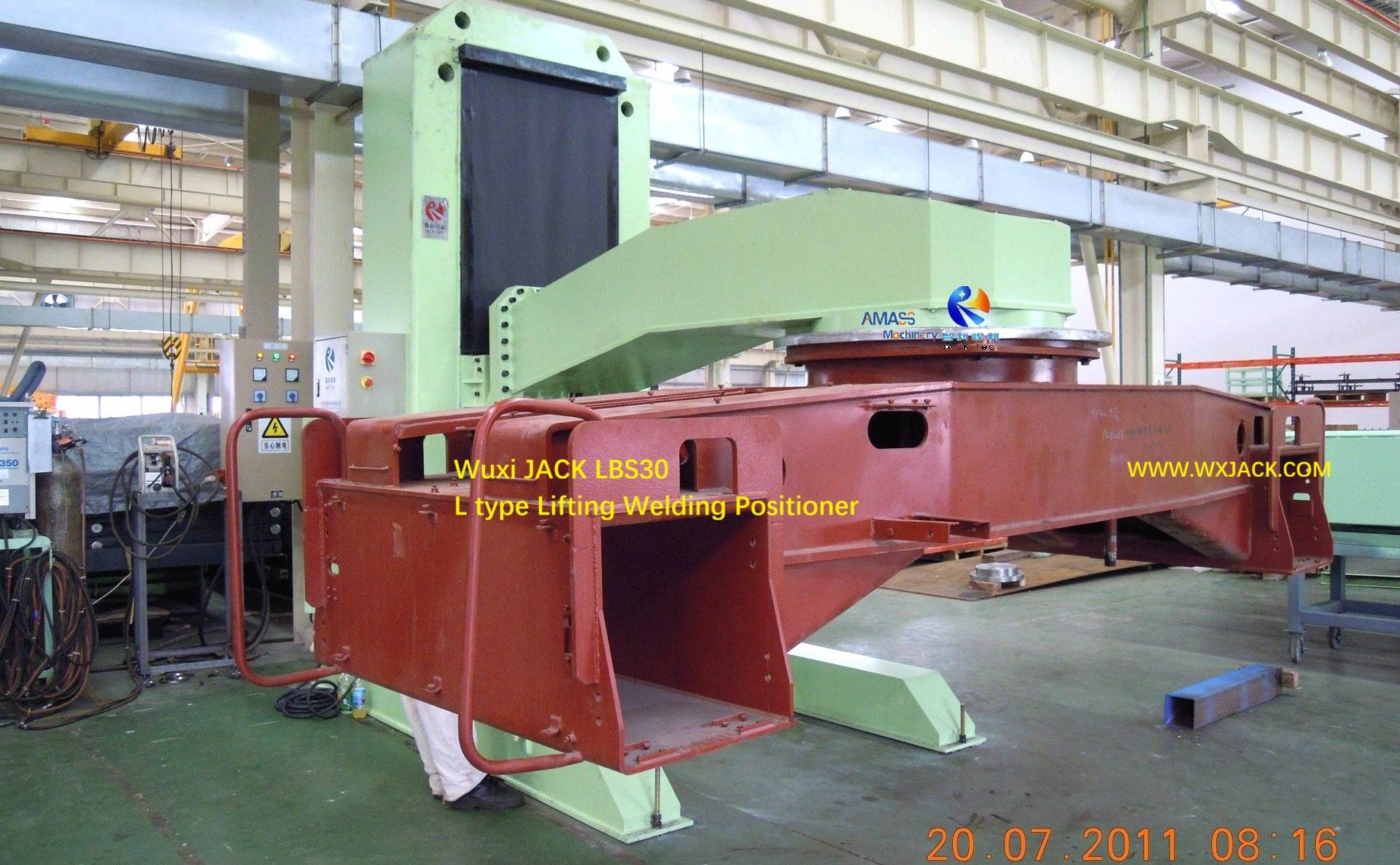

Working site of Wuxi JACK LBS10 model L type Lifting Weld Positioner of 1 ton loading capacity: (Fig.1)

Fig1 L structure lift type Welding Positioner 3 100_7167

3. Advantages and Leading Positions of Wuxi JACK Welding Positioner:

1) Business Achievement: Over the past two decades, as a first class Chinese professional supplier in Cutting and Welding Equipment Industry with strong technical strength, Wuxi JACK has delivered hundreds sets of Welding Positioner for worldwide customers, in diversified structure and loading tonnage of Turning Welding Worktable;
2) Technical Strength: Not only our conventional two motion axis Welding Positioner has superior quality and very reasonable price, but also our superior technical strength lies in designing and manufacturing various “more complicated” products: L type Lifting Weld Positioner, double columns Head and Tail Weld Positioner, etc.;
3) Broad Customer Base: These Wuxi JACK delivered Rotary Welding Positioner are distributed across industrial manufacturing industries all over the world, creating great values for customers;
4. Summary on strong points of our positioning Turning Welding Worktable product family is illustrated in product slides page: “Superiority of Wuxi JACK Welding Positioner”.

Classification on Wuxi JACK Turning Welding Worktable

1. Conventional Two Working Axis:
1) 0° ~ 360° infinite CW and CCW revolve;
2) 0° ~ 120° CW and CCW tilt, or the second 0° ~ 360° infinite CW and CCW revolve;
2. Three to Four Working Axis:
On the basis of the above two degree of freedom, adding on:
1) Certain vertical stroke up and down movement;
2) Tailstock horizontal certain stroke, from several meter up to 10+ meters;
These mainly involves L type Lifting Weld Positioner, together with Head and Tail Weld Positioner;
3. Single Working Axis:
Horizontal or vertical way 0° ~ 360° infinite CW and CCW revolve;
4. High precision servo motor drive models;
5. Various types of special made models.

Single Axis

Horizontal Revolve

Head and Tail

Two Motion Axis

Pipe Welding Rotator

Hand Held

Operating Pendant

Single Axis Vertical Revolve

L type Lift Function

1 Welding Positioner Turntable 20- IMG_3749

1. Two Working Axis Welding Positioner:

1. Technical View on Turning Welding Worktable:

1) Two degrees of freedom: 0°~360° infinite revolve and 0°~120° CW/ CCW tilt;
2) Drive: A.C. motor reducer;
3) Two Main Structures:
a) Conventional single Turning Welding Worktable;
b) Fixed Height L type Welding Positioner;
4) Loading capacity: Ranges from 100kg to 50 Ton, corresponds with Light / Medium / Heavy duty models;
5) Selling Volume: Two control axis conventional Welding Positioner has the largest selling volume in the industry and market;
6) Applicable Workpieces: Suitable on fabricating short length and small height structural workpieces. So, workpiece elevation function is not necessary for its welding operation, which absorb total length of working parts.

2. Technical Parameters of Two Control Axis Welding Positioner:

2. L type Lifting Weld Positioner:

1. Three Motion Axis with Turning Welding Worktable:

1) 0°~360° infinite clockwise or counterclockwise revolve;
2) 0°~120° tilt;
3) Vertical up and down motorized movement within certain stroke;

2. Drive of Turning Welding Worktable and Workpiece:

1) Revolve and tilt are driven with A.C. motor reducer;
2) Elevation: In Wuxi JACK produced L type Lifting Weld Positioner, workpiece elevation is driven with hydraulic cylinder, guaranteeing on fully safe and reliable performance;

3. Typical Types of Three Motion Axis Welding Positioner:

1) L type Lifting Weld Positioner;
2) Lifting type Head and Tail Weld Positioner
3) Manual adjusting lift single Turning Welding Worktable;
4. Applicable Condition: Suitable for fabricating on long length working parts;
5. Loading capacity: 1 / 1.2/ 2 / 3 Ton for L type, and up to 30 Ton for Head and Tail type;
6. Elevation stroke: From 500mm to 1500 mm.

7. Technical Parameters of L type Lifting Weld Positioner:

Max. Loading Capacity of Welding Turntable	1000 ~ 3000 kg
Lifting Stroke of L Arm and Rotary Welding Turntable	800 ~ 1500 mm
Size of Welding Turntable	(460x 600mm) ~ (1200x1200 mm)
Vertical Plane Revolving Speed of L Arm and Welding Turntable	2 rpm
Rotation Speed of Welding Turntable	0.2 ~ 2 rpm
Hydraulic Drive Motor Power of L Arm and Rotary Welding Turntable Elevation	1.1 ~ 3 kW
Welding Turntable Rotation Drive Motor Power	0.75 ~ 3 kW

3 L Structure Lifting type Welding Positioner 10

1 L type Lifting Welding Positioner 12 P1000212

2 L type Lifting Welding Positioner 2 20140906_141306

3. Single Axis Turning Welding Worktable:

1. Technical View:
1) The Solitary Degree of Freedom: 0°~360° infinite revolve under motor drive, either in vertical plane, or, in horizontal plane;
2) Drive Mode: With A.C. motor reducer;
3) Applicable Workpieces: Working parts with one to multiple passes of regular arranged circumferential welding seam on external surface of workpieces;

4) Conventional Loading Capacity of Welding Turntable:

a) Horizontal plane revolve model is from 1 Ton to 30 Ton;
b) Vertical plane revolve model is from 1 Ton to 10 Ton.

2. Technical Parameters of Single Axis Turning Welding Worktable:

Degree of Freedom	0° ~ 360° Welding Turntable Revolve
Revolve Speed of Rotary Welding Turntable	0.2 ~ 2 rpm, VFD
Loading Tonnage of Welding Turntable	Horizontal Rotary Welding Turntable:1000 ~ 30000 kg Single Axis Welding Positioner: 1000 ~ 1000 kg

1 Double Columns Head and Tail Welding Positioner 2

2 Head and Tail Double Columns Welding Positioner 8 _20220421104904

3 Double Columns Head and Tail Welding Positioner 4 _20220421104839

4. Head and Tail Weld Positioner:

1. Structure of Double Columns Welding Positioner:

1) Feature: There are 2 sets of upright columns in 1 set of the equipment, headstock and tailstock, which joints both ends of horizontal orientated workpieces in rigid or flexible way;
2) Quantity of Turning Welding Worktable: 3 sets, of which 2 sets being installed in vertical facing orientation, at both sets of the upright columns, headstock and tailstock; And 1 set at the middle of horizontal beam which connects headstock and tailstock, for fixing and revolving workpiece;
3) Types: Workpiece fixed height (No up and down stroke) and elevating type;
4) Application: Majority models products have lifting function;

5) Distance between Headstock and Tailstock of Head and Tail Weld Positioner:

It can be either:
a) Connected with tangible horizontal beam (Fixed distance);
b) Or, one set of the column is stationary (Headstock), and the other is workshop floor rail moving type (Adjustable distance, tailstock);

6) Motion Axis in Head and Tail Weld Positioner:

a) The 1^st Motion Axis: Must: 0°~360° horizontal revolve of Turning Welding Worktable and workpiece along horizontal workpiece axial direction;
b) The 2^nd Motion Axis: Majority Selected Choice: Workpiece elevation available within certain vertical stroke;
c) The 3^rd Motion Axis: 0°~360° rotation of Turning Welding Worktable and workpiece along radial direction of workpiece;
7) Applicable Working Parts: Long piece workpieces of various specification;
8) Conventional loading capacity of Turning Welding Worktable: From 1 Ton to 30 Ton.

2. Technical Parameters of Head and Tail Weld Positioner:

Degree of Freedom	Welding Turntable Revolve, Elevation (Optional) and Rotation (Optional)
Rotary Welding Turntable Loading Capacity	1000 ~ 10000 kg
Welding Turntable Elevation Stroke	500 ~ 1500 mm
Rotary Welding Turntable Revolve and Rotation Speed	0.2 ~ 2 rpm, VFD drive

5. Servo Drive Welding Positioner

1. Specialty of Servo Drive Turning Welding Worktable:

1) Drive and Control: Workpiece revolve and tilt are driven with servo motor and managed with encoder;
2) Loading Capacity: Considering small to medium power range of servo motor, Servo Drive Welding Positioner is confined to light and medium duty loading capacity of workpieces;
3) Types: Single motion axis revolve, two motion axis revolve and tilt, three axis head and stock;

4) High Precision Position Management of Wuxi JACK Servo Drive Welding Positioner:

a) Revolve and tilt of Turning Welding Worktable and workpiece can attain accuracy tolerance of ±0.02°;
b) Optional elevation function: Precision is not so strict. The key control points are safety and in phase elevation of both ends;
5) Applicating Scenario: Special requirement applicating case. One of the examples is for military use, or high precision instrument;
6) Conventional loading capacity is from 500 kg to 3 Ton.

2. Technical Parameters of Servo Drive Welding Positioner:

Max. Loading Capacity of Welding Turntable	500 ~ 3000 kg
Welding Turntable Revolve and Tilting Drive	Servo Motor
Welding Turntable Revolve Speed	0 ~ 10 rpm
Welding Turntable Angular Position Accuracy	±0.02°

3 Servo Drive Turning Welding Worktable 2

1 Servo Drive Welding Positioner Welding Turntable 6 IMG_3185

2 Servo Drive Welding Positioner Rotary Welding Table IMG_6022

1 Special Made Welding Positioner 4 100_6744

2 Special Made Welding Positioner1 QQ20160108090941_2345

6. Special Made Welding Positioner

1. Technical View on Special Made Turning Welding Worktable:

1) Definition: Special designed by supplier company, for meeting on specific usage demand of welding equipment for customers;

2) Examples of Wuxi JACK Special Made Welding Positioner:

a) PR model Pipe Welding Rotator, integrating working principle of Welding Positioner and Welding Rotator;
b) Welding Fixture type Welding Positioner, with manual or motor drive revolve of Turning Welding Worktable;
c) Super light loading capacity Welding Positioner, such as 200 kg workpiece weight;
d) Special requirement on structure or loading tonnage of Turning Welding Worktable;
e) Heavy duty workpiece lifting and revolving Head and Tail Weld Positioner;
3) Significance: Give the best solution on customer use, and demonstrate on capability on developing Special made Welding Positioner reflects on comprehensive professional technical strength of supplier company.

2. Technical Parameters of Wuxi JACK Special Made Pipe Rotating Welding Positioner:

Applicable Pipe Diameter Range	60 ~ 800 mm for PR24 80 ~ 1200 mm for PR40
Welding Turning Roll Revolve Speed	0.09 ~ 0.9 rpm
Welding Turning Roll Revolve	0° ~ 360°
Welding Turning Roll Tilting	-45° ~ +45°
Top Turning Roll Downward Stroke	510 mm

Working Principle of Wuxi JACK L type Lifting Weld Positioner

Here we take our LBS30 model Elevating L type Welding Positioner as an example, a model of widely applied positioning purpose welding equipment at Vehicle/ Construction Machinery industries, which has 3 ton loading capacity Turning Welding Worktable, to explain how does this welding equipment work:

1. Structure and Operating Way of Elevating L Structure Welding Positioner:

1) To get the most desirable welding position of long length large workpiece, there are three degrees of freedom in a set of LBS model welding equipment. Shown as below:
2) Design sketch of Wuxi JACK LBS30 Model Large L type Lifting Weld Positioner:

0 L type Welding Positioner Welding Turntable

2. 0°~ 360° Infinite Revolve of Turning Welding Worktable:

Photo 1:
1) Welding Operation: In this L structured welding positioning equipment, Turning Welding Worktable revolve leads workpiece into revolve of welding velocity, and being welded at the same time;
2) Workpiece revolve orientation is along slew bearing of Turning Welding Worktable;
3) Revolve Linear Speed: So, this revolve linear speed, which is also welding speed, is controlled with A.C. inverter (VFD: Variable frequency drive);

4) Drive Way of Turning Welding Worktable and Workpiece Revolve:

a) In conventional two degree of freedom Welding Positioner, revolve is driven with conventional A.C. motor reducer;
b) In servo drive models, revolve is driven with servo motor reducer;
5) Workpiece Secure: Workpieces are fixed into T slots rows on top surface of Turning Welding Worktable.

3. 0°~ 360° Turning Welding Worktable Rotation:

Photo 2:
1) Role: Manage on orientation of workpiece to the best position;
2) Rotation orientation is along slew bearing of L arm;
3) Rotation Linear Speed: Rotating speed is constant, unless customer has special requirement;

4) Drive Way of Turning Welding Worktable and Workpiece Rotation:

a) In conventional models, rotation and tilt is driven with braking type A.C. motor reducer;
b) In servo drive models, rotation and tilt is driven with servo motor reducer;

4. Elevation of L Arm and Turning Welding Worktable:

Photo 3:
1) Role: Accommodating on long length of working parts;
2) Drive Way: In Wuxi JACK delivered Elevating L type Welding Positioner, lifting and lowering down of Turning Welding Worktable and workpiece are driven with hydraulic system oil cylinders. This can fully promise on workpiece elevation in the best degree of security and reliable work;
3) Lifting Stroke of L arm depends on workpiece size. For LBS30 model, elevating stroke is 1500mm.

Photo 4:
Stability Erection: To fully keep balance and stable operation of the entire set of L type Lifting Weld Positioner, which has fairly heavy deadweight and that of workpiece:
1. There is counterweight being installed inside lower half of mechanical body of this L structured welding equipment;
2. There are 2 pieces of large size long feet at the bottom of the Welding Positioner, which are secured firmly into workshop floor. These greatly increases on contact area between the welding equipment and workshop floor.

Extensive Application of Welding Positioner

1. Applied Industries: The core task of positioning welding equipment is to fabricate on structure members of all sizes/ structures and weight, which sees the most widely application in: Construction Machinery/ Engineering Machinery/ Vehicle Industry, and Automobile Industry/ Boiler/ Pressure Vessel/ Petrochemical/ Electric Machinery;

2. Advantages of Turning Welding Worktable:

1) Promise The Best and Consistent Welding Quality: By rotating/ tilting/ elevation of workpieces, welding seam and position of workpieces can be adjusted to optimal orientation, guaranteeing on persistent and controllable superior welding performance;
2) Ideal Ergonomics Condition: Operator and welding equipment can carry out welding operation on structural workpieces, in the most comfortable and user friendly condition;
3) Top Level Productivity: By adjusting workpieces to the best orientation, welding efficiency at customer site can be raised to the highest level;
3. Related Welding Equipment:
In practical use, Welding Positioner often works with other welding equipment:
1) Welding Rotator (Welding Turning Roller Bed);
2) Welding Manipulator (Welding Column and Boom);
3) Welding Robot;
4) Special Purpose Welding Equipment;
These welding equipment can be composed into various tailor made Welding Center;
4. Equipment of Similar Functions: Steel Structure workpieces Overturning Equipment of various designs/ structures and loading capacities, which also have functions of flipping, raising workpiece under the drive of motor reducer/ Hydraulic oil cylinders.

Wuxi JACK Conventional Welding Positioner, L type Lifting Weld Positioner, Head and Tail Weld Positioner

There is always one fitting for you!

HB12 Model Conventional Two Motion Axis of 1.2 Ton Loading Capacity

HB20 Model Two Work Axis Welding Positioner of 2 Ton Loading Capacity

HB06 Model Two Degree of Freedom Turning Welding Worktable of 600kg Loading Tonnage

Electric Control Board of Welding Positioning Equipment

LBS10 Model Three Working Axis Revolve, Rotate, Elevation L type Lifting Weld Positioner of 1 Ton Loading Tonnage

HBS10 Model Four Working Axis Revolve, Rotate, Elevation, Move Double Columns Head and Tail Weld Positioner of 10 Ton Loading Capacity

HBS3 Model Two Working Axis Revolve, Move Double Columns Head and Tail Weld Positioner of 3 Ton Loading Capacity

Servo Motor Drive Single Motion Axis Turning Welding Worktable of 3 Ton Loading Capacity

L type Lifting Weld Positioner of 1 and 2 Ton Loading Capacity:

Wuxi JACK Other Superior and Cost Effective Welding Equipment and Steel Structure Machinery

HGZ80 Model Self-Adjusting Welding Rotator of 80 Ton Loading Tonnage

HGZ20 Model Motor Drive Moving Self-Adjusting Welding Turning Roller Bed of 80 Ton Loading Capacity

HGK2 Model Special Made Moving Leadscrew Adjusting Welding Rotator of 2 Ton Loading Tonnage

HLK100 Model Bolt Adjusting Welding Turning Roller Bed of 100 Ton Loading Tonnage

CNC-CG5000 Model CNC Triple Flame Oxygen Fuel Cutting Machine

SXBJ-12 Model Large Edge Milling Machine

CNC-DX1540 Model CNC Beam End Face Milling Machine Milling and Facing Center

2 sets of ZHJ15 Model 3 in 1 Welded H Beam Fabrication Machine (Assembly, Welding Straightening)

LHG15 Model Gantry Pipe Circumferential Welding Machine

LHZ4055 Model Large Welding Manipulator Column and Boom Welding Equipment

CNC-CP7-3000/12 Model Large CNC Pipe Cutting Machine

HB1500 Model Automatic H Beam Welding Production Line

Other series of Products We Own besides Welding Positioner

MP20 Automatic Plate Butt Joining Machine with Triple Cutting

DX1520 H Beam End Face Milling Machine for Steel Structure

Assistant Hydraulic Loading SXBJ-16 Sheet Metal Plate Edge Milling Machine

General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine

7-Axis 3000/12 Flame And Plasma Large Scale CNC Pipe Cutting Machine

HB-series Single Table Top Universal Welding Positioner with Chuck

Welding Positioner Blogs

3 Sets of High Precision Servo Drive Turn Table To 2 Customers Delivered by Wuxi JACK
Brief on Application and Composition of High Precision Servo Drive Rotary Table; The Structure and Usage of 3 Jaw Chuck with Assembled onto Turn Table; Technical View on High Precision Servo Drive Welding Turntable; Summary on Wuxi JACK Turn Table and Other Produces Read More
The Development Prospect of Welding Positioner
Definition and Function of Welding Positioner Welding Turning Table; Main Category of Welding Positioning Equipment; Development Prospect of Welding Positioner Welding Turntable; How to Properly Select Welding Positioner Rotary Welding Table; Summary on Wuxi JACK Welding Positioner Read More
Overview on Types of Welding Postioner And Its Choice
Usage and Application of Welding Positioner Classification and Models of Welding Positioner Technical Function Views of Welding Positioner Read More

Wuxi JACK Welding Positioner,

Provide Full Line of the Most Applicable and Reliable Turning Welding Worktable for Customers!

Conventional Two Axis, Three and Four Axis L type Lifting Weld Positioner, Head and Tail Weld Positioner

Work Videos of Wuxi JACK Welding Positioner

Technical Parameters of Wuxi JACK Conventional, Single Axis, L Structure, Head and Tail Turning Welding Worktable

Great Value of Wuxi JACK Welding Positioner for Customers

The Finished End Facing made by Wuxi JACK End Facing Machine

Different Models of Wuxi JACK Welding Positioner

Applicable Workpieces for Turning Welding Worktable:

Irreplaceable Role of Welding Positioner:

Function of Rotary, Tilt, Lifting Turning Welding Worktable

2. Numerous Optional Degree of Freedom Welding Positioner:

3. Advantages and Leading Positions of Wuxi JACK Welding Positioner:

Classification on Wuxi JACK Turning Welding Worktable

1. Two Working Axis Welding Positioner:

1. Technical View on Turning Welding Worktable:

2. Technical Parameters of Two Control Axis Welding Positioner:

2. L type Lifting Weld Positioner:

1. Three Motion Axis with Turning Welding Worktable:

2. Drive of Turning Welding Worktable and Workpiece:

3. Typical Types of Three Motion Axis Welding Positioner:

7. Technical Parameters of L type Lifting Weld Positioner:

3. Single Axis Turning Welding Worktable:

4) Conventional Loading Capacity of Welding Turntable:

2. Technical Parameters of Single Axis Turning Welding Worktable:

4. Head and Tail Weld Positioner:

1. Structure of Double Columns Welding Positioner:

5) Distance between Headstock and Tailstock of Head and Tail Weld Positioner:

6) Motion Axis in Head and Tail Weld Positioner:

2. Technical Parameters of Head and Tail Weld Positioner:

5. Servo Drive Welding Positioner

1. Specialty of Servo Drive Turning Welding Worktable:

4) High Precision Position Management of Wuxi JACK Servo Drive Welding Positioner:

2. Technical Parameters of Servo Drive Welding Positioner:

6. Special Made Welding Positioner

1. Technical View on Special Made Turning Welding Worktable:

2) Examples of Wuxi JACK Special Made Welding Positioner:

2. Technical Parameters of Wuxi JACK Special Made Pipe Rotating Welding Positioner:

Working Principle of Wuxi JACK L type Lifting Weld Positioner

1. Structure and Operating Way of Elevating L Structure Welding Positioner:

2. 0°~ 360° Infinite Revolve of Turning Welding Worktable:

4) Drive Way of Turning Welding Worktable and Workpiece Revolve:

3. 0°~ 360° Turning Welding Worktable Rotation:

4) Drive Way of Turning Welding Worktable and Workpiece Rotation:

4. Elevation of L Arm and Turning Welding Worktable:

Extensive Application of Welding Positioner

2. Advantages of Turning Welding Worktable:

Wuxi JACK Conventional Welding Positioner, L type Lifting Weld Positioner, Head and Tail Weld Positioner

Wuxi JACK Other Superior and Cost Effective Welding Equipment and Steel Structure Machinery

Other series of Products We Own besides Welding Positioner

Welding Positioner Blogs
