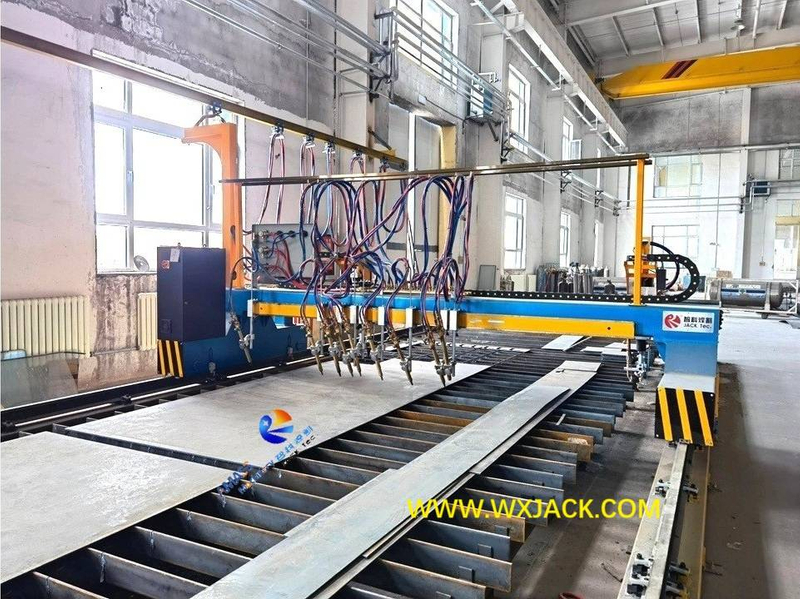

High Efficiency Strip Plate Cutting Machine with Flexible Size

CG series Plate Strip Cutting Machine is the “simplest” and “earliest” one in product family of CNC-CG series CNC Strip Plate Cutting machine.

1.     Usage and Application of Strip Plate Cutting Machine:

1)      Usage of the Plate Strip Cutting Machine:

a)       Plate Strip Cutting Machine is for cutting slit plate, and or cutting off carbon steel in longitudinal and or transverse direction with Oxygen and cutting gas (Acetylene or Propane). So, it has the full name of Plate Strip Flame Cutting Machine, or Plate Strip Oxyacetylene Cutting Machine. Please see the second photo;

b)      Finished product of the Strip Plate Cutting Machine is carbon steel slits and metal plates in strip shape of various dimensions:

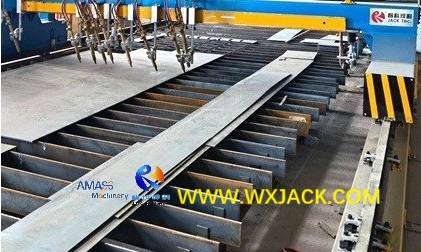

Strip plate cut from Wuxi JACK CNC Strip Plate Cutting Machine: (Fig.1)

c)       The Strip Plate Flame Cutting Machine has similar function as Shearing machine, but in different machine structure and working principle.

2)      Application of Plate Strip Cutting Machine:

a)       Strip Flame Plate Cutting Machine has the longest history in the product family of CNC Strip Plate Cutting Machine, before the advent of CNC system;

b)      In H Beam production line and or BOX Beam production line, Strip Plate Cutting Machine is more applicable than CNC Strip Plate Cutting Machine, because it only needs straight cutting without contour cutting (And CNC) under such situation;

c)       With mature of CNC technology, this Strip Plate Flame Cutting Machine has two types of the most often adopted application:

       i.           Either combined with CNC, servo driving system and CNC cutting torch, to be composed into CNC Strip Flame Cutting Machine;

      ii.           Or still be used as a sole purpose Oxyacetylene Plate Strip Cutting Machine;

     iii.           Sometimes, the machine is also equipped with one or more sets of triple cutting torch, to gain more options of usage.

2.     Standard Product and Variation in Plate Strip Flame Cutting Machine:

1)      Standard product of Plate Strip Cutting Machine has nine sets of strip cutting torch in the rail span of 4,000mm machine (Total valid cutting width of such machine is 3,200mm):

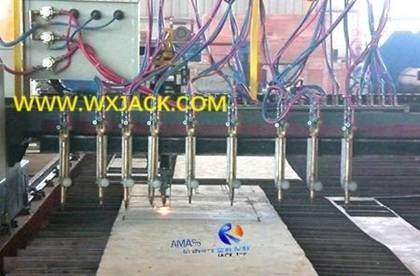

Strip cutting torches in CNC Strip Plate Cutting Machine: (Fig.2)

2)      Of which the distance among each of the strip torches can be adjusted by hand, based on required cutting width of the finished product;

3)      Quantity of the strip torches in one set of Plate Strip Cutting Machine can be more or less than nine sets based on customer demand;

4)      Same as Triple Cutting Machine, the Plate Strip Flame Cutting Machine with rail span bigger than 4,000mm should have double drive, which can only be put into reality with CNC and its servo drive. For this, please check product section of “High Speed CG5000 CNC Triple Plate Cutting machine for Edge Bevelling”;

5)      For 4,000mm rail span and less flame Strip Plate Cutting Machine, its control system is simple: Only contactor and relay for controlling of the machine operation.

3.     Structure and Composition of Plate Strip Cutting Machine:

1)      As one kind of product in CNC Strip Plate Cutting Machine, the Strip Plate Cutting Machine has the universal structure of traveling gantry along the rails;

2)      Its composition includes three main units of the CNC Strip Plate Cutting Machine:

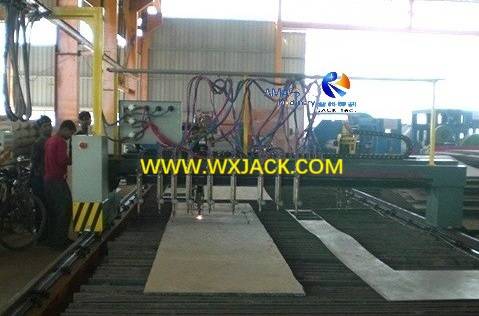

a)       Mechanical unit of CNC Strip Plate Cutting Machine main body and rails, as well as cutting platform:   (Fig.3)

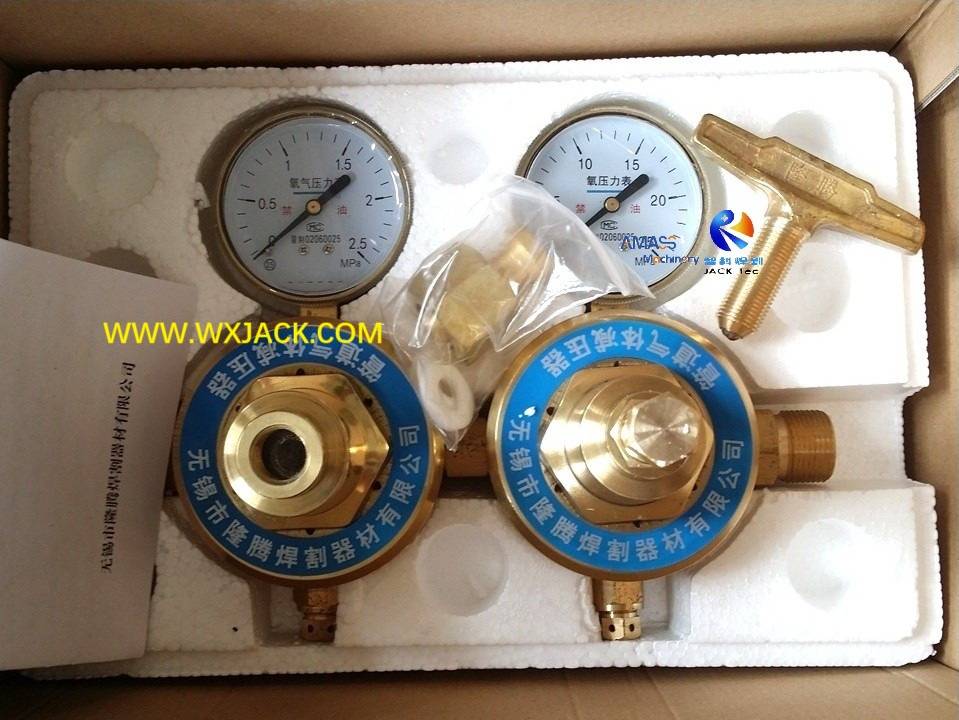

b)      Thermal cutting system of Central supply gas panel, meters (Please check attached the fifth and sixth pictures), gas tubes, strip cutting torch (Different from CNC control single cutting torch) in Plate Strip Flame Cutting Machine:

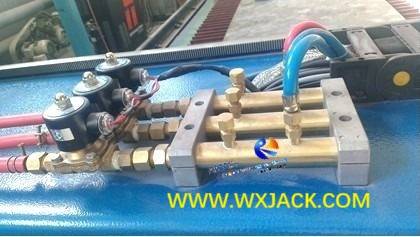

Cutting gas tubes in CNC Strip Flame Cutting Machine: (Fig.4)

c)       Control system and operating panels of the Strip Plate Cutting Machine.

4.     Technical Parameters of Plate Strip Flame Cutting Machine:

Below are technical parameters for a set of Standard size and Configuration CG4000 Strip Plate Cutting Machine:
