The Subject of This Blog on Oxygen Fuel CNC Strip Plate Cutting Machine:
1) Featured Position: CNC Flame Cutting Machine, the “Oldest” specie of CNC Plate Cutting Machine, always keeps its unique position in the industry for over 50 years. Especially when customers have demand on cutting thick carbon steel with thickness above 50mm, CNC Plate Flame Cutting Machine is the only choice;
2) Strong Points: There are many advantages with CNC Flame Plate Cutting Machine, the most distinguished merits are: Cost effectiveness, adaptability, expandability, strong cutting capacity, etc.;
3) Topics: In this short blog, let us review the CNC Flame Cutting Machine on below aspects:
Category and Configuration of Oxygen Fuel CNC Flame Plate Cutting Machine:
Technical Views and Advantages of Oxygen Fuel CNC Flame Cutting Machine:
Process Technology of Oxygen Fuel CNC Plate Flame Cutting Machine:
Summary on Oxygen Fuel CNC Plate Cutting Machine:
A. Category and Configuration of Oxygen Fuel CNC Flame Plate Cutting Machine:
1. There are 3 types of flame cutting torches available for being installed in CNC Flame Cutting Machine:
1) CNC Control Single Torch: For implementing profile cutting, controlled with CNC controller;
2) Strip Torch: For cutting out long and narrow strip plates, controlled with A.C. relay;
3) Triple Torch: For making beveling on edges of metal plates, its tilting angle adjusted manually;

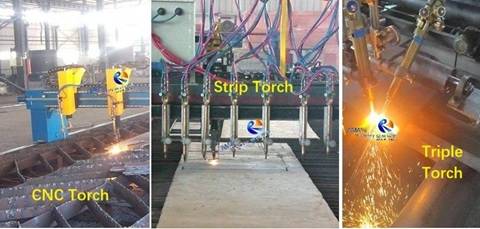

4) The 3 types of cutting torches assembled in Wuxi JACK CNC Flame Plate Cutting Machine: (Fig.1)
2. Business Application Options of CNC Flame Plate Cutting Machine:
Correspondingly, there are 4 applicating styles of CNC Flame Cutting Machine, which are listed as below, in the sequence of from large volume to relatively small:
B. Technical Views and Advantages of Oxygen Fuel CNC Flame Cutting Machine:
1. THC Torch Height Controller in CNC Flame Plate Cutting Machine:
This unit comes in different types based on specific configuration of the CNC Flame Cutting Machine:

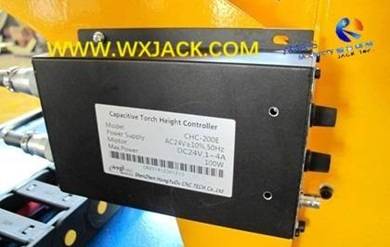

1) For CNC control single cutting torch in the CNC Flame Cutting Machine, this is capacitance style: (Fig.6)
2) For triple cutting torch in the CNC Strip Plate Cutting Machine, this is mechanical structure floating style with pressing roller: (Fig.7)
2. Advantages: The Lowest Price, with the widest application range, and flexibility of CNC Flame Cutting Machine:
1) Minimum Period Cost: Flame CNC Strip Plate Cutting Machine has the lowest budget investment compared with any other kinds of CNC Plate Cutting Machine: Laser, Plasma, Water Jet;
2) Wide Thickness Range: Besides, it can cut from 1mm thickness up to 100mm thickness workpiece;
3) Upgrade Easily: Any one set of CNC Flame Plate Cutting Machine can be upgraded into plasma CNC Plate Cutting Machine conveniently;
4) Adapting to Working Environment: Of all the kinds of CNC Plate Cutting Machine: Laser/ Plasma/ Water Jet... CNC Flame Cutting Machine has the least degree of requirement on working environment, in terms of cleanness, humidity, interference.... In other words, CNC Flame Plate Cutting Machine can be applied in harsh and tough working surroundings with no problem.
C. Process Technology of Oxygen Fuel CNC Plate Flame Cutting Machine:
1. Cutting Theory in Oxygen Fuel CNC Strip Plate Cutting Machine:
1) How: The CNC Flame Cutting Machine integrates the traditional fire reducing technique with CNC automation technology, and also can be made use of for the cutting on carbon plates and other ferrous metal, with a thickness of 6mm or more;
2) Prospect: Considering making use of steel in the domestic market, fire cutting in CNC Flame Plate Cutting Machine still inhabits a larger market;
3) The Cutting Approach of the CNC Plate Flame Cutting Machine is various from the cutting approach of the Oxygen Fuel CNC Plate Cutting Machine;
4) The Cutting Technology in CNC Flame Cutting Machine is a cutting method, that utilizes a heat flame to heat a specific factor, on the surface of the steel plate to the ignition factor; And also fill it with high pressure oxygen to make it shed to develop an incision;
5) Cutting close up on Wuxi JACK CNC Flame Plate Cutting Machine: (Fig.8)
2. Cutting Gas Circuit in CNC Flame Cutting Machine:
1) Cutting Gas Choices: Normally, cutting gas and oxygen are required for fire cutting, and there are three types of gas offered for fire: coal gas, gas, and also acetylene;
2) Which Better: Amongst them, gas has the tiniest calorific worth, complied with gas as well as acetylene has the largest calorific worth. The better the heat, the faster the cutting and also the quicker the burning rate, the much better the reducing result delivered from CNC Flame Cutting Machine;
3) The Oxygen fuel and cutting gas control panel, in Wuxi JACK CNC Flame Plate Cutting Machine: (Fig.9)
4) Applicable Workpieces: Flame cutting can only cut metals that are quickly oxidized. Flames with higher carbon content are tough to reduce. The density of fire cutting in CNC Flame Plate Cutting Machine is typically carbon steel with a density of 6mm or even more;
5) Special Workpieces: Although in theory, CNC Flame Cutting Machine can likewise be used for cutting on plates with a density of less than 6mm, due to the fact that the plate is thin, the method of fire cutting is to utilize a high temperature fire, to heat a particular point externally of the steel plate to the ignition factor and also charge it in the CNC Strip Plate Cutting Machine. A cutting approach that uses high pressure oxygen to shed it to create a cut;
6) Applicable Thickness Range: For that reason, it is very easy to trigger thermal deformation of the plate when cutting home plate, and the cut plate cannot accomplish great results. Normally, the CNC Flame Cutting Machine can reduce to 200mm, and also after special adjustment, it can cut 350mm;
3. Applicable Working Speed for Cutting in CNC Flame Cutting Machine:
1) Quicker than Manual Cutting: In terms of reducing speed, fire cutting in CNC Strip Plate Cutting Machine is lot of times quicker than manual cutting;
2) Slower than Plasma Cutting: However, it is slightly slower than plasma cutting: Utilizing a 20mm thick sheet for comparison. The flame cutting rate in CNC Flame Cutting Machine has to do with 450mm per minute, while the plasma cutting rate in CNC Plate Cutting Machine is about 1500mm per minute;
3) Upright Cutting Kerf: In terms of reducing impact, the perpendicularity of CNC Flame Cutting Machine is far better than that of plasma cutting. The cutting surface produced from CNC Flame Plate Cutting Machine is vertical, compared with the cutting surface area delivered from plasma CNC Plate Cutting Machine has a specific inclination.
D. Summary on Oxygen Fuel CNC Plate Cutting Machine:
1. One Word Description: CNC Flame Cutting Machine is very user friendly, on the aspects not only operation, but also management and most important, purchasing and running cost;
2. For more information on this superior product delivered from Wuxi JACK, please visit web page: Oxygen Fuel CNC Flame Cutting Machine with internal linked in the above.
