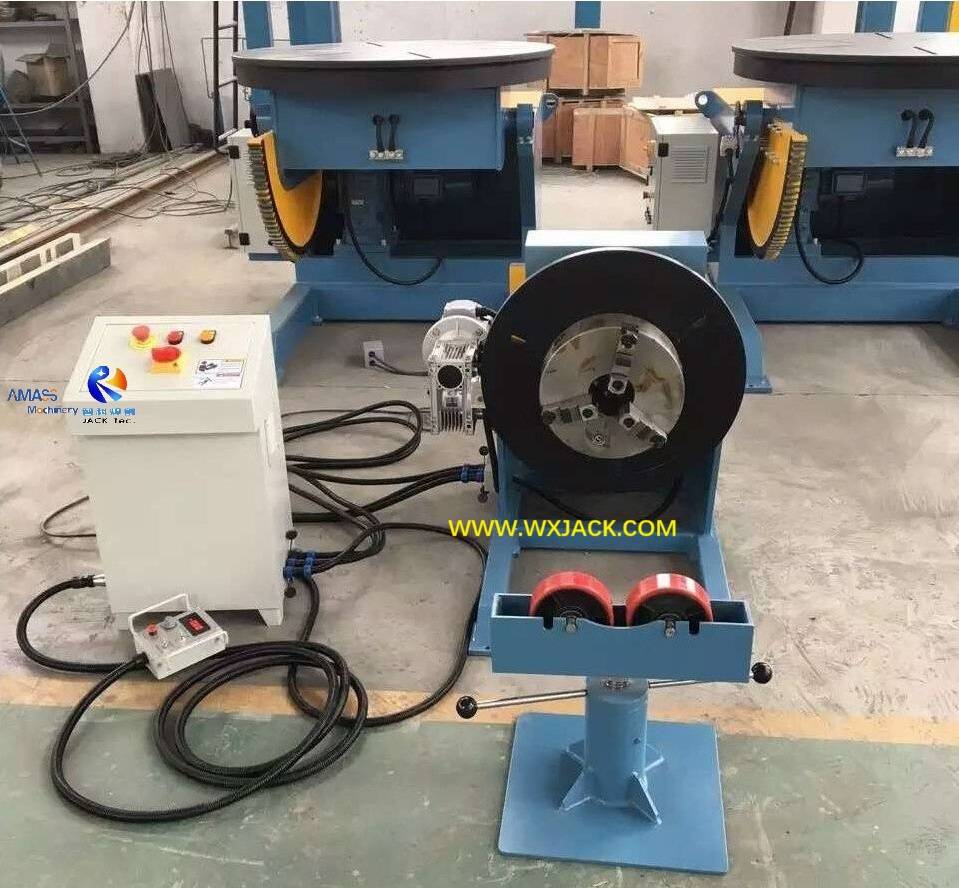

Single Work Table Electric Special Made Welding Positioner with Chuck

1.       Characteristics of Special Made Welding Positioner:

In pragmatic use, there is sometimes requirement on Special Made Weld Positioning Equipment, on the basis of conventional or standard single table type Weld Positioner; These tailored Special Made Rotary Welding Positioner can be summarized into:

1)      Such Special Made Weld Positioner is designed and produced arising from meeting specific customer need;

2)      Such customized Special Made Welding turntable is one design for one customer: Personalized Weld Positioning Equipment;

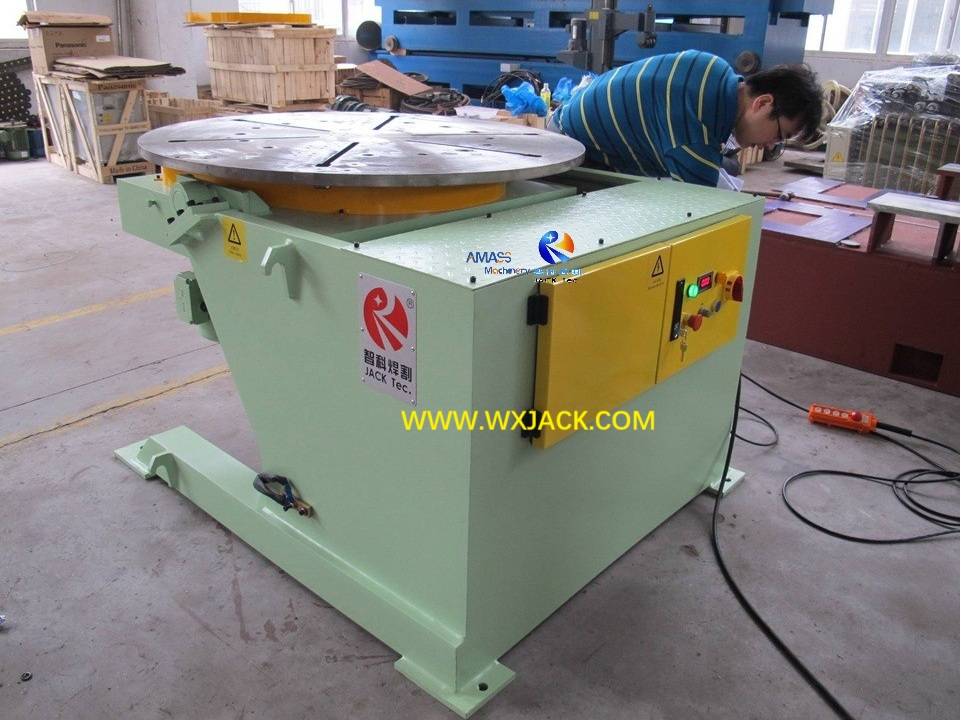

3)      Such Special Made Welding Positioner has the similar basic structure and working principle as universal single table top Weld Positioner;

4)      What’s unique and specialty with these Special Made Welding turntable is usually with adopted Welding Fixtures, and peripheral units.

2.       A typical Applicating Example on Special Made Welding Positioner:

Personalized Special Made Weld Positioning Equipment varies from case to case. Let us explore what solution we designed and made for a customer who comes from a precision Electrical Appliance Apparatus Company:

1)      Welding Fixture for Special Made Welding Positioner:

a)       Workpiece welded with this purpose designed Special Made Welding Positioner has long length and round shape cross section;

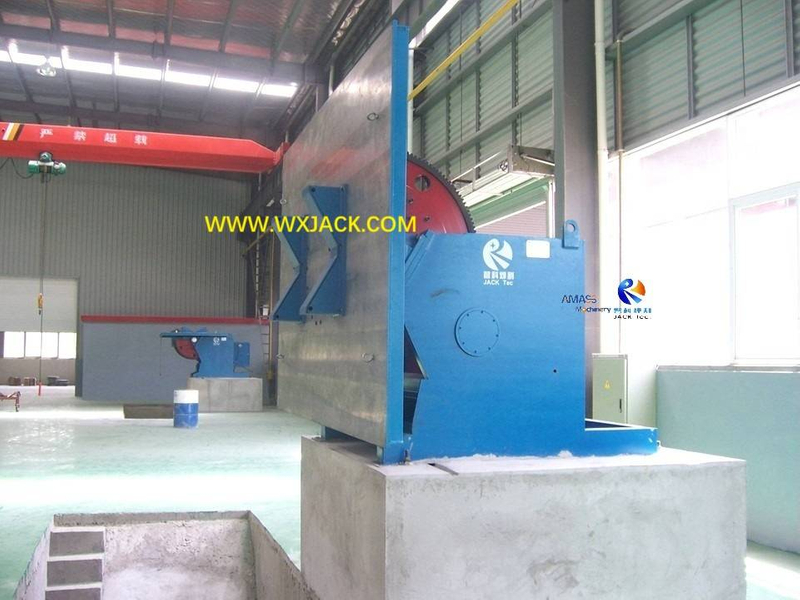

Welding Fixture in Special Made Welding Positioner: (Fig.1)

b)      So, two sets of V section brackets on the surface of Welding turntable are used for supporting and securing workpiece, together with fiber ribbon. (See attached and above picture);

2)      Welding Turntable of the Special Made Rotary Welding Positioner:

a)       Also, to cater for the long cylindrical parts used in this Special Made Weld Positioner, Welding turntable is not traditional round shape;

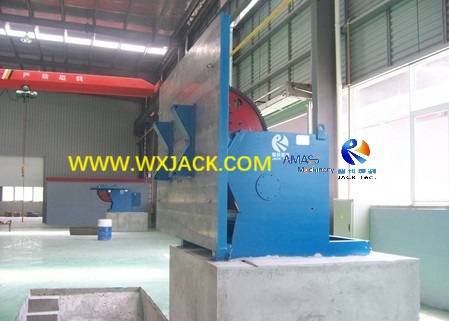

Special Made Welding Positioner: (Fig.2)

b)      Instead, it is rectangular shape Welding turntable of 2000×3000mm area;

3)      Foundation of the Special Made Welding Positioner:

a)       As introduced in the product section of Single Welding turntable Weld Positioner, such kind of Weld Positioning Equipment usually do not need foundation: Just fixed it in the floor with anchor bolts;

b)      Comparatively, in this specific case of tailored Special Made Welding Positioner, due to the long length of workpiece, the corresponding revolving diameter of Welding turntable is also large;

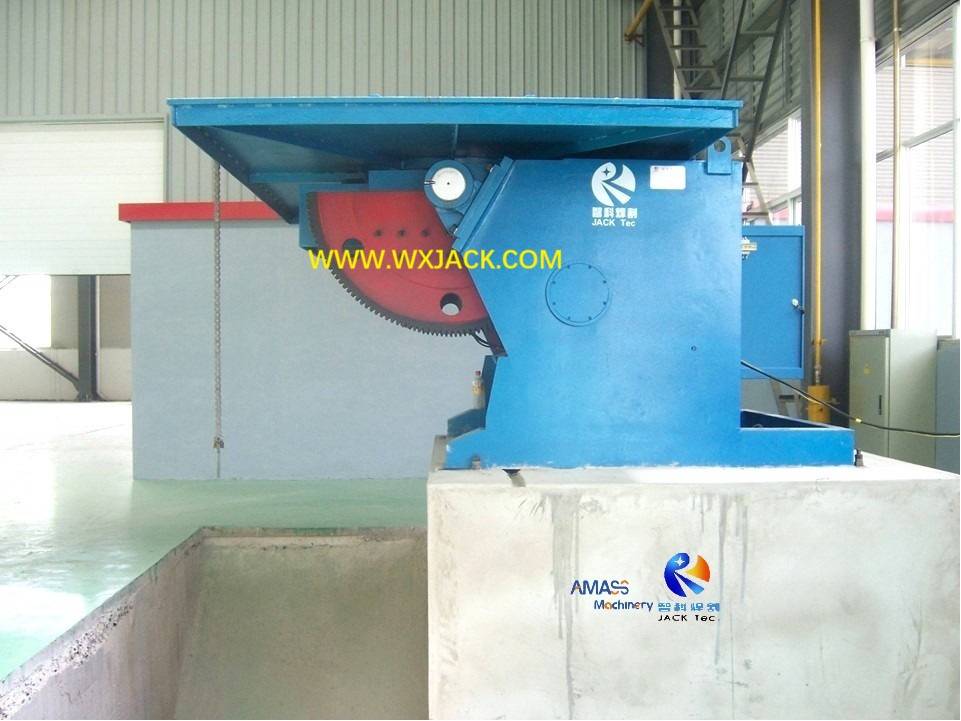

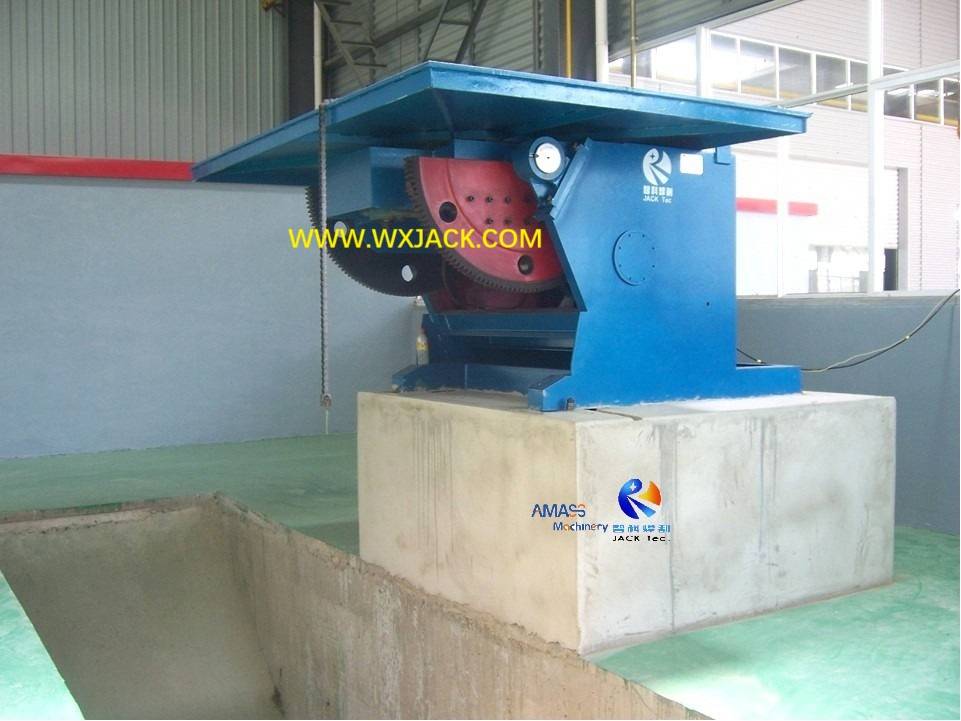

c)       So, during working of the Special Made Weld Positioner, when the long length workpiece is turned downward to 90°, there will be interference with the ground. For this reason, a pit of certain size and depth was dig at working site of this Special Made Welding Positioner (see attached and below picture).

Special Made Welding Positioner: (Fig.3)

3.       Control Logic of this Special Made Weld Positioning Equipment:

1)      For the same reason, when designing control system of this Special Made Welding Positioner, the action sequence of the Welding turntable should be like this: Only when the Welding turntable is parallel with ground, can the Welding turntable being tilted;

2)      Only when the Welding turntable is titled to 90°, can it being revolved;

3)      In this manner, the long length workpiece of this Special Made Welding Positioner will not have conflict with surrounding objects.

4.       Mechanical System of Special Made Welding Positioner:

1)      Machine Bed of the Special Made Weld Positioning Equipment:

a)       To guarantee solid support on the long length workpiece in this customized Special Made Welding Positioner, the main body of the Weld Positioning Equipment is designed into double bed style of left and right side;

b)      The Special Made Welding Positioner beds are made from structure members welded into shape with profiles and section steels, and went thru annealing process for maintaining high strength of the Weld Positioning Equipment;

c)       These two Weld Positioner beds are connected into an integral body by means of two pieces of box beam;

d)      Such kind of design and process technology make sure stability and durability of this Special Made Welding Positioner;

2)      Clearance of Revolving Motor Reducer for the Special Made Welding turntable:

In technical proposal we proposed helical gear reducer of 17 arc minute for this purpose Special Made Weld Positioner.

5.       Technical Parameters of Special Made Welding Positioner:

It depends on specific application of Special Made Weld Positioning Equipment. For this set of Special Made Welding Positioner, the technical specification is:
