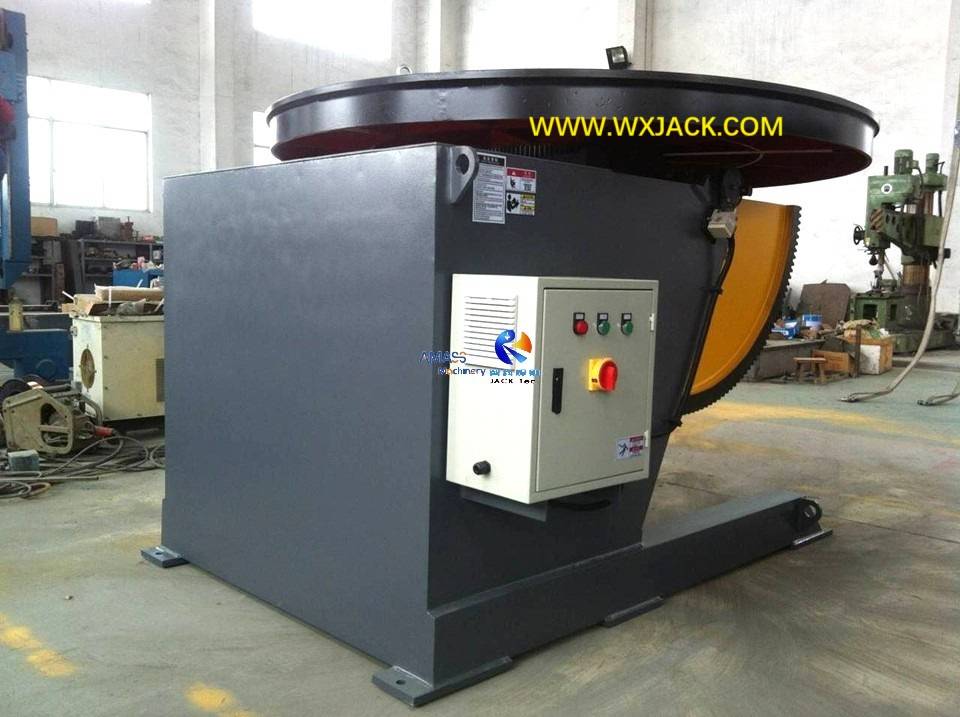

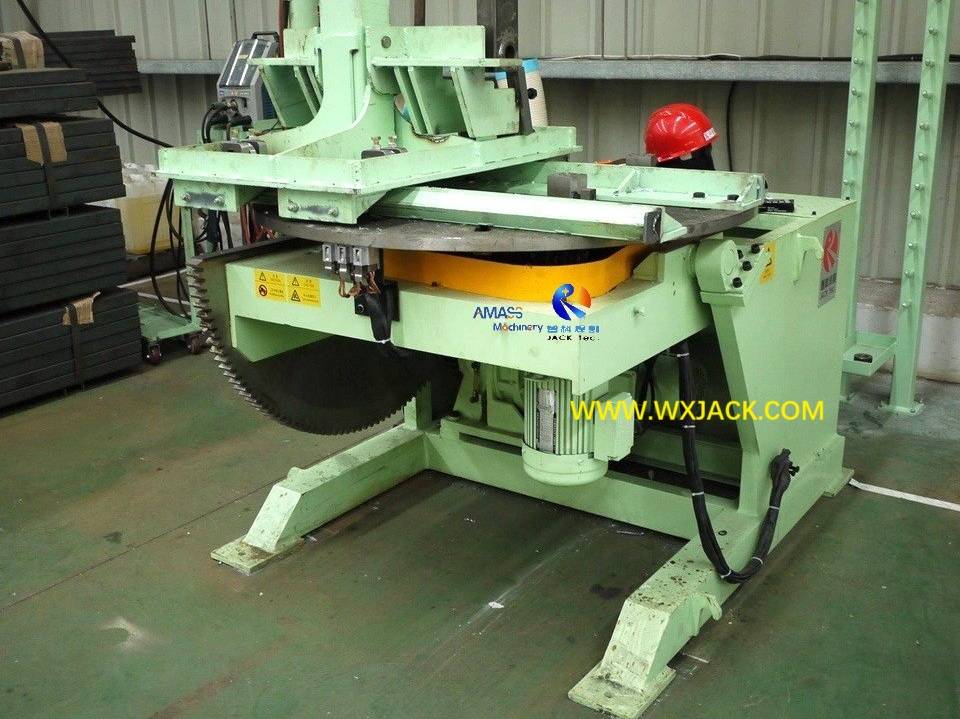

Popular Use HB Series Middle Level Loading Tonnage Welding Positioner

1.       The Scope and Label of HB series Medium duty Welding Positioner:

1)      Scope of the Medium duty Welding Positioner:

Medium duty HB series Weld Positioner refers to loading capacity of the Welding Turning Table from 1Ton to 10Ton: The models of HB10 to HB100. Loading tonnage of 10Ton is the dividing line between medium duty Welding Positioner and heavy duty Welding Positioner;

2)      Label of HB series Medium duty Welding Positioner:

a)       As introduced in the product family of HB series Welding Positioner, the structure of Single Working Table Welding Positioner is the most extensive used products among all models of this sorts of Welding Positioning Equipment;

b)      Furtherly divided, from the view point of loading capacity of the Welding Turning Table, medium duty Welding Positioning Equipment is the widest selected ones among across tonnages of the Universal Welding Positioner;

c)       Or, in other words, this scope of medium duty Welding Positioner is “the widest among widest”. It is a classical type and symbol, or can be viewed as Standard Welding Positioner;

d)      For this reason, we introduce working principle of industrial Single Working Table Welding Positioner in this product section as below.

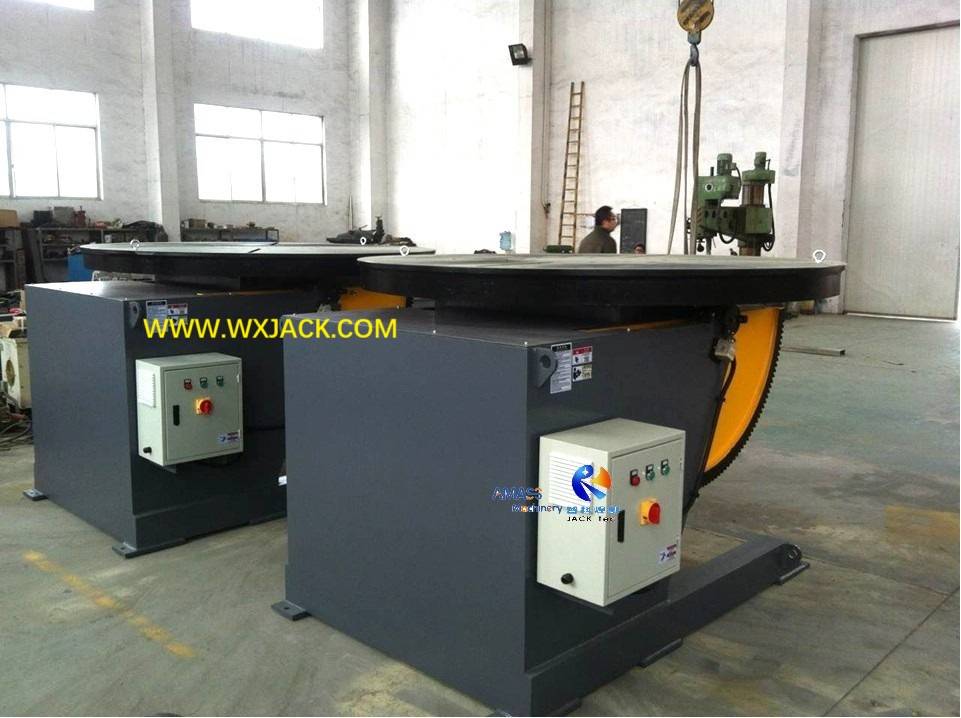

2.       Working Principle of HB series Single Working Table Welding Positioner:

1)      Task of Universal Welding Positioner:

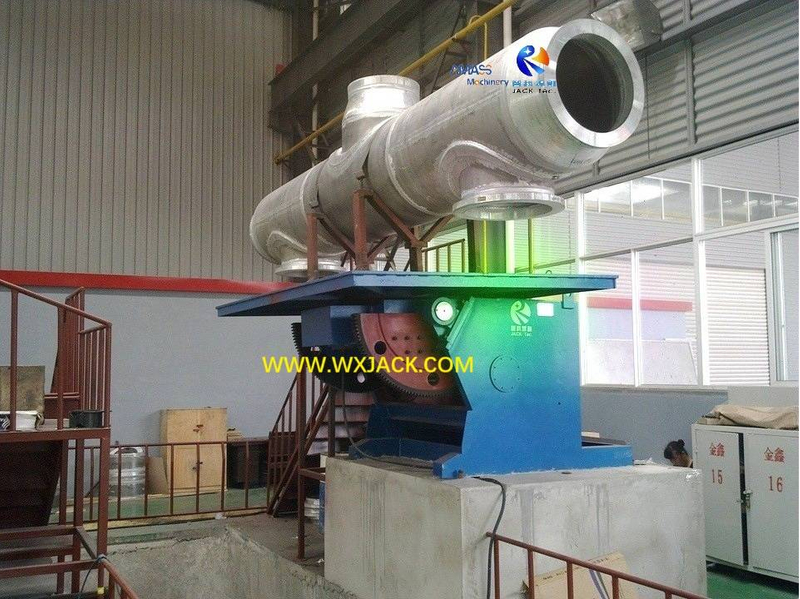

General Purpose Welding Positioner is for making welding workpiece at optimum ergonomics position and best for welding quality, to have welder carry out welding operation in the most comfortable and easy way, thus can get both ideal welding quality and higher productivity at the same time;

2)      Working Style of the HB series General Purpose Welding Positioner:

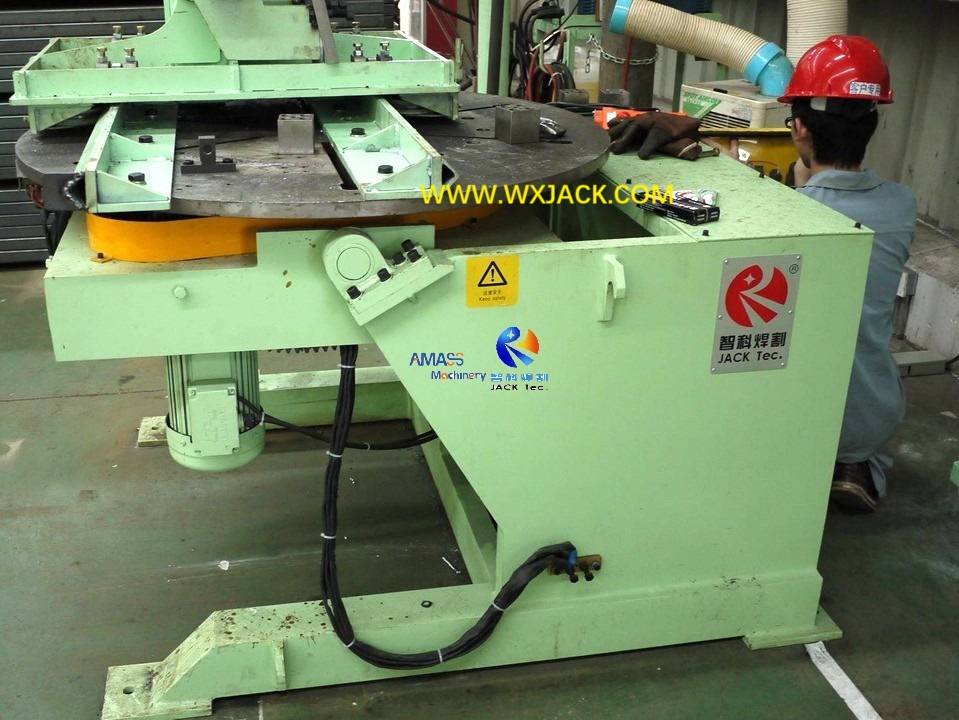

The manner by which Welding Positioner reaching the above mentioned target is by infinite turning (360°), tilting (most often 120°), and elevating Welding Turning Table of this Welding Positioning Equipment;

3)      The Three Critical Working Motion in Weld Positioner:

a)       Of which the 360° turning (or called revolving) of the Welding Turning Table is a requisite axis in all types of Welding Positioner;

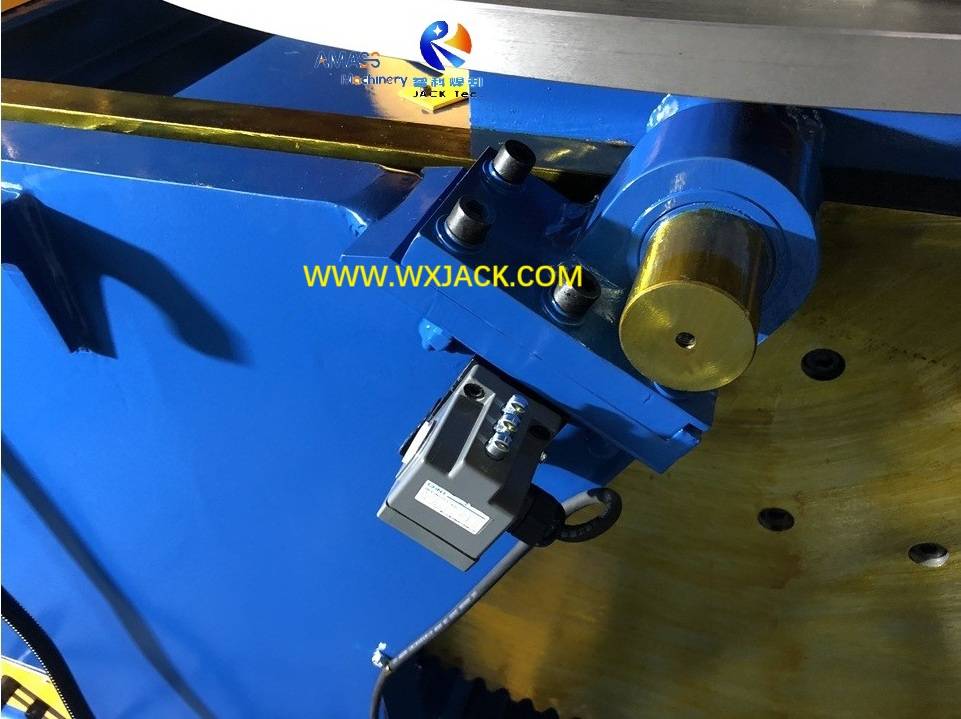

b)      And tilting is another most manipulated motion in the Standard Welding Positioner;

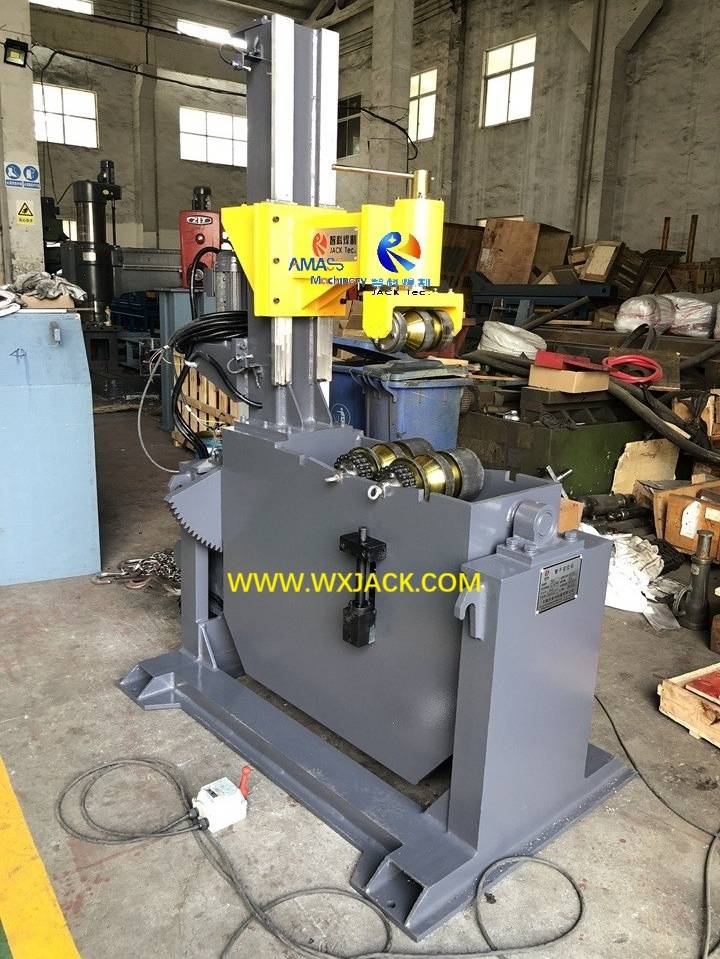

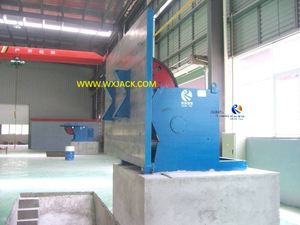

c)       Elevating (or called lifting) is optional working motion for Welding Turning Table of the Welding Positioner, and from it many kinds of welding positioner are derived: Manual Adjusting Elevating type Single Working Table Welding Positioner; And motor drive L type Hydraulic Elevating and Revolving Welding Positioner;

4)      So, a set of medium duty Standard Welding Positioner with chuck (Light duty and Heavy duty Welding Turning Table also) has the above mentioned 1 ~3 control axis (Or called degree of freedom), based on practical condition;

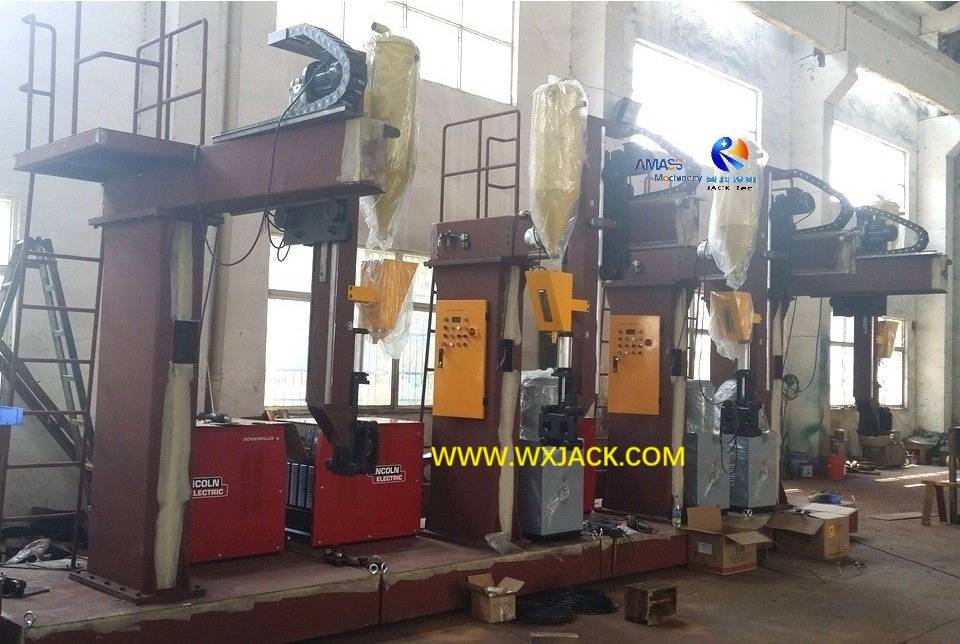

5)      The ideal welding position aimed by Welding Positioner to achieve is 45° fillet welding, which is similar to H Beam Submerged Arc Welding Machine; Sometimes, flat welding position is also a good target if 45° fillet welding is not available: (Fig.1)

3.       Specialties of HB series Single Working Table Welding Positioner:

1)      One of the advantages of this kind of Welding Positioning Equipment is its easy handling. Structure of the Weld Positioner determines sufficient stability of machine body, and no need to have foundation for installation;

2)      Another is this product of Welding Positioner is often used together with Welding Manipulator (or called Welding Column Boom), or Welding Robot, or Welding Turning Roll, etc., to form into flexible Welding Center. This is the reason it is a type of industrial use General Purpose Welding Positioner.

4.       Technical Parameters of HB series Medium duty Single Working Table Welding Positioner:

Below are specifications of this range of medium duty Single Working Table Welding Positioner (Welding Turning Table):
