Simple Type Single Axis Electric Variable Speed Welding Positioner

1.       The Quick Definition on Simple type Single Axis Welding Positioner:

Same as the motor drive Weld Turning Table introduced in the previous product section, this section of Single Axis Weld Positioner is also a reduced version of previously introduced single work table Weld Positioner.

2.       The Specialty and Uniqueness of Simple type Single Axis Welding Positioner:

Difference of this Simple type Welding Positioner with horizontal Rotary Welding Table:

1)      The revolving Single Axis Weld Turning Table of this Simple type Welding Positioner is usually in the vertical plane. Or, in other words, its rotation axis is in horizontal direction;

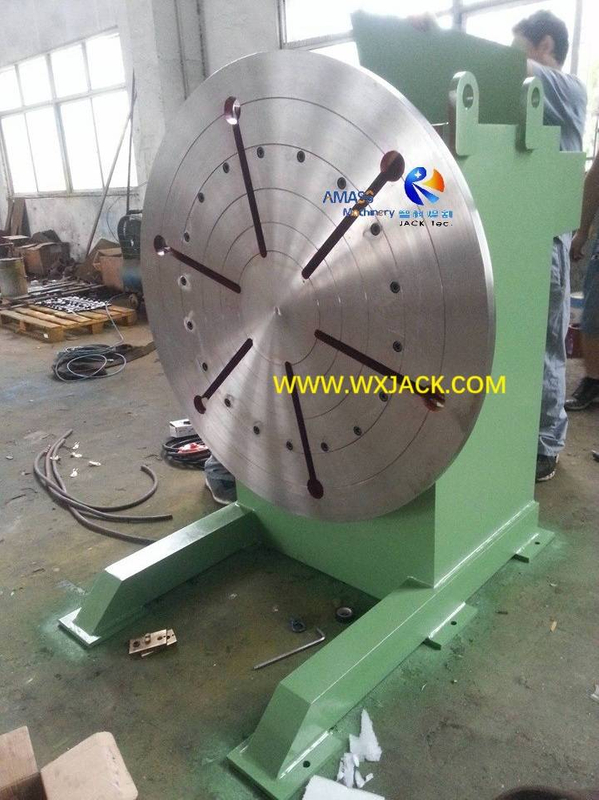

Vertical Single Axis Welding Positioner (Fig.1)

2)      Comparatively, Rotary Welding Table of the Weld Turning Table is basically horizontal, or, in other words, its rotation axis is in vertical direction;

Horizontal Single Axis Welding Positioner: (Fig.2)

3)      To put it simply, revolving axis of this Single Axis Simple type Welding Positioner is at 90° with that of the horizontal Weld Turning Table. Please check and compare the attached and above pictures;

4)      Revolve Speed of the Single Axis Rotary Welding Table:

Its vertical revolving Weld Turning Table is speed adjustable and adjusted with inverter. So, this is a kind of variable speed Single Axis Welding Positioner.

3.       Performance Characteristic of this Electric Simple type Single Axis Welding Positioner:

1)      Why this Single Axis Welding Positioner to be made:

a)       In certain application scenarios, welding seam of workpiece has simple and regular distribution. For these workpieces, one degree of freedom of 0°~360° revolving can meet the demand of welding technology for most majority seams;

b)      In such cases, a Simple type Single Axis Welding Positioner can effectively lower down manufacturing cost of the Weld Positioner in a great extent, and so is quotation of the Single Axis Welding Positioner itself, and fulfil successfully welding task at the same time, reaching the best bridging point of Weld Turning Table performance and production cost;

2)      What kind of workpieces are applicable for Single Axis Welding Positioner:

a)       What kind of workpieces are suitable for such variable speed Single Axis Weld Turning Table? --- Those working parts with round welding seam and in short length;

b)      Or, to put it plainly, those workpiece of which the ratio of length to height against diameter is small;

c)       In this way, after the workpiece is secured on the vertical Weld Turning Table, it will not have long extended length.

4.       Structure of the Simple type Single Axis Welding Positioner:

1)      Without tilting movement of the Rotary Welding Table, this electric Single Axis Welding Positioner removes sector gear and its motor reducer. So, you can check from the photo that equipment body can be made into a box type, steadily and solidly standing on the ground;

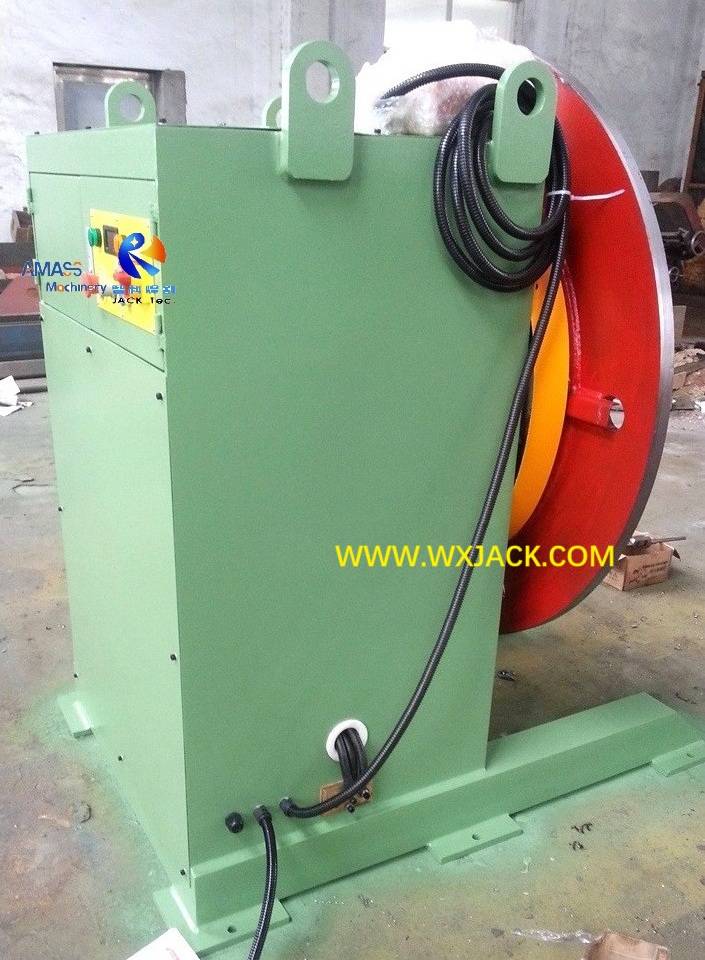

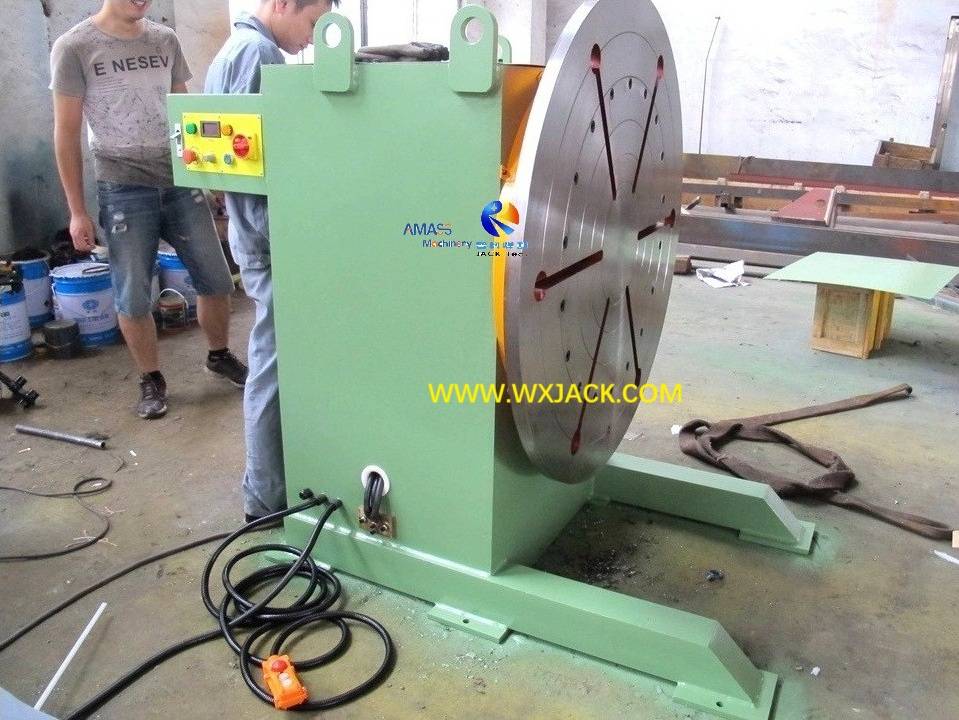

Single Axis Welding Positioner: (Fig.3)

2)      Also, drive and transmission system of Rotary Welding Table revolving can be put inside the cavity of the Single Axis Welding Positioner body;

3)      Control elements can also be put inside the cavity of Single Axis Welding Positioner body;

4)      Thus makes the complete set of Single Axis Welding Positioner has straight and concise appearance. See below picture;

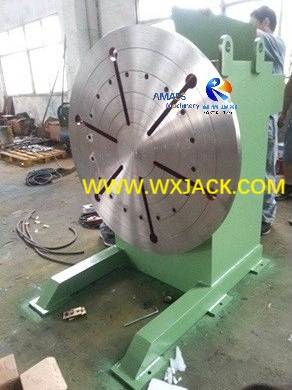

Single Axis Welding Positioner: (Fig.4)

5)      There is a kind of Weld Turning Table with similar structure and working way, the difference is with 2 pieces of Rotary Welding Table. If you are interested, please check product section of “Double Table Top Weld Positioner”.

5.       Operation of the Simple type Single Axis Welding Positioner:

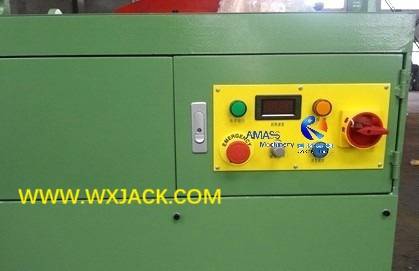

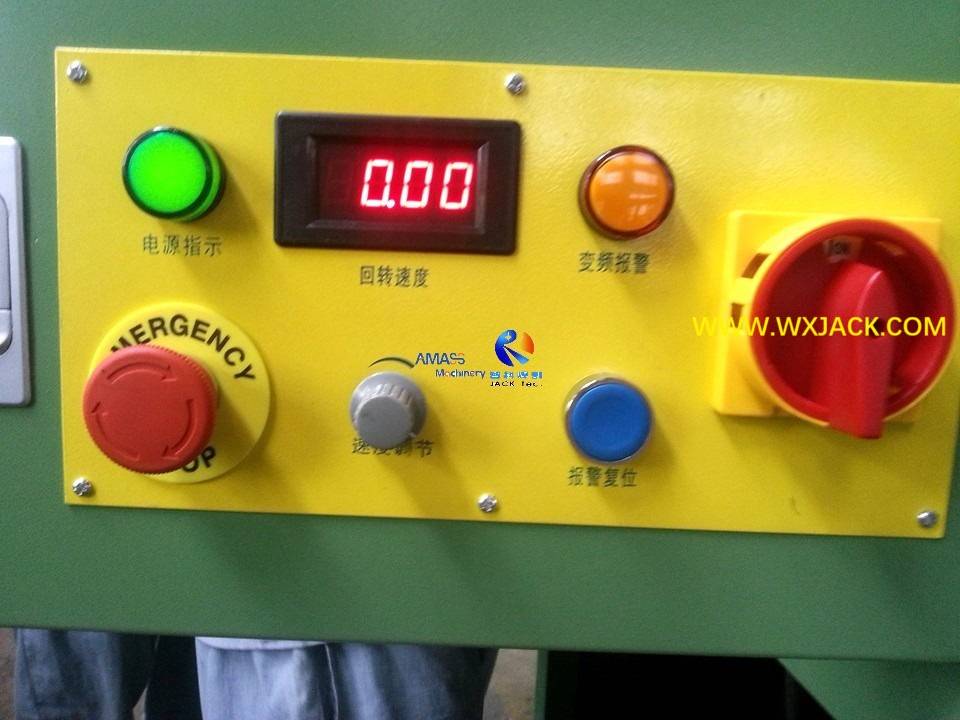

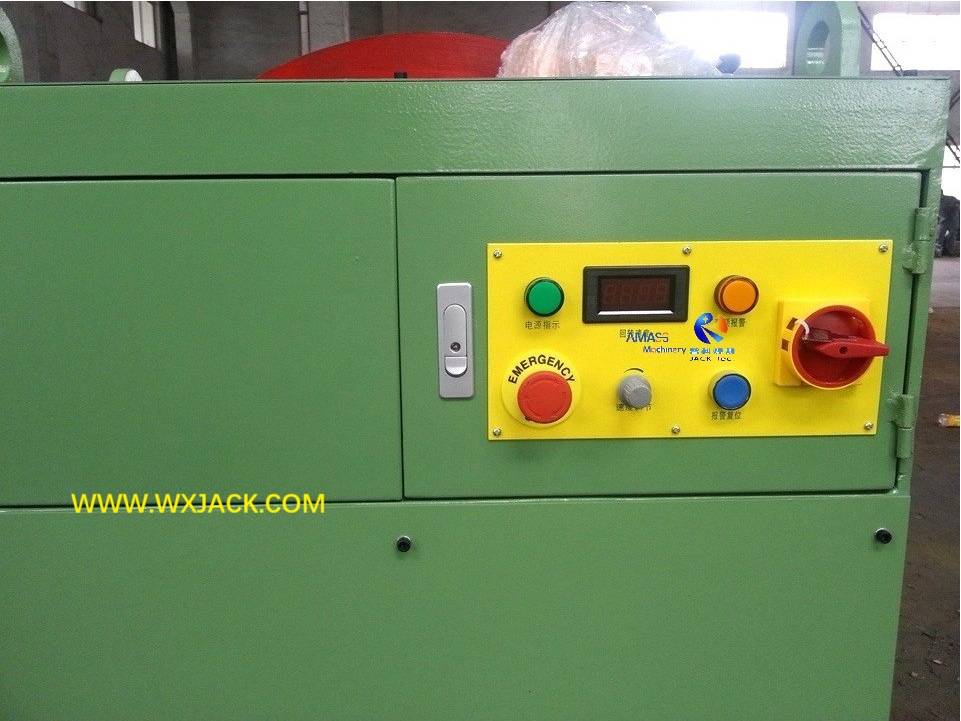

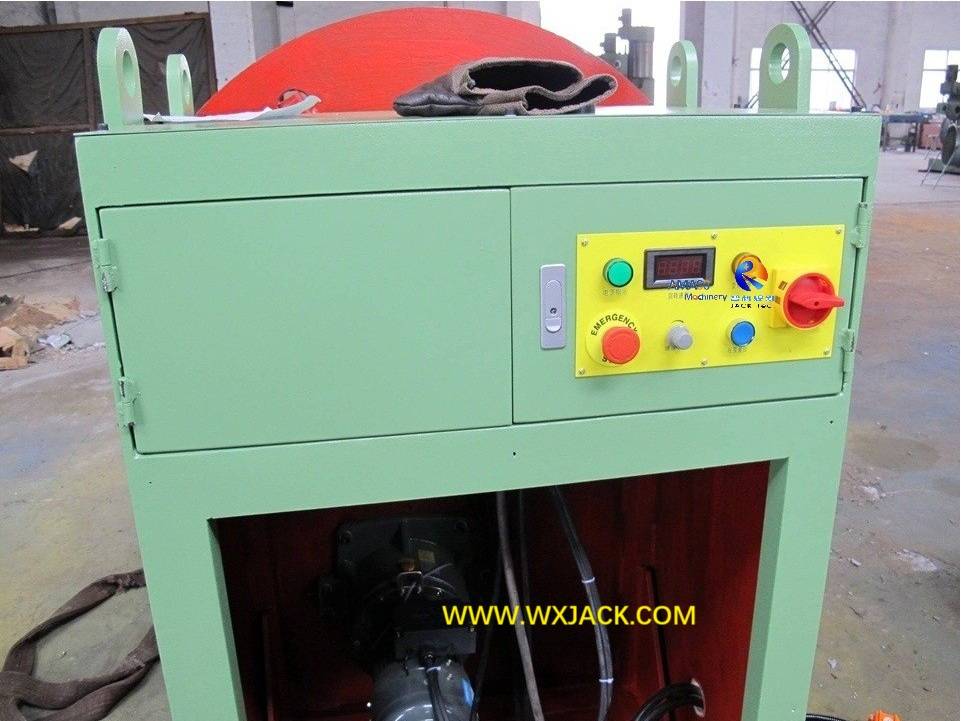

1)      Operating pendant is integrated onto lateral side of Weld Turning Table body, convenient for handling and operation: (Fig.5)

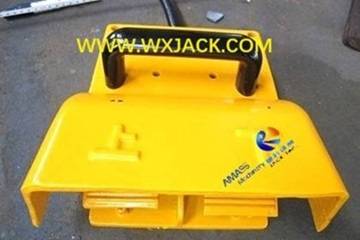

2)      Sometimes a foot pedal switch is used to relieve hands of operator, for doing other jobs during working of the Single Axis Welding Positioner. See below picture: (Fig.6)

3)      Tonnage of the Single Axis Welding Positioner:

Often used loading capacity of this Single Axis Rotary Welding Table is 2Ton, 3Ton,

5Ton and 10Ton.

6.       Technical Parameters of Simple type Single Axis Welding Positioner:

Below are technical parameters of Single Axis Simple type Welding Positioner (Weld Turning Table):
