General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine

In the first photo there is main body of a set of ASM63 Angle Steel Straightening Machine ready for shipment, which was stored at Wuxi JACK facility.

1.  What can ASM63 Angle Steel Straightening Machine do for Customer?

1) ASM series Angle Steel Straightening Machine has the same name of L Steel Straightening Machine, Angle Steel Straightener;

2) ASM63 is the smallest model of standard type Angle Steel Straightening Machine. It is used for straightening length direction deformation of light and small Angles, including twisting/ crooking/edge folding of the Angle Steels, etc.

2. Why You need Angle Straightening Machine?

1)  Due to factors of package/ transport/ storage of long Angle Steels, before its put into use at construction site, most of the conditions there exist deformation or deflection along its lengthways direction;

2)  Before development of this ASM series Angle Steel Straighten Machine, the straightening process was made with manual job, which is time consuming, laborious, and has inconsistent effect;

3)  Now, with the introduction of this general purpose Angle Steel Straightening Machine, the straightening work becomes efficient, labor saving, consistent and good quality. Please check attached video on the straightening process of the Angle Steel Straightener;

4) For this reason, ever since it brought to market, the ASM series Automatic Angle Steel Straightening Machine is popular and well received across both the Chinese mainland and overseas markets.

3. The Good Points of ASM series Angle Steel Straightening Machine:

The ASM series automatic Angle Steel Straighten Machine has many advantages such as simple operation, high straightening speed, and good straightening quality. It can be widely used in many industries, such as Steel Structure, Iron Tower, Road and Bridge, and any other industries involving use of Angle Steel/ Angle Iron/ L steel, etc.

4. Technical View on ASM63 Angle Steel Straightening Machine:

1) Structure of Angle Steel Straightening Machine:

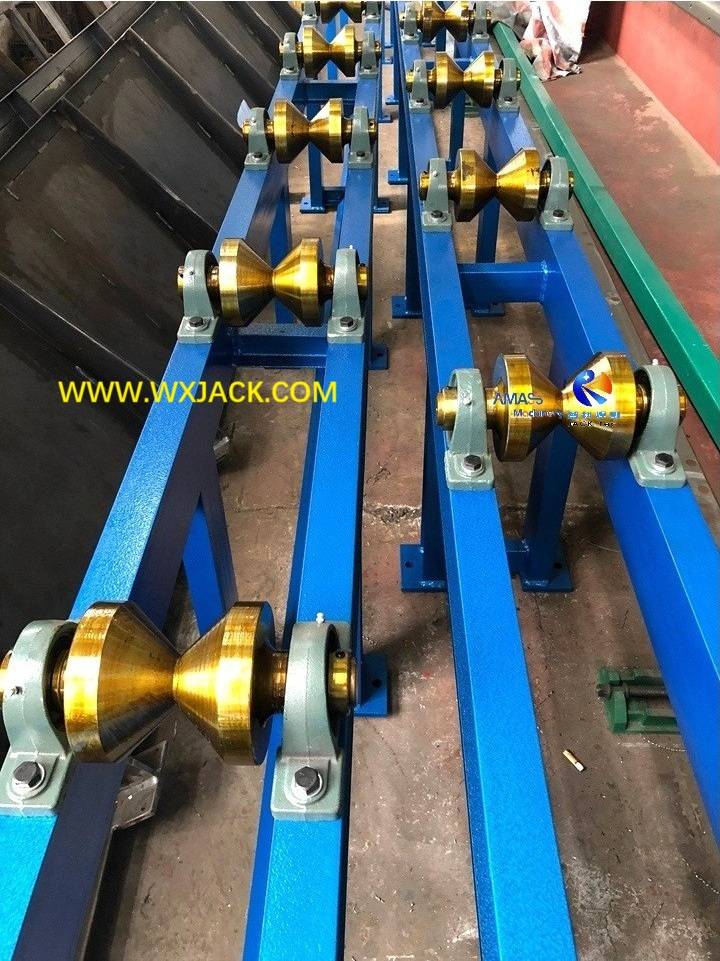

One set of ASM63 L Steel Straightening Machine includes main body (The first photo) and workpiece conveyors at the front of (Input conveyor) and rear of (Output conveyor) of machine main body, as shown in the 2^nd photo;

2) Driving Unit in the L Steel Straightening Machine:

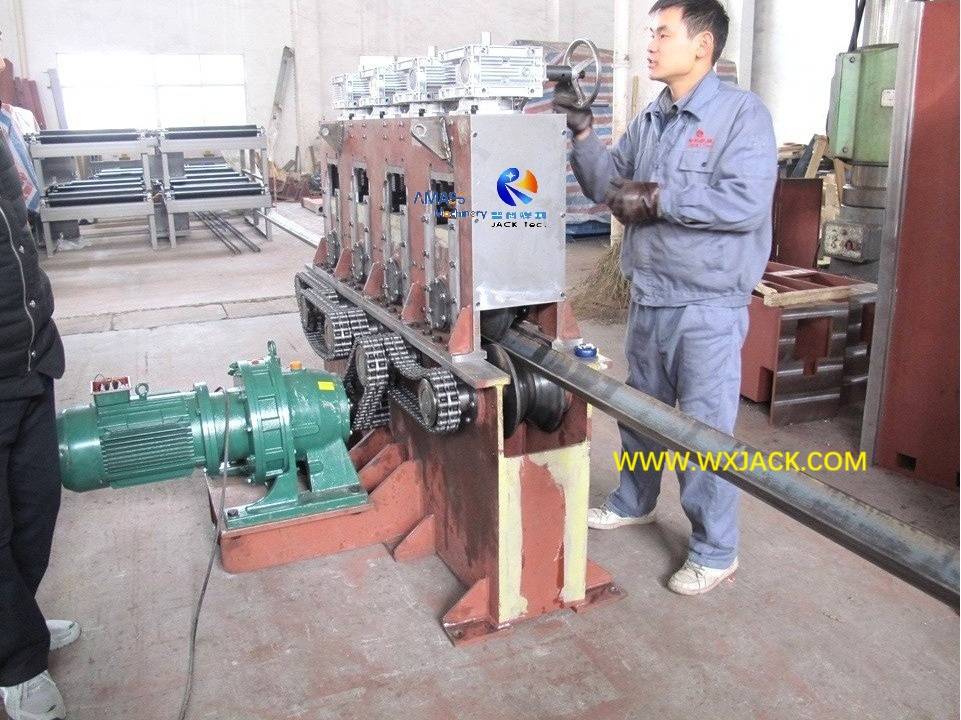

The 5.5kW motor for driving the Angle Steel forward during work of the Angle Steel Straightening Machine is installed at external lateral side of the machine main body, as you can check from the 3^rd photo, which records the commissioning process on this ASM63 Angle Steel Straightening Machine;

3) Working Principle of Angle Steel Straightening Machine:

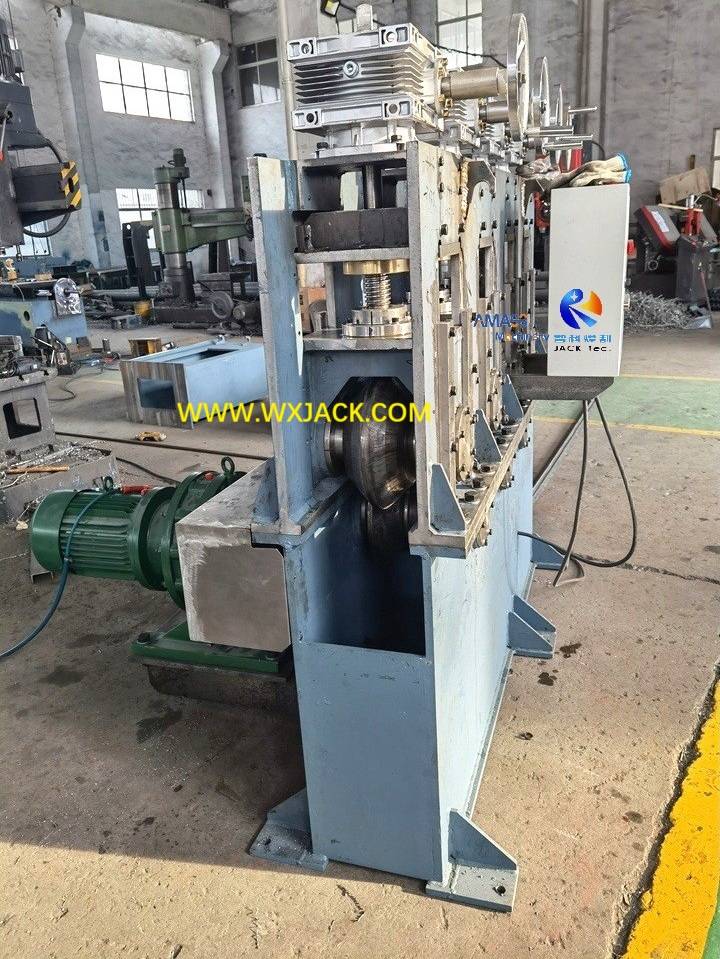

a) As you can check from the 3^rd and 5^th photos, there is a cavity in the middle section of the ASM series Angle Steel Straightener main body, which is the working area of the equipment. It has similar straightening principle as H Beam Straightening machine. For more derail, please product section of “Universal Automatic High Speed ASM200 Angle Steel Straighten Machine”;

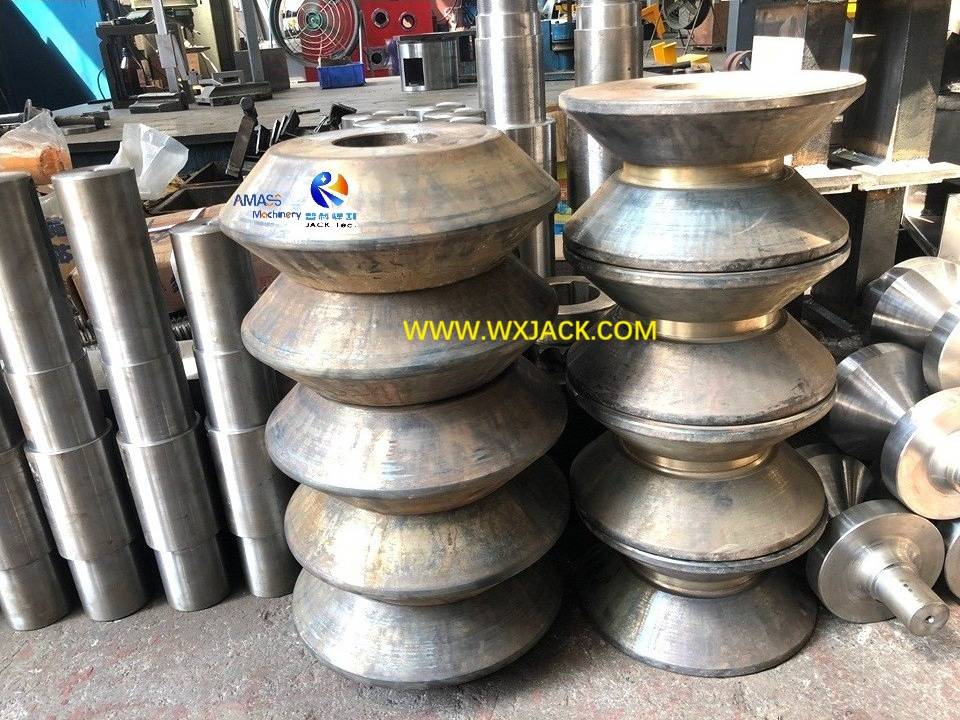

b) The straightening rollers adopted in this Angle Steel Straightener have top and bottom two types, which are shown in the 4^th photo. For its detailed introduction, please check product section of “All Purpose Automatic Lengthways ASM100 Angle Steel Straightening Machine”;

4) Operation in the Angle Steel Straightening Machine:

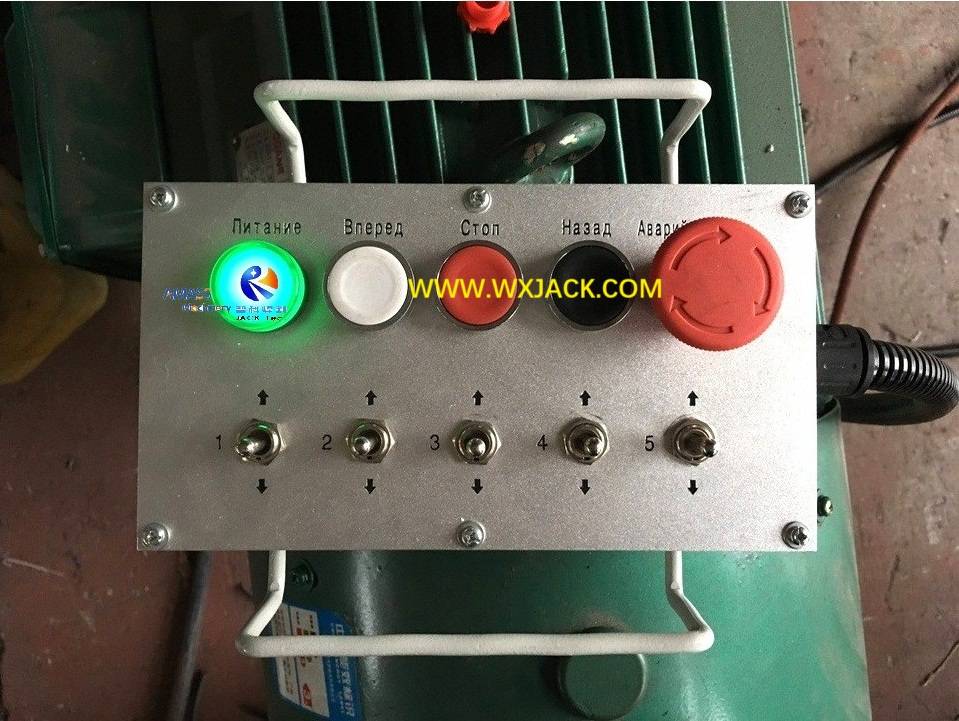

The operation of this L Steel Straightening Machine is by means of a handy operating pendent shown in the 6^th photo, which can be taken by operator to any place during working of the Angle Steel Straightener. For more detail, please check product section of “Fast Speed Automatic Lengthways ASM130 Angle Steel Straightening Machine”.

5. Technical Parameters of ASM63 Angle Steel Straightening Machine:

Below are specifications of ASM63 Lengthwise Angle Steel Straighten Machine (Angle Steel Straightener):
