XBJ-3 Single Milling Head Multi Function Plate Beveling Machine

A. Uniqueness of XBJ-3 Single Head Sheet Metal Plate Edge Milling Machine:

1. Feature: The XBJ-3 model is the “Smallest and the Most Compact” model, among all the products of XBJ series Sheet Metal Edge Milling Machine;

2. Implication of “Smallest and the Most Compact” for XBJ-3 Sheet Metal Plate Edge Beveling Machine:

1) Smallest: XBJ-3 Sheet Metal Plate Edge Beveling Machine:

a) XBJ-3 has max. effective stroke of 3000mm for edge milling, this is the smallest specification for all the machines for sheet metal beveling ;

b) As reference, models of XBJ series are usually from XBJ-3 to SXBJ-18 (With 18,000mm edge milling stroke);

2) The Most Compact: XBJ-3 Sheet Metal Plate Beveling Machine:

a) This means the XBJ-3 model equipment has the shortest working table, and hence the most compact overall machine size. It is equipped with 1 set of milling head;

b) The other counterpart model for the same 3000mm stroke specification machine for edge milling is SXBJ-3, which has 2 sets of milling heads installed;

c) Correspondingly, mechanical bed of the SXBJ-3 model is longer than XBJ-3 here, to accommodate the 2^nd set of milling head and its moving carriage;

3. As you can observed from the attached first photo and below, XBJ-3 model machine for edge milling has really compact overall length and height, which is very convenient and space save on transportation, arrangement and installation:

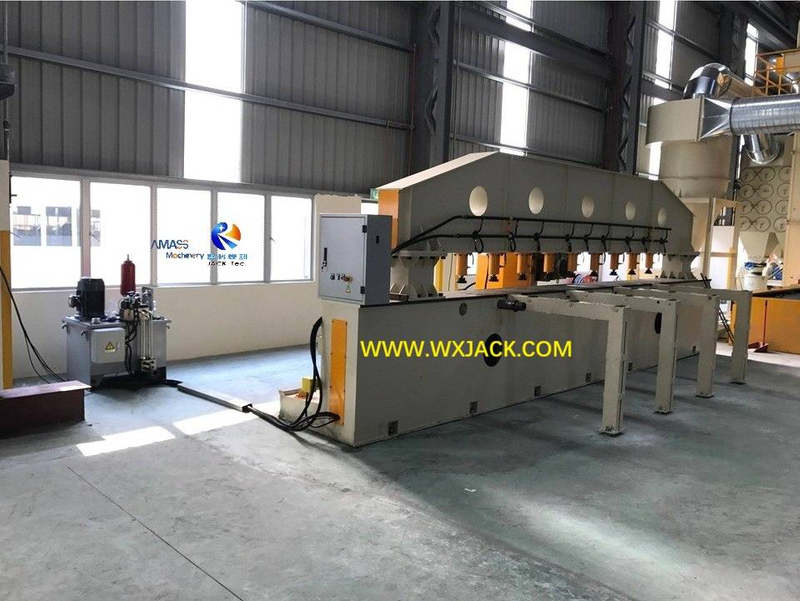

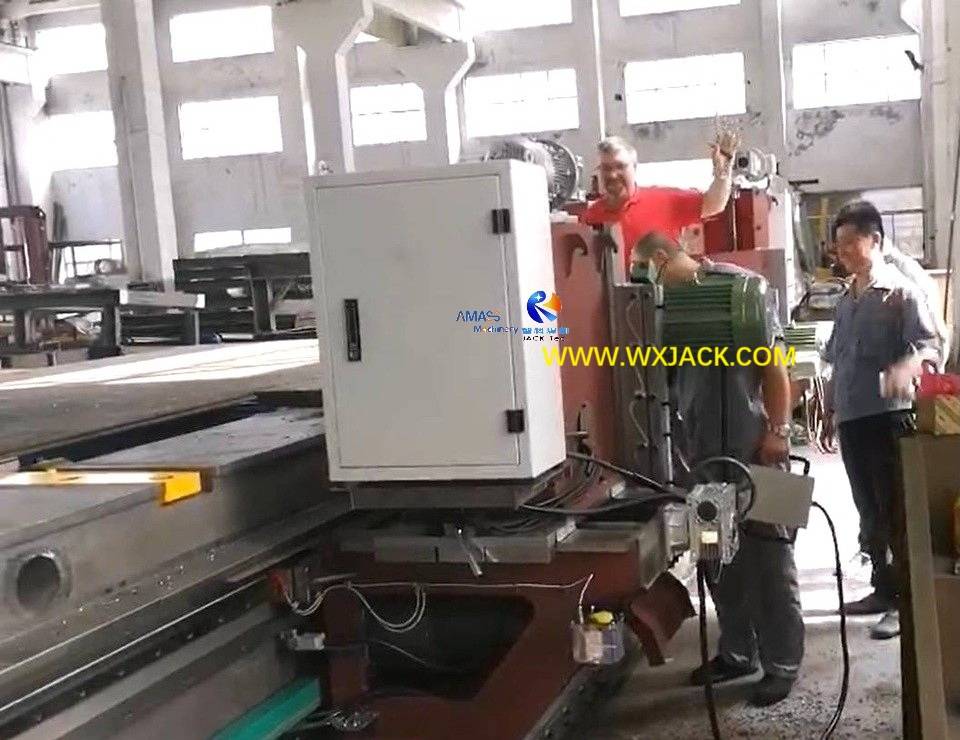

Wuxi JACK XBJ-3 model Sheet Metal Plate Beveling Machine at customer site workshop: (Fig.1)

B. Application Field of XBJ-3 Sheet Metal Beveling Machine:

1. Application Field: With such “small” size of Plate Edge Milling Machine, examples of its most popular application are Construction Machinery Industry/ Vehicle Industry/ Engineering Machinery, for making preparation on metal plates fabrication, by means of cutting edge grooving on metal plates, which will be made into various kinds of welding structure members for the subsequent Assembly and or Construction;

2. The most frequently selected sorts of bevels, that can be made with Sheet Metal Beveling Machine: (Fig.2)

C. Technical Characteristics of XBJ-3 Sheet Metal Plate Edge Beveling Machine:

In Wuxi JACK, “Small” does not necessarily mean “Simple”, not even “Low cost and inferior quality”. Instead, for XBJ-3 model Plate Beveling Machine:

1. Same Milling Head as Other Models of Edge Milling Machine:

1) With the relatively “small” size of 3000mm long edge milling stroke on workpieces sheet metal, the XBJ-3 model machine is also equipped with the same 7.5kW milling head, identical with any other models of XBJ series Plate Edge Milling Machine with larger size;

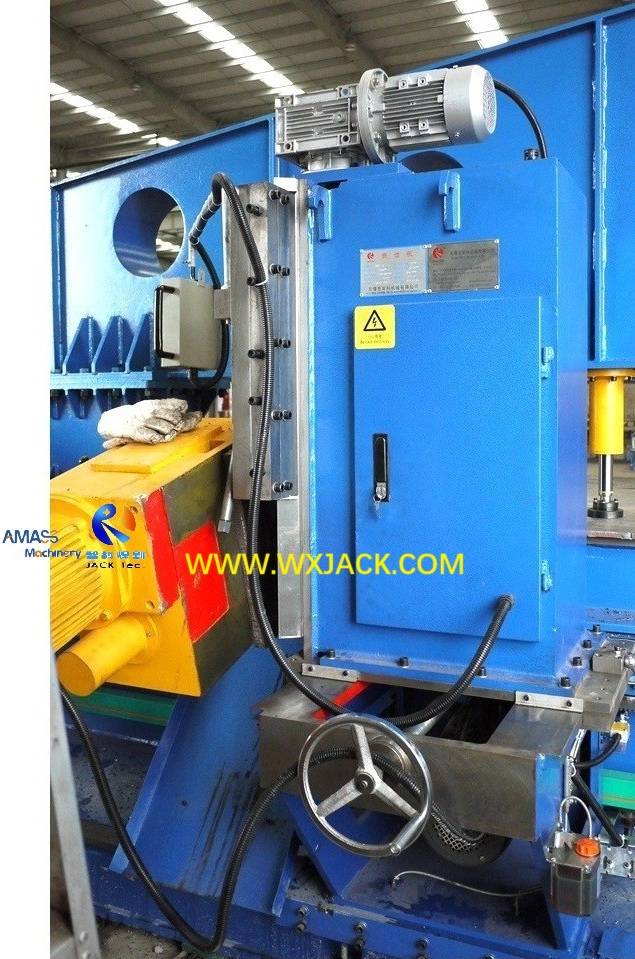

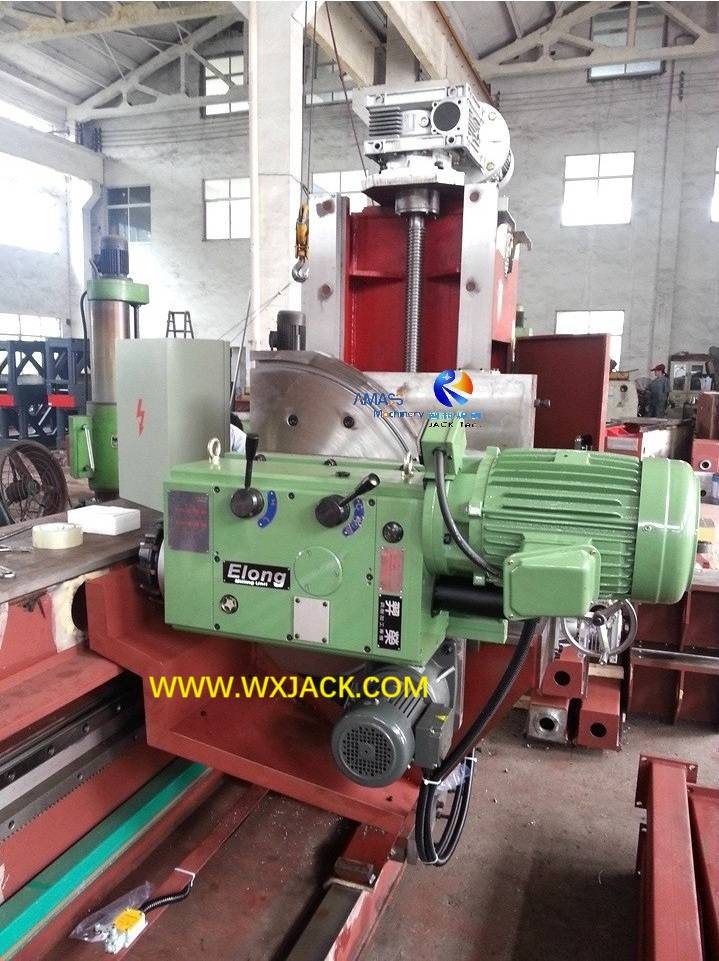

2) The 7.5kW high power superior quality milling head for Wuxi JACK machine for edge beveling: (Fig.3)

2. Same Versatility as Other Model: Besides, the XBJ-3 single head configuration machine can fulfil beveling operation of all general purpose. This is why it is named as Multi function Sheet Metal Chamfering Equipment;

3. Same Guiding Rails for Milling Head Movement as Other Models of Sheet Metal Plate Beveling Machine:

1) During plate edge milling process, moving of milling head along machine worktable is guided with 2 pieces of parallel guiderails;

2) These 2 pieces of parallel guiderails are assembled onto machine mechanical machine bed, making sure fully reliable and stable running of the milling carriage, and hence plate edge milling effect of the Plate Edge Milling Machine;

3) The top guiderail is assembled with hanging (Vertical) orientation, and the bottom guiderail is assembled with laying (Horizontal) orientation;

4) In this way, the milling carriage is clamped firmly and smoothly along its entire traveling stroke of machine work table;

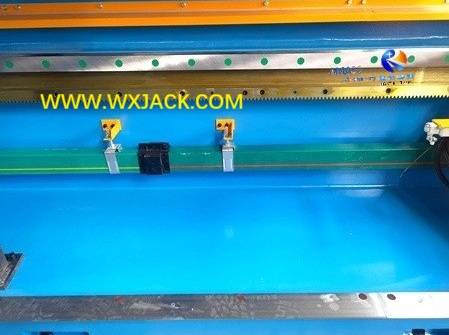

5) The double layer guiding rails in Wuxi JACK Sheet Metal Plate Edge Milling Machine: (Fig.4)

D. Range of Supply of XBJ-3 Single Milling Head Plate Edge Milling Machine:

1. Mechanical Body of XBJ-3:

Including: 1 set of machine bed, top beam, milling unit, feeding rack and electric system each;

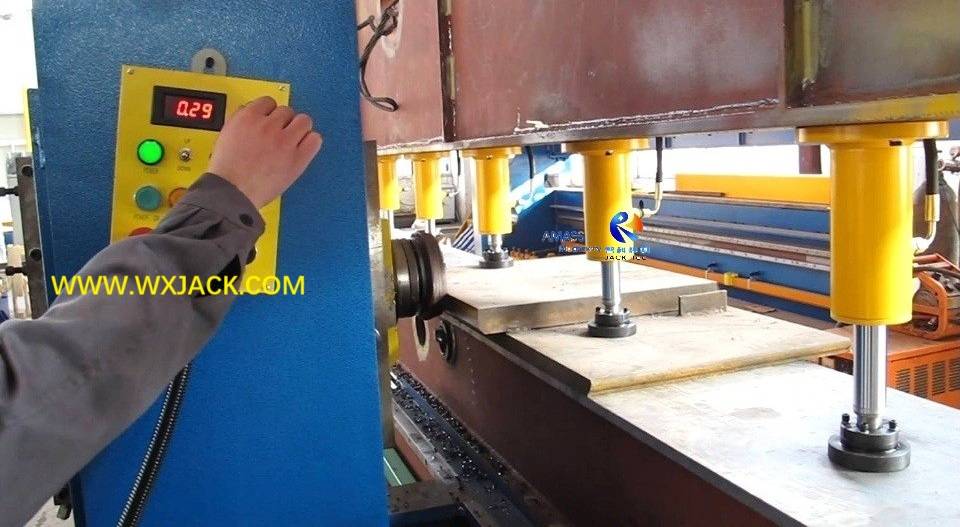

2. Hydraulic System of XBJ-3:

Including: 1 set of independent pump station with accumulator;

3. Machine Tools for XBJ-3:

Including: 1 set of standard Φ200mm facer plate, pulling rod and spanner each;

4. Spare Parts of XBJ-3:

Including: 1 set of hydraulic Jack oil seal ring, 1 piece of 2A/4A fuse each;

5. Technical Documents of XBJ-3:

Including: 1 set of manual book, certificate of quality each, 2 sets of manual book of milling unit, foundation drawing.

E. Technical Parameters of XBJ-3 Sheet Metal Plate Edge Milling Machine:
