Background of this Blog on Wuxi JACK Heavy duty Hydraulic H Beam Straightening Machine:
1) In Oct. 2022, 3 sets of Hydraulic H Beam Flange Straightening Machine produced by Wuxi JACK were successfully installed, commissioned, and got accepted at customer facility;
2) The customer is a first class Chinese national level large scale Steel Structure Group, located in Jiangsu Province;
3) This short blog will have a brief introduction on the 3 sets of Wuxi JACK Heavy duty H Beam Straightening Machine:
Working Capacity of the 3 sets of Heavy duty Hydraulic H Beam Flange Straightening Machine;
Technical View on the 3 sets of Heavy duty Hydraulic H Beam Straightening Machine;
Wuxi JACK Strength on Developing Various Types of H Beam Straightening Machine for Customers
A. Working Capacity of the 3 sets of Heavy duty Hydraulic H Beam Flange Straightening Machine:
1. The 3 sets of H Beam Flange Straightening Machine all belongs to YTJ series hydraulic driving style, in the models of:
1) YTJ-40: Available Max. flange thickness for straightening is 40mm, fabricated from 600MPa tensile strength carbon steel (Chinese grade Q345-B);
2) YTJ-60: Available Max. flange thickness for straightening is 60mm, fabricated from 600MPa tensile strength carbon steel (Chinese grade Q345-B);
3) YTJ-80: Available Max. flange thickness for straightening is 80mm, fabricated from 600MPa tensile strength carbon steel (Chinese grade Q345-B);
2. Busy On Site Working of the 3 sets of Wuxi JACK YTJ Series hydraulic Heavy duty H Beam Flange Straightening Machine: (Fig.1)
3. The Super Strong Straightening Capacity of the 3 sets of Hydraulic H Beam Straightening Machine:
1) You may know that, in product family of H Beam Flange Straightening Machine, the discrimination on models is on the basis of material strength and flange thickness, instead of H Beam size (Web height);
2) This is because mechanical main body of all H Beam Flange Straightening Machine is with open structure, which has no restriction on web height of the welding H Beam which pass through;
3) Structure of Heavy duty Hydraulic H Beam Flange Straightening Machine and its workpiece H Beam passing through: (Fig.2)
4) Instead, the material tensile strength and max. thickness of flange that can be straightened, is the foremost criterion on judging ability of any set of H Beam Flange Straightening Machine;
5) In this respect, YTJ series, especially YTJ-80 is the largest model and the most powerful product in the whole group of H Beam Straightening Machine. Let us make an analysis and comparison:
a) Tensile strength of carbon steel: 600 MPa for YTJ series hydraulic, versus 370~ 510 MPa for HYJ series Mechanical Motor Drive H Beam Straightening Machine;
b) Max. Thickness of Flange: 40mm/ 60mm/ 80mm for the 3 sets of YTJ series hydraulic, versus 40mm for HYJ series motorized type;
4. Application Field of YTJ series Hydraulic H Beam Straightening Machine:
1) Generally speaking, these 3 sets of YTJ equipment are Heavy duty H Beam Straightening Machine, which is used for building up super heavy Steel Structure Construction Project, such as Cross Sea Bridge;
2) Comparatively, HYJ series Mechanical Motor Drive H Beam Flange Straightening Machine belongs to conventional type, which can meet majority of practical application demand, and sees more use.
B. Technical View on the 3 sets of Heavy duty Hydraulic H Beam Straightening Machine:
These Heavy duty H Beam Straightening Machine has compact structure, high strength, and strong intensity, which is composed of:
1. Main Motor Reducer: Power 15kW ~ 22kW, delivering driving torque of 48650N.m~ 69650 N.m.;
2. Main transmission rollers;
3. Straightening System and Straightening Rollers of the Heavy duty Hydraulic H Beam Flange Straightening Machine:
1) Straightening rollers are forged into shape from 35CrMo, in hardness HRC50-55, ensuring its long term intact usage, without defects such as cracks;
2) 35CrMo has high standard intensity/ toughness/ hardenability, which is used as raw materials of large cross section gear/ heavy duty transmission shaft/ Herringbone gear in Rolling Mill/ High power motor shaft/ Turbine generator main shaft;
3) Main straightening rollers of YTJ series Heavy duty hydraulic H Beam Straightening Machine: (Fig.3)
4. Hydraulic System Oil Cylinders for Driving Elevation of Main Rollers: Power of its oil pump driving motor is 11kW to 15kW, with rated pressure of 25MPa;
5. Web Clamping Units in YTJ Series Heavy duty Hydraulic H Beam Straightening Machine:
1) During straightening, web of welding H Beam is clamped with alignment rollers;
2) Based on different flange width of H Beam, the distance and horizontal position of these alignment rollers can be adjusted laterally, driven with hydraulic oil cylinders;
3) Web clamping unit in YTJ series Heavy duty Hydraulic H Beam Straightening Machine: (Fig.4)
6. Mechanical Main Frame and Base Bed of YTJ Series Heavy duty Hydraulic H Beam Flange Straightening Machine:
1) Its mechanical main body has relative low height, keeping the best degree of gravity center stability;
2) Open structure, accommodating H Beam of any web height passing through; without limitation

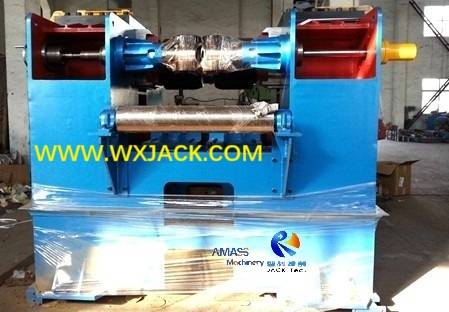

3) Mechanical main body and pedestal of YTJ series Heavy duty Hydraulic H Beam Flange Straightening Machine: (Fig.5)
7. Input and Output Conveyor of YTJ Series Heavy duty Hydraulic H Beam Flange Straightening Machine:
1) Input and output conveyors have its independent driving motor reducers, of 2.2kW power respectively;
2) Input and output conveyors have the same consistent speed, which is also straightening working speed of the YTJ series Hydraulic H Beam Straightening Machine;
3) Input and output conveyors of HYJ series Heavy duty Hydraulic H Beam Straightening Machine: (Fig.6)
8. Hydraulic System of YTJ Series Heavy duty H Beam Flange Straightening Machine:
1) Independent pump station, which is put alongside main body and electric control board of the H Beam Flange Straightening Machine;
2) Hydraulic pump station of YTJ series hydraulic H Beam Straightening Machine: (Fig.7)
9. Electric Control System of YTJ Series Heavy duty Hydraulic H Beam Flange Straightening Machine:
1) Independent floor standing type control board, integrated with operating panel on its top, put alongside main body of the machine;
2) Electric control board and operating panel of YTJ series hydraulic H Beam Straightening Machine: (Fig.8)
C. Wuxi JACK Strength on Developing Various Types of H Beam Straightening Machine:
1. As leading company in the field of proving equipment for Steel Structure customers, Wuxi JACK has rich experience and outstanding capability on developing various types of H Beam Straightening Machine;
2. The superiority of our strength on providing H Beam Straightening Machine lies in:
1) Excellent quality, reasonable price for delivering standard models;
2) Especially strong at designing and producing special type product, such as the 3 sets of Heavy duty Hydraulic H Beam Straightening Machine this time;
3) Wide variety of product structure type. Besides, H Beam Flange Straightening Machine, we also produce top grade HJ Series Lengthways H Beam Straightening Machine for customers;
3. For more information, please visit product family of Wuxi JACK H Beam Straightening Machine.
