CNC Strip Flame Cutting Machine

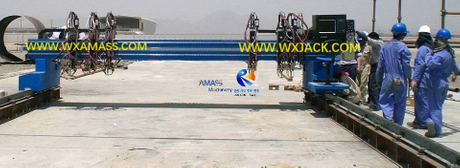

The attached six photos record several variations of CG-series CNC Flame Cutting Machine application at customer site.

1.       Transformations and Application of CG Series CNC Plate Flame Cutting Machine:

1)      In CG Series flame CNC Plate Cutting Machine, cutting torch comes in three types:

a)       CNC control single torch: This is for the purpose of fulfilling flame shape cutting. Generally speaking, in one set of CNC Flame Cutting Machine, there are usually one to three sets of such cutting torch:

CNC cutting torch in Wuxi JACK CNC Strip Flame Cutting Machine:  (Fig.1)

CNC cutting torch in Wuxi JACK CNC Flame Cutting Machine:  (Fig.2)



b)      Flame Triple Cutting torch: This is for performing plate triple cutting with flame oxygen acetylene, so that making welding groove on edge of workpiece. In one set of flame CNC Cutting Machine, there are usually one to three sets of such strip cutting torch. Also, sometimes there are specifically triple flame CNC Plate Cutting Machine. If you have curiosity, please check product section of “High Speed CG5000 Triple CNC Flame Cutting Machine for Edge Beveling”;

Triple cutting torch in triple flame CNC Plate Cutting Machine: (Fig.3)



Finished cutting kerf on edge of carbon steel plate, produced from triple CNC Flame Cutting Machine: (Fig.4)

c)       Flame Strip Cutting torch: This is for carrying out plate strip cutting, dividing the carbon steel plates into several pieces of long narrow boards. Same as triple cutting, there are also full purpose CNC Strip Flame Cutting Machine. Please check product section of “High Efficiency CNC Plate Cutting Machine with Flexible Size”. In one set of CNC Cutting Machine, the standard configuration is nine sets of strip cutting torches. Shown in below photos:



The 9 sets of strip cutting torches in CNC Strip Flame Cutting Machine: (Fig.5)

Finished strip board cut from CNC Flame Cutting Machine: (Fig.6)



2)      Application of CG Series CNC Plate Flame Cutting Machine:

a) Gantry driving form:       CNC Strip Flame Cutting Machine adopts single drive and or double drive for its frame gantry moving along longitudinal rails. The CNC Cutting Machine has steadily running, good configuration, high productivity, which can be used for workpiece cutting out on carbon steel, Manganese Steel of small, medium and large size;

b)      Quantity of strip cutting torches in CNC Strip Flame Cutting Machine can be flexibly made based on customer demand, so is the case with CNC control single torch for plate shape cutting;

c)       Capacitance torch height controller is a plus for improving flame cutting performance of the CNC Flame Cutting Machine. For introduction on this quality management unit, please check product section of “Plasma and Flame Strip 4m CNC Plate Cutting Machine”.

Cutting torch height controller in CNC Plate Flame Cutting Machine:  (Fig.7)

2.       Technical Specialties of CG Series CNC Flame Cutting Machine:

1)      Horizontal mechanical gantry beam of CNC Plate Cutting Machine:  (Fig.8)

a) Process Technology:       It is made of square tube which are welded into shape, with characteristic of good strength and rigidity, high precision, light deadweight, and little inertia;

b) Mechanical Property:      All the welding structure members of Wuxi JACK CNC Cutting Machine are processed with de-stressing treatment by means of vibration aging, effectively avoiding the occurrence of structural deformation in the CNC Cutting Machine;

2)      Longitudinal and transverse driving and transmission of the CNC Flame Cutting Machine:

a)       Both directions movement are transmitted with seven grade precision gear and rack. Transverse parallel guiderails are top grade heavy duty precise linear guiderail:



Installing on mechanical main frame of CNC Plate Cutting Machine: (Fig.9)

b)      Longitudinal traveling rails of CNC Plate Cutting Machine are deployed with special made precisely machined steel rails, fully making sure steadily movement of the whole set of CNC Cutting Machine during cutting process, durable and with good appearance:

Longitudinal parallel cutting rails of Wuxi JACK CNC Plate Cutting Machine: (Fig.10)

c)       Servo motor reducers of both way movement are also top level planetary gear reducer, which can perfectly ensure precision and balance of CNC Cutting Machine movement:

Servo motor of CNC Plate Cutting Machine: (Fig.11)

3)      Oxygen and Cutting gas system in CNC Flame Cutting Machine:  (Fig.12)

a)       This is the energy source for flame cutting in CNC Strip Flame Cutting Machine. It is composed of gas tubes, control valves, central supplying panel;

b)      In CNC Flame Cutting Machine, the gas system is controlled integrally, with pressure valve, pressure gauge, gas tube and corresponding accessories deployed along entire passage of gas circuit;

c)       The high intensity heat proof gas tubes are fed to cutting torches. There is flashback arrester equipped with each passage of gas circuit, guaranteeing safe and reliable gas supply in the CNC Flame Cutting Machine.

3.       Technical Parameters of CG Series CNC Flame Cutting Machine:

Below are general specification of across model CNC Plate Flame Cutting Machine (CNC Cutting Machine):

CG Series CNC Strip Flame Cutting Machine (CNC Plate Cutting Machine)
Rail Span (mm)	3000	4000	5000	6000	7000	8000	10000	12000
Cutting   Width (mm)	2300	3200	4200	5200	6200	7100	9100	11100
Drive Way	Single drive	Double drive
Rail length	Standard rail length is 15m, which can be extended or shortened on customer   requirements.
Torch quantity	Standard configuration is 2 CNC torches and 9 strip torches, which can be altered on customer requirements.
Cutting thickness	6-100mm, which can be increased on customer requirements up to 350mm
Travel speed	Max. 12000 mm/min
Cutting speed	Max.1000 mm/min (Set upon cutting material)
Precision	JB/T5102-1999
Cutting Tolerance Standard	JB/T10045.3-1999
