1. Functions: Also named as Plate Beveling Machine. This machine is for completing beveling/ chamfering on metal plates, especially carbon steel, so as to acquire welding groove. This is attained by means of high speed revolution of facer cutter on milling head of the machine;
2. So, it is a kind of general purpose Automatic Plate Welding Groove Making Machine;

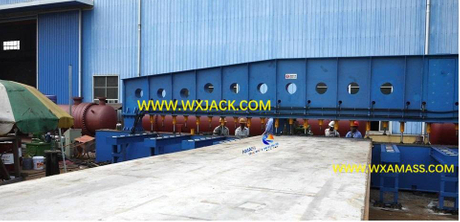

A piece of steel plate being edge milled in Wuxi JACK SXBJ-18: (Fig.1)
Classical welding bevels that can be machined from Plate Beveling Machine: (Fig.2)
3. Where Used: XBJ Series Sheet Metal Edge Milling Machine is widely applied in Industries and Facilities of Boiler, Pressure Vessel, Petroleum, Electric Power, Hoist Machinery, Steel Structure, etc.
1) XBJ series Single Head configuration: This series machine produces on straight edge and upper edge groove on steel plates;
2) SXBJ series double heads configuration: The double heads Plate Welding Groove Making Machine can produce straight edge, upper edge and bottom edge groove with one time stroke of milling head;
1) Milling Angle: Usually, milling head angle is 0°~ 45° for carrying out straight and upper edge groove cutting, and -45°~ 0° for bottom edge groove making;

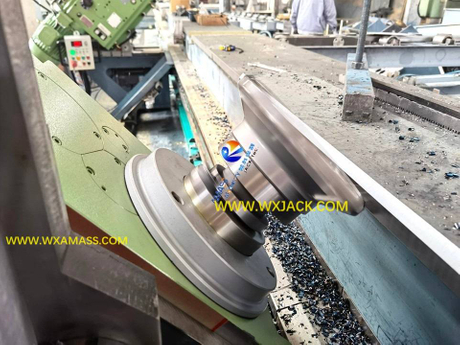

0°~ 45° milling head in Wuxi JACK machine (Fig.3)
2) Besides, Wuxi JACK Edge Milling Machine can deliver special made 0°~ 85° milling head for customer higher end demand;
0°~ 80° Milling Head in Wuxi JACK machine: (Fig.4)
1) Conventional models of Wuxi JACK machine can have metal plate beveling in the thickness range of 6mm~ 60mm;
2) For special customer demand, this thickness can be up to 80mm to 160mm.

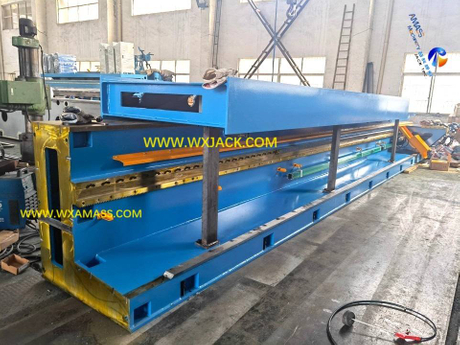

1. This machine has gantry body structure. The steel plates are loaded from its front side by means of loading racks;
2. Edge milling working groups are installed at back side of the mechanical frame;
1) Mechanical system, including machine main frame, machine bed, upper gantry, workpiece supporting and loading rack;
2) Hydraulic driving system, including pump station, electromagnetic valve, oil pipeline. This system is for clamping the steel plates firmly during edge milling;
3) Control system, including electric components, inverter, relay, contactor, cable slides;
4) Edge milling tool: Milling head, facer blade, its elevation, swing, feeding forward and backward driving motors, traveling carriage.
1. Wuxi JACK Edge Milling Machine are equipped with 7.5kW milling head for standard models, and 9.3kW/ 11kW for heavy duty models;
2. Such high power milling head guarantees on high speed and efficiency chamfering from sheet metal beveling operation;
3. The milling head of Wuxi JACK machine not only has high power, but also easy operation for changing its spindle revolve: (Fig.5)
With years of accumulation and maintained as top grade supplier, Wuxi JACK has our Edge Milling Machine equipped with many unique and useful function groups. Such as:
1) Why Need? You may know that steel plates to be machined for edge milling are usually have large size and heavy weight: Length up to 18m, thickness up to 80mm or even 160mm, weight from several tons up to dozens of tons. So, handling steel plate during operation is laborious, time consuming, and dangerous;
2) To solve this problem for customers, Wuxi JACK has successfully developed this automatic running hydraulic drive steel plates handling system.
It is unique function of Wuxi JACK Edge Milling Machine, and has acquired customer welcome for many years: (Fig.6)
1) Conventionally, milling angle is adjusted manually and observed with angle ruler. It takes relatively long time, and not so accurate;
2) The HMI interface touch screen input developed by Wuxi JACK for edge milling operation can deliver very precise and accurate milling angle management:
The HMI Touch screen interface in Wuxi JACK exported to Russia Edge Milling Machine: (Fig.7)
Model Technical Parameter | XBJ and SXBJ Series Plate Edge Milling Machine |
Max. Plate Edge Milling Length | 3000 mm~18000 mm for Conventional models; Special made parameters are available |
Edge Milling Thickness | 6mm ~ 40/ 80 mm for Conventional models; 6mm ~ 160mm for Special made |
Workpiece Max. Weight | Up to 70s Ton |
Power and rpm of Milling Head | 7.5kW for conventional model, 9.3kW/ 11kW for heavy duty |
Spindle rpm of Edge Milling Head | 65 ~ 715 r/min., 6/ 9 grades by handwheel |
Milling Head Quantity | 1 or 2 sets (Single Head and Double Heads) |
Milling Angle of Top Milling unit | 0° to +45° /+85° |
Milling Angle of Down Milling unit | -45° to 0° |
Lengthways Edge Milling Speed | Continuous (150~ 3000) mm/min. Inverter control |
Idle High Speed of Milling Head | 4000 mm/min. |
Quantity of Hydraulic Jacks | 6 ~ 39 pieces, depending on stroke |
