What is classification on Wuxi JACK Edge Milling Machine?

Wuxi JACK designs and produces full range of high standard Edge Milling Machine: Double heads long stroke, single head short stroke, advanced configuration, standard type, custom-made type, etc. Which we will have in detail introduction in the corresponding web pages

What are merits of Edge Milling Machine, compared with last generation Planning Machine?

Compared with traditional Planning Machine, Edge Milling Machine has the same level of machining precision and chamfering speed, but much lower machine quotation and running cost.

What is relationship between Edge Milling Machine, Flame CNC Cutting Machine, and Hobbing Cutter Shearing Machine?

These 3 types of machines are all used for make welding groove on edges of sheet metal plate. In other words, make beveling. Of which, End Milling Machine has the largest applicating volume, because it has wide range of applicable size for workpieces, and high precision, high production efficiency; The Hobbing Cutter Shearing Machine focuses on small size workpiece; And CNC Flame Cutting Machine has the bottom running cost, but produces relative rougher cutting kerf, which need to be trimmed;

How to make plate edge milling process more efficient, precise and flexible?

Plate edge milling machine is commonly used equipment in steel structure and ship building industry. Its usage is to mill plate edge into various size and/or type of bevel/chamfer for the ease of following operation (for example, welding). Due to its wide application, improving milling precision& efficiency is critical target of machine manufacturer. For this purpose, we improved machine design to better level: Different from the general used milling head of 5.5kW and welded rail in industry, we adopt milling head of 7.5kW and high-precision ball bearing linear guideway, making edge milling process more efficient and better quality, while maintain the same level of machine price as other machine manufacturers. Our plate edge milling machine takes leading position in terms of performance in market, and gained word of mouth from customers.

1 Sheet Metal Steel Plate Edge Milling Machine 6

Wuxi JACK Edge Milling Machine,

the Top Grade Sheet Metal Plate Welding Groove Processing Equipment in Industry!

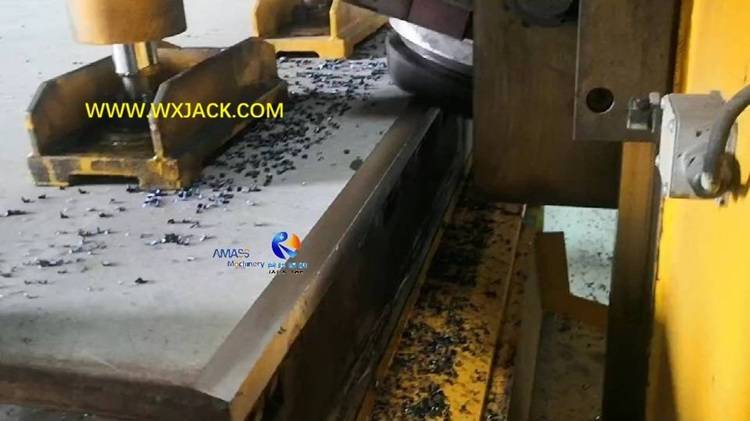

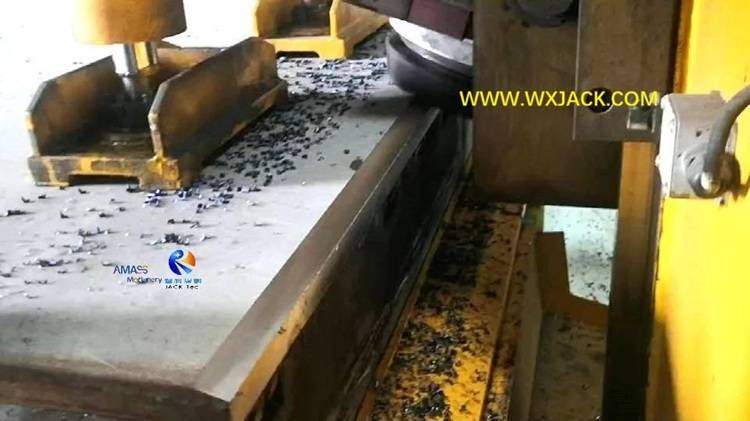

Working Moment and Finished Beveled Steel Plate from Wuxi JACK Sheet Metal Plate Milling Machine

Our Strength: As very famous Chinese professional supplier on Plate Edge Miller in domestic and overseas market, over the past 2 decades, Wuxi JACK designs and produces full range of scope first class sheet metal plate Edge Milling Machine of 300+ sets, providing superior quality Welding Groove Processing Equipment for various industries customers;
The type of bevels milled on edge of plate from Edge Milling Machine can be: V/ X/ Y... in the angle scope of 0° ~ 45°/ 60°. Under customer special requirement, with special design and milling cutter, the milling angle range can be 90°; The Edge Milling Machine can also mill out circular groove by means of circular cutter:

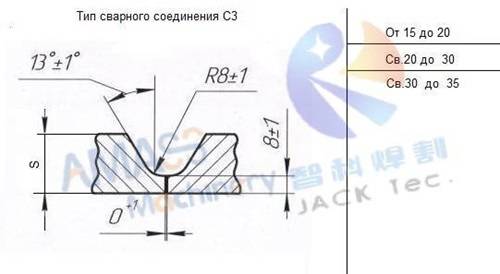

Conventional 45°~ 50° X groove: (Fig.1)

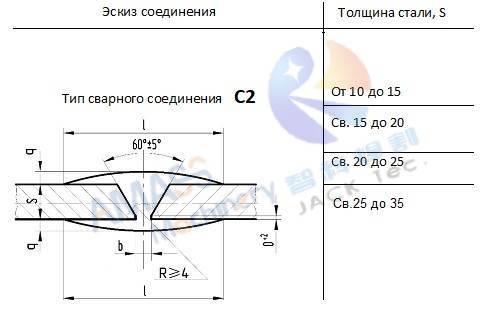

Conventional 60° V groove: (Fig.2)

Special U groove: (Fig.3)

Beveled Steel Plate from Wuxi JACK Edge Milling Machine:

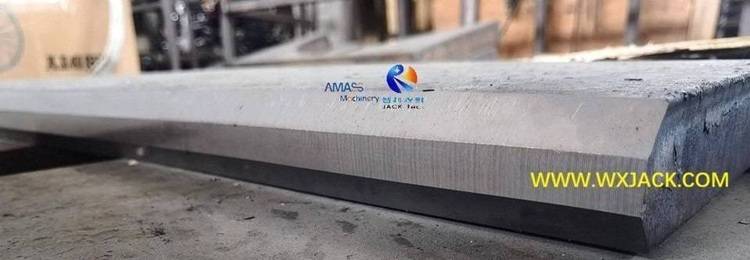

Finished 45° V Groove

-45° Welding Groove Milling

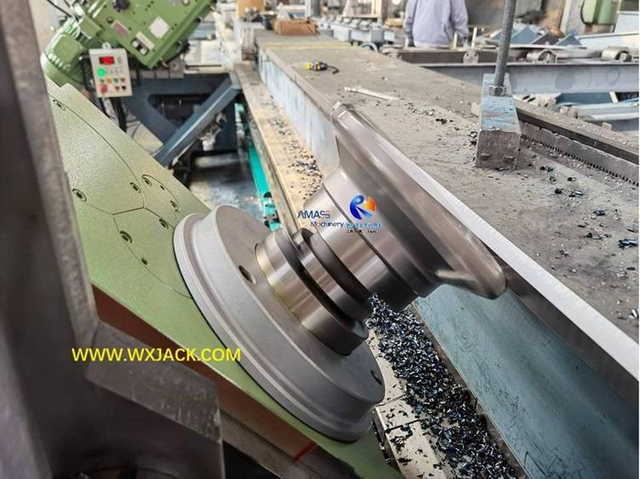

Special U Shape Milling

Finished Straight Edge End Milling

Some Valuable Function Units Only Can be Found in Wuxi JACK Plate Milling Machine:

Wider Milling Angle Scope 0°~ 180° Milling Head

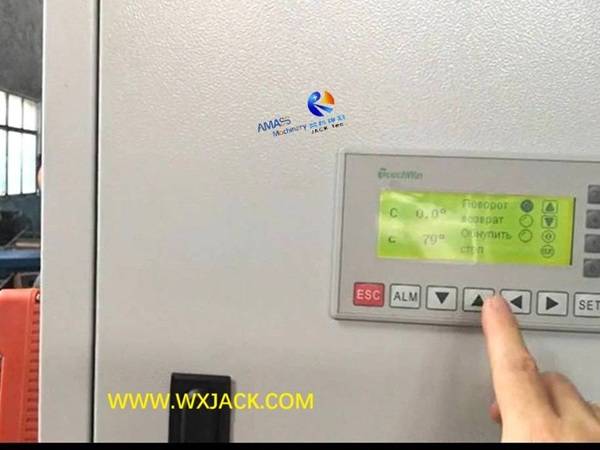

HMI (Human Machine Interface) Touch Screen for Precise Control Milling Angle

4 Milling Heads Configuration for Milling Capability at both sides of Work Table

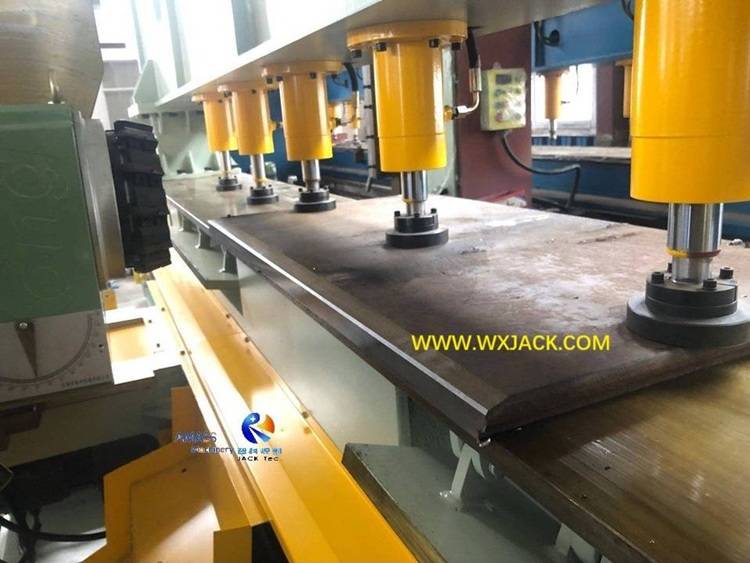

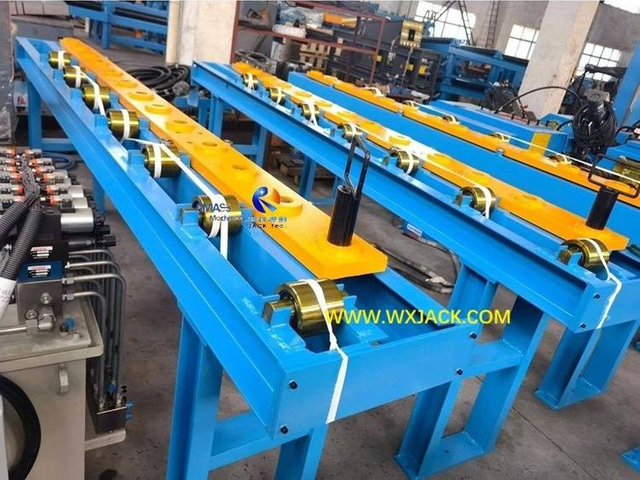

Hydraulic Drive Steel Plate Push and Pull System

Wide Variety of Structures/ Sizes/ Configurations Wuxi JACK Sheet Metal Plate Edge Miller Machine

As professional technique based company, Wuxi JACK produced Edge Milling Machine includes full scope of specifications:
1) Edge Milling Stroke: From 3,000mm (Single head XBJ-3/ Double heads SXBJ-3) to 18,000mm (SXBJ-18) for single milling head and double milling heads plate Edge Miller; And 21,000mm to 23,000mm for four to five heads models (GFXBJ21 ~ GFXBJ23) Plate Edge Miller;
2) Quantity of Milling Heads: Single milling head (XBJ series), double milling head (SXBJ series), four milling heads in super large Plate Milling Machine (GFXBJ series);
3) Mechanical Structure: Conventional design integral frame with fixed top gantry; Split type (Top gantry and milling work table) for heavy duty Edge Milling Machine; Wall board frame with extended effective milling stroke sheet metal plate Edge Miller...
4) Exclusively Owned Advanced Functions with Machine: When customer needs, Wuxi JACK produces Plate Milling Machine with numerous highly value function group, which, only can be available with our Wuxi JACK plate Edge Miller. For example: Hydraulic drive steel plate loading brackets; HMI (Human machine interface) for precisely control milling angle...

XBJ-3

XBJ-4 with wall board structure

GFXBJ-23

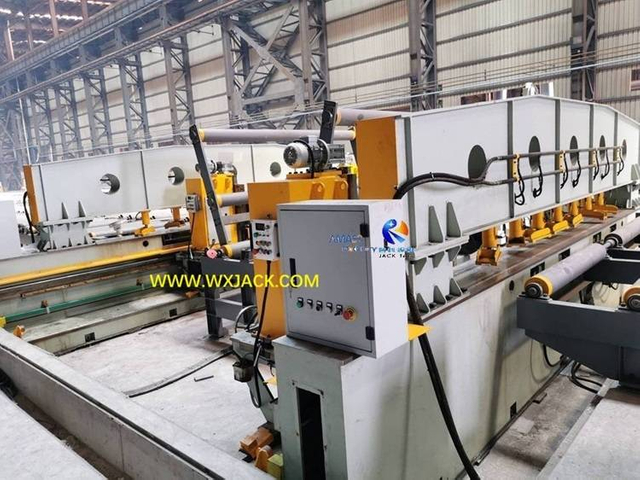

Tandem SXBJ-4

SXBJ-15

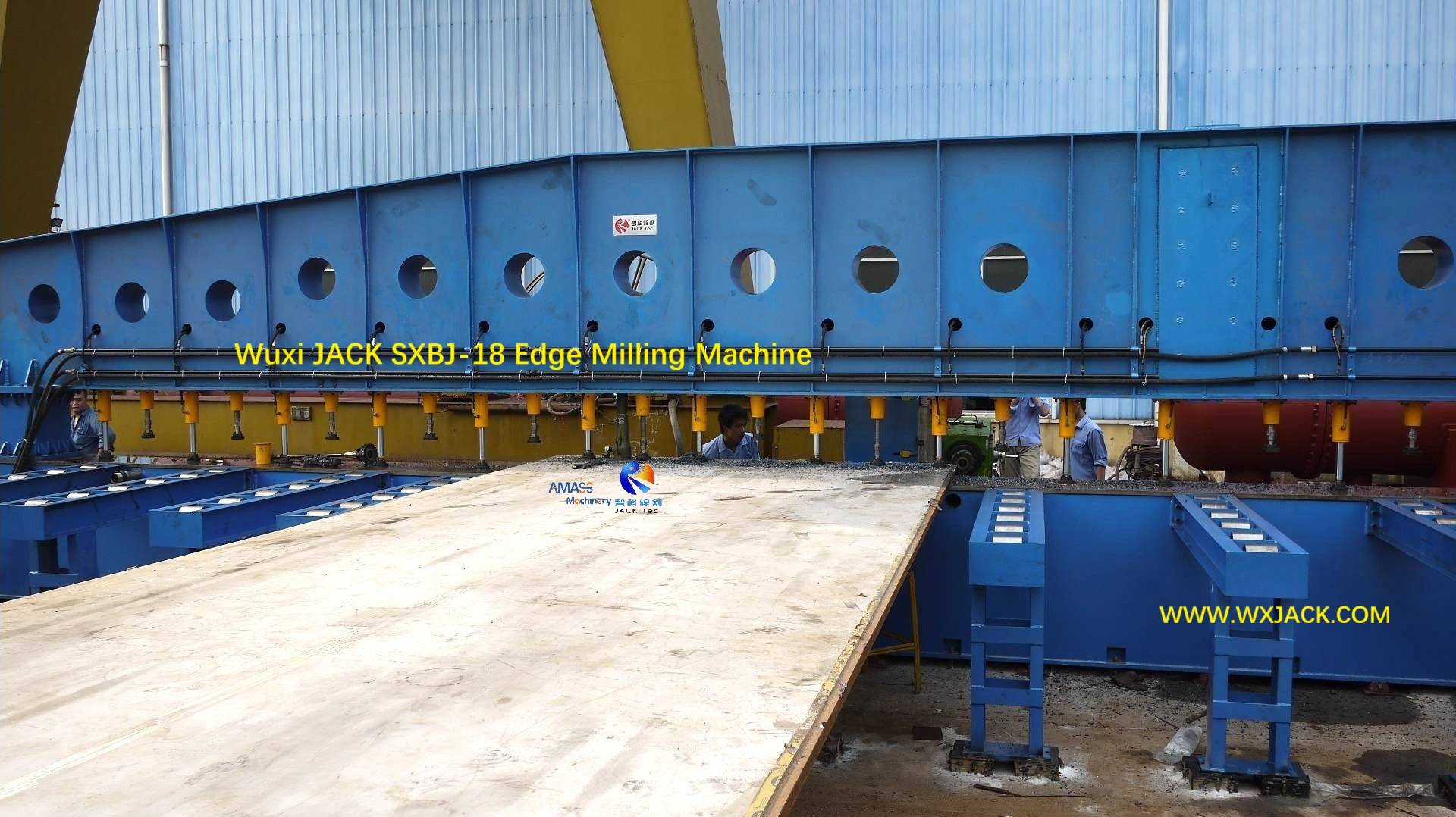

SXBJ-16 Outdoors Installed

SXBJ-18 Outdoors Installed

SXBJ-18

SXBJ-4

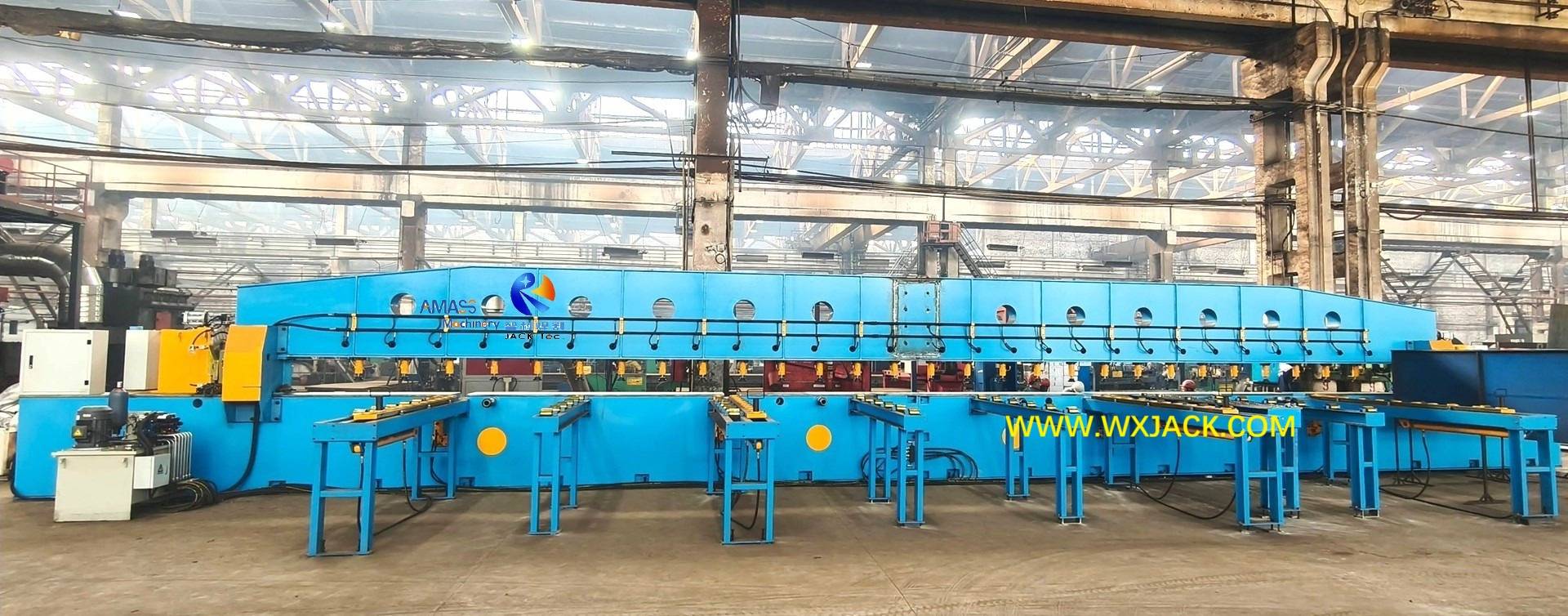

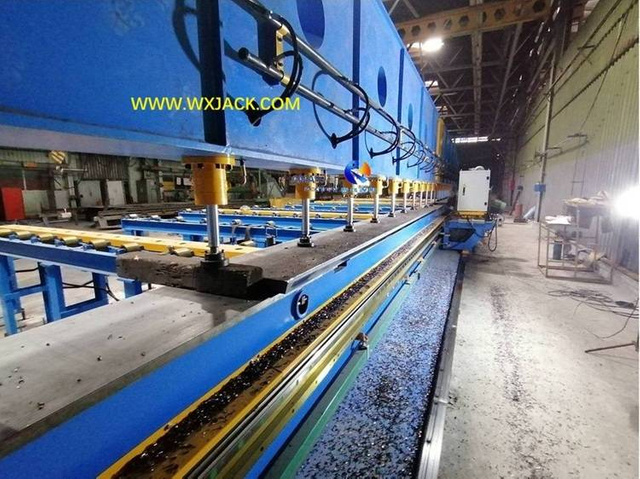

SXBJ-12 double sides milling

SXBJ-125 with 0° ~ 80° milling angle

Tandem SXBJ-4

General Technical Specifications of Edge Milling Machine

For more detailed introduction on different models, please check ending section of this page

XBJ Models		SXBJ Models		GFXBJ Model
Milling Head Quantity	1	Milling Head Quantity	2	Milling Head Quantity	4 ~ 5
Milling Head Power	7.5 kW	Milling Head Power	7.5 kW	Milling Head Power	7.5/ 9.3/ 11 kW
Edge Milling Stroke	3 ~ 18 m (XBJ-3 ~ XBJ-18)	Edge Milling Stroke	3 ~ 18 m (SXBJ-3 ~ SXBJ-18)	Edge Milling Stroke	21m ~ 23m (GFXBJ21 ~ GFXBJ-23)
Milling Angle	0° ~ 45°	Milling Angle	0° ~ 45°/ 60° and -45° ~ 0° Special Angle available	Milling Angle	0° ~ 45°/ 60° and -45° ~ 0° Special Angle available
Edge Milling Speed	150 ~ 1000 mm/ min. A.C. inverter control
Applicable Plate Thickness	6 ~ 50 mm Special thickness available	Applicable Plate Thickness	6 ~ 100 mm Special thickness available	Applicable Plate Thickness	6 ~ 100 mm Special thickness available

Working Videos of Wuxi JACK Sheet Metal Plate Milling Machine

Note: Related pages on product family of Plate Edge Miller equipment:
1. General Purpose Edge Milling Machine;
2. Double Heads Long Stroke Plate Edge Miller;
3. Advanced Configuration Sheet Metal Plate Milling Machine;
4. Working Videos of Edge Milling Machine;
5. General Purpose Plate Edge Miller Working Videos;
6. Operating Videos of Double Heads Long Stroke Plate Milling Machine;
7. Videos of Advanced Configuration Plate Edge Milling Machine;
8. Videos of Wuxi JACK Standard and Special Made Plate Milling Machine

Technical Superiorities of Wuxi JACK Plate Edge Miller Machine and High Value for Customer

1. With two decades hard working, Wuxi JACK has set up mature and highly effective control system, throughout Order to Delivery value chain of manufacturing on top grade Edge Milling Machine for customers;
2. Wuxi JACK Competitive Edges: Starting from all the standard and general configurations and functions in industry, over the years Wuxi JACK has developed series of unique and powerful functions in our Welding Groove Processing Equipment. Which, not only forms competitive differentiation of Wuxi JACK Plate Edge Miller in the market, but more importantly, help promising our Plate Milling Machine to create more profits for customers.

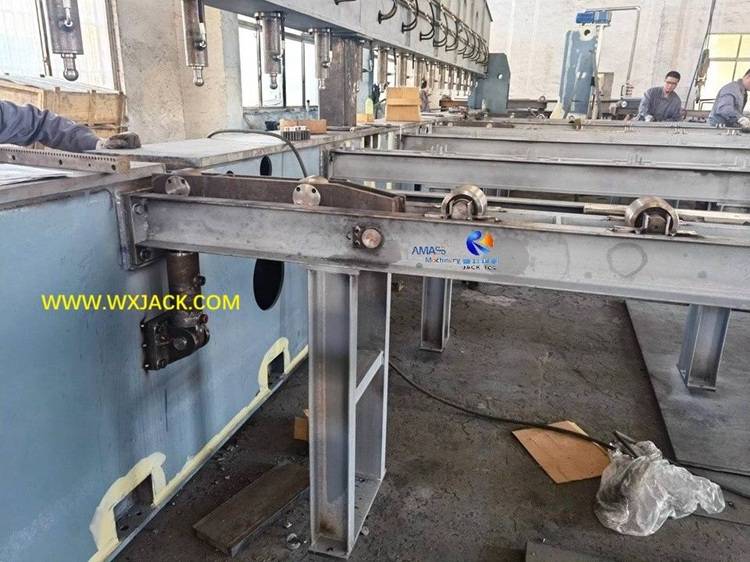

1. Hydraulic Drive Sheet Metal Automatic Loading and Unloading System in Wuxi JACK Plate Edge Miller Machine:

Why is this function so helpful for customers to operate on the Edge Milling Machine?

This is the unique feature with Wuxi JACK Plate Milling Machine, and highly recognized and warmly welcomed by customers worldwide:
1) Eliminate Hidden Safety Risk: The background on Wuxi JACK engineering team developing this unit for Edge Milling Machine is: As we know, carbon steel plate has large size and heavy weight, which needs several operators working together to push the steel plate into work table before operation, pull out after that. The manual job of steel plate handling process is toilful and dangerous for operators of the Plate Edge Miller;
2) Guarantee on Safe, Reliable and High Efficiency Steel Plate Handling: Now, with this powerful hydraulic drive workpiece pushing and pulling system, all the material move into and out of the Edge Milling Machine can be fulfilled automatically and efficiently under oil cylinder drive;
3) Great Benefit for Customers with This Function Unit: This Wuxi JACK exclusively produced function unit can not only realize operation of Plate Milling Machine labor saving, reduces non value added job of operators, but also eliminates the biggest safety hidden risk during running period of the Plate Edge Miller.

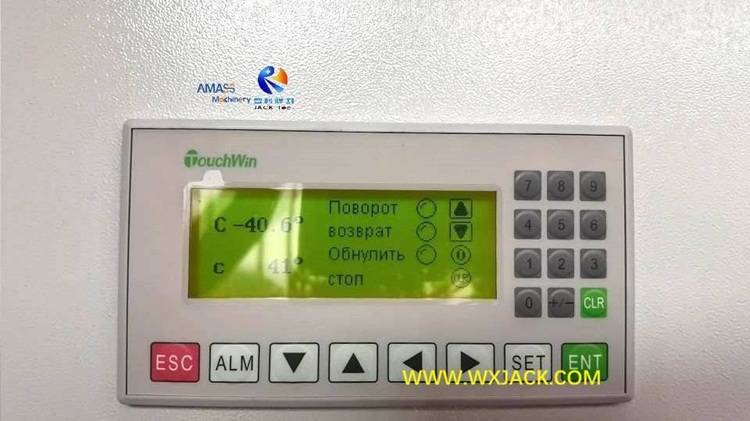

2. Conveniently Set Up and Precisely Control Milling Angle in Wuxi JACK Edge Milling Machine:

Why function of HMI setting and displaying edge milling angle is so critical on process control of Plate Milling Machine?

This is the second exclusive and powerful capability of Wuxi JACK sheet metal plate Edge Milling Machine. Why it matters? Because as an universal Welding Groove Processing Equipment, the accuracy of finished milling angle (Bevel angle) on milled plate is one of core factors, determining on performance of the Plate Edge Miller:
1) Edge Milling (Beveling) Angle: For operation of Plate Milling Machine, tilting angle of milling head equal to finished bevel angle on edge of sheet metal plate: 0° ~ +45°, 0° ~ +80°, -45° ~ 0°, -45° ~ +45°… Depending on customer demand;

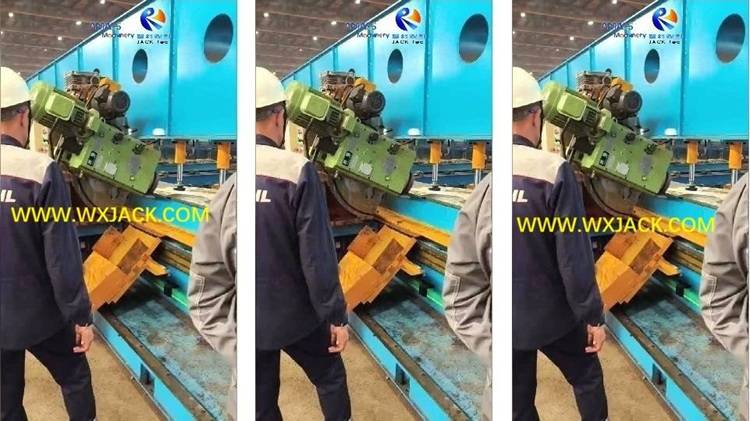

2) Easy and Intuitive Operation: By means of touch screen on HMI (Human machine interface), which is installed in the electric control board door of Edge Milling Machine, operator just need to key in the expected milling angle. Accordingly and under motor drive, milling head will automatically tilts to the set angular position;

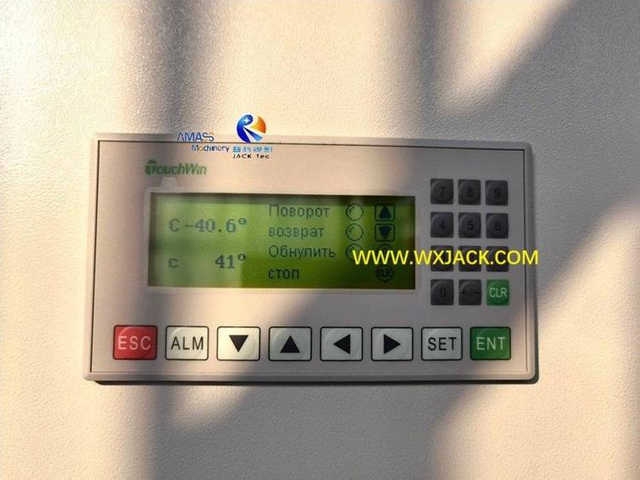

3) Real Time Display on Milling Angle: Besides, there is digital display meter on top section of milling head, which instantly display on angular position of milling head during its entire tilting process. This gives the intuitive control for operators on Plate Milling Machine adjusting process;
4) High Value of HMI Milling Angle Control for Customers: All of these functions give the most convenient and the highest degree of precision process control on operation of the sheet Plate Edge Miller. Requirement on operator skill and experience is largely lessened, and stable performance of Edge Milling Machine is fully guaranteed;
5) Comparatively, the traditional way of manual turning milling head for beveling angle, and visual check on milling head angle, is not only time consuming, but also easy to lead to inaccurate milling angle. The milling angle management is greatly upgraded with this advanced configuration in Wuxi JACK Plate Milling Machine.

Selecting The Most Proper Design, Structure, Model of Edge Milling Machine

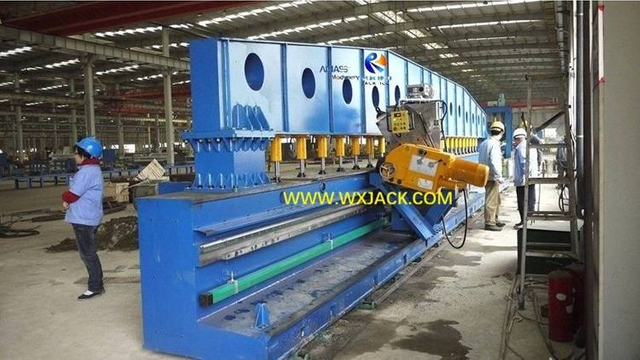

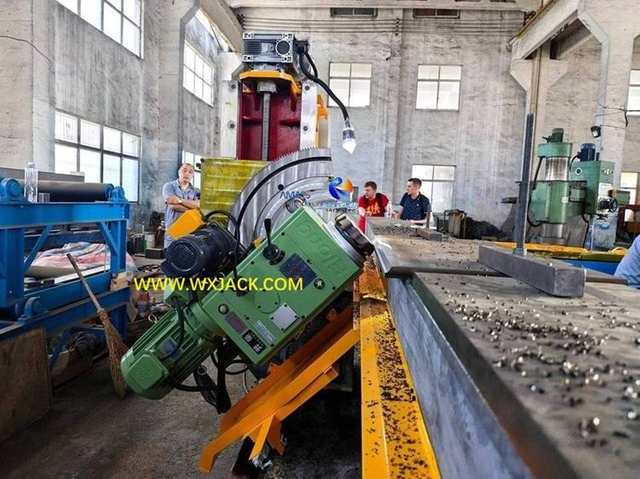

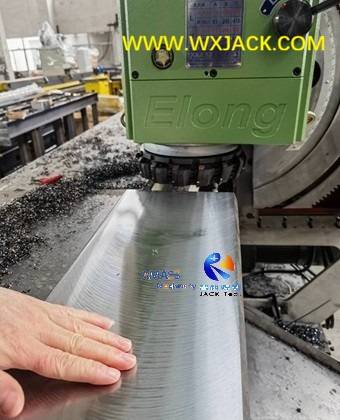

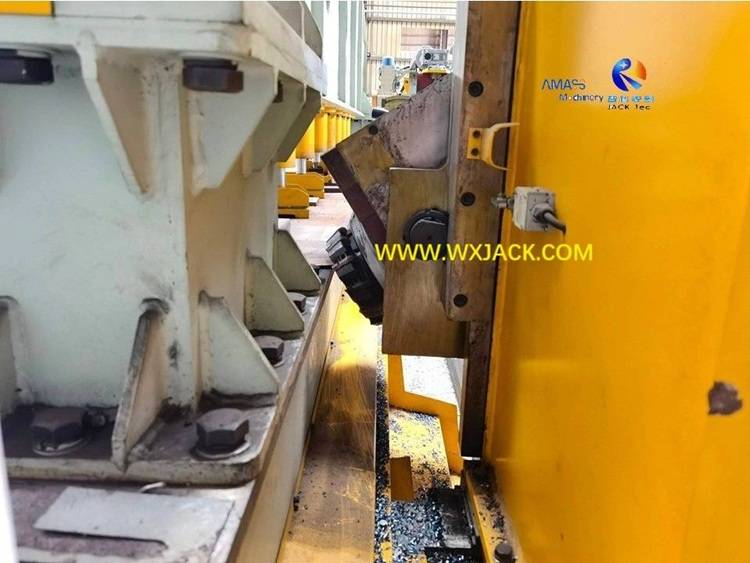

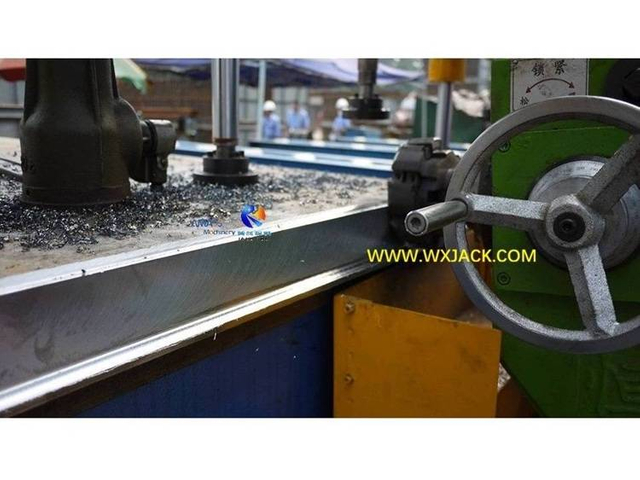

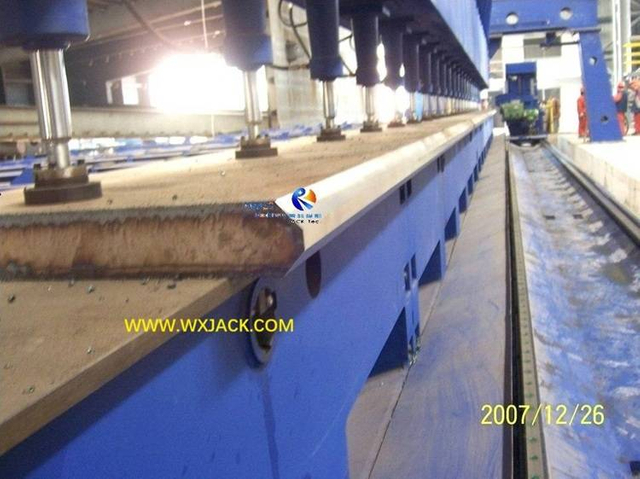

45° top edge milling in Wuxi JACK Edge Milling Machine

Assembles exported to Southeast Asia SXBJ-12 double sides milling special design Plate Milling Machine

Check List on Selecting Suitable Sheet Metal Plate Milling Machine

The Lefthand Scrolling Photos: The finished beveling quality on steel plate, delivered by Wuxi JACK Plate Edge Miller Machine

When customer purchase on sheet metal plate Edge Milling Machine, points of attention for paying attention to can be listed as:

1. The Max. Edge Milling Stroke of Edge Milling Machine:

1) Implication: This determines the max. effective horizontal moving stroke of milling head in Plate Edge Miller;
2) For example, the XBJ-9 model means that, the max. horizontal edge milling stroke of Plate Milling Machine is 9000mm. It can be either single piece of sheet plate, or several pieces of steel plates array in a row;

2. The Types of Bevels to be Edge Milled in Plate Milling Machine:

1) Single Head Edge Milling Machine: For finished welding grooves on workpiece, do you only need straight and top edge bevels, or on top, straight and bottom edges of sheet metal plates? As shown in the lefthand photos for distinguish. If all of or most majority of welding grooves are on straight and top edges of steel plate, XBJ series single head Plate Milling Machine is proper for customer choice;
2) Double Heads Plate Edge Miller: If customer request on all positions of welding groove: Straight edge, top and bottom edges bevels on plates are necessary, then SXBJ series double heads sheet metal Plate Edge Miller is better for customer selection;
3) Long Stroke Plate Milling Machine: On the other hand, suppose customer required edge milling stroke to be longer than 9,000mm, such as 15,000mm, then even if customer only need straight and top edges bevels on steel plate, we still suggest customers to select double heads Edge Milling Machine. This is considered out of productivity and easy operation;

3. Do Customer have any Special Requirement on Plate Edge Miller Machine?

The above two check points set up the basic skeleton on a set of Edge Milling Machine for customer. Based on this, customers can give more specific personalized requirement, such as:
1) The expected milling angle scope of facer blade. The default configuration is 0°~ 45° for straight and top edges beveling, and ~45°~ 0° for bottom edge beveling; In special cases, we can produce high quality tailor made range of ~45°~ +45°, or 0°~80° Plate Milling Machine for customers;
2) The hydraulic drive oil cylinder acting workpiece handling unit. This is an especially useful working cell for large models Edge Milling Machine, when steel plates to be chamfered has large size, large thickness, and heavy weight: Up to dozens of tons;
3) The HMI (Human Machine Interface) for real time and precise control on edge milling angle in the Plate Edge Miller Machine.

Brief on Usage and Application of Plate Milling Machine

1. Powerful Welding Groove Processing Equipment with Excellent Quality:

1) Working Nature: XBJ, SXBJ and FXBJ series sheet metal Plate Milling Machine, is 1st operation welding auxiliary equipment with high efficiency and precision, for machining on bevels on up and lower edges of steel plate, delivering controllable/ consistent/ stable and superior performance;
2) Wuxi JACK Plate Edge Miller Strengths: Utilizing the unique high power milling head of 7.5kW/ 9kW and 11kW, Wuxi JACK Edge Milling Machine can mill out welding grooves of U/ V/ X types, straight edge, and any other designated chamfers such as circular grooves, on up and lower edges of sheet metal steel plates;

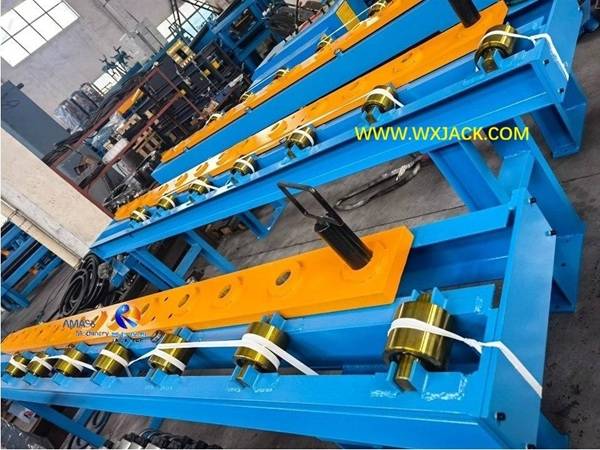

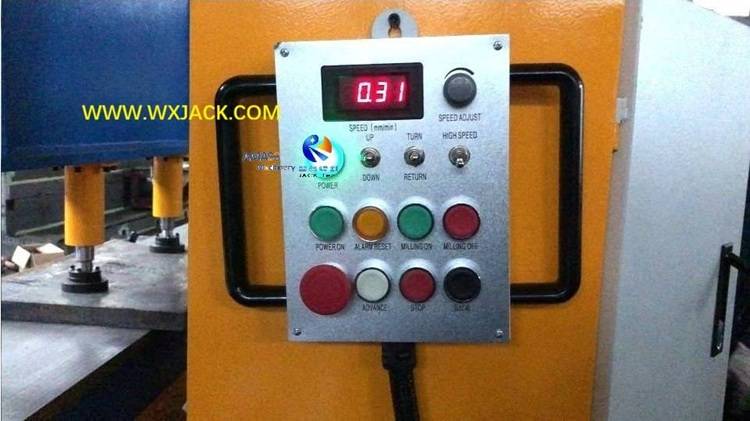

2. Function Units/ Assembly of Wuxi JACK Plate Milling Machine:

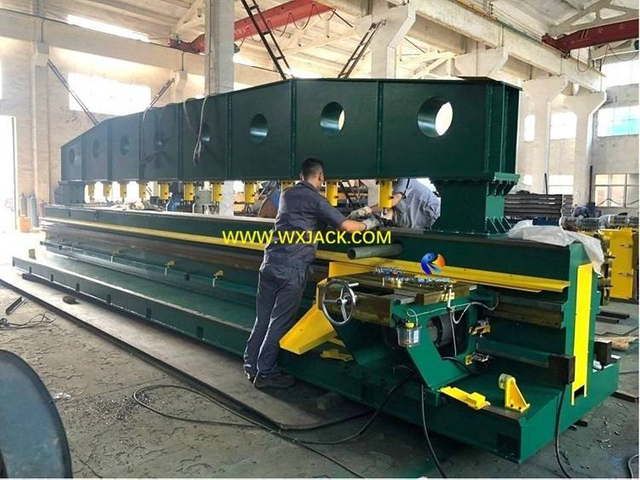

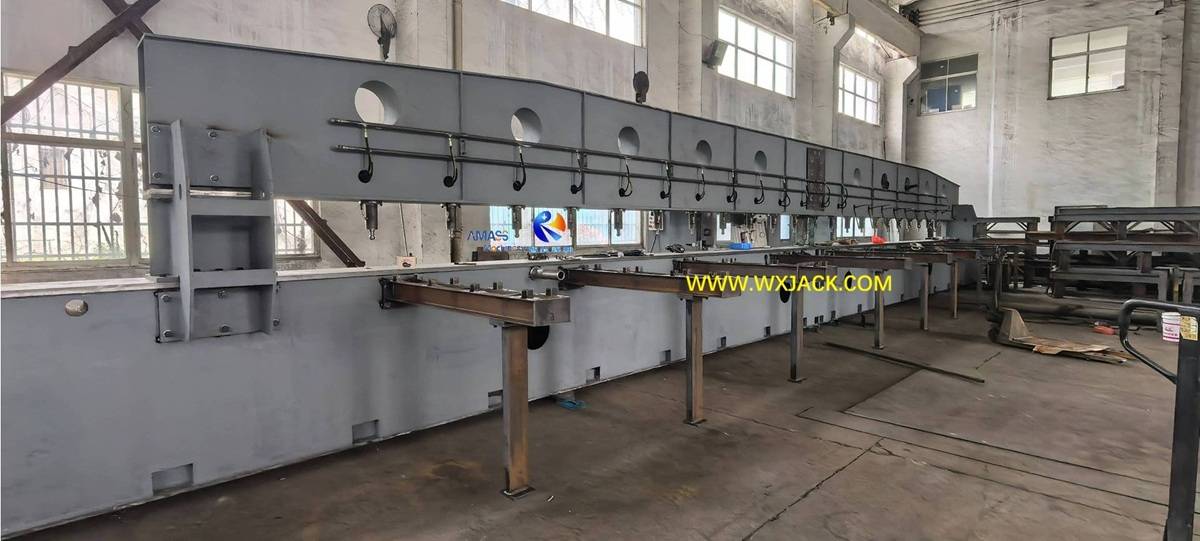

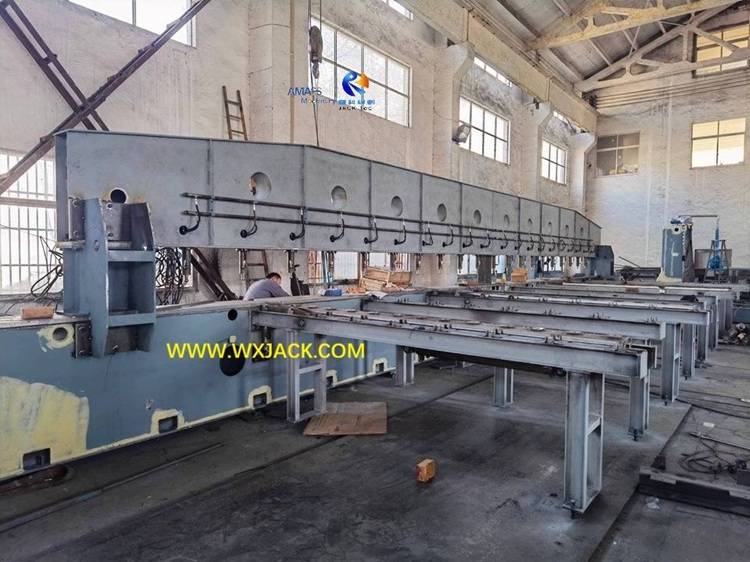

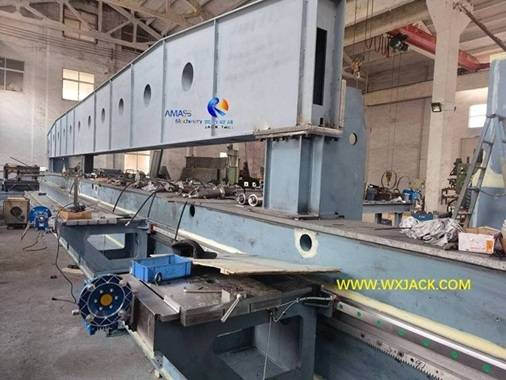

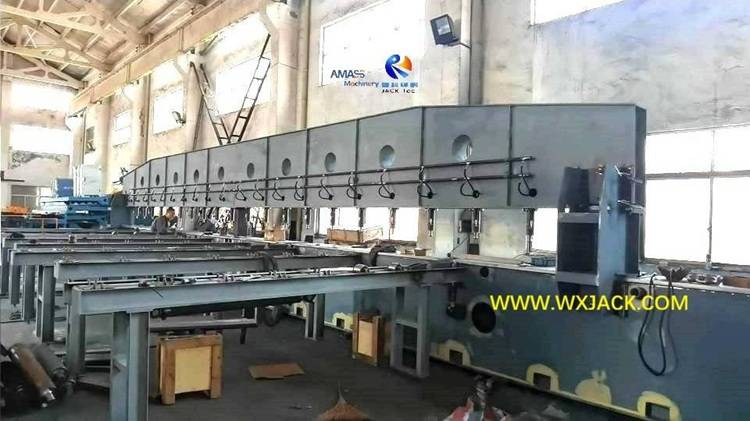

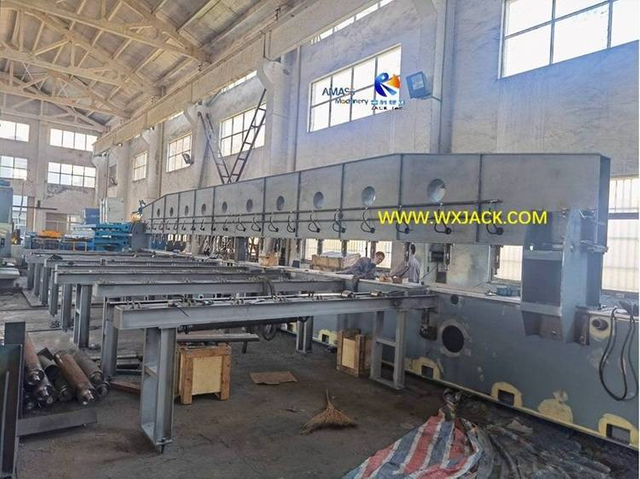

Mechanical base bed of large model SXBJ-125 Plate Edge Miller, of 16m+ length, assembled with double levels linear guiderail for guiding milling head movement: Hanging type and flat assembly

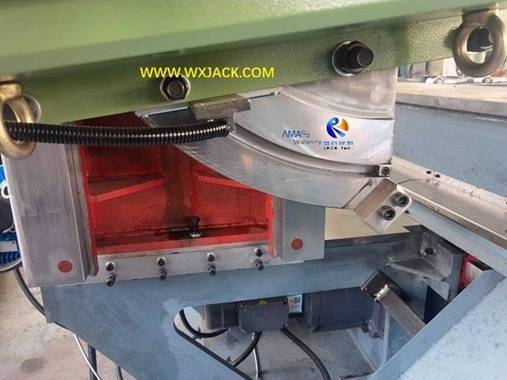

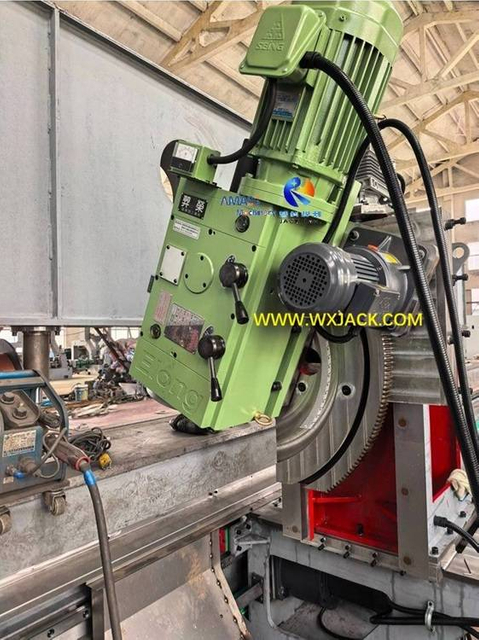

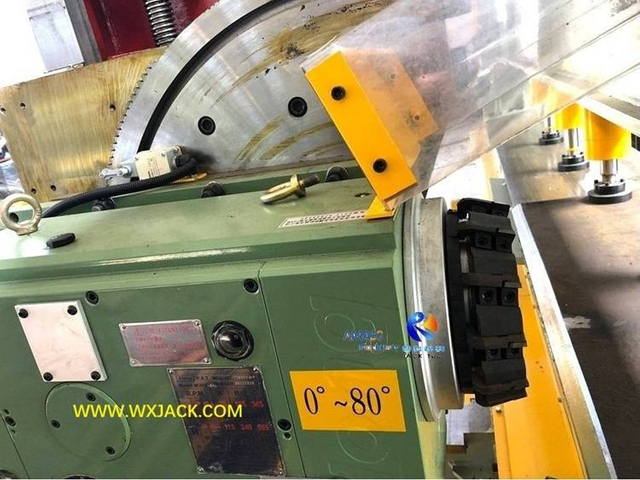

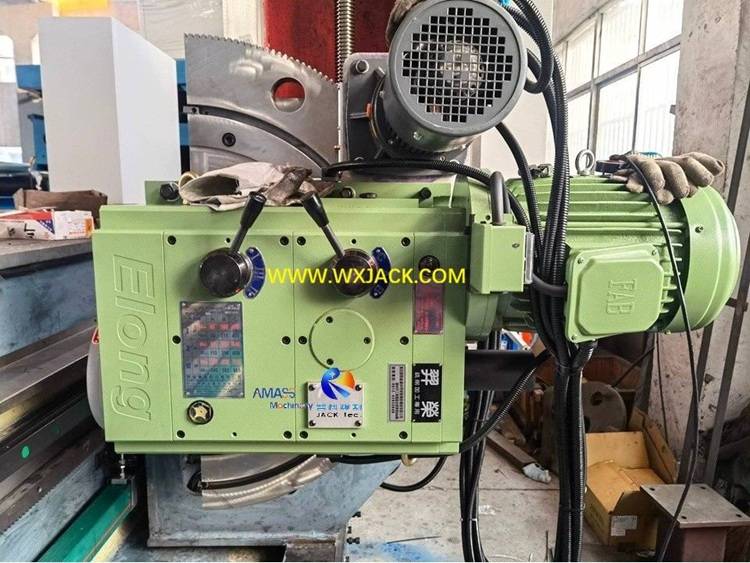

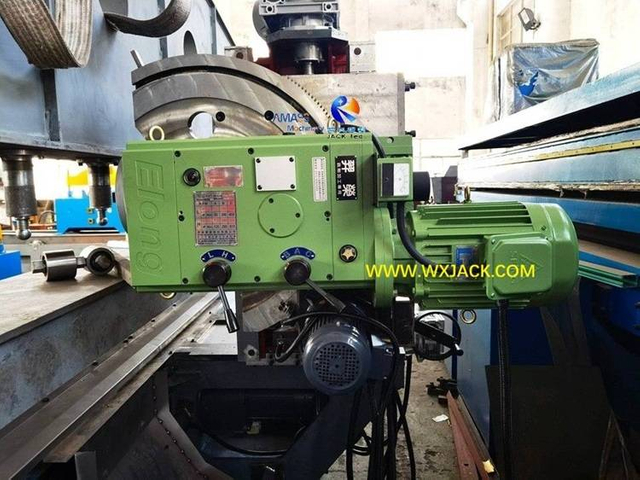

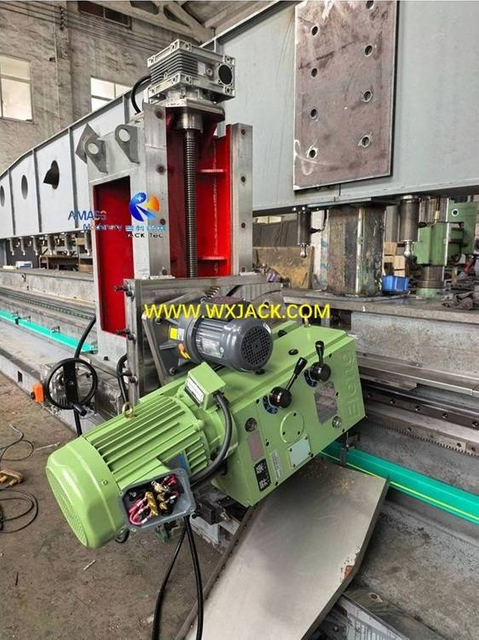

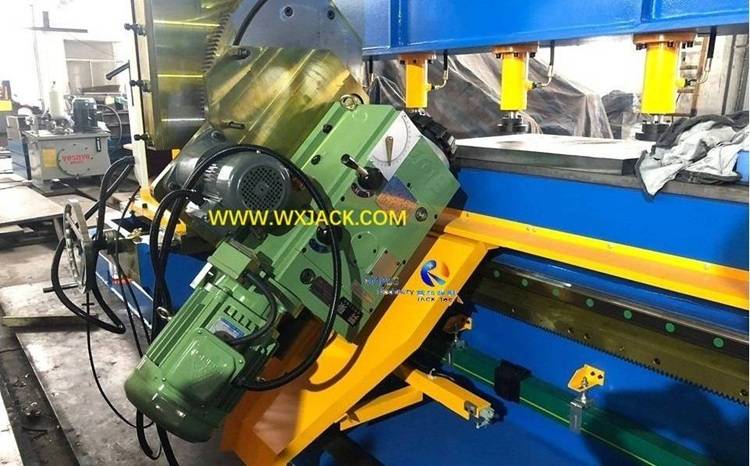

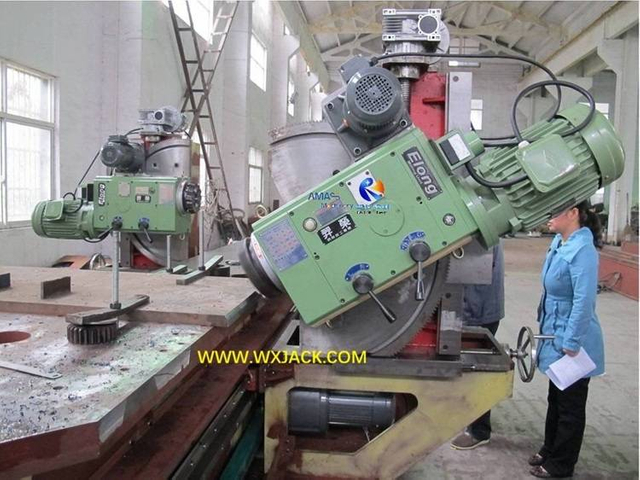

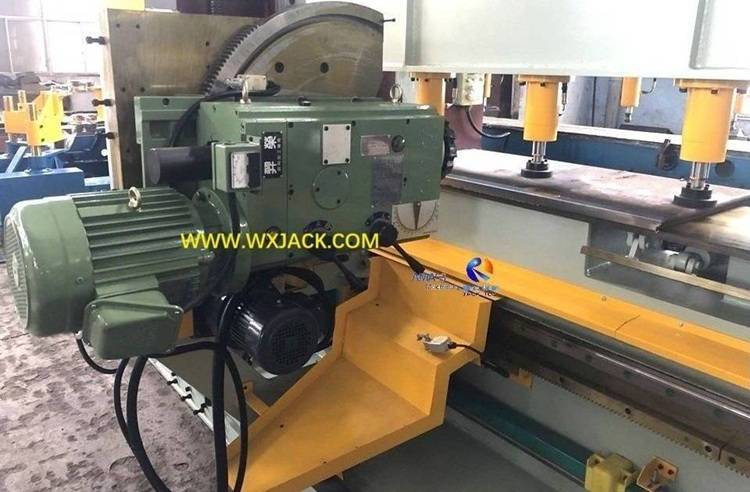

Taiwan E-LONG brand 7.5kW milling head, installed with driving motors for horizontal movement and angular tilting

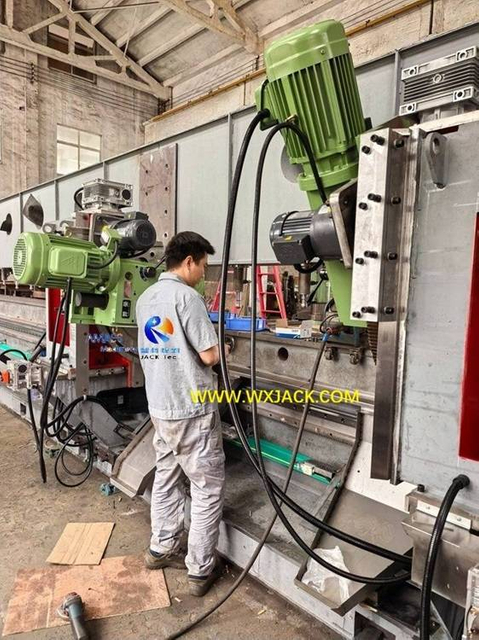

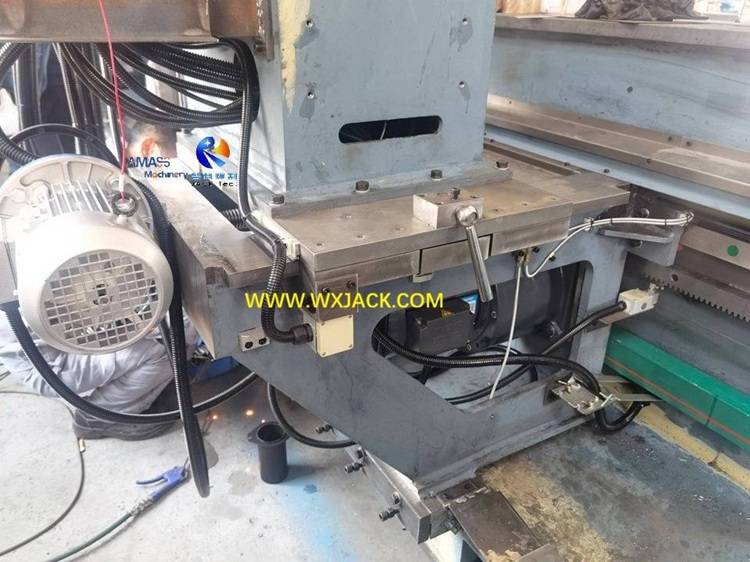

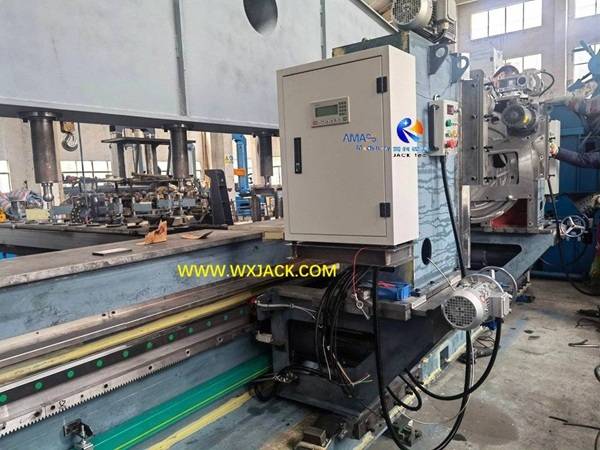

Key components for milling head movement assembled onto mechanical base bed: Precise linear guiderail; Racks; Cable bridge

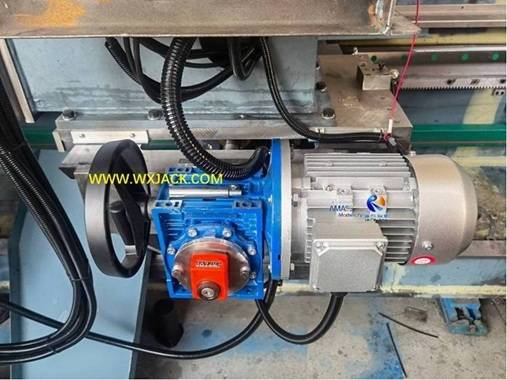

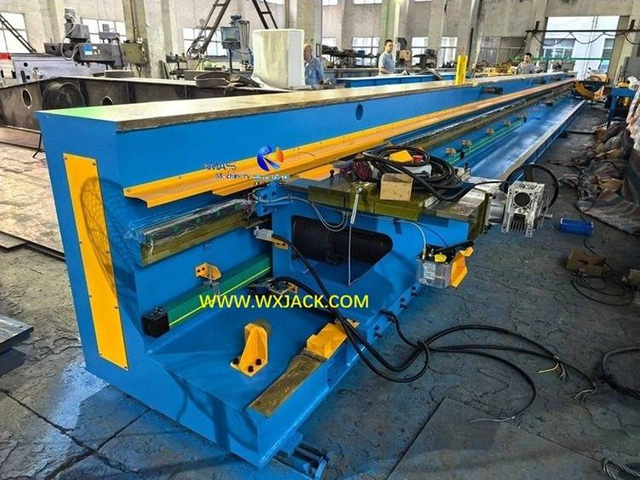

Motor drive milling head carriage being assembled onto mechanical base bed of Plate Milling Machine

3. Position of Wuxi JACK as Supplier Edge Milling Machine in Industry:

1) Wuxi JACK is very famous on providing various high standard Plate Milling Machine for customers, especially with advanced configurations, especially at Russian and other former CIS countries;
2) Many useful functions of Wuxi JACK sheet metal Plate Edge Miller, such as automatic working hydraulic drive workpiece pushing and pulling system, milling head tilting angle HMI with control… Are all unique configurations and functions of Wuxi JACK Edge Milling Machine, and highly accepted by customers;
3) Wuxi JACK have rich experience and strong technical strength in delivering first class Edge Milling Machine of various standard models and tailor made ones, and have gained word of mouth from worldwide customers;
4. Quick understanding on advantages of this exceeding Welding Groove Processing Equipment is demonstrated in slides: “Advantages of Wuxi JACK Edge Milling Machine”.

Major Category of Wuxi JACK Plate Edge Miller Machine:

Based on quantity of milling head in one machine, Edge Milling Machine can be classified into three main branches of:
1) XBJ series single milling head;
2) SXBJ series double milling heads;
3) FXBJ/ GFXBJ series four milling heads.

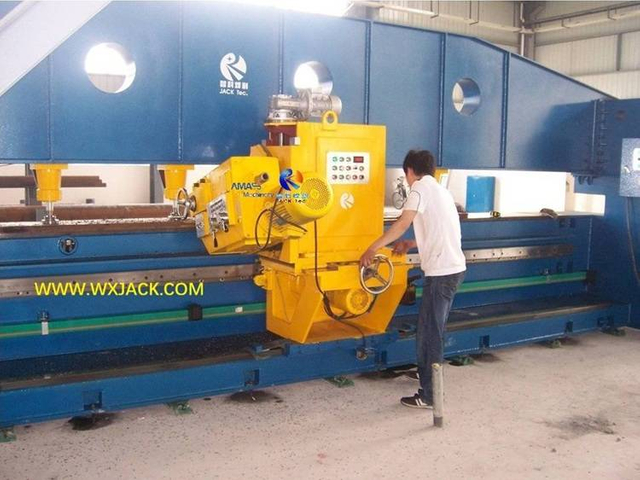

1. XBJ Series Single Head Plate Milling Machine

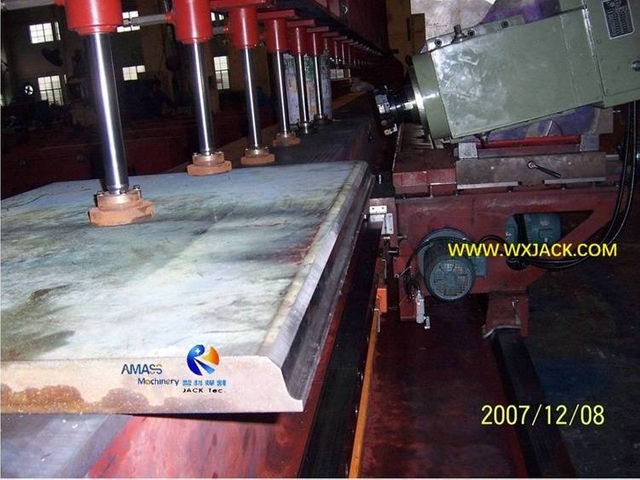

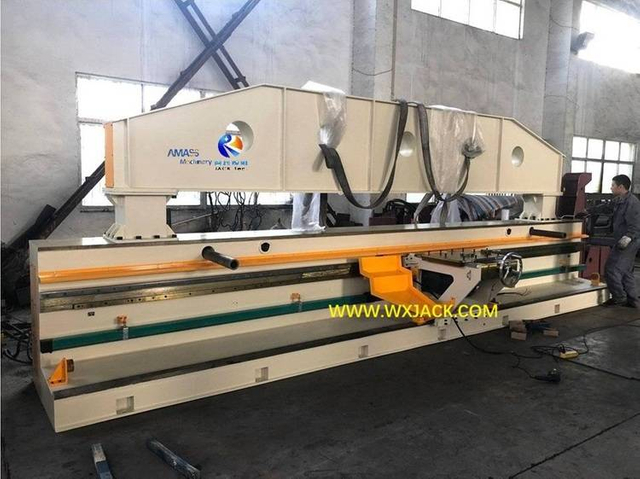

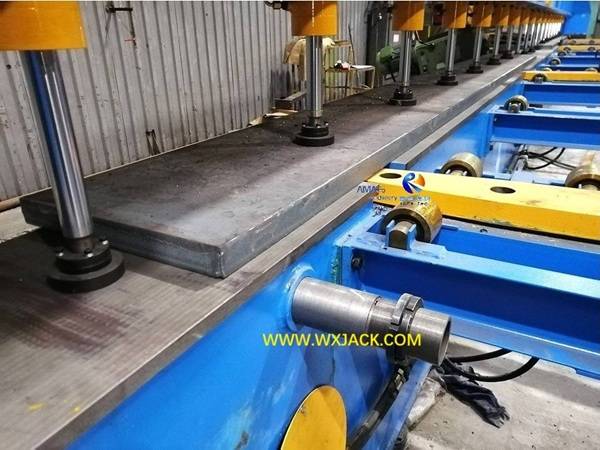

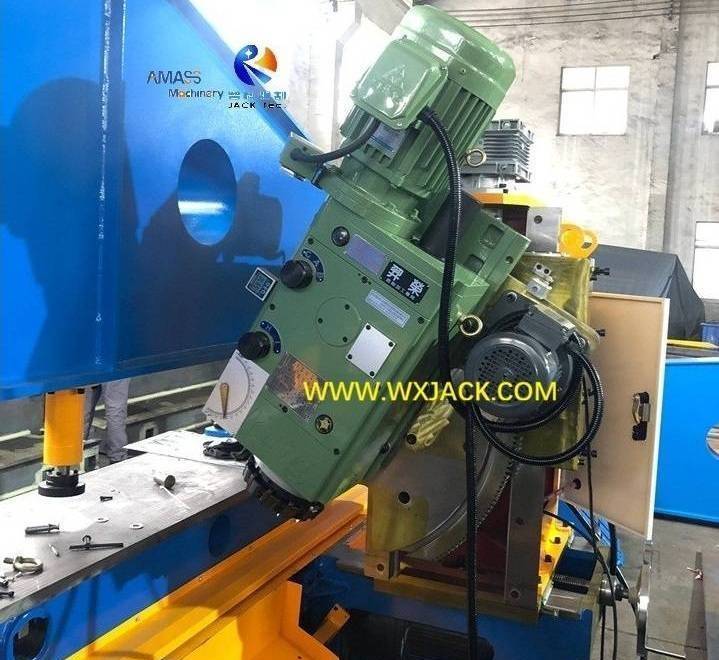

1) The lefthand 1^st and 2^nd photos show installation orientation of milling head in single head Plate Edge Miller, which is designed for machining on bevel in upper and straight edges of sheet metal plates;

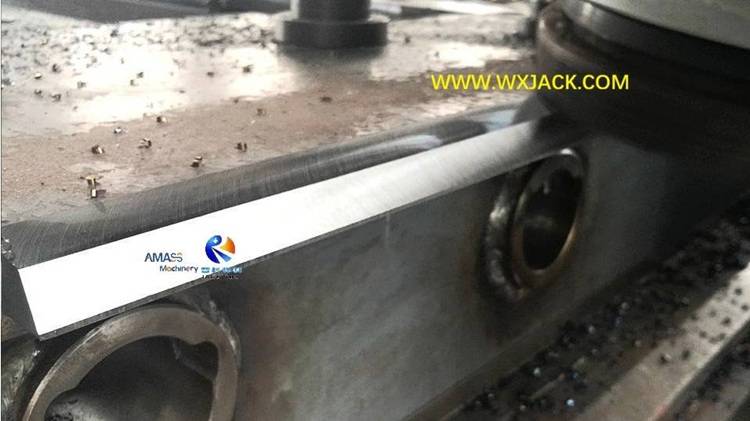

2) The lefthand 3^rd photo show a piece of steel plate, which has been milled on its straight and top edges with single head Edge Milling Machine. The steel plate has finished upper edge and straight side bevels;
3) Typical models: XBJ-3, XBJ-4, XBJ-6, XBJ-9, and special made XBJ-16.

Technical Parameters of XBJ Series Single Head Sheet Plate Milling Machine:

Model of Single Head Edge Milling Machine	XBJ-(3~ 9), or any designated stroke within the range
Type of Cut Bevel	Straight side and Up edge
Max. Valid Edge Milling Length of Plate Milling Machine	3,000mm ~ 9,000 mm; Any half meter is available. For example, XBJ-065 for 6500mm
Power, rpm and Quantity of Milling Head	7.5 kW, 1440rpm, 1 set
Hydraulic Motor Power	5.5 kW
Spindle rpm of Edge Milling Head	75 ~ 420 r/min., 6 grades, changed by turning speed lever
Applicable Plate Thickness	6 ~ 50mm. Special thickness is available
Spindle Stroke	100 mm
Milling Angle Range	Standard range is 0° ~ + 45°; Special range is available
Edge Milling Speed	150 ~ 1000 mm/min.
Idle High Speed of Milling Head	Constant 4000 mm/min.
Quantity of Hydraulic Jacks	6~15 pieces (Depending on Max. edge milling stroke)
Worktable Length	(6~ 12) m (Depending on Max. edge milling stroke)
Applicable Diameter of Facer Blade	D=Ø125 ~ Ø320mm (Ø200mm for delivery)

3 Sheet Metal Steel Plate End Milling Machine 103 IMG_20220104_130026

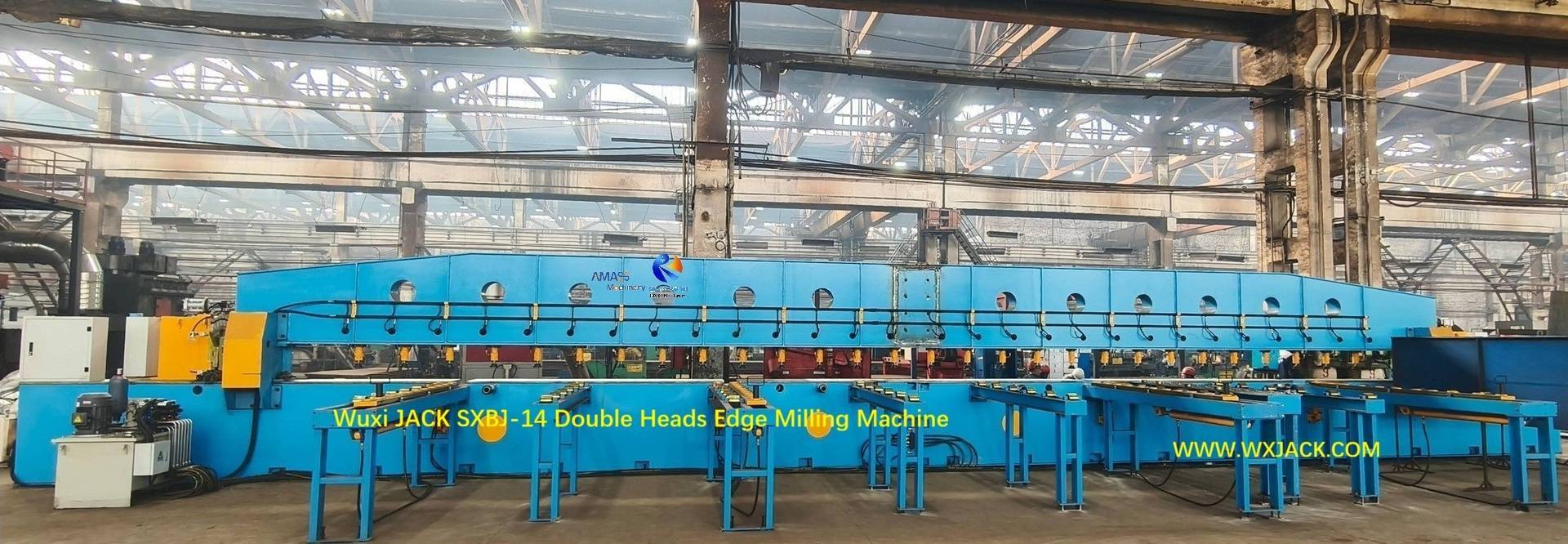

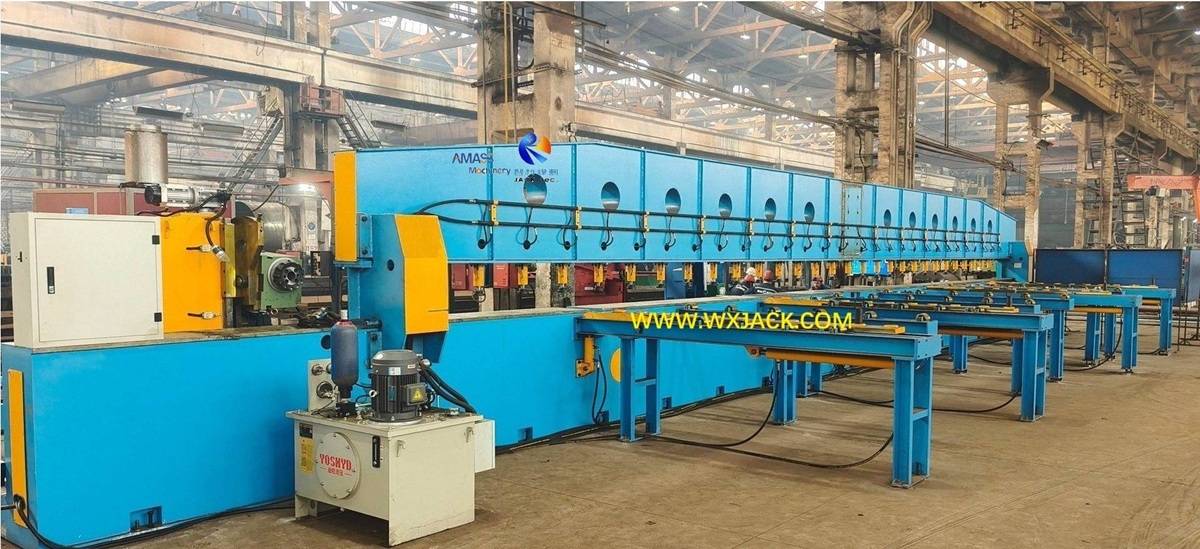

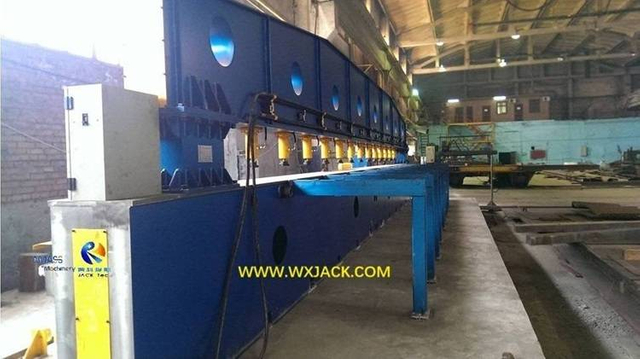

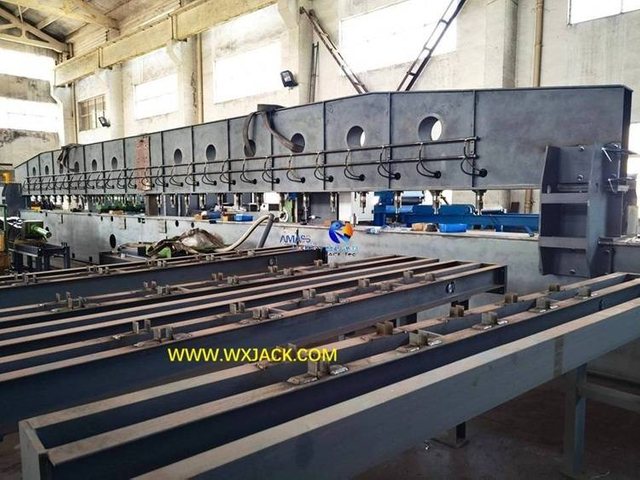

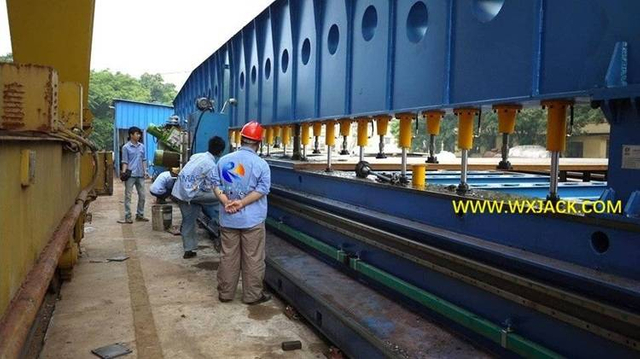

2. SXBJ Series Double Heads Edge Milling Machine:

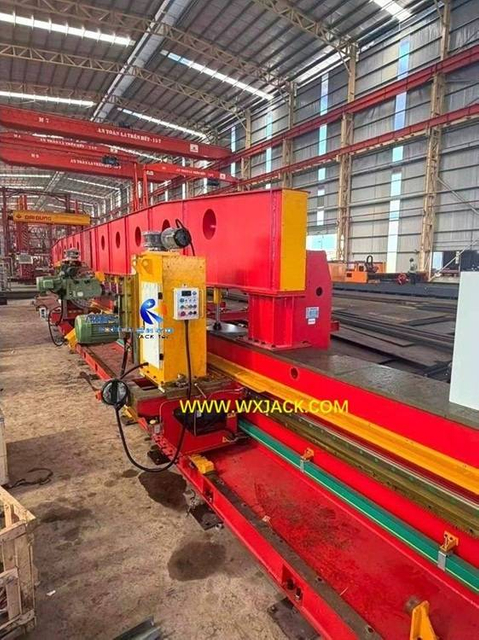

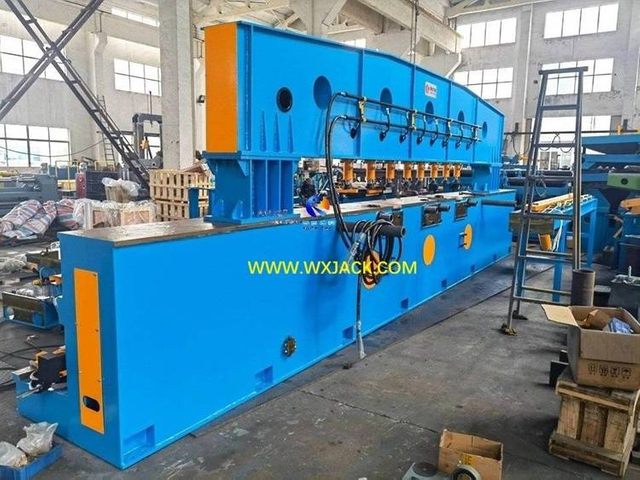

1) Technical Features: As its name suggest, in one set of double heads Plate Edge Miller, there are 2 pieces of milling head and its motor drive carriages installed. The installation orientations of two milling heads are different: One milling head is installed same as that of the single head Plate Milling Machine; The second milling head is installed shown in the righthand 2^nd photo, for machining on lower edge bevels of sheet metal;
2) The typical finished bevels from double heads Plate Milling Machine are shown in righthand 3^rd photo. There are straight edge / upper edge/ and lower edge bevel machined on the steel plate;
3) Typical Models: SXBJ-3, SXBJ-4, SXBJ-5, SXBJ-6, SXBJ-9, SXBJ-12, SXBJ-15, SXBJ-16, and SXBJ-18.

Technical Parameters of SXBJ Series Double Heads Edge Milling Machine:

Model of Doubles Heads Edge Milling Machine	SXBJ-(3~ 18), or any designated stroke within the range
Type of Chamfer Made	Upper, Lower and or Straight
Max. Valid Edge Milling Length of Plate Edge Miller	3,000mm ~ 18,000 mm; Any half meter is available. For example, 6500mm
Power, rpm and Quantity of Milling Head	7.5 kW, 1440rpm, 2 sets
Hydraulic Motor Power	5.5 kW
Spindle rpm of Edge Milling Head	75 ~ 420 r/min., 6 grades, changed by turning speed lever
Applicable Plate Thickness	6 ~ 100mm. Special thickness is available.
Spindle Stroke	100 mm
Milling Angle for Top and Bottom Head	Standard range is One Head 0° ~ + 45° and One Head -45° ~ 0°; Special range is available
Edge Milling Speed	150 ~ 1000 mm/min.
High Speed of Idle	4000 mm/min.
Quantity of Hydraulic Jacks	8~30 pieces (Depending on edge milling stroke)
Worktable Length	(9~ 24) m (Depending on edge milling stroke)
Applicable Diameter of Facer Plate	D=Ø125 ~ Ø320mm (Ø200mm for delivery)

3 Sheet Metal Steel Plate Edge Milling Machine 102 IMG_20220104_130058

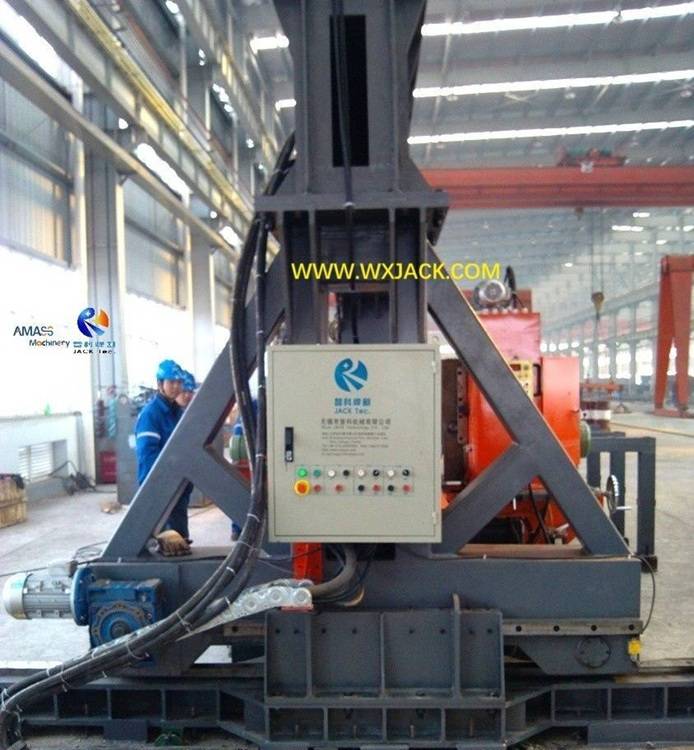

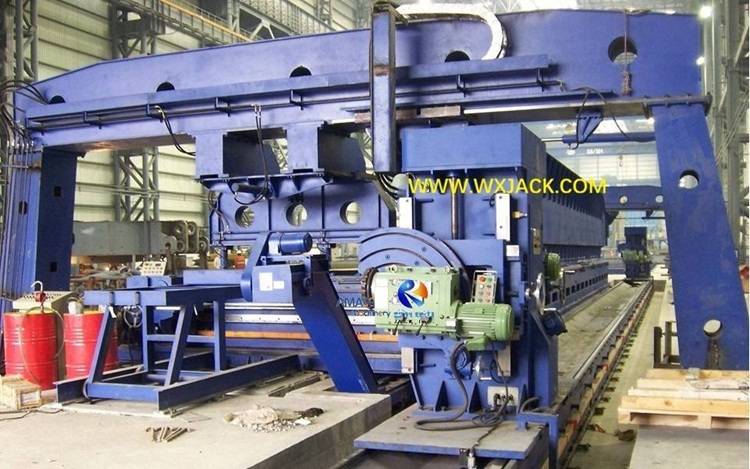

3. FXBJ/GFXBJ Series Four to Five Heads Heavy Duty Plate Edge Miller Machine:

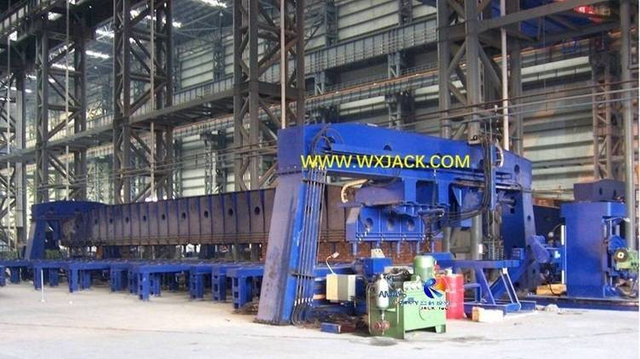

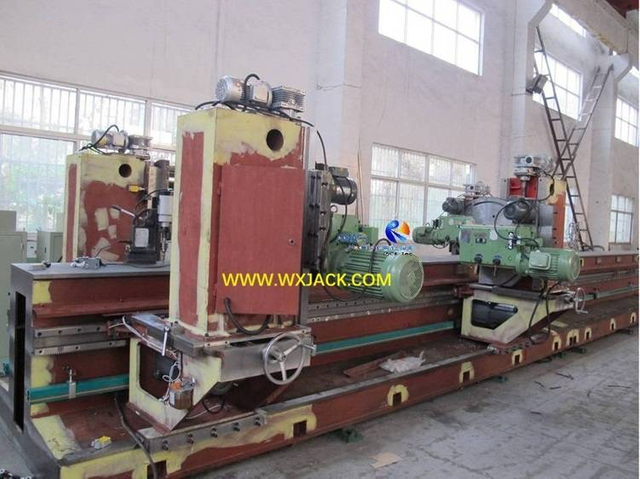

1) Function: As shown in lefthand photos, this machine is for processing straight edge, upper edge and lower edge bevels on super large steel plates (Up to 23m length and 100mm thickness) in high efficiency;
2) Configuration: As shown in the lefthand 2^nd photo, in 1 set of typical four ~ five heads Edge Milling Machine, there are:
a) 2 sets of 11kW milling head installed at both sides of work table. Totally 4 sets of the milling carriage in one large Edge Milling Machine;
b) Optional: The 5th set of 7.5kW milling head installed at lateral side of work table, for performing edge milling on lateral side of steel plates;
3) Typical Models: GFXBJ-20, GFXBJ-21, and GFXBJ-23.

Technical Parameters of Four to Five Heads Heavy duty Sheet Plate Edge Miller Machine:

Model of Four to Five Heads Large Edge Milling Machine	FXBJ-21/ 22/ 23
Max. Valid Edge Milling Length	21,000mm ~ 23,000 mm
Max. Valid Edge Milling Width	3,000mm ~ 4,000 mm
Moving Stroke of Longitudinal Pressing Beam	1~ 1.2 m
Power and rpm of Lengthways Milling Head	11 kW, 715 rpm, MU-9S
Specification of Lateral Milling Head (Optional)	7.5 kW, fixed 0°, TX-40, 6 grades by handwheel
Hydraulic Motor Power	7.5 kW
Milling Head Quantity	4 sets + 1 set
Spindle rpm of Edge Milling Head	65 ~ 715 r/min., 9 grades by handwheel
Applicable Plate Thickness	6 ~ 80mm/ 100mm
Milling Angle for Top and Bottom Head	0° ~ 85°; -45° ~ 0°
Edge Milling Speed	300 ~ 3000 mm/min.
Lateral Facing Speed (Optional)	130 ~ 800 mm/min. Stepless
Quantity of Hydraulic Jacks	33 ~ 39 pieces
Plate Milling Machine Overall Dimension	30m Length x 9m Width x 4.2m Height

Application Range and Related Equipment of Sheet Metal Plate Edge Milling Machine

1. Extensive Use of Plate Milling Machine:

1) Sharp Tool for Welding Prepare: As universal general purpose Welding Groove Processing Equipment for machining bevels on edges of sheet metal plate, especially carbon steel plate, sheet metal Plate Edge Miller is widely used across industries, where there exist process technology step of steel plates fabrication;
2) Across Field Industries: From Machinery Industry, to Civil Engineering projects such as Bridge Construction, Electricity Power Plant, Military use, Oil Field, Petro Chemical, Vehicle Industry, Port Machinery, Pressure Vessel, Shipbuilding, etc. At all the working facilities of these industries, you can find busy operation of wide variations Plate Milling Machine;

2. Other Machine with Similar Function of Plate Edge Miller as Welding Groove Processing Equipment:

Wuxi JACK produces two other types of machinery, which have the similar function of machining welding grooves on edges of sheet metal plate:

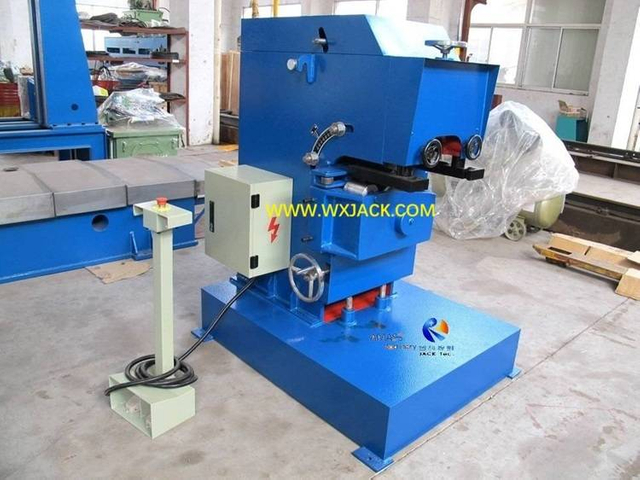

1) GD models Hobbing Cutter, this is for cutting welding groove on small size sheet metal plate;

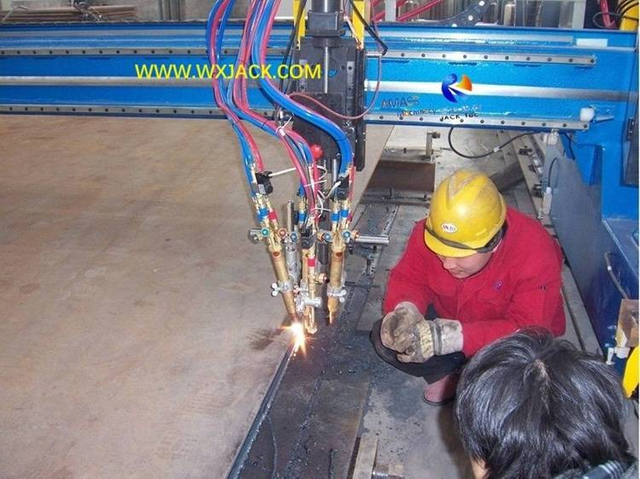

2) Flame Triple Plate Cutting Machine, which cuts out welding groove in the working mode of Oxygen fuel flame cutting, different from high revolution milling cutter in Edge Milling Machine;

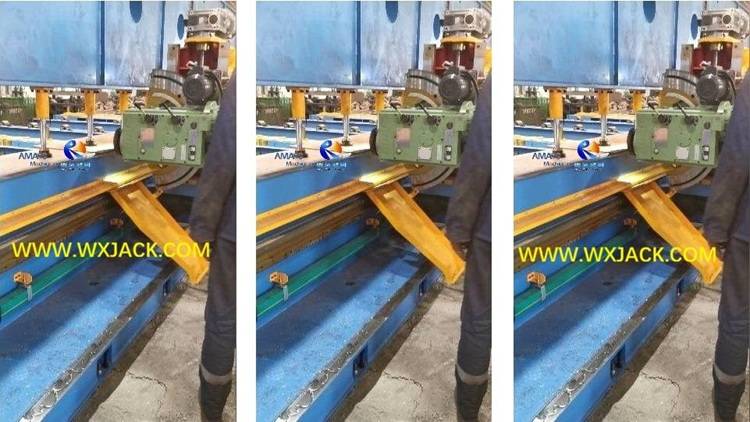

3) Plate Moving type Large Edge Milling Machine: This machine has 55kW milling head, which realizes very high cutting speed and beveling efficiency. The other difference with conventional Plate Edge Miller is its working way: During edge milling, the steel plate moves through the milling area of the Plate Milling Machine in working velocity, and got its both sides milled at the same time;

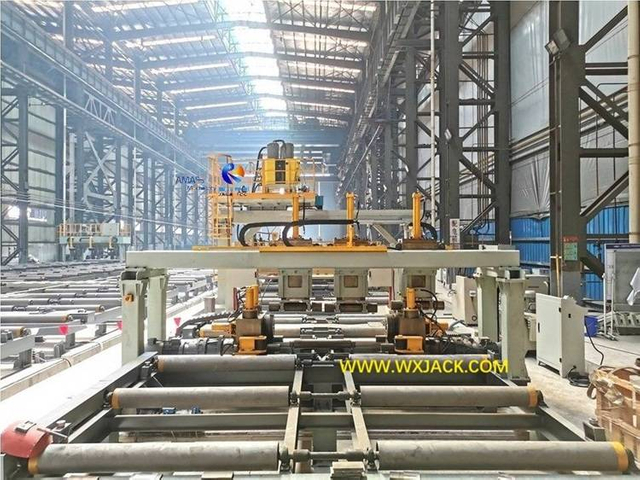

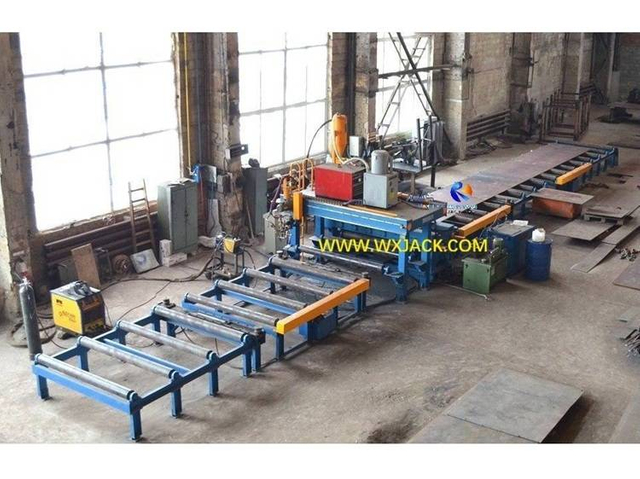

3. Application Sites and Production Lines of Edge Milling Machine:

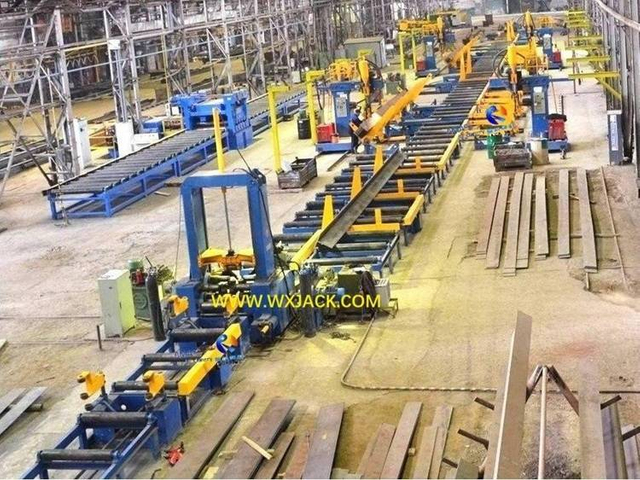

1) Production Lines: Same as CNC Strip Plate Cutting Machine, as a kind of widely used 1st Operation Equipment, Plate Milling Machine is usually deployed at beginning work station of production line, right before welding station. For example, H Beam Production Line, BOX Beam Production Line, T Beam Production Line, Shipbuilding Production Line, and or Special Welding Machine;
2) Special Design: When deployed in these steel structure production lines, considering the specialty of required process step, Wuxi JACK develops a kind of tandem Plate Milling Machine, which is specifically applicable for fulfilling high efficiency both sides of steel plate beveling with its one pass through;
3) Plate Joining: Plate Edge Miller Machine is often applied as pre-machining equipment ahead of welding machines. For example, Plate Butt Joint Welding Machine for fabricating on larger size of steel plate, or Welding Manipulator and Welding Rotator, for implement on circumferential welding on barrels.

GD20 Hobbing Cutter Shearing Machine

CNC-CG5000 CNC Triple Flame Plate Cutting Machine

LHG Large Gantry Welding Machine

MP25 Flat Butt Welding Machine

Plate moving type heavy duty Edge Milling Machine

HGZ20 Self Adjusting Moving type Welding Roller Rotator

HB6 Single Table Welding Positioner

Double Table Turning Welding Positioner

FAQ for Your Interest on Edge Milling Machine

Q What is classification on Wuxi JACK Edge Milling Machine?

A Wuxi JACK designs and produces full range of high standard Edge Milling Machine: Double heads long stroke, single head short stroke, advanced configuration, standard type, custom-made type, etc. Which we will have in detail introduction in the corresponding web pages
Q What are merits of Edge Milling Machine, compared with last generation Planning Machine?

A Compared with traditional Planning Machine, Edge Milling Machine has the same level of machining precision and chamfering speed, but much lower machine quotation and running cost.
Q What is relationship between Edge Milling Machine, Flame CNC Cutting Machine, and Hobbing Cutter Shearing Machine?

A These 3 types of machines are all used for make welding groove on edges of sheet metal plate. In other words, make beveling. Of which, End Milling Machine has the largest applicating volume, because it has wide range of applicable size for workpieces, and high precision, high production efficiency; The Hobbing Cutter Shearing Machine focuses on small size workpiece; And CNC Flame Cutting Machine has the bottom running cost, but produces relative rougher cutting kerf, which need to be trimmed;
Q How to make plate edge milling process more efficient, precise and flexible?

A Plate edge milling machine is commonly used equipment in steel structure and ship building industry. Its usage is to mill plate edge into various size and/or type of bevel/chamfer for the ease of following operation (for example, welding).

Due to its wide application, improving milling precision& efficiency is critical target of machine manufacturer. For this purpose, we improved machine design to better level: Different from the general used milling head of 5.5kW and welded rail in industry, we adopt milling head of 7.5kW and high-precision ball bearing linear guideway, making edge milling process more efficient and better quality, while maintain the same level of machine price as other machine manufacturers.

Our plate edge milling machine takes leading position in terms of performance in market, and gained word of mouth from customers.

Other Series of Products We Own besides Plate Milling Machine

MP20 Automatic Plate Butt Joining Machine with Triple Cutting

DX1520 H Beam End Face Milling Machine for Steel Structure

Assistant Hydraulic Loading SXBJ-16 Sheet Metal Plate Edge Milling Machine

General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine

7-Axis 3000/12 Flame And Plasma Large Scale CNC Pipe Cutting Machine

HB-series Single Table Top Universal Welding Positioner with Chuck

Plate Edge Miller Machine Blogs

A Set of SXBJ-3 Edge Milling Machine Made Shipment to Russia
Capability of the SXBJ-3 Edge Milling Machine the Latest Delivered; General Introduction on Plate Edge Milling Equipment; Wuxi JACK Strength on Plate End Milling Machine Read More
Wuxi JACK make delivery on a set of SXBJ125 Edge Milling Machine
The Specialized Specification and Configuration of Double Heads long stroke SXBJ125 Heavy duty Edge Milling Machine Capability of Double Heads SXBJ125 Heavy duty Edge Milling Machine The Powerful Milling Head Equipped in SXBJ125 Heavy duty Edge Milling Machine The Feeding Unit of Milling Head Column in SXBJ125 Large Edge Milling Machine Read More
Chief Engineer and General Manager of Wuxi JACK attended Industry Conference for Automatic Welding Technique applied in Offshore Oil Machinery
Subject of the Conference on Edge Milling Machine; Equipment involved in LNG Tanks including Edge Milling Machine; Process Technology for Producing LNG Tanks including Edge Milling Machine; The core equipment of Special Welding Machinery for Automatic Argon Arc Welding includes Edge Milling Machine; Application of Edge Milling Machine made by Wuxi JACK in LNG Tank Project Read More

Wuxi JACK Edge Milling Machine,

the Top Grade Sheet Metal Plate Welding Groove Processing Equipment in Industry!

Working Moment and Finished Beveled Steel Plate from Wuxi JACK Sheet Metal Plate Milling Machine

Beveled Steel Plate from Wuxi JACK Edge Milling Machine:

Some Valuable Function Units Only Can be Found in Wuxi JACK Plate Milling Machine:

Wide Variety of Structures/ Sizes/ Configurations Wuxi JACK Sheet Metal Plate Edge Miller Machine

General Technical Specifications of Edge Milling Machine

Working Videos of Wuxi JACK Sheet Metal Plate Milling Machine

Technical Superiorities of Wuxi JACK Plate Edge Miller Machine and High Value for Customer

1. Hydraulic Drive Sheet Metal Automatic Loading and Unloading System in Wuxi JACK Plate Edge Miller Machine:

2. Conveniently Set Up and Precisely Control Milling Angle in Wuxi JACK Edge Milling Machine:

Selecting The Most Proper Design, Structure, Model of Edge Milling Machine

The Finished Beveling made by Wuxi JACK Edge Milling Machine

Check List on Selecting Suitable Sheet Metal Plate Milling Machine

1. The Max. Edge Milling Stroke of Edge Milling Machine:

2. The Types of Bevels to be Edge Milled in Plate Milling Machine:

3. Do Customer have any Special Requirement on Plate Edge Miller Machine?

Brief on Usage and Application of Plate Milling Machine

1. Powerful Welding Groove Processing Equipment with Excellent Quality:

2. Function Units/ Assembly of Wuxi JACK Plate Milling Machine:

3. Position of Wuxi JACK as Supplier Edge Milling Machine in Industry:

Major Category of Wuxi JACK Plate Edge Miller Machine:

1. XBJ Series Single Head Plate Milling Machine

Technical Parameters of XBJ Series Single Head Sheet Plate Milling Machine:

2. SXBJ Series Double Heads Edge Milling Machine:

Technical Parameters of SXBJ Series Double Heads Edge Milling Machine:

3. FXBJ/GFXBJ Series Four to Five Heads Heavy Duty Plate Edge Miller Machine:

Technical Parameters of Four to Five Heads Heavy duty Sheet Plate Edge Miller Machine:

Application Range and Related Equipment of Sheet Metal Plate Edge Milling Machine

1. Extensive Use of Plate Milling Machine:

2. Other Machine with Similar Function of Plate Edge Miller as Welding Groove Processing Equipment:

3. Application Sites and Production Lines of Edge Milling Machine:

FAQ for Your Interest on Edge Milling Machine

Q What is classification on Wuxi JACK Edge Milling Machine?

Q What are merits of Edge Milling Machine, compared with last generation Planning Machine?

Q What is relationship between Edge Milling Machine, Flame CNC Cutting Machine, and Hobbing Cutter Shearing Machine?

Q How to make plate edge milling process more efficient, precise and flexible?

Other Series of Products We Own besides Plate Milling Machine

Plate Edge Miller Machine Blogs
