Subject of This Blog on Angle Steel Straightening Machine:
1) Extensive Use of Angle Steels: You can see Angle Steels everywhere: Warehouse/ Building Construction/ Power Piping/ Industrial Furnace/ Reactor/ Hoisting Machinery...;
2) Physical Features of Angle Steels: As the simplest structure of steel structure members, Angle Steels have cross section of “L” shape and long length, which are rolled into shape. So, it also has names of L steel/ Rolled Angle;
3) Application Characteristics of Angle Steels: Due to its long length and small cross section size, especially those with small thickness, Angle Steels are easily grown deflected and deformed after transportation and storage. So, Rolled Angle Straightening Machine need to used applied to maintain performance level of Angle Steels;
4) Topics Covered in This Blog on Angle Iron Straightening Machine:
Application and Current Status of Rolled Angle Straightening Machine;
Function of and Operation on Angle Iron Straightening Machine;
Working Principle of Angle Bar Straightening Machine;
Technical Features of L Steel Straightening Machine;
Wuxi JACK Leading Edges on Angle Iron Straightening Machine;
Summary on Wuxi JACK Angle Steel Straightening Machine
A. Application and Current Status of Rolled Angle Straightening Machine:
1. Usage of Angle Steel Straightening Machine:
1) Workpieces: L Steel Straightening Machine is a detecting and straightening device designed on bent and deformed Angle Irons;
2) Characteristics: Angle Iron Straightening Machine is a highly efficient equipment with compact size and regular appearance. So, it can be conveniently applied in any working site and workshop with small occupied land area:
3) Wuxi JACK ASM100 Angle Steel Straightening Machine at Russian customer workshop: (Fig.1)
2. Current Status and Advantages of Rolled Angle Straightening Machine:
1) Status-Quo: ASM series Rolled Angle Straightening Machine is relatively newly introduced in the industry. Before using it, Angle Steels straightening is performed with manual work, which has long operating time, tedious process, and inconsistent performance;
2) Advantages of Angle Iron Straightening Machine:
a) Angle Steel Straightening Machine relieves operators from low value-added job, upgrading labor force focusing on creative jobs;
b) Besides, it guarantees quality/ stable performance/ low running cost of Angle Steels straightening;
3) Technical Strong Points of L Steel Straightening Machine:
a) This ASM models Angle Bar Straightening Machine has excellent technical performance, with advantages of high measurement accuracy/ fast production cycle, and strong adaptability on workpieces;
b) L Steel Straightening Machine can accurately measure radial runout of Angle Steel;
c) Wuxi JACK ASM63 Rolled Angle Straightening Machine being in trial run: (Fig.2)
B. Function of and Operation on Angle Iron Straightening Machine:
1. 2 Main Contributions from Angle Steel Straightening Machine:
1) Flattening longitudinal body of Angle Steels: This is its major using purpose;
2) Cleaning Surface: By means of high speed revolution of straightening rollers which squeeze surface of Angle Steels in heavy force, Angle Bar Straightening Machine also helps removing foreign particles/ Dirts/ Rust layer accumulated on surface of L steels;
2. Effect: Through straightening, ideal surface roughness/ flatness/ gloss can be obtained, to ensure working parts reaching installation accuracy;
3. A piece of L200x200x16mm large Angle Steel was being straightened and cleaned out of Wuxi JACK ASM200 Rolled Angle Straightening Machine: (Fig.3)
4. Operating on Angle Iron Straightening Machine:
1) Nature: Angle Steel Straightening Machine is simple and convenient to operate, safe and reliable in performance, and high in production efficiency;
2) Workpiece Loading in and Out: There are input and output conveyors, distributed at inlet and outlet side of the Angle Bar Straightening Machine working frame;
3) Management: This is accomplished with operating pendant and panel of the Angle Steel Straightening Machine;
4) Input and output conveyors of Wuxi JACK L Steel Straightening Machine: (Fig.4)
5) Operating pendant of Wuxi JACK exported to Russia Angle Steel Straightening Machine: (Fig.5)
C. Working Principle of Angle Bar Straightening Machine:
1. Consecutive Straightening with Rollers in Angle Steel Straightening Machine:
1) Theory: ASM series Angle Bar Straightening Machine utilizes up and down 2 rows of straightening rollers as its center device, which forms a longitudinal squeezing cavity for Angle Steels to pass through;
2) Working Unit: These straightening rollers are enclosed into a half-closed frame, which forms major body of the Angle Steel Straightening Machine;
3) The vertical movement of straightening rollersare driven with manual turning in light to medium duty (ASM63/ ASM100 /ASM130), and motor in heavy duty (ASM160/ASM200) L Steel Straightening Machine;

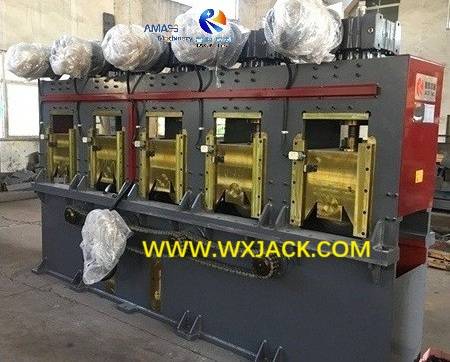

4) Straightening main body of Wuxi JACK ASM200 heavy duty large Angle Steel Straightening Machine: (Fig.6)
2. Straightening Accuracy Management in Rolled Angle Straightening Machine:
1) Initiate: After workpiece is clamped into center of the active and driving rotating center of Angle Steel Straightening Machine, straightening rollers are driven into rotation;
2) Downward Stroke Control: Meanwhile, measuring device connected to Angle Iron Straightening Machine and movable support detects total runout (TIR) of workpiece surface;
3) Measurement ruler of every straightening roller, in Wuxi JACK L Steel Straightening Machine: (Fig.7)
D. Technical Features of L Steel Straightening Machine:
1. General Points: Angle Steel Straightening Machine adopts strict heat treatment and precise machining and on its core units, and “simple” structure on its mechanical body, making sure both high standard stable performance level/ Convenient operation and maintenance, together with stable and reliable work;
2. Mechanical System: Angle Steel Straightening Machine adopts high strength carbon steel plate welding mechanism, which has small size and good rigidity;
3. Durable Straightening Rollers: Rolled Angle Straightening Machine adopts 35 Molybdenum as material of its straightening rollers, which have same service life as the machine itself:
Up (Downward acting convex shape) Straightening roller in Wuxi JACK Angle Steel Straightening Machine: (Fig.8)
4. Adjustment on Straightening Rollers Downward Stroke in L Steel Straightening Machine:
1) This is realized with either worm gear in light to medium duty (ASM63/ASM100/ ASM130);
2) Or motor in heavy duty (ASM160/ ASM200) Angle Bar Straightening Machine, which are installed on top surface of mechanical main frame:
3) Manual turning handwheels for worm gear drive in Wuxi JACK Angle Bar Straightening Machine: (Fig.9)
E. Wuxi JACK Leading Edges on Angle Iron Straightening Machine:
We have 3 major unique owned strong points in our Angle Steel Straightening Machine:
1. Updated 5 Top 4 Bottom Straightening Rollers for Better Effect from Angle Steel Straightening Machine:
1) Traditionally, Angle Steel Straightening Machine adopts structure of 4 top 5 bottom Straightening Rollers arrangement in its straightening cavity. This is easy to be produced, but has problem of Angle Steels both ends up-bend after straightening;
2) To solve this hidden trouble, Wuxi JACK engineering team upgrade design on core unit of the Angle Steel Straightening Machine, delivering best level straightening effect:
3) “Old” 4 top 5 bottom (Left) versus “New” 5 top 4 bottom (Right) Angle Iron Straightening Machine: (Fig.10)
2. Years of Accumulation on Empirical Data for Running L Steel Straightening Machine:
1) In manual book of each model Angle Steel Straightening Machine, we give clear and detailed rule of thumb, on recommended downward stroke, for each piece of straightening roller;
2) Under each thickness of Angle Steels;
3. Powerful Motor Drive in Large Rolled Angle Straightening Machine:
1) For large model ASM160 and ASM200 Angle Steel Straightening Machine, conventional manual turning on handwheels can not attain sufficient and ideal straightening effect, even operated by male operator;
2) To relieve operators from hard work and guarantee straightening effect, we use motor drive in ASM160 and ASM200 large Angle Steel Straightening Machine: (Fig.11)
F. Summary on Wuxi JACK Angle Steel Straightening Machine:
1. Wuxi JACK Position: As can be drawn conclusion from above discussion, Wuxi JACK takes leading positioning in supplying various models ASM series Angle Steel Straightening Machine for customers;
2. Wuxi JACK Strong Points: Over the past decade, our Angle Iron Straightening Machine has outstanding performances, covering every aspect: Selling volume/ Technical ability/ Daily running and maintenance/ Quotation and running cost/ After-sale service.
